Every woodworking machine your factory needs — from one supplier

Cabinet shops, modular kitchen factories and panel-machining houses across India source their machinery from Caple. Sliding panel saws, CNC routers, edge banders, multi-boring machines, hot presses, dust collectors and Lamello connectors — one supplier, one demo centre visit, one service team.

15+ Brands	3,000+ SKUs	4.5+ Google rating	48 hrs Service SLA

Get pricing & book a free demo.
Call your regional executive or WhatsApp us — reply within one working day. Visit our Demo Centres in Pelhar and Delhi.

CALL WHATSAPP EMAIL

West & South: +91 70454 59931 · North: +91 99993 94047 · East: +91 95994 87490

✓ Authorised distributor · Premium global brands

★4.5+ Google rating · 120+ reviews

⛰ Free demos · Pelhar & Delhi Demo Centres

⚙ Pan-India service · 3 regional teams

Why Caple for this category

Three reasons it pays for itself

Feature	Advantage	Benefit
Single-source supply	Get your CNC router, edge bander, panel saw and dust collector from one team that owns the BOM.	Cut procurement cycles by 60-70%. One PO, one delivery, one warranty.
Pelhar & Delhi Demo Centres	Run the machine before you buy. Cut your panel, watch the edge band lay, hear the spindle.	No surprises post-installation. Confidence in capex decisions.
In-house consumables & service	Edge tape, blades, drill bits, dust filters and clamps from the same supplier as the machine.	No stockout downtime. Pan-India service network with 48-hour SLA.

FAQ

Buying questions answered

Which brands do you carry? Nanxing (CNC, edge banders, panel saws), SCM Italy (premium CNC and joinery), Festool (precision portable), Lamello Switzerland (biscuit joiners and P-System connectors), Bessey Germany (clamps), Orma, Vitap, Kuper and others. All authorised India distribution.

Do you sell to small workshops or only large factories? Both. Caple supplies single-machine retail roll-out shops, multi-unit kitchen factories, and large panel-machining houses across India, Subcontinent, Middle East and Africa.

How long is delivery typically? Stock items in India: 7-14 working days. Imported on-order CNC and edge banders: 8-12 weeks ex-factory. Caple holds buffer stock on fast-moving Nanxing and Bessey items.

Do you offer financing or leasing? Yes. Caple works with leading equipment financers for 36-60 month lease and EMI structures. Talk to your regional executive for indicative rates.

What is your service coverage in India? 3 regional teams cover West & South (Anwar Hussain), North (Sagar Sharma) and East (Zenith Thomas). Sub-48 hour response in metros, 72 hours in tier-2 cities.

Caple Industrial Solutions — Woodworking machinery, consumables & service for India, Subcontinent, Middle East and Africa. web@caple.in · Brands: Nanxing, SCM, Festool, Lamello, Bessey, Orma, Vitap, Kuper.

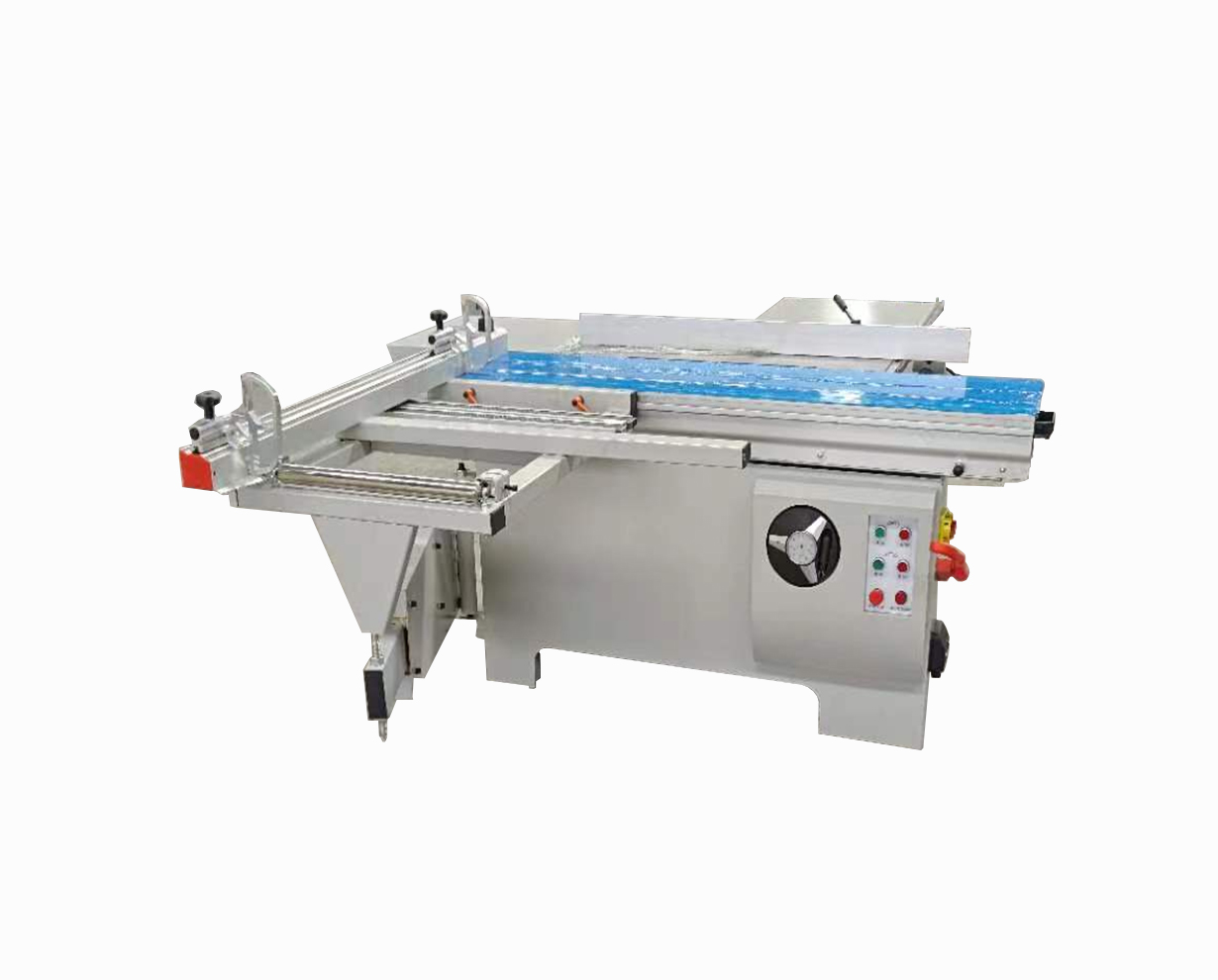

Sliding Table Panel Saw PS315BR with Simple Guard | Angle Cutting Device | 3000mm Table | 975mm Rip Cut | 93mm Max Height Cut | Single Speed | 4KW

TECHNICAL DATA:

Main Blade Diameter : 315 mm
Main Blade Speed : 3400 rpm / 50 Hz
Scoring Blade Diameter : 120 mm
Scoring Blade Speed : 7600 rpm / 50 Hz
Blade Tilt : 0–45°
Max Depth of Cut @ 45° : 65 mm
Max Depth of Cut @ 90° : 93 mm
Max Rip Capacity : 975 mm
Sliding Beam Size : 3000 × 360 mm
Sliding Beam Cutting Capacity : 3000 mm
Blade Rising : Manual
Blade Tilting : Manual
Table Size : 819 (374+650) mm
Dust Extraction Outlet : 100 mm
Main Motor Output : 4 kW S1
Net / Gross Weight : 452 / 527 kgs
Package Size : 2005 × 1140 × 870 mm, 3326 × 470 × 188 mm

₹275,000.00 ₹343,750.00

CNC Nesting Machine with AL&UL NCG2812LE(AC) with 12kw Spindle with Drill Head

FEATURES:

1pc Vacuum Pump
Automatic Loading
Pre-Positioning Vacuum Cup
Vacuum cup and roller bracket
Rotatable Labelling
Movement of each axis Servo motore
Automatic Greasing
Side Positioning Cylinders & Positioning Cups
12 kw main Spindle + V10 Drilling block
Automatic Line Tool Changer 12 Slots
Unloading Pusher
Rear Positioning Cylinders and Dust Collector
Auto Unloading
Start/Stop Button on gantry
Tank Cable Chain
Tool Setting gauge and locker
Hand Wheel and Foot Switch
Computer with Windows Dell Display USB Port & easy for remote assistance
Control System
Optimizing Software
Workpiece Editor Software
Online Optimization Software (One Year free of charge)
Pressure Roller
2no. Standard Tool Holder
FCC
Air Conditioner for Control Cabin

TECHNICAL SPECIFICATIONS:

Control system : SYNTEC
Working range X : X-axis: 2,800 mm
Working range Y : Y-axis: 1,220 mm
Working range Z : Z-axis: 50 mm
Working table : Size: 2,800×1,220 mm Height: 950mm
Max. traveling speed X : X-axis: 100 m/min
Max. traveling speed Y : Y-axis: 100 m/min
Max. traveling speed Z : Z-axis: 200 m/min
Main spindle Quantity : 1
Main spindle Power : 12 kW
Main spindle Tool Holder : ISO30
Main spindle Tool Speed : 24000 rpm
ATC : Servo control Line tool changer with 12 slots
Vacuum pump Quantity : 1
Vacuum pump Power : 7.5 kW
Vacuum pump Suction flow rate : 250 m3/h
Dust extraction Diameter : 150 mm*1x125mm*3 Speed required: 28 m/s
Air supply : 6-7 kg/cm2
Power supply : 415V, 3-phase, 50 Hz
Total power : 27.31 kW
Floor space : L×W×H: 11000×2460×2500 mm
Net weight : 4,600 kg

₹2,800,000.00 ₹3,500,000.00

Nanxing CNC 6-Sided drilling machine ND510S 415V | AC | Grooving Saw Blade | Air Jet for Gripper | Thickness Sensor

FEATURES

• Long clamp beam & fast clamps – 3.3 m

• Infeed air float table – 500 × 1613 mm

• Feed-out table – 500 × 1613 mm

• Positioning system

• Accurate movement of each axis (X, Y, U) transported by inclined rack and pinion

• Auto greasing

• Board length detector

• Processing unit

• Quick-change tool

• Cable chain

• Minimum processing size

• Stack processing

• Hand controller

• Start button & pedal switch

• E-stop & pause bar

• Industrial computer

• Control system

• Excellent electrical components

• Bar-code reader

• User-friendly operation

• File format support

• Air conditioner on control cabinet

• Air jet for gripper

• Board thickness sensor

Technical Data

• Total Power: 13.87 kW

• Machine Size: 3962 × 2222 × 2271 mm

• Power Supply: 415 V / 50 Hz

• Air Supply: 0.6–0.7 MPa

• Control System: SYNTEC

• Panel Length: 200–3,000 mm

• Panel Width: 30–1,000 mm

• Panel Thickness: 10–60 mm

• Max. Travelling Speed – X/U axis: 135 m/min

• Max. Travelling Speed – Y axis: 75 m/min

• Max. Travelling Speed – Z axis: 30 m/min

• Max. Travelling Speed – V axis: 30 m/min

• Working Table Material: HPL

• Working Table Size: 1232 × 275 mm

• Working Table Height: 955 mm

• Drilling Block Qty: Top 1 + Bottom 1

• Vertical Drills Qty (Top): 10

• Horizontal Drills Qty (Top): X: 6 + Y: 4

• Vertical Drills Qty (Bottom): 9

• Max. Drill Diameter: Φ35 mm

• Drill Spacing: 32 mm

• Drill Rotation Speed: 5000 rpm

• Shank Diameter: Φ10 mm

• Drill Length: 70 mm

• Main Spindle: 1 × 3.5 kW (Top)

• Dust Collector Qty: 2

• Dust Collector Diameter: Top 200 mm × 1 + Bottom 125 mm × 1

• Dust Collector Speed: ≥28 m/min

₹2,300,000.00 ₹2,875,000.00

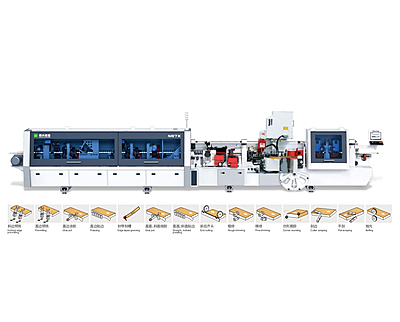

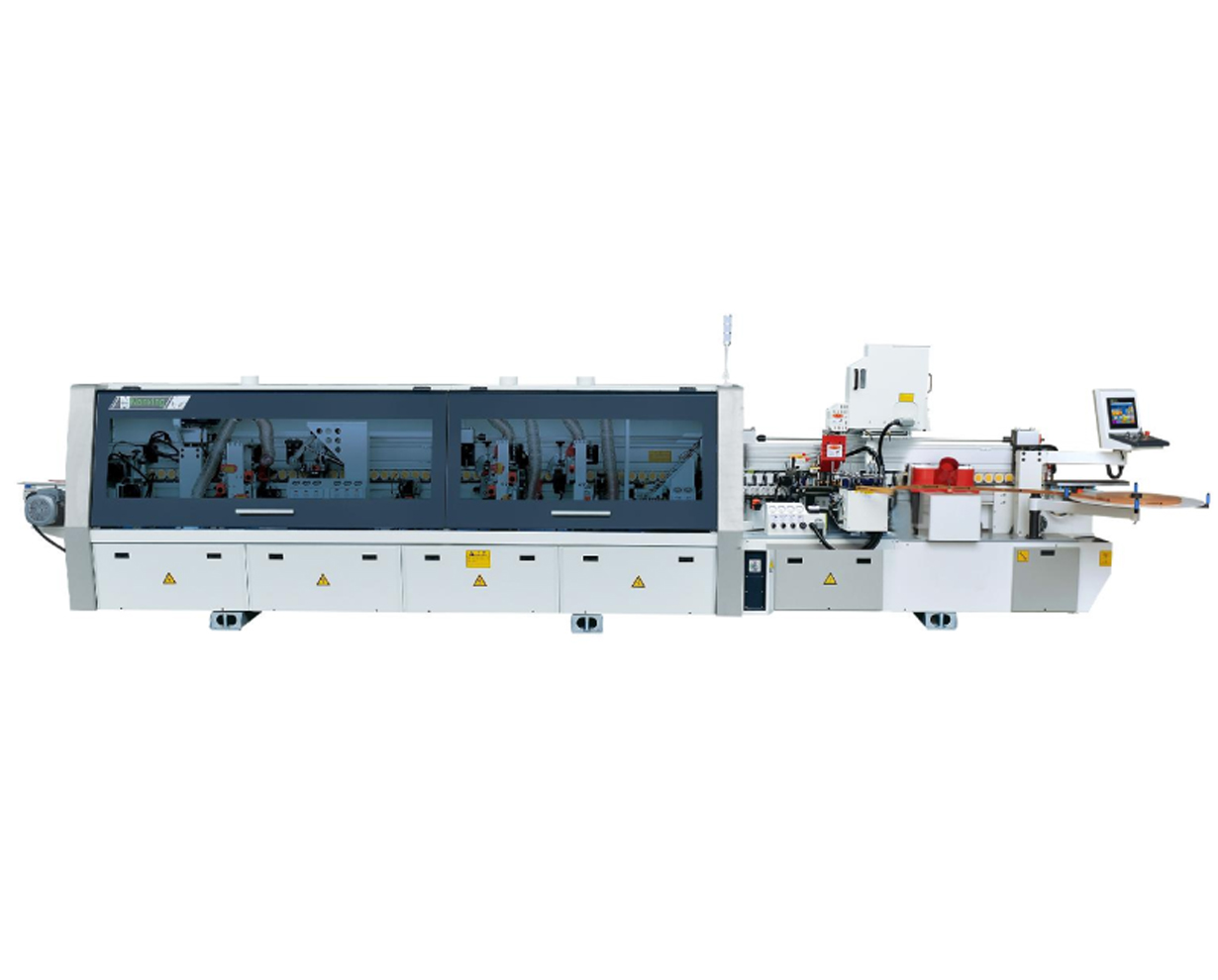

Nanxing Edge Banding Machine NB670N-415V for Narrow Parts | PUR | 2 Color PUR Heater | Flat Scrapping

FEATURES

TECHNICAL DATA:

Panel Length : ≥200mm
Panel Width : ≥40mm (45mm when corner trimming)
Panel Thickness : 9-60 mm
Edge Tape Thickness : 0.4-3 mm
Feeding Speed : 16/20/24 m/min (16 m/min for corner trimming)
Min. Panel Size : 200∗40∗9mm (Long) / 200∗45∗9mm (Short)
Dust Collector : ϕ125mm×4
Total Power : 22.4 Kw
Overall Dimension : 7,700×1,450×1,650mm
Weight : Approx. 2,800 kg
Power Supply : 415 V; 50 Hz
Air pressure required: 0.7MPa
Operation system 10’’ touch screen
Dust collector Φ125mm×4
Total power: 22.4 Kw
Approx. weight: 2,800 kg
Overall dimension: 7,700*1,450*1,650 mm

₹2,700,000.00 ₹3,375,000.00

Nanxing Edge Banding Machine NB670N-415V for Narrow Parts | Pre Melter | Pneumatic adjust gate

FEATURE

TECHNICAL DATA:

Panel Length : ≥200mm
Panel Width : ≥40mm (45mm when corner trimming)
Panel Thickness : 9-60 mm
Edge Tape Thickness : 0.4-3 mm
Feeding Speed : 16/20/24 m/min (16 m/min for corner trimming)
Min. Panel Size : 200∗40∗9mm (Long) / 200∗45∗9mm (Short)
Dust Collector : ϕ125mm×4
Total Power : 22.4 Kw
Overall Dimension : 7,700×1,450×1,650mm
Weight : Approx. 2,800 kg
Power Supply : 415 V; 50 Hz
Air pressure required: 0.7MPa
Operation system 10’’ touch screen
Dust collector Φ125mm×4
Total power: 22.4 Kw
Approx. weight: 2,800 kg
Overall dimension: 7,700*1,450*1,650 mm

₹2,500,000.00 ₹3,125,000.00

Nanxing Edge Banding Machine for Inclined Edge with Pre Melter | Pneumatic adjust gate

FEATURE:

Conveyor
Release agent sprayer
Bevel edge milling
Straight edge pre-milling
Pre-heating
Edge tape grooving device
Pre-melter gluing system
Pneumatic Adjust Gate (Controlled By Cylinder)
Auto glue pumping + 25kg glue basin
Bevel and straight gluing
Hot air blowing gun
Edge tape pressing
Lubrication system
End trimming
Rough Trimming unit
Fine trimming unit
Corner trimming unit
Profile scraping unit
Flat scraping
Clean agent spray
Buffing
Dust collection
Safety device
Remote Switch
Control system
Energy saving
Electric equipment
Processing diagram

TECHNICAL DATA:

Panel Length : ≥150mm
Panel Width : ≥120mm (inclined) / ≥150mm (straight)
Panel Thickness : 9-50mm (straight) / 15-25mm (half bevel) / 15-25mm (fully bevel)
Edge Tape Thickness : 0.4-2mm
Feeding Speed : 14/18m/min
Min. Panel Size : ≥150×120mm
Dust Collector : Φ125mm×6
Total Power : 42kw
Overall Dimension : 9,800×1,050×1,650mm
Net Weight : 3900kg

₹3,650,000.00 ₹4,562,500.00

Nanxing Edge Banding Machine NB671EMN(NB7CJMN) for Narrow Edges | Pre Melter | Pneumatic adjust gate | 2 Colour PUR

FEATURE

Top presser
Conveyor
Pre-milling
Assistance for narrow edge
2 sets of pre-heating
2 sets of gluing units
2 sets servo edge tape feeders
2 sets of pressure rollers
Lubrication system
End trimming
2 sets of fine trimming units with 2 position pneumatic one set with R1.5 & other with R1
Corner trimming unit
Dust collection
2 sets of scraping units with 2 position pneumatic with R1.5 & other with R1
Off cut device and flat scraping
2 sets of buffing units
Safety device
Remote switch and indicator light
Control system
Energy saving
Production report
Electric equipment
Narrow workpiece solution

TECHNICAL DATA:

Narrow Long Edge : 40×200×9mm
Narrow Short Edge : 45×200×9mm
Panel Thickness (Narrow Edge, Corner Trim On) : ≤25mm
Panel Thickness : 9-60mm
Edge Tape Thickness : 0.4-3mm
Feed Speed : 16/18/20m/min
Feed Speed (Narrow Edge, Corner Trim On) : 16m/min
Dust Extraction : Φ125mm×5
Total Power : 30.1kw
Overall Dimension : 9800×1450×1650mm
Net Weight : 3670kg

₹3,300,000.00 ₹4,125,000.00

Nanxing Edge Banding Machine NB360(NB5X-415V) for Inclined Edges

FEATURES:

Top presser
Conveyor
Release agent sprayer
Bevel edge milling
Straight surface Pre-milling
Pre-heating
Half bevel tape feed and edge tape grooving device
Bevel and straight gluing
Edge tape pressing
Hot air blowing gun
Lubrication system
End cutting
Rough Trimming unit
Bottom Fine trimming unit
Bottom Profile scraping unit
Flat scraping
Clean agent sprayer
Buffing
Dust collection
Remote switch and indicator light
Safety device
Cover door and dust collector
Control system
Energy saving
Production report
Electric equipment

TECHNICAL DATA:

₹2,050,000.00 ₹2,562,500.00

CNC 6-Sided drilling machine ND512TS 415V | AC | Lamello Saw Blade | Double-head aggregate | Air Jet for Gripper

FEATURES:

TECHNICAL DATA:

Total Power : 21.07kw
Machine Size : 3962×3010×2320mm
Power Supply : 415V/50Hz
Air Supply : 0.6-0.7MPa
Control System : SYNTEC
Panel Length : 200-2,800mm
Panel Width : 30-1,220mm
Panel Thickness : 10-60mm
Max. Travelling Speed X/U axis : 135m/min
Max. Travelling Speed Y axis : 75m/min
Max. Travelling Speed Z axis : 30m/min
Max. Travelling Speed V axis : 30m/min
Drilling Block Qty : Top 1 + Bottom 1
Vertical Drills Qty (Top) : 10
Horizontal Drills Qty (Top) : X: 2×2 + Y: 2×2
Vertical Drills Qty (Bottom) : 9
Max Drill Diameter : Φ35mm
Drill Spacing : 32mm
Drill Rotation Speed : 5000rpm
Shank Diameter : Φ10mm
Drill Length : 70mm
Top Main Spindle : 1×5.5kw ER32 ATC4 18000rpm
Bottom Main Spindle : 1×3.5kw ER25 18000rpm
Saw Blade Power : 1.7kw
Saw Blade Size : Φ100×Φ22×δ4
Saw Processing Range : 50-1200mm
Dust Collector Qty : 3
Dust Collector Diameter : Top 200mm×2 + Bottom 125mm×1
Dust Collector Speed : ≥28m/min

₹2,900,000.00 ₹3,625,000.00

Nanxing CNC Nesting Machine NCG2812E without Drill Block & Optimization NACC | 9KW | AC | Pressure Roller

FEATURE

1pc vacuum pump
Movement of each axis
Automatic greasing
Side positioning cylinders
9kw main Spindle
Automatic Line tool changer with 12 slots
Start/Stop Button on gantry
Tank cable chain
Tool setting gauge and locker
Hand controller
Electric equipment
SYNTEC Control System
Pressure Roller
Air conditioner on control cabinet

TECHNICAL DATA:

Control System : SYNTEC
Working Range X-axis : 2,800mm
Working Range Y-axis : 1,220mm
Working Range Z-axis : 50mm
Working Table Size : 2,800×1,220mm
Working Table Height : 950mm
Max. Travelling Speed X-axis : 100m/min
Max. Travelling Speed Y-axis : 100m/min
Max. Travelling Speed Z-axis : 20m/min
Main Spindle Power : 9kw
Main Spindle Rotating Speed : 24,000rpm
Tool Holder Type : ISO30
ATC : Line tool changer with 12 slots
Vacuum Pump Qty : 1
Vacuum Pump Power : 7.5kw
Suction Flow Rate : 250m³/h
Dust Extraction : Φ150mm×1 + Φ125mm×1; 28m/s
Air Pressure Required : 6~7 kg/cm²
Power Supply : 415V/50Hz
Total Power : 24kw
Floor Space : 4,220 x 2,270 x 2,500mm
Net Weight : 2,500kg

₹1,550,000.00 ₹1,937,500.00

Nanxing CNC Beam Saw NPC280-18.5KW 9 Gripper | Opticut | Label Printer | Blade Set | AC | Grooving

FEATURES:

TECHNICAL DATA:

Max. Cutting Length : 2,780mm
Max. Cutting Thickness : 120mm
Main Saw Motor Power : 18.5kw
Main Saw Rotating Speed : 3,910rpm/min
Main Saw Blade Diameter : Φ380mm (max Φ400)
Main Saw Blade Shaft Diameter : Φ60mm
Scoring Saw Rotating Speed : 4,300rpm/min
Scoring Saw Blade Diameter : Φ200mm
Scoring Saw Blade Shaft Diameter : Φ45mm
Saw Carriage Motor Power : 2kw
Forward Speed : 90m/min
Backward Speed : 120m/min
Automatic Feeding Motor : 2kw
Max. Feeding Speed : 85m/min
IPC : 15'' Windows 7 | USB port: 4 pcs
Air Requirement : 0.6 MPa
Dust Extraction : Φ150mm×3; 28m/min
Power Supply : 415V/50HZ/3P
Total Power : 27.7kw
Overall Dimension : 6,400×4,995×1,830mm
Net Weight : 4,800kg

₹2,700,000.00 ₹3,375,000.00

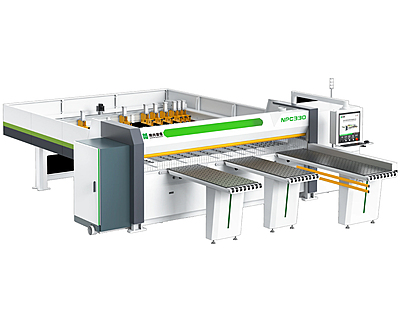

Nanxing CNC Beam Saw NPC330-18.5KW | 3 Longer Air Table | Opticut | Label Printer | Blade Set | AC | Grooving

• Features

• Machine body

• Professional assembly line

• Quality control

• Steel table plate

• Air float feed table

• Side operation rod

• Pressure beam

• Hand protector

• Piano dust cover

• Servo side alignment

• Gripper

• Anti-dropping device

• Integrated saw carriage

• Full covered fence

• Dust collection

• Automatic lubrication system

• Machine control

• Operation software

• Control cabinet

• Optimizing software Auto CUT

• Long air floating tables

• Label Printer

• Servo grooving function

• Air conditioner on control cabinet

TECHNICAL DATA

• Max. Cutting Length : 3,270mm

• Max. Cutting Thickness : 120mm

• Main Saw Motor Power : 18.5kw

• Main Saw Rotating Speed : 3,910rpm/min

• Main Saw Blade Diameter : Φ450mm

• Main Saw Blade Shaft Diameter : Φ60mm

• Scoring Saw Rotating Speed : 4,300rpm/min

• Scoring Saw Blade Diameter : Φ200mm

• Scoring Saw Blade Shaft Diameter : Φ45mm

• Saw Carriage Motor Power : 2.2kw

• Forward Speed : 90m/min

• Backward Speed : 120m/min

• Automatic Feeding Motor : 2kw

• Max. Feeding Speed : 85m/min

• IPC : 21.5'' Windows 7

• Air Requirement : 0.6 MPa

• Dust Extraction : Φ150mm×3; 28m/min

• Power Supply : 415V/50Hz/3P

• Total Power : 27.7kw

• Overall Dimension : 6,900×5,400×1,820mm

• Net Weight : 4,850kg

₹2,900,000.00 ₹3,625,000.00

Nanxing CNC Beam Saw NPC280-18.5KW | Opticut | Label Printer | Blade Set

• Features

• Air float feed table

• Side operation rod

• Pressure beam

• Hand protector

• Piano dust cover

• Side alignment

• Gripper

• Anti-dropping device

• Saw unit

• Dust collection

• Automatic lubrication system

• Machine control

• Optimizing software NXPareto

• Operation software

• Control cabinet

• Printer

• Opticut software

TECHNICAL DATA

• Panel Dividing Saw NPC280

• Max. Cutting Length : 2,780mm

• Max. Cutting Thickness : 120mm

• Main Saw Motor Power : 18.5kw

• Main Saw Rotating Speed : 3,910rpm/min

• Main Saw Blade Diameter : Φ380mm (max Φ400)

• Main Saw Blade Shaft Diameter : Φ60mm

• Scoring Saw Rotating Speed : 4,300rpm/min

• Scoring Saw Blade Diameter : Φ200mm

• Scoring Saw Blade Shaft Diameter : Φ45mm

• Saw Carriage Motor Power : 2kw

• Forward Speed : 90m/min

• Backward Speed : 120m/min

• Automatic Feeding Motor : 2kw

• Max. Feeding Speed : 85m/min

• IPC : 15'' Windows 7 | USB port: 4 pcs

• Air Requirement : 0.6 MPa

• Dust Extraction : Φ150mm×3; 28m/min

• Power Supply : 415V/50HZ/3P

• Total Power : 27kw

• Overall Dimension : 6,400×4,995×1,830mm

• Net Weight : 4,800kg

₹2,600,000.00 ₹3,250,000.00

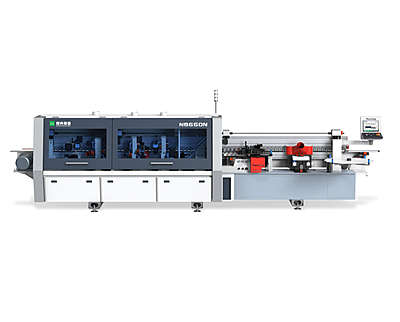

Nanxing Edge banding Machine with Pre melt | Pneumatic adjust gate

FEATURES:

Pre-milling
Pre-heating
Glue pot
Edge tape supporter
Snipping
Pressure rollers
Lubrication system
End cutting
Fine trimming
Corner trimming unit
Scraping
Buffing
Dust collection
Safety device
Remote switch & Indicator light
Cover door and dust collector
Control system
Energy saving
Production report
Electric equipment

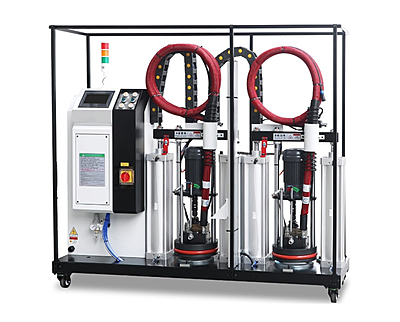

Pre-melter gluing system
Pneumatic Adjust Gate (Controlled By Cylinder)

TECHNICAL DATA:

₹2,050,000.00 ₹2,562,500.00

Flatbed CNC routing machines T9-1530-VT [ Vacuum table, 4 zones | 15003000200 | Servo Motor | HQD 6 KW ]

TECHNICAL SPECIFICATIONS:

Vacuum table, 4 zones

₹600,000.00 ₹750,000.00

Flatbed CNC routing machines T9-1530-MT [ Alu+T slot+PVC | 15003000200 | Servo Motor | HQD 6 KW ]

TECHNICAL SPECIFICATIONS:

Aluminum profile table+T slots+PVC

₹550,000.00 ₹687,500.00

Flatbed CNC routing machines T9-1325-VT [ Vacuum table, 4 zones | 13002500200 | Servo Motor | HQD 6 KW ]

TECHNICAL SPECIFICATIONS:

Vacuum table, 4 zones

₹550,000.00 ₹687,500.00

Flatbed CNC routing machines T9-1325-MT [ Alu+T slot+PVC | 13002500200 | Servo Motor | HQD 6 KW ]

TECHNICAL SPECIFICATIONS:

Aluminum profile table+T slots+PVC

₹450,000.00 ₹562,500.00

Nanxing CNC 6-Sided Drilling Machine ND612DTSL with feeding conveyor systems

FEATURES

Long clamp beam & fast clamps 5.5m longer high-rigidity clamp
Feed-in & out table
Positioning Side aligner & Support / press plates
Board length, width detector
6 slots tool changer
Tool setting gauge
5.5kw+3.5kw main spindle
Top drilling block 1 boring blocks 2.2kw,
Optimized drilling blocks layout +saw blade
2 boring blocks 2.2kw with Vertical drills: 19+19
Independent grooving saw 1.7kw; Saw blade size:Ф100*Ф22*δ4 fixed in X direction.
Bottom drilling block 1.6kw 9 vertical drills
Min. processing Panel length: 200-3000mm / Panel width 30-1200mm
Stack processing
Side Grooving
Machine is configured with Lamello aggregate & tool
Anti-handling device for infeed table
3No. Dust collection port
Hand controller
Control system
Windows 10 operating system
Control interface is modern and friendly
Manual programming interface
Simulation function
Easy tools setting
Statistics function
Bar-code reader
File format support (MPR, DXF, BAN, BPP, PDX; XML; XX)
Side routing-One head aggregate
Board thickness sensor
Air jet for Grippe
A-02 Conveyor BCC3015 1No.
A-03 Controlling System 1No.
A-04 -. Auto Scanner 1No.

₹5,850,000.00 ₹7,312,500.00

Nanxing Edge Banding Machine NB671DNC with Auto conveyor systems

Workpiece dimensions: the range of maximum and minimum workpiece sizes supported by this solution.
L:250-2850mm, W:80-1200mm, T:10-40mm

The operating mode of the edge banding rotary section (rotation or transfer to the drilling station) is switched and controlled manually.

No centralized control system, supervisor, or main supervisor is included.

INCLUDES:

A-01- Edge Banding Machine NB671DNC 1No.
A-02 - Conveyor BCC3517 1No.
A-03 - Conveyor BCC3015 1No.
A-04 - Conveyor BNC2513 1No.
A-05 - Conveyor BC3515 1No.
A-06 - Conveyor BC3015 1No.
A-07 - Conveyor BC3015 1No.
A-08 - Air Floating Table AF2012 1No.
A-09 - Air Floating Table AF1306 1No.
A-10 - Air Floating Table AF2006 1No.
A-11 - Controlling System 1No.

₹8,650,000.00

Nanxing Edge Banding Machine NB671DNC & CNC 6-Sided Drilling Machine ND612DTSL with Auto conveyor systems

INCLUDES:

A-01- Edge Banding Machine NB671DNC 1No.
A-02 - Conveyor BCC3517 1No.
A-03 - Conveyor BCC3015 1No.
A-04 - Conveyor BNC2513 1No.
A-05 - Conveyor BC3515 1No.
A-06 - Conveyor BC3015 1No.
A-07 - Conveyor BC3015 1No.
A-08 - Air Floating Table AF2012 1No.
A-09 - Air Floating Table AF1306 1No.
A-10 - Air Floating Table AF2006 1No.
A-11 - Controlling System 1No.
A-12 - Buffering Conveyor ACCD330 1No.
A-13 - 6-Sided Drilling Machine ND612DTSL 1No.

₹16,300,000.00

Nanxing CNC 6-Sided Drilling Machine ND61DTSL 415V

FEATURES

Long clamp beam & fast clamps 5.5m longer high-rigidity clamp
Feed-in & out table
Positioning Side aligner & Support / press plates
Board length, width detector
6 slots tool changer
Tool setting gauge
5.5kw+3.5kw main spindle
Top drilling block 1 boring blocks 2.2kw,
Optimized drilling blocks layout +saw blade
2 boring blocks 2.2kw with Vertical drills: 19+19
Independent grooving saw 1.7kw; Saw blade size:Ф100*Ф22*δ4 fixed in X direction.
Bottom drilling block 1.6kw 9 vertical drills
Min. processing Panel length: 200-3000mm / Panel width 30-1200mm
Stack processing
Side Grooving
Machine is configured with Lamello aggregate & tool
Anti-handling device for infeed table
3No. Dust collection port
Hand controller
Control system
Windows 10 operating system
Control interface is modern and friendly
Manual programming interface
Simulation function
Easy tools setting
Statistics function
Bar-code reader
File format support (MPR, DXF, BAN, BPP, PDX; XML; XX)
Side routing-One head aggregate
Board thickness sensor
Air jet for Grippe
DC3015L Roller Conveyor
DCC3015L Roller Conveyor
DC3515L Roller conveyor
Electrical control system
Barcode scanner and its components

TECHNICAL SPECIFICATIONS:

Total power : 26.63Kw+3KW
Power Supply 415V/50Hz/3PH
Total weight : 3,850Kg
Panel size : Length 200-3,000mm
Panel size : Width 30-1,200mm
Panel size : Thickness 10-60mm
Max. traveling speed : X /U axis 135m/min
Max. traveling speed : Y axis 75m/min
Max. traveling speed : Z axis 30m/min
Transmission mode : X axis Rack and pinion
Transmission mode : Y axis Rack and pinion
Transmission mode : Z axis Ball screw rod
Boring blocks qty : Top 2; Bottom 1
Boring blocks Vert. drills qty (top) : 19*2
Boring blocks Horiz. drills qty (top) : X: 3× 4 + Y: 2× 4
Boring blocks Vert. drills qty (Bottom) : 9
Boring blocks Max drill diameter : Φ35mm
Boring blocks Drill spacing : 32mm
Boring blocks Rotation speed : 5000rpm
Boring blocks Shank diameter : Φ10mm
Main spindle qty : Top tool ER32 holder ISO30 ; Bottom tool collet ER25
Main Spindle power : 5.5kw*1 ; 3.5kw×1 max.18000rpm
Saw blade : Power 1.7kw
Saw blade : Size Ф 100*Ф 22*x 4
Saw blade : Processing range 50-700mm
Dust collector : qty 2
Dust collector : diameter
Dust collector : Top 200mm×2
Dust collector : Lower 125mm×1
Dust collector : speed ≥28m/min

₹7,050,000.00 ₹8,812,500.00

Nanxing CNC Nesting Machine NCG3021LE with [AL+UL | 12KW Spindle | V10 Drill | FCC+Editor | Pressure Roller]

FEATURE:

Automatic loading
Stack height (without pit)
The hydraulic pump power is 5.5kw.
Pushing device
Electric cabinet
Printer
The table base size is 3000*2100mm.
The working height is 900-950mm. The size is 3000*2100mm.
Vacuum pump 2pcs 7.5kw oil cooling vacuum pumps.
Gantry frame
Transmission method for the X and Y axes is Rack and pinion, while the Z axis uses a Screw.
The maximum movement speed for the X and Y axes is 100m/min, and for the Z axis is 20m/min.
Processing stroke: X axis: 3100mm; Y axis: 2100mm; Z axis: 200mm.
Servo motor power: X axis: 2*1.3kw; Y axis: 1*1.3kw; Z axis: 1*1.3kw.
Spindle 12KW | ER32 | 2400rpm | ISO030
12 in-line automatic tool magazine.
Lubricating
Dust removal device and unloading pusher
Tank drag chain
Auto unloading Table size: 3200*2200mm; Motor: 1*0.75kw.
Dust collector outlets are 1*150Dia. and 3*125 Dia.
Electric cabinet
Control System SYNTEC
Electric equipment
The computer consists of an IPC with Windows operating system, a DELL display, and a USB port.
A hand wheel and foot switch are provided to make commissioning more convenient.
Pressure roller
V10 drilling bloc
FCC + Editor
Additional 7.5kw vacuum pump

TECHNICAL DATA

Control system : 1 spindles controller
Working range : X-axis: 3,100 mm
Working range : Y-axis: 2,100 mm
Working range : Z-axis: 200 mm
Working table size : 3100 x 2100 mm x H900mm
Max. traveling speed : X-axis: 100 m/min
Max. traveling speed : Y-axis: 100 m/min
Max. traveling speed : Z-axis: 20 m/min
Main spindle : 12KW*1 , 2400rpm / ER32
Servo motor : X axis: 1.3kw*2
Servo motor : Y axis: 1.3kw
Servo motor : Z axis: 1.3kw
Vacuum pump : 3*7.5kW Suction flow rate: 250 m3/h
Dust collector outlets are 1*150 Dia and 3*125 Dia
Speed rate : 30 m/s
Air pressure required: 6~7 kg/cm2
Power supply Voltage: 415V, 3-phase / 50Hz
Total Power Supply 39.7kW
Floor space LxWxH: 11,800x3,350x2,500 mm
Net Weight : 6000KG

₹5,250,000.00 ₹6,562,500.00

Nanxing Edge Banding Machine for narrow parts NB671DNC

FEATURES:

• Narrow Panel Feeding Auxiliary Device,

• Release Agent sprayer

• Pre-Milling

• Pre-Heating

• 2-Color PUR Gluing System

• Pre-melt gluing units

• Tape Feeding

• Five-Roller Tape Presser,

• Servo end cutting

• Rough trimming

• Fine trimming

• High-Speed 4-motor corner rounding

• 2 sets Flat tracing arm Scraping units

• Off cut Device

• Flat scraping,

• clean agent sprayer,

• 2 sets buffing;

TECHNICAL SPECIFICATION:

• Panel length : 120mm

• Panel width : 35mm

• Mini workpiece size : 300x35

• Panel thickness : 8 - 60mm

• Tape thickness : 0.4 - 3mm

• Dust collector : φ 125mm x 7

• Total power : 34.5KW

• Infeed speed : 18/22/26m/min

• Machine Size : 10000 x 1050 x 1930mm

• Net Weight : 5080kg

₹5,050,000.00 ₹6,312,500.00

CNC 6-Sided Drilling Machine with Double Work Station ND712DL(1200+650) Gripper+AC for Cabinet

FESTURES

TECHNICAL SPECIFICATIONS

Total power : 48.36KW
Machine size : 7,400*4,470*2,380mm
Power supply : 415V/50Hz3PH
Air supply : 0.6-0.7MPa
Total weight : 6,300Kg
Control system : SYNTEC
Panel Length : 200-3,000mm
Panel Width : 30-1200+650mm
Panel thickness : 10-60mm
Max. traveling speed (X/U) axis : : 135m/min
Max. traveling speed Y axis : : 75m/min
Max. traveling speed Z axis : : 30m/min
Max. traveling speed (X/U) axis : : 135m/min
Transmission mode X & Y : Rack and pinion
Transmission mode Z : Ball screw rod
Drilling blocks
Boring block qty : Top 2+2 , Bottom1+1
Vertical drills qty(top) : 19*4
Horizontal drills qty(top) : X:3×8+Y:2x4
Vertical. drills qty(Bottom) : 9x2
Max. drill diameter : 35mm Dia.
Drill spacing : 32mm
Rotation speed : 5000rpm
Shank diameter : 10mm
Main spindle qty : 4*ER32
Main spindle power : 4*3.5kwmax.18000rpm
Dust collector Top : 200x4
Dust collector Bottom : 125mm×2
Dust Collector Speed : 28m/min

₹9,000,000.00

Lacquered Panel Wide Belt Sander DW-13025A

STANDARD SPECIFICATIONS:

Sanding belt oscillation controlled by photocell sensor.
Microcomputer controlled thickness setting.
Automatic control for conveyor belt tracking.
Front and rear head equipped with rubber covered pressure roller.
Levelling adjustment for sanding drum and pressure device.
Independent start controls for main motor.
Panel cleaning brush roller
Motor overload protection.
Feed speed is controlled by Variable Speed.
The conveyor belt is Heavy Duty type.
The machine body I made by all steel, not be wired by H iron.
The speed of Sanding belt & Scotch Brite Roller are controlled Inverter.
Air jet sanding belt cleaning device.
Emergency Stop Device
- Sanding belt break or midtrack.
- Power failure.
- Main Motor overload.

TECHNICAL DATA:

₹4,300,000.00 ₹5,375,000.00

KTCC Heavy-Duty Vertical Press 5M

• TECHNICAL SPECIFICATIONS:

• Ultra heavy-duty design vertical press.

• Number of press bed: 5000mm.

• Heavy-duty type vertical press.

• Convenient downward-opening door for easier loading and unloading.

• Hydraulic operated directional valve: Electrical.

• Hydraulic door lock system.

• PLC controlled system.

• Press bed size: 5000mm x 1200mm x 150mm

• Main hydraulic cylinder: D80 x80mm ST

• Side hydraulic cylinder: D40 x 150mm ST

• Door lifting hydraulic cylinder: D63.

• Door lock hydraulic cylinder: D40.

• Outfeed pusher hydraulic cylinder: D40.

• D80 cylinder with high pressure open/close valves.

• D40 cylinder with high pressure open/close valves.

• Hydraulic control system: 1 Units.

• Hydraulic motor: 15HP.

• Maximum hydraulic pressure: 15 kg/cm2

₹9,550,000.00

OMGA Automatic cut-off saw for defecting and optimized cutting OPTIMA-60 [ 6200mm | 500mm | Out-

TECHNICAL SPECIFICATIONS:

₹8,475,000.00

Straight Line Rip Saw with Auto Fence YRS-16

• 15HP 3HP, 415V/50HZ/3P With Sawblade*1PCE Auto Fence Laser Marker (Without Cooling System) The range: 2-3M Include Bracket Technical Details:

• Arbour Motor : 15HP

• Sawblade Dia : 16 inch

• Saw Arbour Dia : 2 inch

• Working Thickness : 100mm

• Max. Working width : 600mm

• Spindle rotation : 2850 rpm

• Feed Motor : 3HP

• Feeding Speed : 10 - 25

• Table Size : 1720 x 1070mm

• Net & Gross Weight : 1100ks/1400kg

• Dimension ( LxWxH ) : 1920 x 1650 x 1750

₹1,550,000.00 ₹1,937,500.00

Automatic programmable Cut-off Saw S-450(10HP)

• Technical Details:

• Fixed Size Cutting

• Without Defective Part Cutting

• Infeed Table 6M Outfeed Table 2M

• Reality can be judged and cut the length 5M

• Sawblade Speed : 3200rpm

• Sawblade Dia : 10 Inch

• Cutting Capacity Thickness : 50 x 230 mm

• Cutting Capacity width : 100 x 200 mm

• Sawblade Arbour Motor : 10HP Servo 400W

• Feeding Speed : 30 - 90m/min

• Table Height : 880mm

• Working Air Pressure : 5-7 kgs/cm2 - 1 Set Defective Part Cutting Note : Defective Part Cutting and Fixed Size Cutting can not working simultaneously.

₹3,100,000.00 ₹3,875,000.00

Sliding Panel Saw MJ6112S [1200mm Table | 1200mm Rip-cut fence | 4.75 kW

• Technical Specifications

• Sliding table size : 1200*375MM

• Max cutting length : 1200MM

• Distance between saw and parallel stop : 1250MM

• The best cutting thickness( saw diameter 300mm) : 75MM - 45゜the best cutting thickness : 65MM

• Grooving saw spindle speed : 7000—8000R/ MIN

• Main saw size : Outside diameter 300MM/inner diameter 30MM

• Grooving saw size : Outside diameter 120MM/inner diameter 20MM

• Main saw spindle speed : 4000—6000R/MIN

• Main saw diameter (possible range), mm : 250-300MM

• Motor power : 4 0.75KW

• Saw blade angel : 0 - 45゜

• Outside size : 1200*2450*900mm

₹190,000.00 ₹237,500.00

Nanxing CNC 6-Sided Drilling Machine ND61DTS 415V

FEATURES

Long clamp beam & fast clamps 5.5m longer high-rigidity clamp
Feed-in & out table
Positioning Side aligner & Support / press plates
Board length, width detector
6 slots tool changer
Tool setting gauge
5.5kw+3.5kw main spindle
Top drilling block 1 boring blocks 2.2kw,
Optimized drilling blocks layout +saw blade
2 boring blocks 2.2kw with Vertical drills: 19+19
Independent grooving saw 1.7kw; Saw blade size:Ф100*Ф22*δ4 fixed in X direction.
Bottom drilling block 1.6kw 9 vertical drills
Min. processing Panel length: 200-3000mm / Panel width 30-1200mm
Stack processing
Side Grooving
Machine is configured with Lamello aggregate & tool
Anti-handling device for infeed table
3No. Dust collection port
Hand controller
Control system
Windows 10 operating system
Control interface is modern and friendly
Manual programming interface
Simulation function
Easy tools setting
Statistics function
Bar-code reader
File format support (MPR, DXF, BAN, BPP, PDX; XML; XX)
Side routing-One head aggregate
Board thickness sensor
Air jet for Grippe

TECHNICAL SPECIFICATIONS:

Total power : 26.63Kw
Power Supply 415V/50Hz/3PH
Total weight : 3,850Kg
Panel size : Length 200-3,000mm
Panel size : Width 30-1,200mm
Panel size : Thickness 10-60mm
Max. traveling speed : X /U axis 135m/min
Max. traveling speed : Y axis 75m/min
Max. traveling speed : Z axis 30m/min
Transmission mode : X axis Rack and pinion
Transmission mode : Y axis Rack and pinion
Transmission mode : Z axis Ball screw rod
Boring blocks qty : Top 2; Bottom 1
Boring blocks Vert. drills qty (top) : 19*2
Boring blocks Horiz. drills qty (top) : X: 3× 4 + Y: 2× 4
Boring blocks Vert. drills qty (Bottom) : 9
Boring blocks Max drill diameter : Φ35mm
Boring blocks Drill spacing : 32mm
Boring blocks Rotation speed : 5000rpm
Boring blocks Shank diameter : Φ10mm
Main spindle qty : Top tool ER32 holder ISO30 ; Bottom tool collet ER25
Main Spindle power : 5.5kw*1 ; 3.5kw×1 max.18000rpm
Saw blade : Power 1.7kw
Saw blade : Size Ф 100*Ф 22*x 4
Saw blade : Processing range 50-700mm
Dust collector : qty 2
Dust collector : diameter
Dust collector : Top 200mm×2
Dust collector : Lower 125mm×1
Dust collector : speed ≥28m/min

₹5,650,000.00 ₹7,062,500.00

CNC 6-Sided drilling machine ND612TS 415V | AC | Lamello Saw Blade | Double-head aggregate | Air Jet for Gripper

FEATURE

Long clamp beam & fast clamps
Feed-in & out table
Positioning
Board length, width detector
6 slots tool changer
Tool setting gauge
5.5kw+3.5kw main spindle
Optimized drilling block layout + saw blade
Min. processing part
Stack processing
Invisible hardware
Side Grooving
Anti-handling device for infeed table
Dust collection port
Cable chain
Hand controller
Control system
Industrial computer
Excellent electrical components
User-friendly operation
Bar-code reader
File format support
Side routing-Double head aggregate
Board thickness sensor
Air jet for Gripper
Hand wheel
Saw blade for lamello
Standard Toolbox for testing
Air conditioner on control cabinet

TECHNICAL DATA:

Total Power : 25.63kw
Machine Size : 6,150×3,010×2,320mm
Power Supply : 415V/50Hz
Air Supply : 0.6-0.7MPa
Total Weight : 3,850kg
Control System : SYNTEC
Panel Length : 200-3,000mm
Panel Width : 30-1,200mm
Panel Thickness : 10-60mm
Max. Travelling Speed X/U axis : 135m/min
Max. Travelling Speed Y axis : 75m/min
Max. Travelling Speed Z axis : 30m/min
Boring Block Qty : Top 1 + Bottom 1
Vertical Drills Qty (Top) : 19
Horizontal Drills Qty (Top) : X: 3×4 + Y: 2×4
Vertical Drills Qty (Bottom) : 9
Max Drill Diameter : Φ35mm
Drill Spacing : 32mm
Drill Rotation Speed : 5000rpm
Shank Diameter : Φ10mm
Top Main Spindle : 1×5.5kw ER32 ISO30 ATC6 18000rpm
Bottom Main Spindle : 1×3.5kw ER25 18000rpm
Saw Blade Power : 1.7kw
Saw Blade Size : Φ100×Φ22×δ4
Saw Processing Range : 50-700mm
Dust Collector Qty : 2
Dust Collector Diameter : Top 200mm×2 + Lower 125mm×1
Dust Collector Speed : ≥28m/min

₹3,350,000.00 ₹4,187,500.00

Nanxing Through-feed Drilling Machine with 42 Set of Drill and Line Function NDC702(415V)

FESTURES

• Auto feed-in and feed-out

• Top presser

• Precise positioning on working area

• Drilling rows

• Optional special drilling block. Movement of drilling rows

• Quick release and fix

• Processing data

• Feeding assistant

• Drag chains

• Safety device

• E-stop and foot switch

• Control cabinet

• PC Control

• Customize Drill Head 42set

• Line Function 1 Set

Technical Data

• Max panel width : 2550 mm

• Min. panel width : 250 mm

• Max. panel thickness : 50mm

• Lower drilling rows quantity : 7

• Horizontal drilling rows quantity : 2

• Boring block power : 1.5kw 2750rpm

• Spacing of drills : 32mm

• Max. vertical drilling depth : 50mm

• Max. horizontal drilling depth : 40mm

• Servo motor quantity : 13

• Servo motor power : 0.75kw

• Total power : 33kw

• Power Supply : 415V/50hz/3p

• Approx. weight : 7,500 kg

• Overall dimension : 5,540 x 6601 x 1950 mm

• Max. speed of feeding belt : 80m/min

• Max space of two horizontal drills : 640mm

• Max space of two vertical drills : 885mm

• Min space of two vertical drills : 128mm

• The height of working area : 965-1010mm

₹14,800,000.00

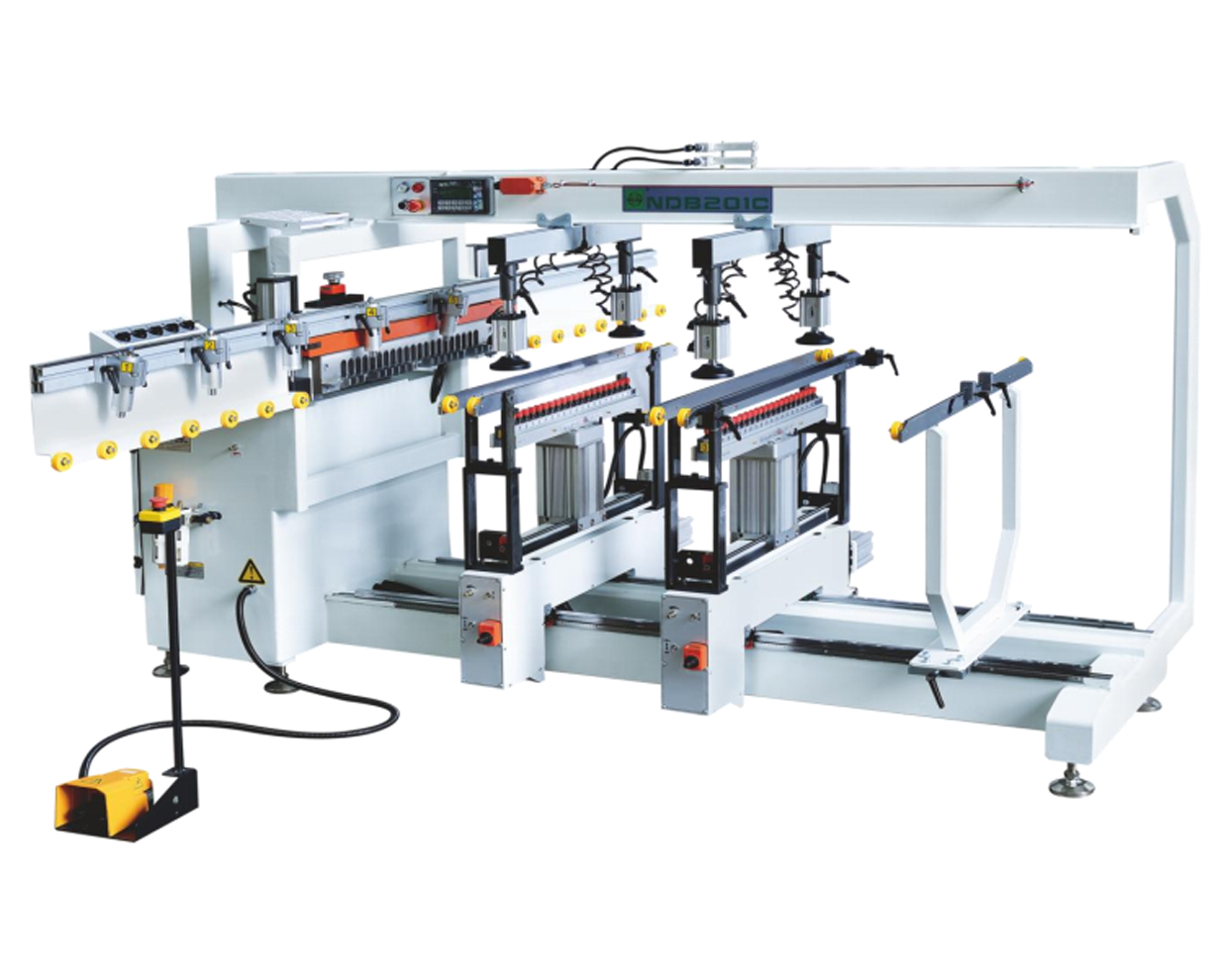

Nanxing Three Head Multi Boring Machine NDB201C 21×2=42

TECHNICAL DATA

₹550,000.00 ₹687,500.00

Edge Banding Machine for Narrow Edge W/o Corner rounding NB660N(NB6JN)-415V

FEATURES:

Narrow part feeding package
Pre-milling with 2 diamond cutters
Pre-heating
Coil tape bracket
Tape Snipping
Two-color no-cleaning PUR glue pot + Double barrel gluing machine
PUR glue machine:20KG*2
Pressure rollers
Lubrication system
End cutting
Rough Trimming
Fine trimming unit
Scraping units
Buffing units
Safety device
Feeding protector and thickness detection
Interval feeding detection system
E-STOP
Cover door and dust collector
Control system 10’’ touch screen
Operation interface Stand-by mode
Production report
Electric equipment PLC control
Narrow workpiece solution
120×120mm (four sides)
200×30mm (long edge)
200×40mm (short edge)

TECHNICAL DATA:

₹2,875,000.00 ₹3,593,750.00

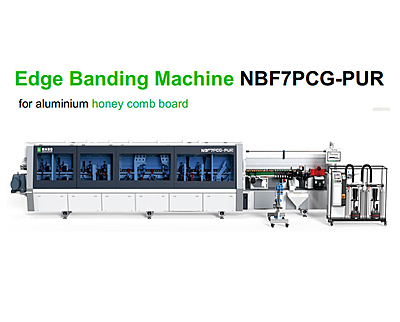

Nanxing Edge Banding Machine NBF7PCG-PUR for Aluminium Honey comb Board

FEATURES

Side assistance rollers
Spraying device (release agent)
Pre-milling
Pre-heating
Edge tape feeder by servo motor-2 tape system
Snipping
PUR gluing applicator
2-color PUR heater
Pressure rollers
Belt tape presser
Auto lubrication system
Dual rails for end trimming
Rough trimming
Fine trimming units
Corner trimming with 4 motors
Two sets of scraping units
Off cut device
Pneumatic flat scraping
Spraying device (Clean agent)
2 sets Oscillating Buffing
Switch
Dust collector port Φ125mmX9
Safety device
Electric components
PC control
User-friendly interface
Production report
Easy Trouble-shooting

TECHNICAL DATA:

Panel length: ≥120 mm ; ≥200 mm with corner rounding
Panel width: ≥80 mm
Panel thickness:
9-60 mm
9-22mm (aluminum honeycomb board)
Min. panel size 120×120mm; 200×50mm
Edge tape thickness:
0.4-3 mm
1-2mm (for aluminum honeycomb board)
Feeding speed:
12/16/20 m/min
12/16m/min (for aluminum honeycomb board)
Power supply: 415 V; 50 Hz
Air pressure required: 0.7MPa
Operation system PC
Dust collector Φ125mmX9
Total power: 30 kW
Approx. weight: 6110 kg
Overall dimension: 11200X1050X1850mm

₹5,150,000.00 ₹6,437,500.00

Edge Banding Machine for Inclined Edge NB370-(NB7X) Premelt

FESTURES:

Release agent sprayer
Bevel edge milling 45 degrees diamond forming bevel cutters
Straight surface Pre-milling 2 diamond cutters
Pre-heating
Full straight tape bracket
Half bevel tape feed and edge tape grooving device
Full straight edge-Pre-Melter gluing system
Auto glue pumping + 25kg glue basin
Bevel and straight gluing
Hot air blowing gun (2pcs)
Edge tape pressing
Lubrication system
End trimming
Rough Trimming unit
Fine trimming unit
Corner trimming unit
Fine trimming
Flat scraping
Clean agent sprayer
Buffing
Dust collection 125mm
Remote Switch
Safety device Feeding protector and thickness detection, E-Stop
Control system 10" Touch Screen
Energy saving mode
Electric equipment

TECHNICAL SPECIFICATIONS:

Panel length : 150mm
Panel width : 120mm
Straight panel thickness : 9 50mm
Bevel+straight panel thickness : 15 25mm
Edge Tape Thickness : 0.6 2mm
(need to leave more straight surface when use 2mm tape, recommend ≤1.2mm)
Feed Speed : 14m/min ; Straight Edge 24m/min
Min. panel size : 150x120mm
Total Power : 42kw 415V/50hz/3ph
Overall dimensions : 9800x1050x1650
Net Weight : 3900kg

₹3,700,000.00 ₹4,625,000.00

Nanxing Panel Dividing Saw with Printer+Software NPC330S 24.2KW (3270x90mm)

• FEATURES

• Air float feed table

• Side operation rod

• Pressure beam servo

• Hand Protector

• Piano dust cover

• Servo Side alignment

• Gripper

• Anti-dropping device

• Integrated Sawing Carriage

• Main Saw/Scoring Saw separate control

• 1xset Saw blade

• Full cover safety fence with door.

• Dust Collection Port 150mmx3no & 76X1

• Auto Lubrication System

• Computer :CPU i5 Memory 8G,WIN7 64-bit Professional Edition ,Duel Port

• Operation Software

• Control Cabinet

• Optimization software Auto Cut

• Label Printer TECHNICAL SPECIFICATIONS:

• Max. cutting length : 3270mm

• Max. cutting thickness : 90mm

• Main Saw Motor power : 15kw

• Main Saw Rotating speed : 3910rpm/min

• Saw blade diameter : 380mm (Max400mm)

• Saw blade shaft diameter : 60mm

• Rotating speed : 4,300rpm/min

• Saw blade diameter : 200mm

• Saw blade shaft diameter : 45mm

• Saw carriage Motor power : 2.2kw

• Saw carriage Forward speed : 90m/min

• Saw carriage Backward speed : 120m/min

• Automatic feeding motor : 2kw

• Max. feeding speed : 85m/min

• IPC 21.5'' Windows 7 : USB port: 4 pcs

• Air Requirement : 0.6 MPa

• Dust extraction Diameter : 150mm*3; 76mm*1 28m/min

• Power supply : 3P 415V / 50Hz

• Total power : 24.2kw

• Length

• Width

• Height : 6900 x 5495 x 1820mm

• Net weight : 4560kg

₹3,650,000.00 ₹4,562,500.00

Sanding Machine Type MVT-1500(1AT+1SB)

TECHNICAL DATA

• Working sides: 1

• Minimum length of pieces: 200 mm

• Minimum width of pieces: 100 mm

• Maximum thickness of pieces: 90 mm

• Working speed adjustable with inverter: from 5 to 25 m/min

• Drive motor power: 1.1 kW

• Working height ( /- 30 mm): 900 mm

• Total installed power: 6.5 kW

• Electrical voltage: 400 V (3 Phases, 50 Hz NEUTRAL)

• Machine color: RAL 7035 (Light Grey)

• Machine length: 3,100 mm

• Machine width: min. 1,600 mm

₹4,900,000.00 ₹6,125,000.00

Nanxing Through-feed Drilling Machine with Servo Drived NDC642-(415V)

SPECIFICATIONS

• Enough drilling rows 6 vertical rows on bottom,4 on top and 2 horizontal rows on side enable to finish 4 side drilling in one cycle;

• Feeding fast: 3 section feeding belt with waiting area for least waiting time max. speed of belt is 80m/mim, Max 22pcs/min

• Adjusting fast: Vertical drilling row movement and rear positioning control by servo motors, auto positioning, reducing the time of adjusting, save time and labor. 13pcs servo motors in total.

• Fast drilling block changing time: quick change and release design, 5s to change block

• Intelligent PC control: support MPR,DXF,MPR format to link with common furniture design software or MES, can scan the label to read drilling info.

• Machine is standard with drawing function, generate rows and drills position based on the drawing automatically, and move without too much setting up work.

Technical DATA

• Max panel width : 2550 mm

• Min. panel width : 250 mm

• Max. panel thickness :50mm

• Upper drilling rows qty. : 4

• Lower drilling rows qty. 6

• Horizontal drilling rows qty : 2

• Boring block power : 1.5kw 2750rpm

• Spacing of drills : 32mm

• Max. vertical drilling depth : 50mm

• Max. horizontal drilling depth : 40mm

• Servo motor qty : 13

• Servo motor power : 0.75kw

• Total power : 47kw

• Power Supply : 415V / 50HZ / 3PH

• Approx. weight : 7,100 kg

• Overall dimension : 5,540*3,650*2,800 mm

₹8,475,000.00

Nanxing Through-feed Drilling Machine with Servo Derived NDC402-(415V)

SPECIFICATIONS

• Enough drilling rows 4 vertical rows on bottom, 2 horizontal rows on side enable to finish 3 side drilling in one cycle;

• Feeding fast: 3 section feeding belt with waiting area for least waiting time max. speed of belt is 80m/mim, Max 22pcs/min

• Adjusting fast: Vertical drilling row movement and rear positioning control by servo motors auto positioning, reducing the time of adjusting save time and labor. 9pcs servo motors in total.

• Fast drilling block changing time: quick change and release design, 5s to change block

• Intelligent PC control: support MPR,DXF,MPR format to link with common furniture design software or MES, can scan the label to read drilling info.

• Machine is standard with drawing function, generate rows and drills position based on the drawing automatically, and move without too much setting up work.

Technical DATA

• Min. panel width: 250 mm

• Max. panel thickness 50mm

• Lower drilling rows qty. : 4

• Horizontal drilling rows qty : 2

• Boring block power : 1.5kw 2750rpm

• Spacing of drills : 32mm

• Max. vertical drilling depth : 50mm

• Max. horizontal drilling depth : 40mm

• Servo motor qty : 7

• Servo motor power : 0.75kw

• Total power : 28kw

• Approx. weight : 5,200 kg

• Overall dimension : 5,540*3,660*1,950 mm

₹5,125,000.00 ₹6,406,250.00

Nanxing Edge Banding Machine (Max.12mm solid wood) NB7CJ-SW(415V) with Corner Rounding

SPECIFICATIONS

Suitable for both PVC and solid strip processing
Pre-milling (63mm)
Pre-heating
Upper Gluing Unit with pre-melter
Solid strip feeding
Pressing
End cutting
Rough trimming
Fine trimming
Corner Rounding (2 motor)
Profile scraping
Buffing
Pneumatic Gate
Pre-Set for PUR

TECHNICAL DATA:

Panel length : ≥120 mm
Panel width : ≥80 mm
Mini. Panel size : 120× 80mm
Panel thickness : 10-60 mm
Wood strip : Max. 12mm thickness; 50-60mm height
Edge tape thickness : 0.4-3 mm
Feeding speed : 16/20/24 m/min
Power supply : 415V / 50hz / 3P
Air pressure required : 0.7MPa
Operation system : 10" touch screen
Dust collector : Φ125mm×5
Total power : 24 Kw
Approx. weight : 3,670 kg
Overall dimension : 9,800*1,450*1,650

₹2,900,000.00 ₹3,625,000.00

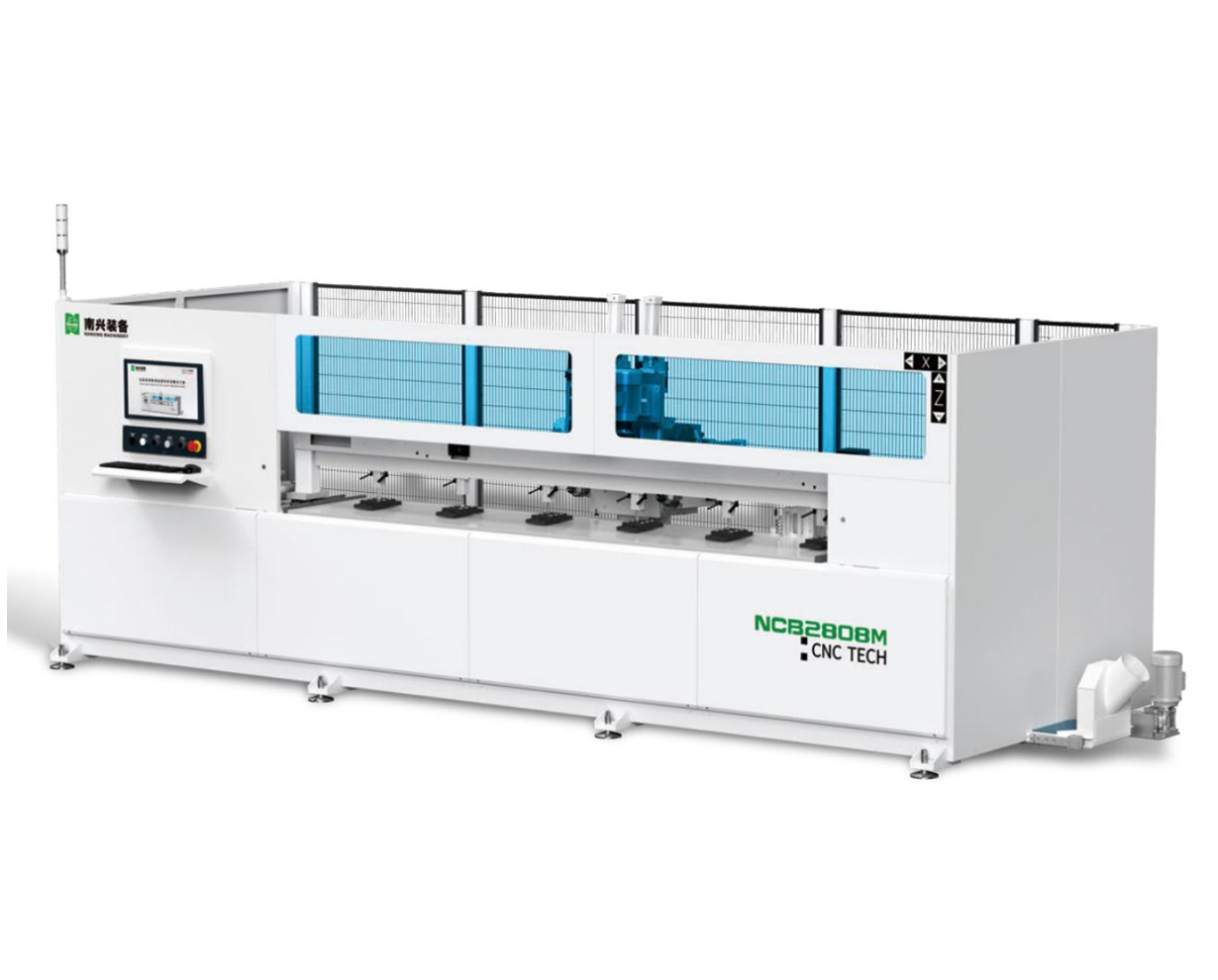

Nanxing CNC Machining Center for Cabinet Door NCB2808M

Features

• Movement of each axis

• X direction : Rack and Pinion

• Y.Z direction : Ball screw

• Servo motors : Movement of each axis driven by high precise servo motor, 90/20*20m/min

• Auto greasing

• Auto grease transmission mechanism

• Oil pump category: electric grease pump

• Auto movable beam by cylinder

• Beam moves automatically by cylinder according to different process

• Sectional zone pressing

• Top presser and back positioning bar

• Overwide 6 pcs of top pressers

• Back positioning bar rises automatically

• 2 Working areas

• 2 working stations to process alternately

• max processing size 2800*800mm

• Distance to floor: 980mm,

• Auto board thickness detection

• For accurate processing

• Processing unit

• Vertical spindle 7.5Kw auto tool change

• Horizontal milling spindle 6Kw

• Horizontal drilling spindle 3.5Kw

• 7.5kw vertical main spindle

• 2 pcs 2.2kw bevel direction main spindles

• Max processing size: 2900*600mm

• Mini processing size: 250*200mm

• 6-slot Line tool changer

• 6-position line tool magazine , ISO30 tool collet

• Cable chain

• High-quality cable chain

• Two tool setting gauges

• One gauge in vertical direction,

• The other one in horizontal direction

• Automatic tool setting

• IPC control

• Powerful, IPC control, window system

• Intelligent operating system

• User friendly, with online 3D graphics editing and simulation

• Support CSV, BAN, and XML formats, EXCEL file import, DXF file import

• Bar code scanner

• Scan bar-code to call relevant processing

• programs

• Processing various door types

• Rocket handles, double handles, straighteners, horn handles and other aluminum alloy handles

• Control cabinet

• Safety fence

• Machine is standard with safety fence ensures the safety of operators

Technical Specifications

• Panel width : 200-800mm

• Panel length : 250-2800mm

• Working range : X axis :250-2800mm

• Working range : Y axis: 160mm

• Working range : Z axis: 60mm

• Travelling speed : X axis: 90m/min

• Travelling speed : Y axis: 90m/min

• Travelling speed : Z axis: 20m/min

• Moving beam range : 0-160mm

• Working table : Area: 2,660mmx420mm

• Working table : Height: 980mm

• Main spindle Qty : 5

- Main spindle Power

• 7.5kw vertical spindle

• 6kw horizontal spindle

• 3.5kw horizontal spindle

• 2*2.2kw bevel spindles

• Rotating speed : 18000rpm

• Tool change Qty : .6 Type [ISO 30]

• Drilling depth : 60mm

• Power supply : 3PH 415V / 50 Hz

• Total power : 33.67kw

• Dust collector Dia. : 150mm*2

• Floor space LxWxH : 5,820x2,520x2,000 mm

• Net weight : 2,200kg

₹1,900,000.00 ₹2,375,000.00

Hot Press Machine BY214X8/12(2)H1RC [2500x1300mm | 120T | Solid Steel | Daylight 2]

TECHNICAL DATA

• Total pressure: 1000KN (100Ton)

• Specific pressure: 3.7Kgf/cm2

• Working layer: 2

• Platen No.& Size: 2-2500x1300x42mm(solid steel drilled hot platen covered with mylar)

• Platen Opening : 170mm

• Cylinder No.: 8

• No. Dia: 85mm

• Max temperature: 120 Deg.

• Heating Type: Electric heating with thermic oil

• Installation power: (4 0.75 36)kw

• Platen opening way: Automatically

• Loading way: Length side, Manually

• Voltage: 3PE 415V 50Hz

• Packing: Bare but properly secured

₹2,600,000.00 ₹3,250,000.00

Nanxing 2KG PUR GLUE MACHINE V022295x

• Technical parameter

• External dimensions : L1040xW550xH1250mm

• Net weight : 100kg

• Power type : AC220V/50HZ

• Heating power : 3.5KW

• Specification of glue barrel : 2.5L packing specification

• Inner diameter of glue barrel : 128mm diameter cylinder

• Maximum rotary speed of motor : 60rpm

• Inner diameter of glue tube : 8mm

• Working air pressure : 0.4 - 0.8MPa Performance

• Control system : Temperature controller

• Range of temperature control : Normal temperature-180 ℃

• Heating time : 25 minutes

• Maximum glue pressure : ≤5kg/cm2

• Insulation function : Yes

• Over temperature protection : Yes

• Low glue level alarm : Yes

• Empty barrel alarm : Yes

• Stroke of platen : Max:280mm

₹550,000.00 ₹687,500.00

Nanxing 20KG PUR GLUE MACHINE (Double Color) JLD300D

• PARAMETERS

• Gum Supply : 15-20 L/H

• Supply Pressure : 6kg/cm3

• Operating Temperature: below 200 deg.C

• Temperature control accuracy : /- 2 deg. c

• Power Supply : 4P/380V/50Hz

• Heater Voltage : 220v

• Weight : 300kg

• Barrel Diameter : 280mm

• Max. Working Pressure : 150kg

• Environmental tamp. : -10 - 55 deg. C

• Temperature Sensor : Type K

• Total Power of the machine : 10.9kw

• Machine Size LxWxH: 1800mm x 550mm x 1600mm

₹550,000.00 ₹687,500.00

CNC 6-Sided Drilling Machine with Double Work Station ND712DL(650+650)

TECHNICAL SPECIFICATIONS

Total power : 48.36KW
Machine size : 7,400*4,470*2,380mm
Power supply : 415V/50Hz3PH/415V/60Hz3PH
Air supply : 0.6-0.7MPa
Total weight : 6,300Kg
Control system : SYNTEC
Panel Length : 200-3,000mm
Panel Width : 50-650mm
Panel thickness : 10-60mm
Max.traveling speed (X/U) axis : : 135m/min
Max.traveling speed Y axis : : 75m/min
Max.traveling speed Z axis : : 30m/min
Max.traveling speed (X/U) axis : : 135m/min
Transmission mode X & Y : Rackandpinion
Transmission mode Z : Ball screw rod
Drilling blocks
Boring block qty : Top 2+2 , Bottom1+1
Vert.drillsqty(top) : 19*4
Horiz.drills qty(top) : X:3×8+Y:2x4
Vert.drillsqty(Bottom) : 9x2
Max. drill diameter : 35mm Dia.
Drill spacing : 32mm
Rotation speed : 5000rpm
Shank diameter : 10mm
Main spindle qty : 4*ER32
Main spindle power : 4*3.5kwmax.18000rpm

₹7,900,000.00 ₹9,875,000.00

CNC 6-Sided Drilling Machine with Double Work Station ND712DL(1200+650)

TECHNICAL SPECIFICATIONS

Total power : 48.36KW
Machine size : 7,400*4,470*2,380mm
Power supply : 415V/50Hz3PH/415V/60Hz3PH
Air supply : 0.6-0.7MPa
Total weight : 6,300Kg
Control system : SYNTEC
Panel Length : 200-3,000mm
Panel Width : 50-1200mm
Panel thickness : 10-60mm
Max.traveling speed (X/U) axis : : 135m/min
Max. traveling speed Y axis : : 75m/min
Max. traveling speed Z axis : : 30m/min
Max. traveling speed (X/U) axis : : 135m/min
Transmission mode X & Y : Rack and pinion
Transmission mode Z : Ball screw rod
Drilling blocks
Boring block qty : Top 2+2 , Bottom1+1
Vert. drills qty(top) : 19*4
Horiz. drills qty(top) : X:3×8+Y:2x4
Vert. drills qty(Bottom) : 9x2
Max. drill diameter : 35mm Dia.
Drill spacing : 32mm
Rotation speed : 5000rpm
Shank diameter : 10mm
Main spindle qty : 4*ER32
Main spindle power : 4*3.5kwmax.18000rpm

₹8,550,000.00

Hot Press Machine BY214X10/16(3)H1RC [3200x1300mm | 160T | Solid Steel | Daylight 2]

TECHNICAl DATA

• Model : BY214X10/16(2)H1RC

• Total pressure : 1600KN

• Specific pressure : 3.8Kgf/cm2

• Working layer : 2 layers

• Platen No.& Size : 3-3200X1300X42mm(solid steel drilled hot platen covered with mylar)

• Platen opening : 170mm

• Cylinder No.& Dia : 10-φ85mm

• Max temperature : 120℃

• Heating way : Electric heating with thermal oil

• Heating medium : thermal oil

• Installation power : 4 1.5 54KW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 415V 50Hz

₹2,800,000.00 ₹3,500,000.00

Woodworking Machines & Consumables

Every woodworking machine your factory needs — from one supplier

Three reasons it pays for itself

Buying questions answered

Woodworking Machinery

Woodworking Machinery

Brands

Machine Importer

Consulting Services

Machine Exporter

Products

Contact Details

2026 | Caple Industrial Solutions | Rights Reserved for price offered, configuration, availability, terms and conditions on the featured products. Please feel free to connect with the team.
