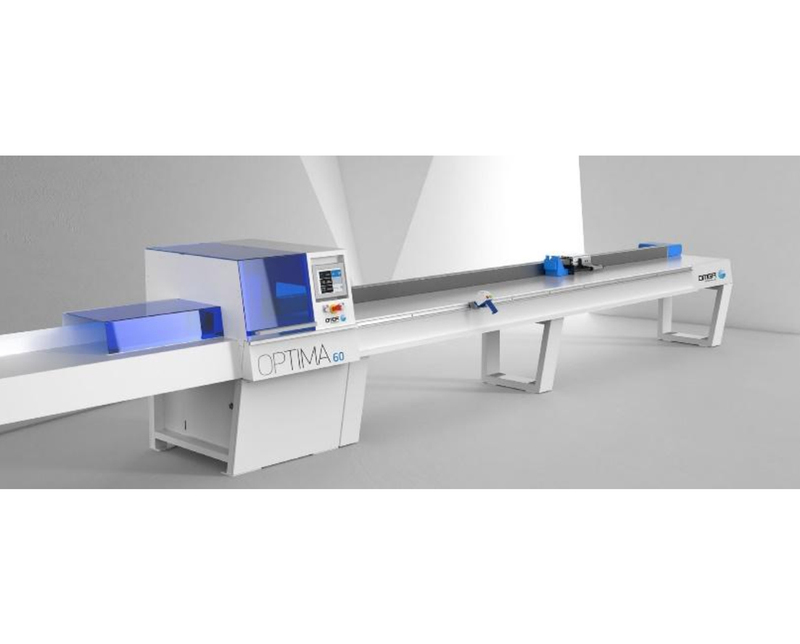

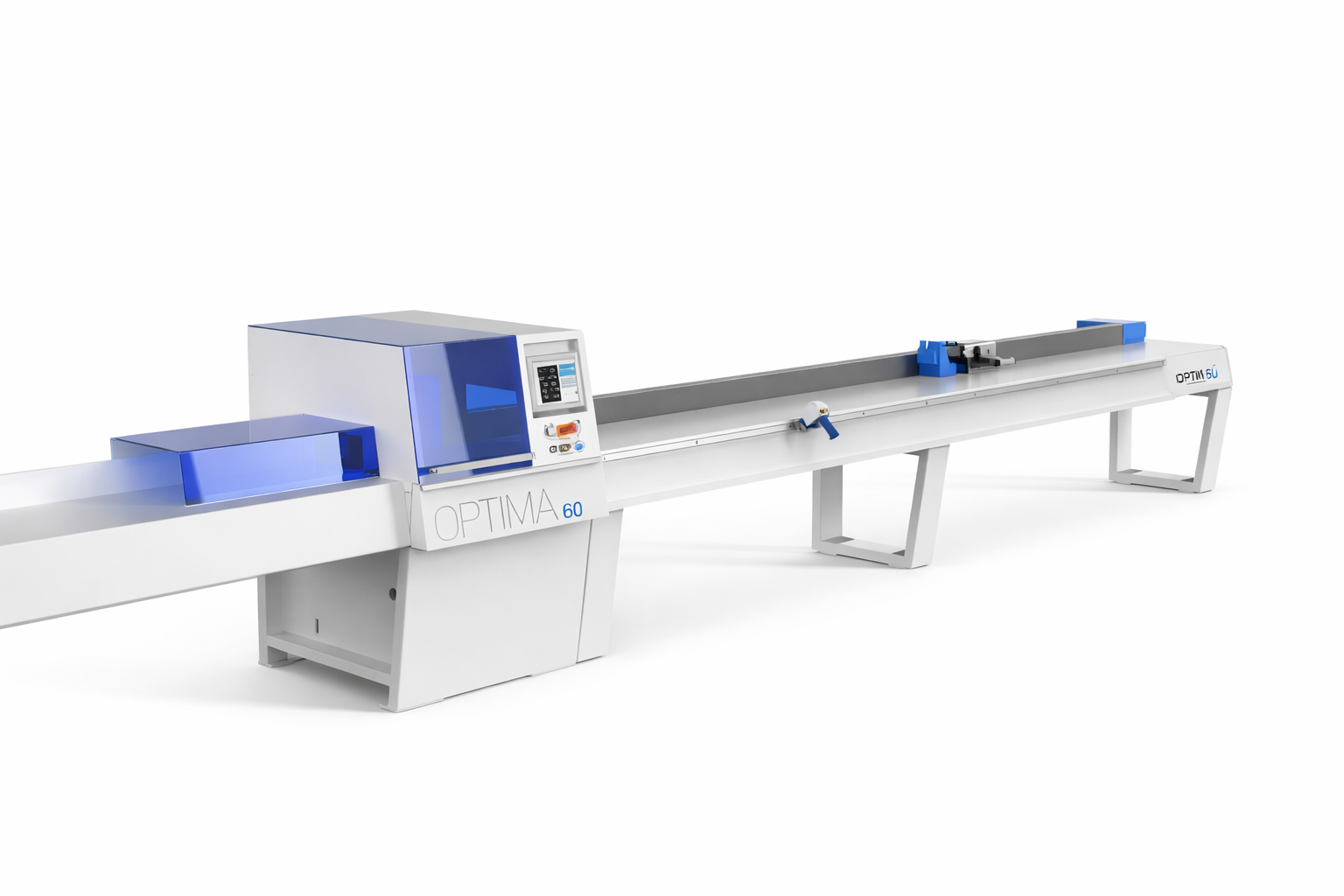

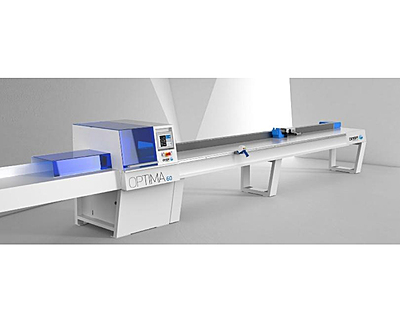

OMGA Automatic cut-off saw for defecting and optimized cutting OPTIMA-60 [ 6200mm | 500mm | Out-
₹7,650,000.00 ₹9,562,500.00
Available on Request
STANDARD TECHNICAL SPECIFICATIONS
- Max width of cut 300 mm
- Max thickness 110 mm
- Max feed speed 58 m/Min.
- Saw motor power 4.6 Kw
- Saw blade diam. 450 mm
- Cutting capacity (WxT) 300x14mm
- Cutting capacity (WxT) 275x50mm
- Cutting capacity (WxT) 200x110 mm
- Max infeed length 6200 mm
- Dust chute diam. 1 x Ø 160 mm
- Cutting length tolerance +/- 0.15 mm
- Last Generation NC System
- Optimization and Defecting Features
- Pneumatic vertical gripper 6200mm
- Frontal clamps
- Out-feed table 3700mm
