Gluing & Pressing Machines

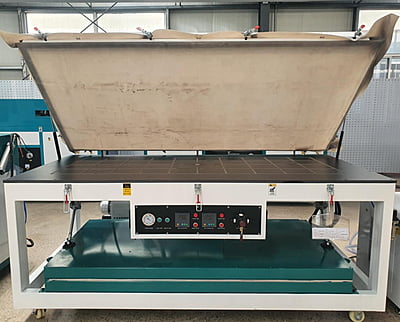

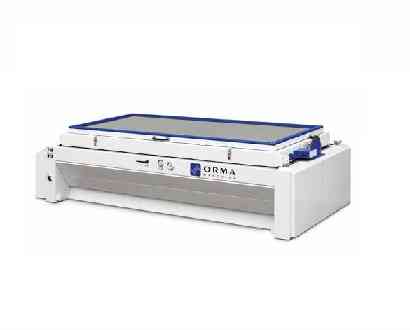

Function

It can be used to cover PVC on the surface of the craft compound door, furniture, cabinet and sound box and to cover veneer and heating transfer membrane on single side of the door panel and furniture with the silicon membrane provided by our company. Compared with WV2300C-2, it doubles the working efficiency. WV2300A-2Z is fully automatic model

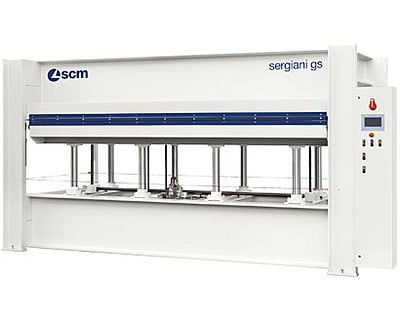

TECHNICAL DATA

• Total pressure: 1000KN (100Ton)

• Specific pressure: 3.7Kgf/cm2

• Working layer: 2

• Platen No.& Size: 2-2500x1300x42mm, solid steel drilled hot platen covered with Mylar

• Platen Opening : 170mm

• Cylinder No.: 8

• No. Dia: 85mm

• Max temperature: 120 Deg.

• Heating Type: Electric heating with thermic oil

• Installation power: 4 + 0.75 + 36 kW

• Platen opening way: Automatically

• Loading way: Length side, Manually

• Voltage: 3PE 415V 50Hz

• Packing: Bare but properly secured

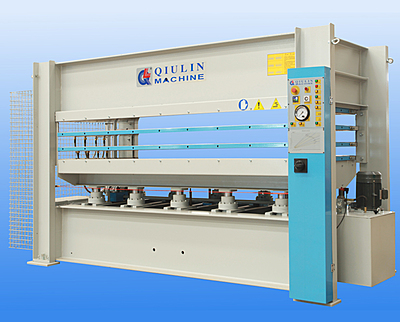

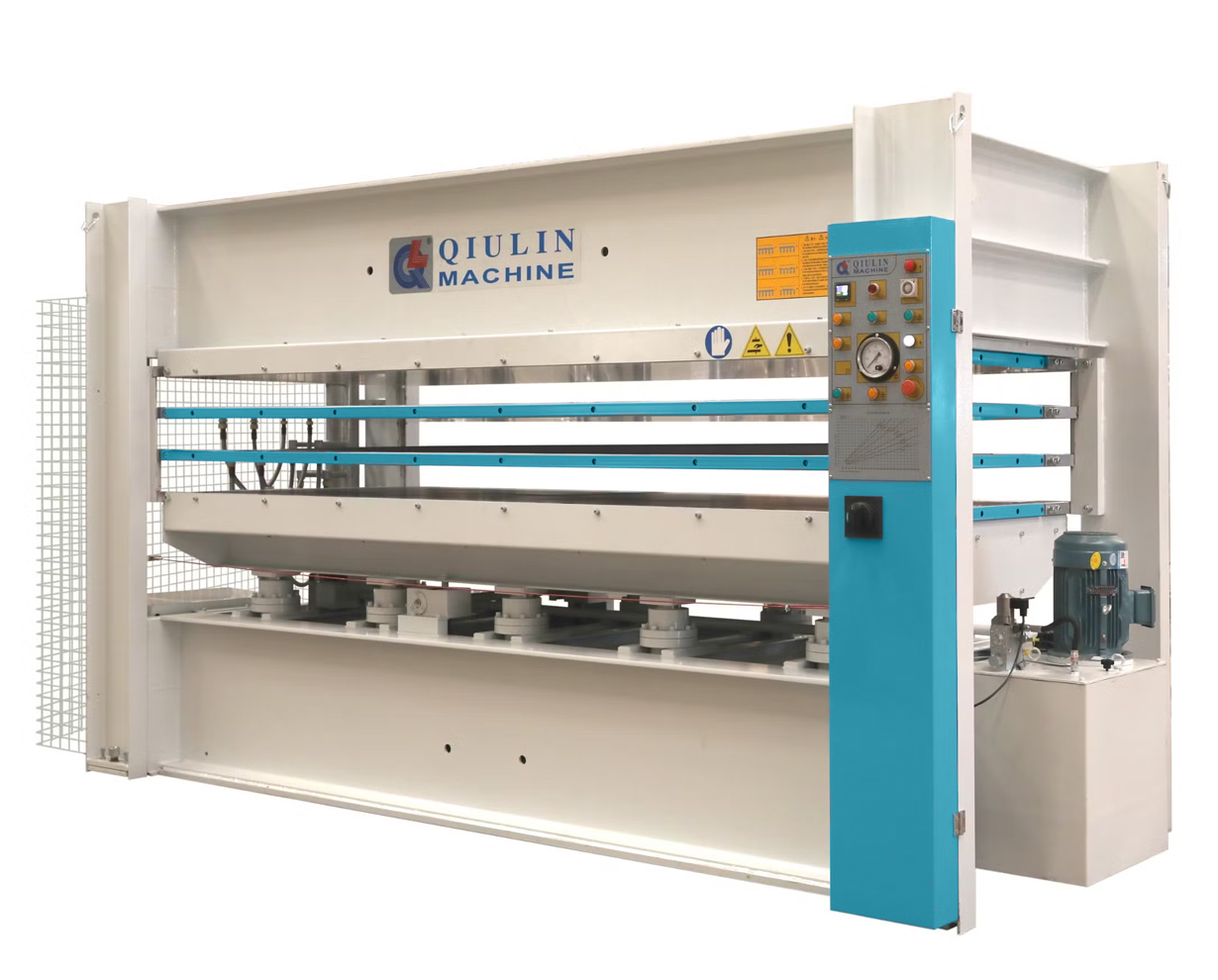

TECHNICAl DATA

• Model : BY214X10/16(2)H1RC

• Total pressure : 1600KN

• Specific pressure : 3.8Kgf/cm2

• Working layer : 2 layers

• Platen No.& Size : 3-3200X1300X42mm, solid steel drilled hot platen covered with Mylar

• Platen opening : 170mm

• Cylinder No.& Dia : 10-φ85mm

• Max temperature : 120℃

• Heating way : Electric heating with thermal oil

• Heating medium : thermal oil

• Installation power: 4 + 1.5 + 54 kW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 415V 50Hz

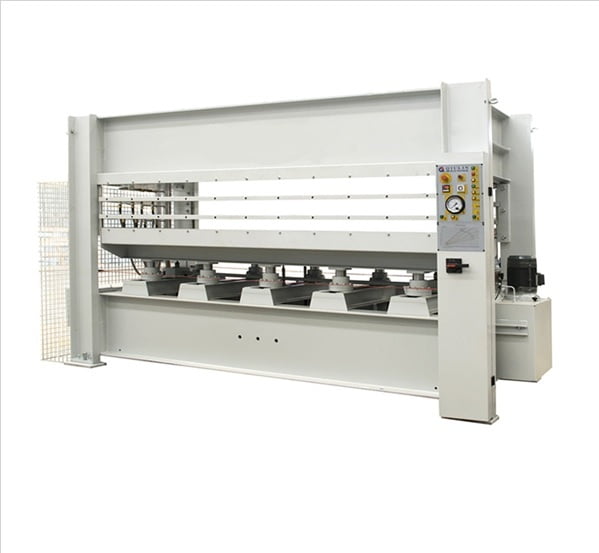

TECHNICAL DATA

• Model : BY214X9/16(3)H1RC

• Total pressure : 1600KN

• Specific pressure : 4.1Kgf/cm2

• Working layer : 3

• Platen No.& Size : 4-3000x1300x42mm, solid steel drilled hot platen covered with Mylar

• Platen opening : 120mm

• Cylinder No.& Dia : 10-φ85mm

• Max temperature : 120℃

• Heating way : Electric heating with thermic oil

• Heating medium : Thermic oil

• Installation power : 77.5KW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 415V 50Hz

TECHNICAL DATA

• Total pressure : 1600KN

• Specific pressure: : 4.1Kgf/cm2

• Working layer : 2

• Platen No.& Size : 3-3000x1300x42mm, solid steel drilled hot platen covered with Mylar

• Platen opening : 170mm

• Cylinder No.& Dia : 10-φ85mm

• Max temperature : 120℃

• Heating way : Electric heating with thermic oil

• Heating medium: : Thermic oil

• Installation power: 4 + 1.5 + 54 kW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 415V 50Hz

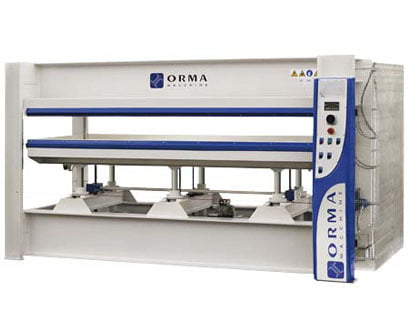

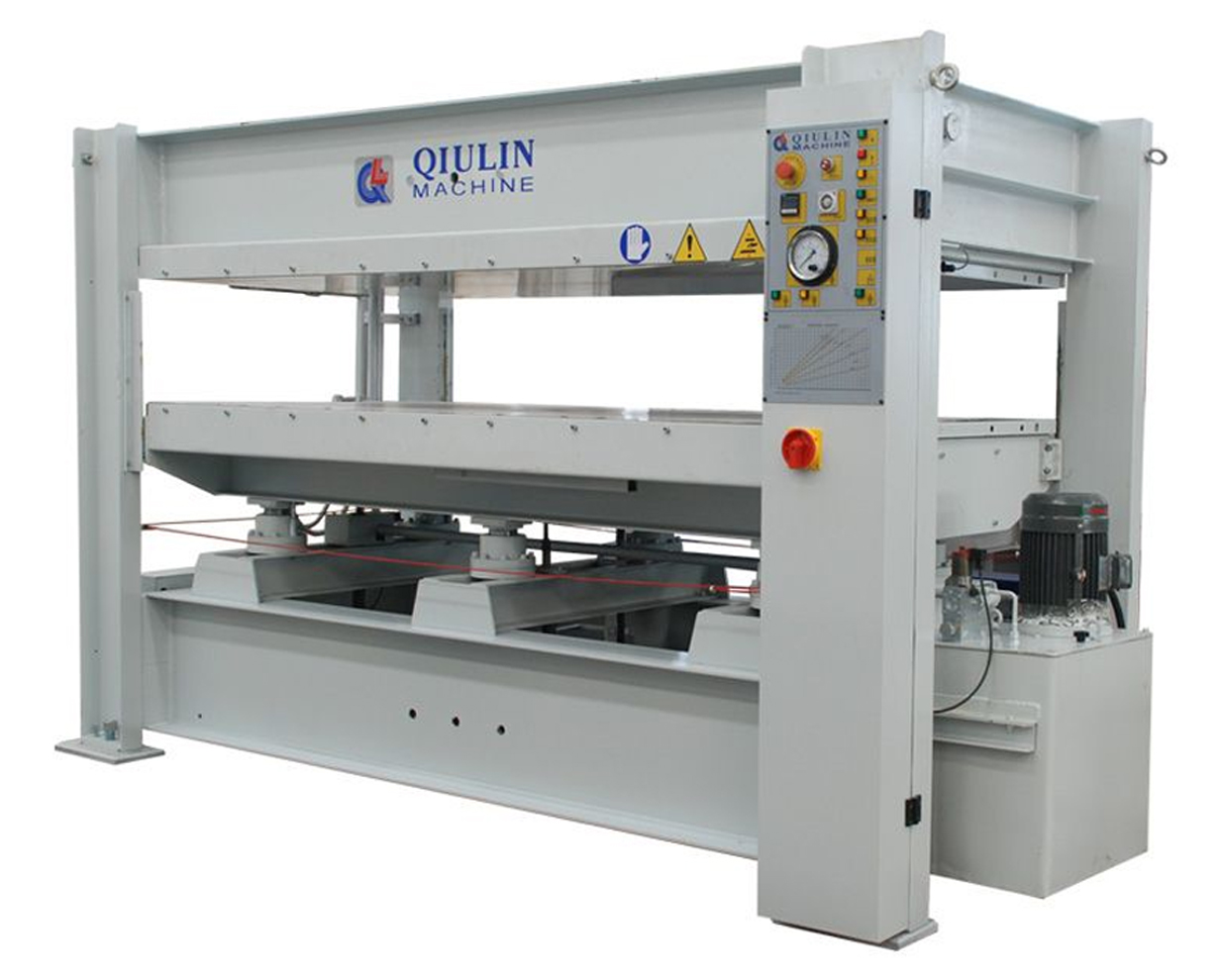

TECHNICAL DATA

• Total pressure : 1600KN

• Specific pressure: : 4.1Kgf/cm2

• Working layer : 1

• Platen No.& Size : 2-3000x1300x42mm, solid steel drilled hot platen covered with Mylar

• Platen opening : 360mm

• Cylinder No.& Dia : 10-φ85mm

• Max temperature : 120℃

• Heating way : Electric heating with thermic oil

• Heating medium: : Thermic oil

• Installation power: 4 + 0.75 + 36 kW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 415V 50Hz

TECHNICAl DATA

• Total pressure : 1600KN

• Specific pressure : 5gf/cm2

• Working layer : 2 layers

• Platen No.& Size : 3-2500x1300x42mm, solid steel drilled hot platen covered with Mylar

• Platen opening : 170mm

• Cylinder No.& Dia : 10-φ85mm

• Max temperature : 120℃

• Heating way : Electric heating with thermal oil

• Heating medium : thermal oil

• Installation power: 4 + 0.75 + 36 kW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 415V 50Hz

TECHNICAL DATA

• Total pressure : 1000KN

• Specific pressure : 3.1gf/cm2

• Working layer : 3 layers

• Platen No.& Size : 4-2500x1300x42mm, solid steel drilled hot platen covered with Mylar

• Platen opening : 120mm

• Cylinder No.& Dia : 6-φ85mm

• Max temperature : 120℃

• Heating way : Electric heating with thermal oil

• Heating medium : thermal oil

• Installation power: 4 + 0.75 + 48 kW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 415V 50Hz

TECHNICAl DATA

• Model : BY214×8/16(1)H1RC

• Total pressure : 1600KN

• Specific pressure : 5gf/cm2

• Working layer : 1 layers

• Platen No.& Size : 2-2500x1300x42mm, solid steel drilled hot platen covered with Mylar

• Platen opening : 360mm

• Cylinder No.& Dia : 10-φ85mm

• Max temperature : 120℃

• Heating way : Electric heating with thermal oil

• Heating medium : thermal oil

• Installation power : 28.75KW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 380V 50Hz

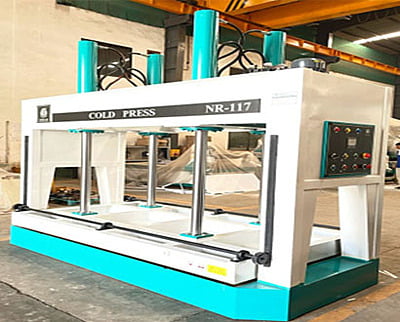

TECHNICAL DATA

• Name Model : 2.5*1.25m trip1.3m

• Max higher : 3.4m

• Pressing plate size : 1250*2500

• Number of Cylinder : 4pcs

• Pressure : 100T

• Opening distance : 1300mm

• Thickness of pressing plate : 900mm

• Installed power : 5.5kw

• Overall dimensions : 2910*1250mm

• Net weight : 3T Excluded Hydraulic Oil

TECHNICAL DATA

• Name Model : 3 X 1.25m trip1.3m

• Max higher : 3.4m

• Pressing plate size : 1250 X 3000

• Number of Cylinder : 4pcs

• Pressure : 100T

• Opening distance : 1300m

• Installed power : 5.5kw

• Overall dimensions : 3400 X 1250mm

• Power supply : 415V 3PH 50 HZ.

• Net weight : @3T - 8 bolt for cyl lock

• Bottom and top need make it full cover by steel

• Side need use the steel road and need the bearing type for lifting - 300mm bottom thickness/190mm top platen - 15 mm plate thickness Excluded Hydraulic Oil

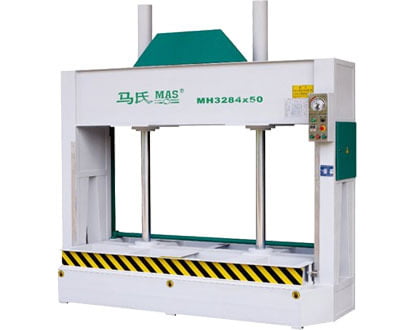

TECHNICAL DATA

• Name Model : 2.5 X 1.25 trip1.3m

• Max higher : 3.4m

• Pressing plate size : 1250 X 2500

• Pressure : 50T

• Opening distance : 1300m

• Thickness of pressing plate : 900mm

• Installed power : 4kw

• Power : 415V 50Hz 3 Phase

• Overall dimensions : 2910 X 1250mm

• Net weight : 1.9T - 8 bolt for cyl lock

• Bottom and top need make it full cover by steel

• Side need use the steel road and need the bearing type for lifting - 300mm bottom thickness/190mm top platen - 15 mm plate thickness Excluded Hydraulic Oil

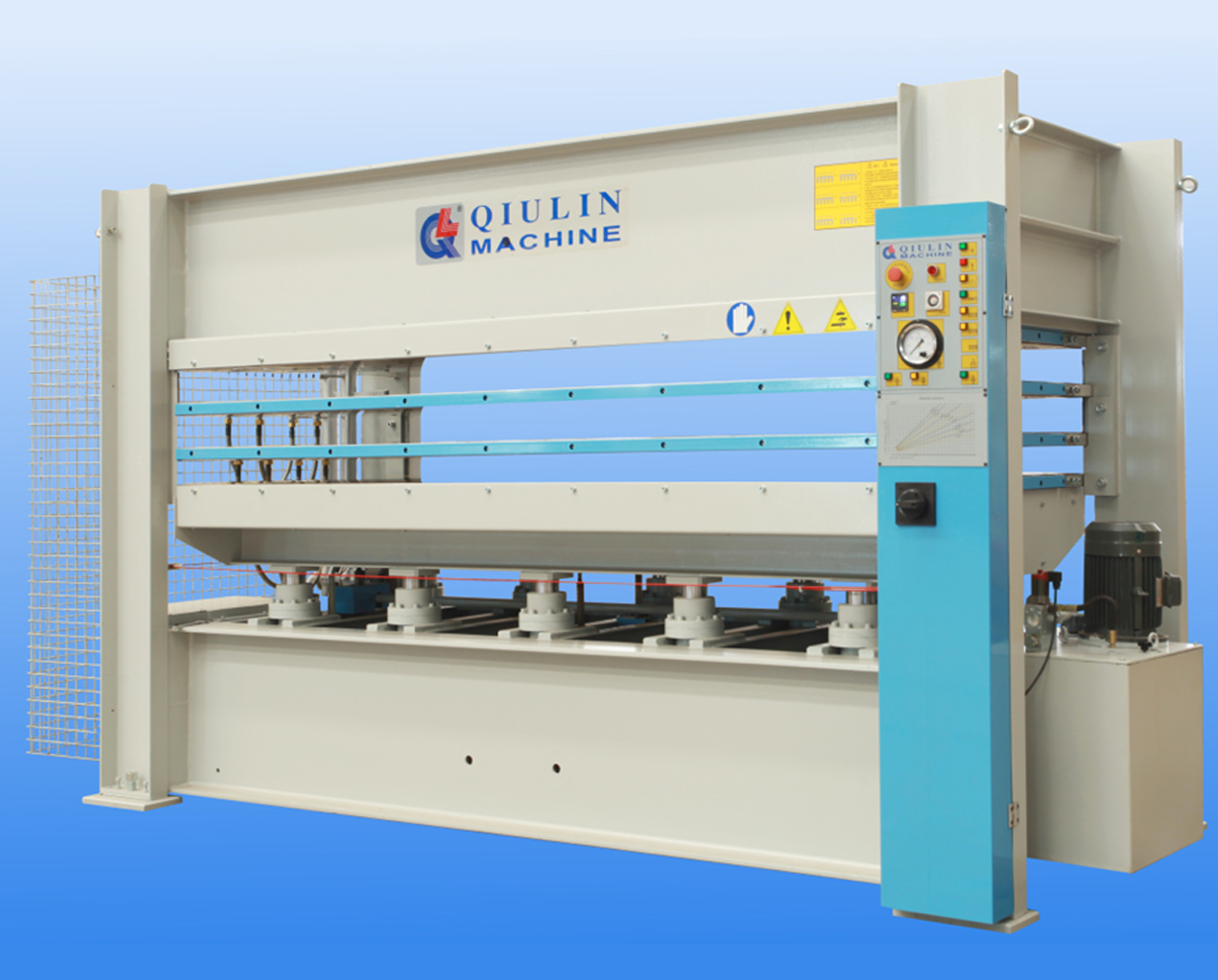

TECHNICAL DATA

• Total pressure: 1000KN (100Ton)

• Specific pressure: 3.7Kgf/cm2

• Working layer: 3

• Platen No.& Size: 2-2500x1300x42mm, solid steel drilled hot platen covered with Mylar

• Platen Opening : 120mm

• Cylinder No.: 8

• No. Dia: 85mm

• Max temperature: 120 Deg.

• Heating Type: Electric heating with thermic oil

• Installation power: 4 + 0.75 + 48 kW

• Platen opening way: Automatically

• Loading way: Length side, Manually

• Voltage: 3PE 415V 50Hz

• Packing: Bare but properly secured

TECHNICAL DATA

• Total pressure : 1600KN

• Specific pressure : 5gf/cm2

• Working layer : 3 layers

• Platen No.& Size : 4-2500x1300x42mm, solid steel drilled hot platen covered with Mylar

• Platen opening : 120mm

• Cylinder No.& Dia : 10-φ85mm

• Max temperature : 120℃

• Heating way : Electric heating with thermal oil

• Heating medium : thermal oil

• Installation power: 4 + 0.75 + 48 kW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 415V 50Hz

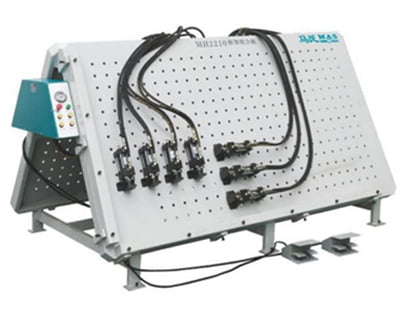

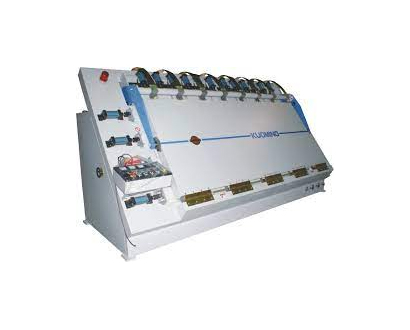

• Input Power 3 × 415V

• High Frequency Power 25 KW,

• Transmitting Tube 3CX15000H3

• H.F. Adjustor Hand wheel adjustor

• High Tension Transformer AC8000V, DC10000V. 40KVA

• Rectifier Patented, High Tension resistance, Full wave

• Variable Capacitor Patented, 4 piece one Set,

• Working Area Max range : 2440 X 1220 X 15~80mm, for Frame assemble

• Pressure 5HP Hydraulic pump

• Pressing way V UP and SIDE pressure as well as Upper Massive plate

• Cylinder Up × 2 PCS / Rear x 10 PCS / Side x 2 PCS

• Loading and Unloading Manually loading and unloading

• UP and Lower Plate Upper and bottom plate surface attached with steel plates.

• Press type Dual Inclined Bed with One massive upper plate slides left and right side for up side pressing

• Tube Protector Patented tube protector is to protect the expensive tube from over-heat burnt

• Spark Suppressor Patented spark suppressor is to protect machine plate and work piece from short voltage burnt

• Grounding Whole plate grounding

• Plate positioning Protection Upper plate positioning pressing protection,

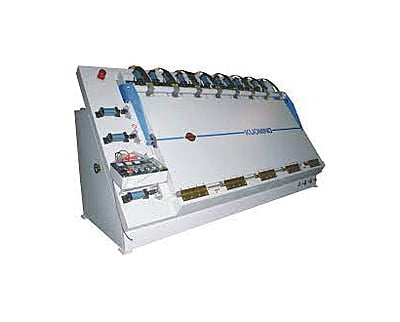

• Input Power 3 × 380V

• High Frequency Power 25 KW, Max. 31KW

• Transmitting Tube 3CX15000H3

• H.F. Adjustor Hand wheel adjustor

• High Tension Transformer AC8000V, DC10000V. 40KVA

• Rectifier Patented, High Tension resistance, Full wave

• Variable Capacitor Patented, 4 piece one Set,

• Working Area Max range : 2440 X 1220 X 15~80mm, for frame assemble

• Pressure - 5HP Hydraulic pump

• Pressing way UP and SIDE pressure as well as Upper Massive plate

• Cylinder Up × 2 PCS / Rear x 20 PCS / Side x 8 PCS

• Loading and Unloading Manually loading and unloading

• UP and Lower Plate Upper and bottom plate surface attached with Stainless steel plates.

• Press type Dual Inclined Bed with One massive upper plate slides left and right side for up side pressing

• Tube Protector Patented tube protector is to protect the expensive tube from over-heat burnt

• Spark Suppressor Patented spark suppressor is to protect machine plate and work piece from short voltage burnt

• Grounding Whole plate grounding

• Plate positioning l Protection Upper plate positioning pressing protection,

• Control system Standard control system

• Dimension L:6500mm W:2200mm H:1900mm

• Weight NW:6200KGS. GW:7200KGS.

• Package Wooden Pallet 6700 X 2200mm, 40′ container. Plastic coverage

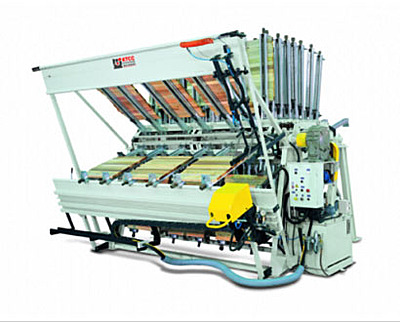

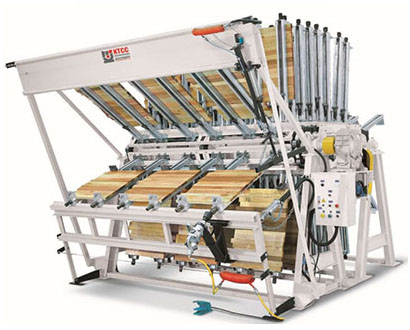

• TECHNICAL SPECIFICATIONS:

• Machine complete with 6 sections

• Every section with 8 clamps, total 48 clamps

• Clamp depth: 50" / working depth: 400~1250mm

• Machine working high will be different by the clamp depth.

• Clamp jaw high: 90mm

• Machine working width: 125" / 3100mm

• Rotary drive motor:1.5kw x 1pc

• Hydraulic pump drive motor: 2.25kw x 1pc

• Pump could be set up the according laminate pressure for the hydraulic tightener system.

• Hydraulic tightener: 1 Set

• Hand push to fit on the clamp.

• Top pneumatic panel flattener: 1 Set

TECHNICAL DATA

• Total pressure : 1600KN

• Specific pressure : 5gf/cm2

• Working layer : 5 layers

• Platen No.& Size : 6-2500x1300x42mm, solid steel drilled hot platen covered with Mylar

• Platen opening : 90mm

• Cylinder No.& Dia : 10-85mm

• Max temperature : 140 Deg.

• Heating way : Electric heating with thermal oil

• Heating medium: : thermal oil

• Installation power: 4 + 1.5 + 72 kW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 415V 50Hz

• Packing : Bare but properly secured

• a[href="#zppost_rating"], .zpcomments-reviews-ratings { display: none !important }[data-zs-product-details-commentbox-section] { display: none !important }.theme-product-short-desc { width: 100% !important; float: none !important; clear: both !important }.theme-product-detail-right { width: 100% !important; float: none !important }.theme-product-specification-tab { display: none !important }

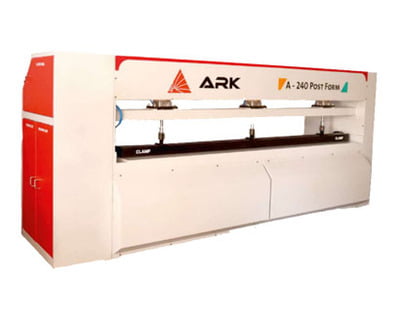

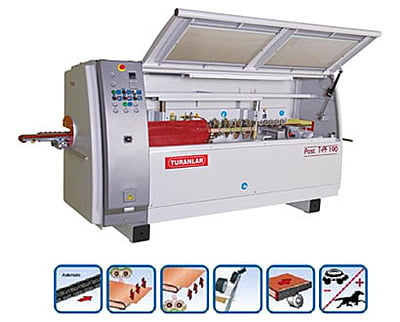

TECHNICAL DATA

•

• Total Thrust : 120 Ton

• Type of Platen : Fabricated Steel Platen

• Platen Sizes : 3000mm X 1300mm

• Cylinder Dia : 85mm

• Cylinders : 6 No

• Stroke : 400 mm

• Timer Opening&n

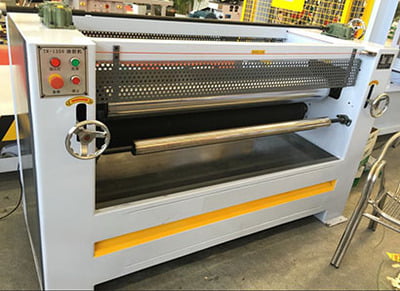

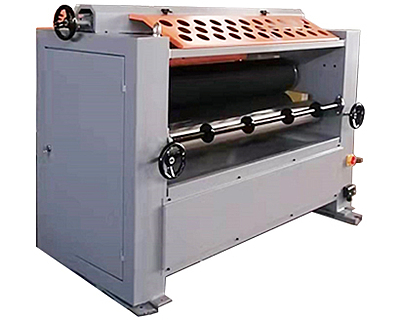

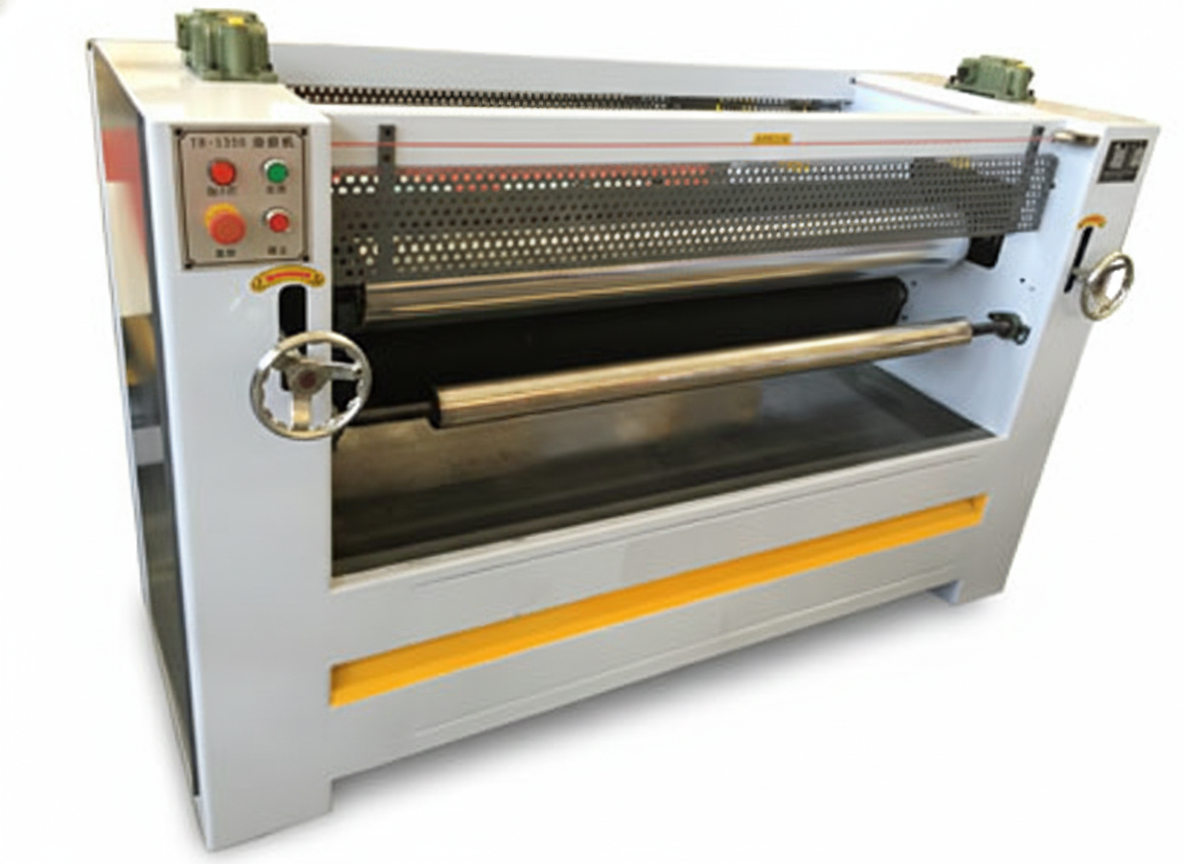

• Gluing rod size: Dia.190x1350mm (Chromed glue rod)

• Feeding Speed: 18m/min

• Power: 2.2kw

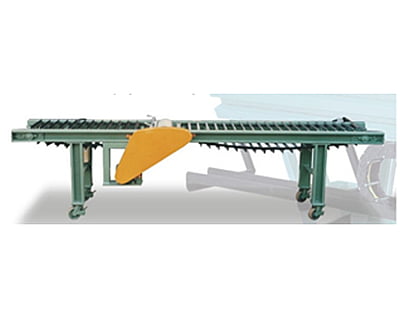

• Gluing rod size: Dia.190x1350mm (Chromed glue rod)

• Feeding Speed: 20m/min

• Power: 1.5kw

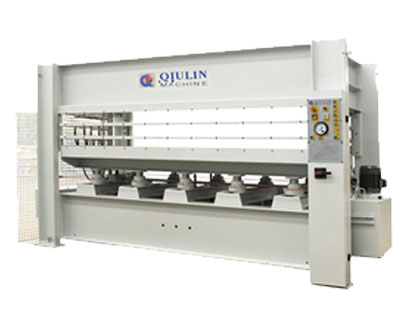

TECHNICAl DATA

• Model : BY214×10/16(3)H1RC

• Total pressure : 1600KN

• Specific pressure : 4.3Kgf/cm2

• Working layer : 3 layers

• Platen No.& Size : 4-3200x1300x42mm, solid steel drilled hot platen covered with Mylar

• Platen opening : 120mm

• Cylinder No.& Dia : 10-φ85mm

• Max temperature : 120℃

• Heating way : Electric heating with thermal oil

• Heating medium: : thermal oil

• Installation power: 4 + 1.5 + 72 kW = 77.5 kW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 415V 50Hz

• Packing : Bare but properly secured

• Gross Weight : About 10000.00 kg

TECHNICAL DATA

• Total pressure: 1000KN (100Ton)

• Specific pressure: 3.7Kgf/cm2

• Working layer: 1

• Platen No.& Size: 2-2500x1300x42mm, solid steel drilled hot platen covered with Mylar

• Platen Opening : 360mm

• Cylinder No.: 8

• No. Dia: 85mm

• Max temperature: 120 Deg.

• Heating Type: Electric heating with thermic oil

• Installation power: 4 + 0.75 + 24 kW

• Platen opening way: Automatically

• Loading way: Length side, Manually

• Voltage:3PE 415V 50Hz

• Packing: Bare but properly secured

TECHNICAl DATA

• Model : BY214×10/16(1)H1RC

• Total pressure : 1600KN

• Specific pressure : 3.8Kgf/cm2

• Working layer : 1 layers

• Platen No.& Size : 2-3200x1300x42mm, solid steel drilled hot platen covered with Mylar

• Platen opening : 360mm

• Cylinder No.& Dia : 10-φ85mm

• Max temperature : 120℃

• Heating way : Electric heating with thermal oil

• Heating medium : thermal oil

• Installation power: 4 + 0.75 + 36 kW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 415V 50Hz

TECHNICAL DATA

• Model : BY214×8/10(2)H1RC

• Total pressure : 1000KN

• Specific pressure : 3.1gf/cm2

• Working layer : 2 layers

• Platen No.& Size : 3-2500x1300x42mm, solid steel drilled hot platen covered with Mylar

• Platen opening : 170mm

• Cylinder No.& Dia : 6-φ85mm

• Max temperature : 120℃

• Heating way : Electric heating with thermal oil

• Heating medium : thermal oil

• Installation power: 4 + 0.75 + 36 kW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 415V 50Hz

TECHNICAL DATA

• Total pressure : 1000KN

• Specific pressure : 3.1gf/cm2

• Working layer : 1 layers

• Platen No.& Size : 2-2500x1300x42mm, solid steel drilled hot platen covered with Mylar

• Platen opening : 360mm

• Cylinder No.& Dia : 6-φ85mm

• Max temperature : 120℃

• Heating way : Electric heating with thermal oil

• Heating medium : thermal oil

• Installation power: 4 + 0.75 + 24 kW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 415V 50Hz

TECHNICAL DATA

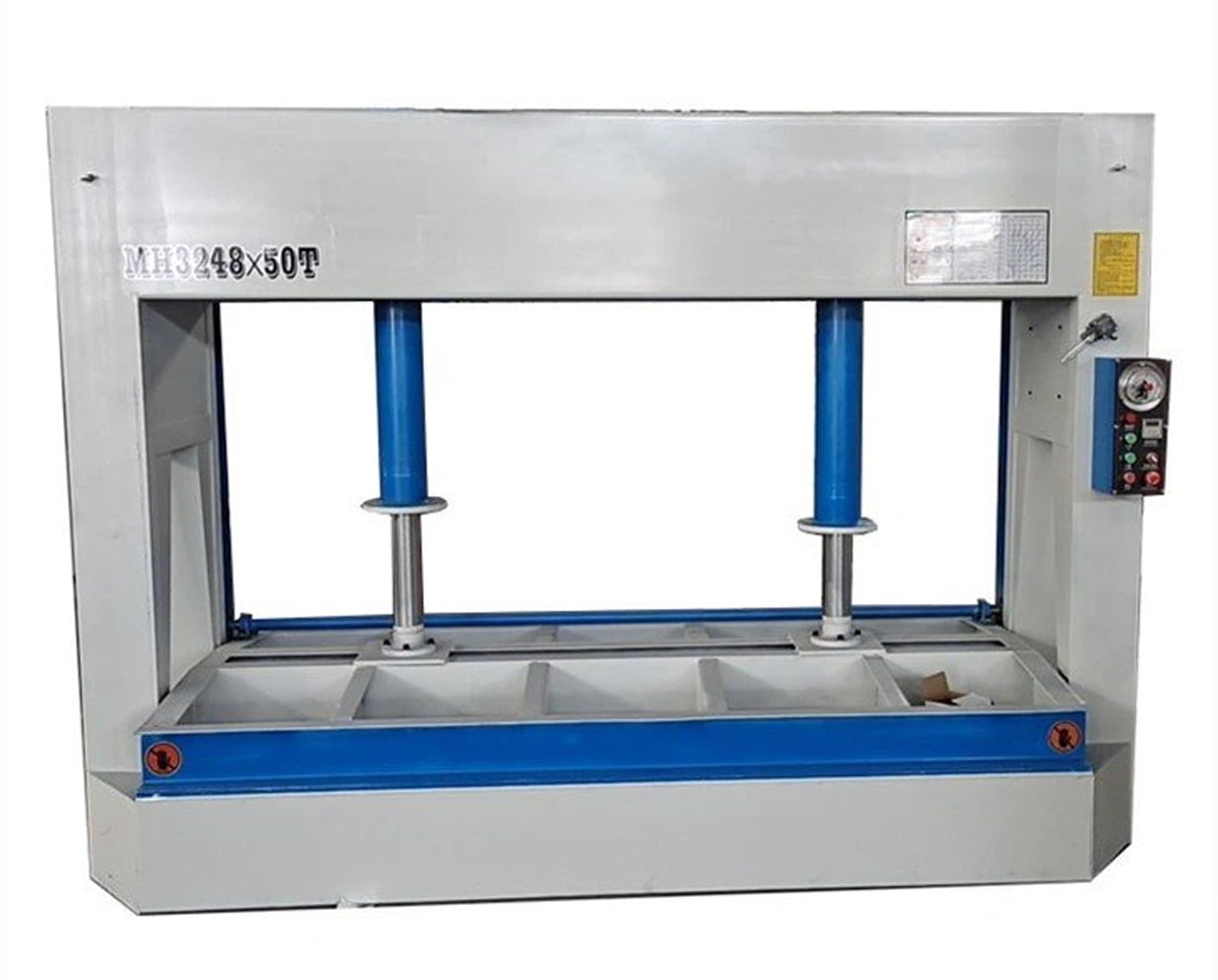

• Working table size : 2500x1250 mm

• Max. Pressure : 50 T

• Max. Work piece thickness :900 mm

• Total Power :4 kw

• Net Weight : 2100 kg

• Overall Dimensions : 2900x1330x2850 mm
