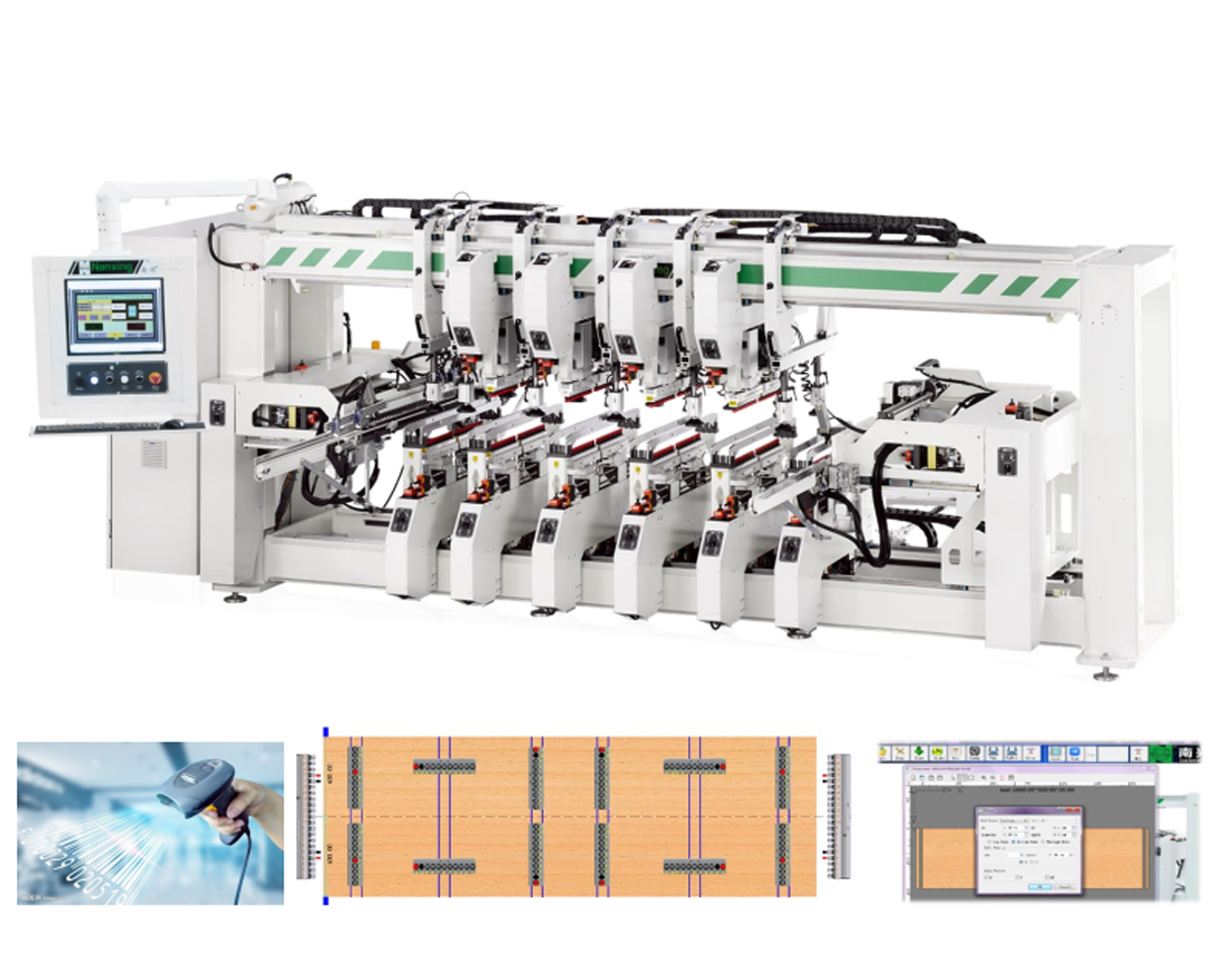

Name: Nanxing Through-feed Drilling Machine with Servo Drived NDC642-(415V)
Brand: Nanxing
SKU: NDC642-(415V)
Price: 8475000.0 INR
Availability: OutOfStock

SPECIFICATIONS

• Enough drilling rows 6 vertical rows on bottom,4 on top and 2 horizontal rows on side enable to finish 4 side drilling in one cycle;

• Feeding fast: 3 section feeding belt with waiting area for least waiting time max. speed of belt is 80m/mim, Max 22pcs/min

• Adjusting fast: Vertical drilling row movement and rear positioning control by servo motors, auto positioning, reducing the time of adjusting, save time and labor. 13pcs servo motors in total.

• Fast drilling block changing time: quick change and release design, 5s to change block

• Intelligent PC control: support MPR,DXF,MPR format to link with common furniture design software or MES, can scan the label to read drilling info.

• Machine is standard with drawing function, generate rows and drills position based on the drawing automatically, and move without too much setting up work.

Technical DATA

• Max panel width : 2550 mm

• Min. panel width : 250 mm

• Max. panel thickness :50mm

• Upper drilling rows qty. : 4

• Lower drilling rows qty. 6

• Horizontal drilling rows qty : 2

• Boring block power : 1.5kw 2750rpm

• Spacing of drills : 32mm

• Max. vertical drilling depth : 50mm

• Max. horizontal drilling depth : 40mm

• Servo motor qty : 13

• Servo motor power : 0.75kw

• Total power : 47kw

• Power Supply : 415V / 50HZ / 3PH

• Approx. weight : 7,100 kg

• Overall dimension : 5,540*3,650*2,800 mm

Available on Request

₹8,475,000.00

Customize

TEST

Boring Machine

Nanxing Through-feed Drilling Machine with Servo Drived NDC642-(415V)

Multi-spindle boring precision. Every hole, every time.

QUICK SPECS

width : 2550 mm - Min. panel width : 250 mm - Max. panel thickness :50mm - Upper drilling rows qty. : 4 - Lower drilling rows qty. 6 - Horizontal drilling rows qty : 2 - Boring block power : 1.5kw 2750rpm - Spacing of drills : 32mm - Max. vertical drilling depth : 50mm - Max. horizontal drilling depth : 40mm - Servo motor qty : 13 - Servo motor power : 0.75kw - Total power : 47kw - Power Supply : 415V / 50HZ / 3PH - Approx. weight : 7

Max Panel

0.75kw - Total power : 47kw - Power Supply : 415V / 50HZ / 3PH - Approx. weight : 7

Motor Power

47kw - Power Supply : 415V / 50HZ / 3PH - Approx. weight : 7

Total Power

1.5kw

Power

2750

Speed

12 mo / 2000 hr

Warranty

HOW IT WORKS

Load Board

Align Stops

Drill Holes

Check Pitch

Stack Output

KEY FEATURES

— Enough drilling rows 6 vertical rows on bottom,4 on top and 2 horizontal rows on side enable to finish 4 side drilling in one cycle;

— Feeding fast: 3 section feeding belt with waiting area for least waiting time max. speed of belt is 80m/mim, Max 22pcs/min

— Adjusting fast: Vertical drilling row movement and rear positioning control by servo motors, auto positioning, reducing the time of adjusting, save time and labor. 13pcs servo motors in total

— Fast drilling block changing time: quick change and release design, 5s to change block

— Intelligent PC control: support MPR,DXF,MPR format to link with common furniture design software or MES, can scan the label to read drilling info

— Machine is standard with drawing function, generate rows and drills position based on the drawing automatically, and move without too much setting up work

FEATURE	ADVANTAGE	BENEFIT TO YOU
SAFETY
CE-certified safety design	Meets international safety standards	You get a machine built for operator safety
Emergency stop circuit	Instant power cut-off on activation	You get immediate halt in emergencies
Enclosed moving parts	Reduces contact with rotating components	You get a safer working environment
QUALITY
Servo motor drive system	Precise, repeatable positioning	You get consistent quality across every board
USER FRIENDLY
Automatic feeding system	Hands-free panel transport	You get a single operator running the full cycle
PRODUCTIVITY
High feed speed (2750)	More panels processed per hour	You get higher daily output from the same shift
Reliable cycle-time consistency	Same output rate shift after shift	You get predictable delivery schedules for customers
ROI
Reduced labour dependency	One operator can run the machine alone	You save on staffing costs and wage bills
Lower material waste	Precision cuts reduce offcut losses	You save on raw material spend every month
Durable long-life components	Extended service intervals	You save on spare parts and maintenance costs
TRUST
Authorised Nanxing Distributor	Direct factory support and genuine parts	You get the real machine with full manufacturer backing
caple.in — In business since 1974	50+ years of woodworking machinery expertise	You get advice from engineers who know the trade
12-month / 2000-hour warranty	Whichever comes first — no ambiguity	You get protected investment from day one
Trained service team	Factory-trained engineers for installation and support	You get fast, knowledgeable on-site support
Pan-India support network	Service coverage across India with multiple demo centres	You get local support wherever your factory is

TECHNICAL SPECIFICATIONS
Fast drilling block changing time	quick change and release design, 5s to change block
Max panel width	2550 mm
Min. panel width	250 mm
Max. panel thickness	50mm
Upper drilling rows qty.	4
Horizontal drilling rows qty	2
Boring block power	1.5kw 2750rpm
Spacing of drills	32mm
Max. vertical drilling depth	50mm
Max. horizontal drilling depth	40mm
Servo motor qty	13
Servo motor power	0.75kw
Total power	47kw
Power Supply	415V / 50HZ / 3PH
Approx. weight	7,100 kg
Overall dimension	5,5403,6502,800 mm

FREQUENTLY ASKED QUESTIONS

What is the minimum pitch between drill holes?

The standard pitch is 32 mm to match the European cabinet system. Some models support variable pitch — check the spec table above.

How many spindles does this machine have?

Refer to the spindle count in the Quick Specs section above. Multi-spindle models allow simultaneous vertical and horizontal drilling.

Can I drill both faces of a panel in one pass?

Some models support double-sided drilling. Refer to the product name and specification table to confirm this capability.

What board dimensions can the machine handle?

Refer to the panel size range listed in the Quick Specs and Technical Specifications sections above.

What is the warranty period?

12 months or 2000 operating hours, whichever comes first.

Where can I find the full manual and spare parts list for the NDC642?

Full documentation for the NDC642 is available through caple.in. Contact our team or book a demo to receive the technical manual and parts catalogue.

What air pressure/CFM does the NDC642 require?

The NDC642 requires an air supply at 6 bar with approximately 10 CFM continuous consumption. Ensure your compressor and drier can deliver this reliably.

What is the total power consumption of the NDC642?

The NDC642 draws approximately 63 HP (47 kW) total power. Use a 80-amp 3-phase 415V supply with separate earthing and a 63 KVA stabiliser for safe operation.

What dust extraction capacity is needed for the NDC642?

The NDC642 needs approximately 1,766 CFM (3,000 CMH) dust extraction through standard dust ports. We recommend the Dust Collector AXC 3HP | 3000-3500 CMH.

What is the weight of the NDC642?

The NDC642 weighs 7,100 kg. Ensure floor load capacity and proper foundation before installation.

What is under the customer’s scope?

Travel, food and stay for service engineers; material handling and lifting equipment; power tools and consumables for machine foundation; operator safety equipment; basic electrical connections up to the machine; general tool kit and measuring instruments — are all under the customer’s scope.
