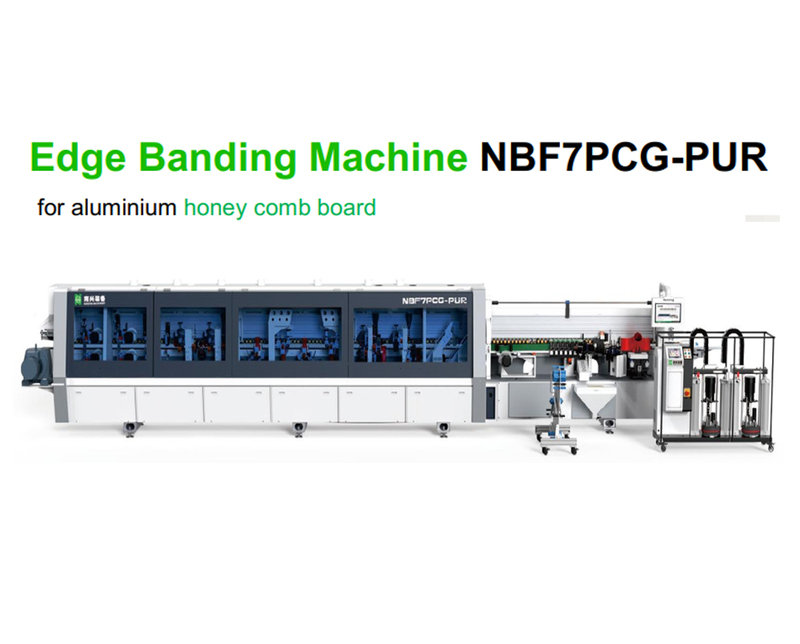

Name: Nanxing Edge Banding Machine NBF7PCG-PUR for Aluminium Honey comb Board
Brand: Nanxing
SKU: NBF7PCG-PUR(415V)
Price: 5150000.0 INR
Availability: OutOfStock

FEATURES

Side assistance rollers
Spraying device (release agent)
Pre-milling
Pre-heating
Edge tape feeder by servo motor-2 tape system
Snipping
PUR gluing applicator
2-color PUR heater
Pressure rollers
Belt tape presser
Auto lubrication system
Dual rails for end trimming
Rough trimming
Fine trimming units
Corner trimming with 4 motors
Two sets of scraping units
Off cut device
Pneumatic flat scraping
Spraying device (Clean agent)
2 sets Oscillating Buffing
Switch
Dust collector port Φ125mmX9
Safety device
Electric components
PC control
User-friendly interface
Production report
Easy Trouble-shooting

TECHNICAL DATA:

Panel length: ≥120 mm ; ≥200 mm with corner rounding
Panel width: ≥80 mm
Panel thickness:
9-60 mm
9-22mm (aluminum honeycomb board)
Min. panel size 120×120mm; 200×50mm
Edge tape thickness:
0.4-3 mm
1-2mm (for aluminum honeycomb board)
Feeding speed:
12/16/20 m/min
12/16m/min (for aluminum honeycomb board)
Power supply: 415 V; 50 Hz
Air pressure required: 0.7MPa
Operation system PC
Dust collector Φ125mmX9
Total power: 30 kW
Approx. weight: 6110 kg
Overall dimension: 11200X1050X1850mm

Available on Request

₹5,150,000.00

₹6,437,500.00

Customize

TEST

Edge Bander

Nanxing Edge Banding Machine NBF7PCG-PUR for Aluminium Honey comb Board

Professional edge banding. Precise bonds. Zero compromise.

QUICK SPECS

120×120mm

Panel Size

120 x 120 mm

Work Area

Feed Speed

30 kW - Approx. weight: 6110 kg - Overall dimension: 11200X1050X1850mm

Total Power

30 kW

Power

6110 kg

Weight

HOW IT WORKS

Feed Panel

Apply Glue

Bond Edge

Trim Ends

Buff Finish

KEY FEATURES

— Side assistance rollers

— Spraying device (release agent)

— Edge tape feeder by servo motor-2 tape system

— PUR gluing applicator

— 2-color PUR heater

— Pressure rollers

— Belt tape presser

— Auto lubrication system

— Dual rails for end trimming

— Fine trimming units

FEATURE	ADVANTAGE	BENEFIT TO YOU
SAFETY
CE-certified safety design	Meets international safety standards	You get a machine built for operator safety
Emergency stop circuit	Instant power cut-off on activation	You get immediate halt in emergencies
Enclosed moving parts	Reduces contact with rotating components	You get a safer working environment
QUALITY
Servo motor drive system	Precise, repeatable positioning	You get consistent quality across every board
USER FRIENDLY
Automatic feeding system	Hands-free panel transport	You get a single operator running the full cycle
PRODUCTIVITY
High feed speed (20)	More panels processed per hour	You get higher daily output from the same shift
Reliable cycle-time consistency	Same output rate shift after shift	You get predictable delivery schedules for customers
ROI
Reduced labour dependency	One operator can run the machine alone	You save on staffing costs and wage bills
Lower material waste	Precision cuts reduce offcut losses	You save on raw material spend every month
Durable long-life components	Extended service intervals	You save on spare parts and maintenance costs
TRUST
Authorised Nanxing Distributor	Direct factory support and genuine parts	You get the real machine with full manufacturer backing
caple.in — In business since 1974	50+ years of woodworking machinery expertise	You get advice from engineers who know the trade
12-month / 2000-hour warranty	Whichever comes first — no ambiguity	You get protected investment from day one
Trained service team	Factory-trained engineers for installation and support	You get fast, knowledgeable on-site support
Pan-India support network	Service coverage across India with multiple demo centres	You get local support wherever your factory is

TECHNICAL SPECIFICATIONS
Panel length	≥120 mm ; ≥200 mm with corner rounding
Panel width	≥80 mm
Power supply	415 V; 50 Hz
Air pressure required	0.7MPa
Total power	30 kW
Approx. weight	6110 kg
Overall dimension	11200X1050X1850mm

FREQUENTLY ASKED QUESTIONS

What edge tape materials can this machine process?

The machine is compatible with PVC, ABS, melamine, veneer, and acrylic edge tapes in varying thicknesses. Refer to the technical specification sheet for the exact thickness range.

What board thickness range does this edge bander support?

The machine handles standard panel thicknesses used in furniture production. Check the spec table above for the exact min/max board thickness.

Do I need a skilled operator to run this machine?

No. The intuitive controls allow a trained semi-skilled operator to run production after a short commissioning session from our team.

What type of glue does the machine use?

The machine uses EVA hotmelt glue (standard). Some models also support PUR glue systems for demanding applications.

How long does installation and training take?

Installation, commissioning and operator training take approximately 1–3 days for standard machines and 3–5 days for large CNC or multi-axis machines, depending on site readiness and operator availability.

What air pressure/CFM does the Nanxing Edge Banding Machine NBF7PCG-PUR for Aluminium Honey comb Board require?

The NBF7PCG-PUR requires an air supply at 6 bar with approximately 15 CFM continuous consumption. Ensure your compressor and drier can deliver this reliably.

What is the total power consumption of the Nanxing Edge Banding Machine NBF7PCG-PUR for Aluminium Honey comb Board?

The NBF7PCG-PUR draws approximately 40 HP (30 kW) total power. Use a 50-amp 3-phase 415V supply with separate earthing and a 40 KVA stabiliser for safe operation.

What dust extraction capacity is needed for the Nanxing Edge Banding Machine NBF7PCG-PUR for Aluminium Honey comb Board?

The Nanxing Edge Banding Machine NBF7PCG-PUR for Aluminium Honey comb Board needs approximately 6,567 CFM (11,150 CMH) dust extraction through Ø125mm × 9. We recommend the Dust Collector AXC 10HP — 10,600 CMH.

What are the overall dimensions of the Nanxing Edge Banding Machine NBF7PCG-PUR for Aluminium Honey comb Board?

The Edge Banding Machine NBF7PCG-PUR for Aluminium Honey comb Board measures 11,200 × 1,050 × 1,850 mm (L × W × H) — equivalent to 36'9" × 3'5" × 6'1". Machine footprint is 11.8 m² (127 sq ft). Plan at least 619 sq ft including 1.5 m operator access zones on all sides.

What is the weight of the Nanxing Edge Banding Machine NBF7PCG-PUR for Aluminium Honey comb Board?

The Nanxing Edge Banding Machine NBF7PCG-PUR for Aluminium Honey comb Board weighs 6110 kg. Ensure floor load capacity and proper foundation before installation.

What is under the customer’s scope?

Travel, food and stay for service engineers; material handling and lifting equipment; power tools and consumables for machine foundation; operator safety equipment; basic electrical connections up to the machine; general tool kit and measuring instruments — are all under the customer’s scope.
