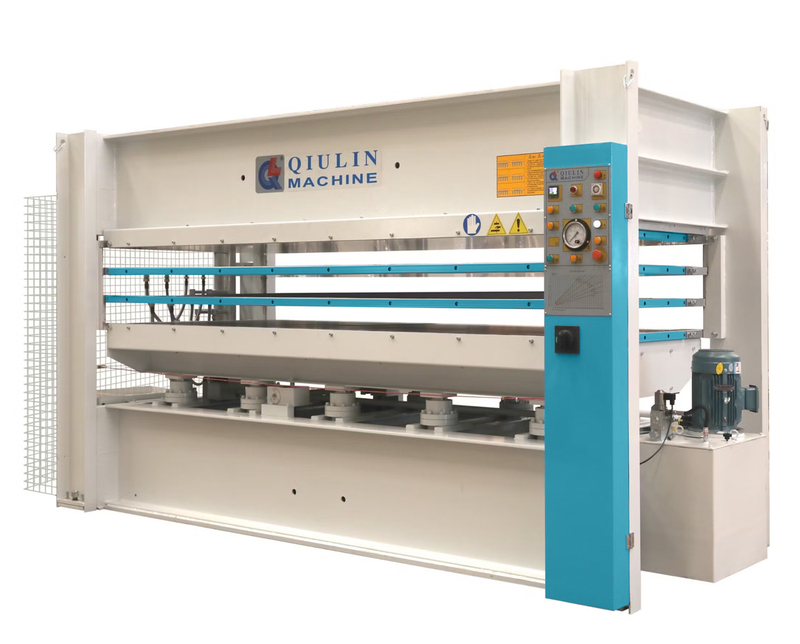

Hot Press Machine BY214X10/16(3)H1RC [3200x1300mm | 160T | Solid Steel | Daylight 2]

TECHNICAl DATA

• Model : BY214X10/16(2)H1RC

• Total pressure : 1600KN

• Specific pressure : 3.8Kgf/cm2

• Working layer : 2 layers

• Platen No.& Size : 3-3200X1300X42mm(solid steel drilled hot platen covered with mylar)

• Platen opening : 170mm

• Cylinder No.& Dia : 10-φ85mm

• Max temperature : 120℃

• Heating way : Electric heating with thermal oil

• Heating medium : thermal oil

• Installation power : 4 1.5 54KW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 415V 50Hz
