TECHNICAL SPECIFICATIONS:

Vacuum table, 4 zones

• 1500*3000*200mm
• Richauto DSP A11 controller
• HQD 6KW air-cooling spindle
• Folinn 7.5KW Inverter
• Leadshine 750W servo motor and driver
• Oubang planetry reducer
• Golden bridge 7.5KW vacuum pump
• Taiwan HIWIN 25/25/25 squire rails
• PCRCH 1.5M helical rack on XY axis
• Taiwan 2505 TBI ball screw on Z axis
• Manual lubrication
• Frech Schneider electrical components
• Autonics/Omron Limited switch
• 380V/3Ph/50Hz

TECHNICAL SPECIFICATIONS:

Aluminum profile table+T slots+PVC

• 1500*3000*200mm
• Richauto DSP A11 controller
• HQD 6KW air-cooling spindle
• Folinn 7.5KW Inverter
• Leadshine 750W servo motor and driver
• Oubang planetry reducer
• Taiwan HIWIN 25/25/25 squire rails
• PCRCH 1.5M helical rack on XY axis
• Taiwan 2505 TBI ball screw on Z axis
• Manual lubrication
• Frech Schneider electrical components
• Autonics/Omron Limited switch
• 380V/3Ph/50Hz

TECHNICAL SPECIFICATIONS:

Vacuum table, 4 zones

• 1300*2500*200mm
• Richauto DSP A11 controller
• HQD 6KW air-cooling spindle
• Folinn 7.5KW Inverter
• Leadshine 750W servo motor and driver
• Oubang planetry reducer
• Golden bridge 5.5KW vacuum pump
• Taiwan HIWIN 25/25/25 squire rails
• PCRCH 1.5M helical rack on XY axis
• Taiwan 2505 TBI ball screw on Z axis
• Manual lubrication
• Frech Schneider electrical components
• Autonics/Omron Limited switch
• 380V/3Ph/50Hz

TECHNICAL SPECIFICATIONS:

Aluminum profile table+T slots+PVC

• 1300*2500*200mm
• Richauto DSP A11 controller
• HQD 6KW air-cooling spindle
• Folinn 7.5KW Inverter
• Leadshine 750W servo motor and driver
• Oubang planetry reducer
• Taiwan HIWIN 25/25/25 squire rails
• PCRCH 1.5M helical rack on XY axis
• Taiwan 2505 TBI ball screw on Z axis
• Manual lubrication
• Frech Schneider electrical components
• Autonics/Omron Limited switch
• 380V/3Ph/50Hz

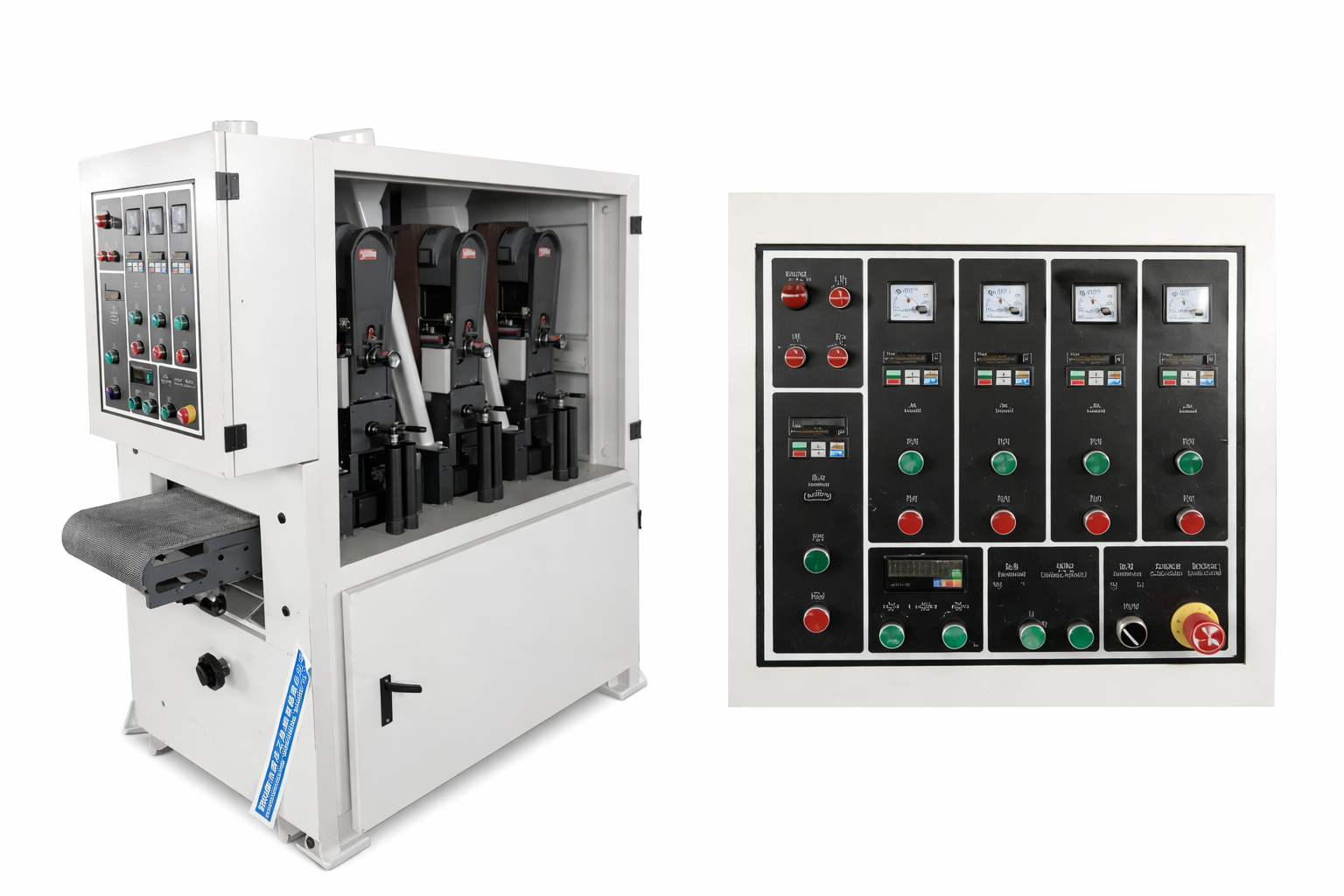

STANDARD SPECIFICATIONS:

• Sanding belt oscillation controlled by photocell sensor.
• Microcomputer controlled thickness setting.
• Automatic control for conveyor belt tracking.
• Front and rear head equipped with rubber covered pressure roller.
• Levelling adjustment for sanding drum and pressure device.
• Independent start controls for main motor.
• Panel cleaning brush roller
• Motor overload protection.
• Feed speed is controlled by Variable Speed.
• The conveyor belt is Heavy Duty type.
• The machine body I made by all steel, not be wired by H iron.
• The speed of Sanding belt & Scotch Brite Roller are controlled Inverter.
• Air jet sanding belt cleaning device.
• Emergency Stop Device
• - Sanding belt break or midtrack.
• - Power failure.
• - Main Motor overload.

TECHNICAL DATA:

• Main Motor : 15 HP
• Scotch Brite Roller : 7-1/2 HP
• Feed Motor : 5 HP
• Table Hoist Motor : 1 HP
• Brush Roller : 1/2 HP
• Sanding Belt : 52" x 75"
• Feed speed is controlled by Inverter

• TECHNICAL SPECIFICATIONS:

• Ultra heavy-duty design vertical press.

• Number of press bed: 5000mm.

• Heavy-duty type vertical press.

• Convenient downward-opening door for easier loading and unloading.

• Hydraulic operated directional valve: Electrical.

• Hydraulic door lock system.

• PLC controlled system.

• Press bed size: 5000mm x 1200mm x 150mm

• Main hydraulic cylinder: D80 x80mm ST

• Side hydraulic cylinder: D40 x 150mm ST

• Door lifting hydraulic cylinder: D63.

• Door lock hydraulic cylinder: D40.

• Outfeed pusher hydraulic cylinder: D40.

• D80 cylinder with high pressure open/close valves.

• D40 cylinder with high pressure open/close valves.

• Hydraulic control system: 1 Units.

• Hydraulic motor: 15HP.

• Maximum hydraulic pressure: 15 kg/cm2

• 15HP 3HP, 415V/50HZ/3P With Sawblade*1PCE Auto Fence Laser Marker (Without Cooling System) The range: 2-3M Include Bracket Technical Details:

• Arbour Motor : 15HP

• Sawblade Dia : 16 inch

• Saw Arbour Dia : 2 inch

• Working Thickness : 100mm

• Max. Working width : 600mm

• Spindle rotation : 2850 rpm

• Feed Motor : 3HP

• Feeding Speed : 10 - 25

• Table Size : 1720 x 1070mm

• Net & Gross Weight : 1100ks/1400kg

• Dimension ( LxWxH ) : 1920 x 1650 x 1750

• Technical Details:

• Fixed Size Cutting

• Without Defective Part Cutting

• Infeed Table 6M Outfeed Table 2M

• Reality can be judged and cut the length 5M

• Sawblade Speed : 3200rpm

• Sawblade Dia : 10 Inch

• Cutting Capacity Thickness : 50 x 230 mm

• Cutting Capacity width : 100 x 200 mm

• Sawblade Arbour Motor : 10HP Servo 400W

• Feeding Speed : 30 - 90m/min

• Table Height : 880mm

• Working Air Pressure : 5-7 kgs/cm2 - 1 Set Defective Part Cutting Note : Defective Part Cutting and Fixed Size Cutting can not working simultaneously.

• Technical Specifications

• Sliding table size : 1200*375MM

• Max cutting length : 1200MM

• Distance between saw and parallel stop : 1250MM

• The best cutting thickness( saw diameter 300mm) : 75MM - 45゜the best cutting thickness : 65MM

• Grooving saw spindle speed : 7000—8000R/ MIN

• Main saw size : Outside diameter 300MM/inner diameter 30MM

• Grooving saw size : Outside diameter 120MM/inner diameter 20MM

• Main saw spindle speed : 4000—6000R/MIN

• Main saw diameter (possible range), mm : 250-300MM

• Motor power : 4 0.75KW

• Saw blade angel : 0 - 45゜

• Outside size : 1200*2450*900mm

TECHNICAL DATA

• Max. Working width : 1300mm

• Min. Working Length : 280mm

• Working Thickness : 10-150mm

• First unit: planer Diameter : 80mm

• Second unit: Diameter : 240mm

• First Unit: Motor : 30kw

• Second Unit: Motor : 22kw

• Conveyor belt: Motor : 4kw

• Lifting Motor : 0.55kw

• Brush roller: Motor : 1.5kw

• Total Power : 58kw

• First unit : planer

• Second unit : 80HA

• Conveyor belt: Speed : 5-24m/min

• Abrasive Belt Size : 1350*2620mm

• Air Pressure : 0.6Mpa

• Overall Dimensions : 223x×2700×2450-2600mm

• Worktable height : 900mm

• Net Weight : 4600 kgs

• Air jet cleaning for sandpaper : YES

• Table : Fixed

• Conveyor belt centered automatically : YES

• PLC control : YES

• Iron pallet with soft package : YES

• Voltage : 415v/50hz/3phase

• Production lead time : 55days GENERAL

FEATURES

• Body Frame

• The base has a strong body frame in welded steel, to guarantee the stability and durability of the entire structure.

• All laser cutting, no seam gaps. This can make sure the sanding precision.

• All the body frame steel is annealing process. Reduce the internal stress of steel and ensure the stability of the overall machine. Base * steel structure with electric cabinet on the machine front

• Equipped with a thick, wear-resistant stainless steel work table that guarantees precision and sturdiness during any type of machining operation. * The work table is positioned at 900mm from the ground, thus ensure ease of panel loading and unloading. * sanding belts introduction from the machine right side * powered adjustment of working thickness * main motor positioned inside the base Electrical equipment * automatic star-delta start of the main motor * overload protections on the motors * IP54 motor protection Emergency and safety devices * safety detection for over-thickness * Disc brakes. This motorcycle-drived system guarantees speed and safety. * automatic brake for rapid shutdown of the operating group * front and rear emergency push-button * padlockable main switch * automatic emergency stop machine for:

• sanding belt breaking

• not-tensioned sanding belt

• lateral outplacement of sanding belt

• absence of compressed air

• overload on main motor

TECHNICAL DATA

• Name Model : 2.5*1.25m trip1.3m

• Max higher : 3.4m

• Pressing plate size : 1250*2500

• Number of Cylinder : 4pcs

• Pressure : 100T

• Opening distance : 1300mm

• Thickness of pressing plate : 900mm

• Installed power : 5.5kw

• Overall dimensions : 2910*1250mm

• Net weight : 3T Excluded Hydraulic Oil

TECHNICAL DATA

• Name Model : 3 X 1.25m trip1.3m

• Max higher : 3.4m

• Pressing plate size : 1250 X 3000

• Number of Cylinder : 4pcs

• Pressure : 100T

• Opening distance : 1300m

• Thickness of pressing plate : 900mm

• Installed power : 5.5kw

• Overall dimensions : 3400 X 1250mm

• Power supply : 415V 3PH 50 HZ.

• Net weight : @3T - 8 bolt for cyl lock

• Bottom and top need make it full cover by steel

• Side need use the steel road and need the bearing type for lifting - 300mm bottom thickness/190mm top platen - 15 mm plate thickness Excluded Hydraulic Oil

TECHNICAL DATA

• Name Model : 2.5 X 1.25 trip1.3m

• Max higher : 3.4m

• Pressing plate size : 1250 X 2500

• Pressure : 50T

• Opening distance : 1300m

• Thickness of pressing plate : 900mm

• Installed power : 4kw

• Power : 415V 50Hz 3 Phase

• Overall dimensions : 2910 X 1250mm

• Net weight : 1.9T - 8 bolt for cyl lock

• Bottom and top need make it full cover by steel

• Side need use the steel road and need the bearing type for lifting - 300mm bottom thickness/190mm top platen - 15 mm plate thickness Excluded Hydraulic Oil

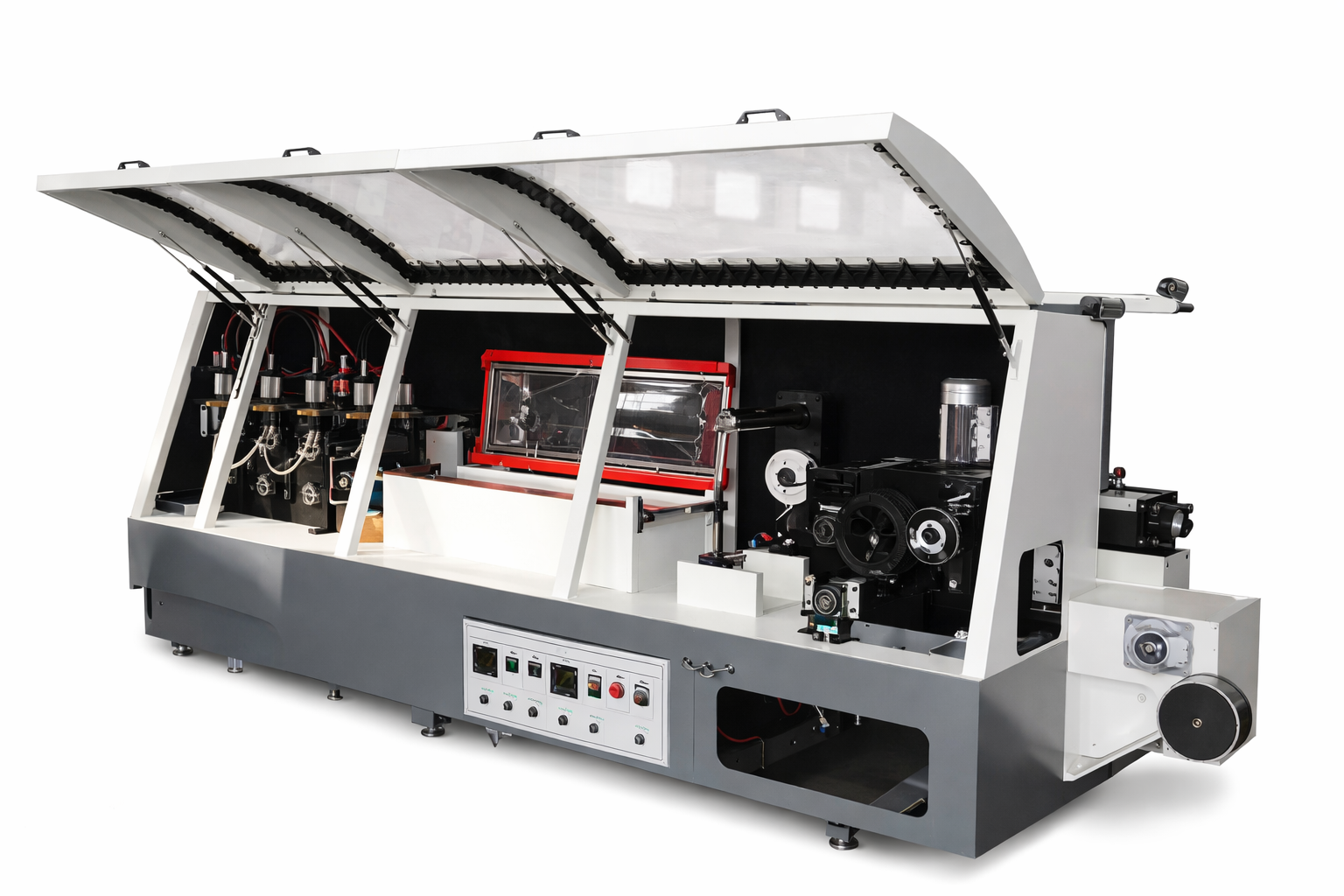

• TECHNICAL PARAMETERS:

• total power :6.5 KW

• voltage : 415 V / 50 HZ / 3 PHASE

• air pressure : 0.6 - 08. Mpa

• air tank : 2L STACKING ARM

• Total Length: 2250 mm

• Shape: Round

• Suction Cup: Dia. 300 mm & Dia. 140 mm

• Loading Capacity : max. 100 KG

• Big Arm: Dia. 165 mm

• Small Arm: Dia. 114 mm STRIP

• Material: PVC, ABS, Melamine, Veneer(customized)

• Width: 14-70 mm

• Thickness: 0.5-3 mm BOARD SIZE

• Round: Dia. 2.4 m

• Rectangle: 1.2*2.4 m

• L shape: 1.4*1.6 m GLUE POT

• Glue: PUR or EVA

• Volume: 2600 ml

• Position: TOP

• Gluing method: Single side

• Temperature: 110-210 Deg. C. GLUEING

• Edge banding spees: 0-30 cm/s

• Minimum radius of inner arc: R=20 mm HEATING

• Position can be adjusted LASER RANGING

• Function: Laser ranging, precise docking PRECISE DOCKING

• Docking Error: /- 0.3 mm

• Requirement: Length 400 mm CLEANING

• Cleaning Liquid: Water-based TRIMMING

• Rotatable : /- 15° TRIMMING, SCRAPIMG, CLEANING

• Speed: 0-24 cm/s

• Trimming method: less than 14 mm,

• single trim 14-70 mm, double trim CLEANING

• Two cleaning deivces

• Water-based cleaning liquid is recommended

TECHNICAL DATA

• Model : JYSD2800

• Max. cutting length : 2800mm

• Knife size : 3400*120*14mm

• Max Space between press bar and work table : 100mm

• Cutting width : 15-350mm

• Total power : 7.5Kw

• Dimensions (L*W*H) : 4900*1600*1700mm

• Weight : 7800kg

• Packing : Plastic film package

• Technical Parameter:

• Power supply : 380V/50Hz

• Input motor power : 1.5kW

• Motor speed : 1400r/min

• Operating pressure : 0.6~0.8MPa

• Air consumption : 3L/min

• Rated pressure : 15MPa

• Extrusion pressure : 48KN

• Motion stroke of angle cylinder : 85mm

• Adjustment range of position block : 54mm

• Height of machine profile : 90mm

• dimension : 1000x1200x1200mm

• weight : 340kgs

• Standard Stand with 705mm long extension Column. Number of Roller : 3 Feed Speed: 8 Speed Motor : 415V/50Hz,3HP Roller Size : Dia. 120 x 60mm Shore 60HA Max. Roller Coverage : 283mm Min. Length Allowed : 165mm Machine Dimension : 473 x 245 x 471mm Machine Weight : 27kg

• Standard Stand with 705mm long extension Column. No.of Roller : 4 Feed Speed: 8 Speed Motor : 415V/50Hz,3ph Roller Size : Dia. 120 x 60mm Shore 60HA Max. Roller Coverage : 416mm Min. Length Allowed : 165mm Machine Dimension : 609 x 258 x 473mm Machine Weight : 30.5kg

• Air flow-2900 CMH, 3 HP Double Bag With Navbharat Make Motor, Stater, 120mm Dia Hose X 3 Mtr Length (Connection Dia 120mm X 1 No. & 100mm X 1 No.)

• FEATURES 1. Sanding belt oscillation controlled by photocell sensor. 2. Microcomputer controlled thickness setting. 3. Automatic control for conveyor belt tracking. 4. Front and rear head equipped with chrome plated pressure plate & rubber covered pressure roller. 5. Leveling adjustment for sanding drum and pressure device. 6. Independent start control for main motor. 7. Automatic 2

• Step startinging on main motor. 8. Motor overload protection. 9. Emergency Stop Device -- Sanding belt break or mistrack. Power failure. Main Motor overload. 10. Variable feed speed 11. The conveyor belt is Heavy Duty type. 12. The machine body is made by all steel, not be wired by H iron.

TECHNICAl DATA

• Main Motor: 40.30 HP Feed Motor: 5 HP Table Hoist Motor: 1 HP Sanding Belt: 52" x 75" Panel Cleaning Brush Roller 1 Set Air Jet Sanding Belt Cleaning Device 2 Set

• FEATURES 1. Sanding belt oscillation controlled by photocell sensor. 2. Microcomputer controlled thickness setting. 3. Automatic control for conveyor belt tracking. 4. Front and rear head equipped with chrome plated pressure plate & rubber covered pressure roller. 5. Leveling adjustment for sanding drum and pressure device. 6. Independent start control for main motor. 7. Automatic 2

• Step startinging on main motor. 8. Motor overload protection. 9. Emergency Stop Device -- Sanding belt break or mistrack. Power failure. Main Motor overload. 10. Variable feed speed 11. The conveyor belt is Heavy Duty type. 12. The machine body is made by all steel, not be wired by H iron.

TECHNICAl DATA

• Main Motor: 40.30 HP Feed Motor: 5 HP Table Hoist Motor: 1 HP Sanding Belt: 52" x 75" Panel Cleaning Brush Roller 1 Set Air Jet Sanding Belt Cleaning Device 2 Set

TECHNICAL DATA

•  Min splicing length : 300mm  Min splicing width : 40 - 1600mm  Splicing thickness : 0.3 - 2mm  Splicing speed : 5-50 M/min  Working table height : 920mm  Splicing temperature : 100 - 220????C  Pressure : 5kgf/m2  Total power : 8kw  Overall dimension : 2100*2100*1700mm

• The machine is used specially for polishing veneer, fitted with sanding roller and polish wheels, and conveyor belt is with vacuum suction for holding veneer tightly and making your veneer surface perfect.

TECHNICAl DATA

• Max Working width : 400mm Thickness of processing materials : 0.2-85mm The length of processing materials : Min.200mm Speed of abrasive belt : 20m/s Feed speed : 3-30m/min Size of abrasive belt : 1660*430mm Power of 1st abrasive belt : 4kw(frequency Power of 2nd abrasive belt : 4KW(frequency) Power of 3rd abrasive belt : 4kw(frequency) Conveyor belt : 1.1kw Lift motor power : 0.37kw Adsorption of vacuum motor power : 5.5kw(maybe smaller) Working pressure : 0.55Mpa Speed required for cleaning equipment :  25m/s Compressed air volume : 5000M3/H NW : 1200Kg Dimensions : 1500*1800*2100mm

• This machine is used to unwind veneer and rewind veneer for sanding machine, it includes two machines, one is unwinding machine, another is rewinding machine.

TECHNICAL DATA

• Max.  Processing width : 300mm  Motor power : 0.75Kw  Domination : 1100*600*1100mm*2 sets  Weight 150kg : *2 sets

• It can be used to wind the veneer on the expansion cylinder for the use of next working procedure

TECHNICAl DATA

•   Max. processing width : 300mm  Total Power : 0.75Kw  Overall dimensions : 1400*1150*1400mm  Weight : 450kg

• It can be used to finger-joint the veneer and make it longer after the veneer is sliced and dried. The joint looks like irregular finger-type teeth in shape. The maximum length of veneer finger-jointed is up to 200-300m.

TECHNICAl DATA

• Max. processing width : 300mm Processing thickness : 0.3 - 0.8mm Min Processing length : 800mm Time of finishing a joint : 8 - 12s Total Power : 2.1kw Compressed air : 0.7 m3/h Overall dimensions  : 2300*1500*1650mm Weight : 800kg

TECHNICAl DATA

•  - Max cutting length (mm ) : 3100

• Max cutting thickness(mm) wet cortices : 40

• Max cutting thickness(mm) dry cortices : 20

• Scissors size (mm) : 3200x145x14

• Cutting power : 4kw

• Feed motor power : 0.75kw

• Hydraulic system pressure (Mpa) : 4 - 5

• Overall dimensions (LxWxH)(mm ) : 4700x1500x2000

• Net weight (Kg) : 3000

TECHNICAL SPECIFICATIONS:

•  - Max cutting length(mm) : 3100

• Max cutting thickness(mm) wet cortices : 40

• Max cutting thickness(mm) dry cortices : 20

• Scissors size mm : 3200x145x14

• Cutting power : 3kw

• Feed motor power : 0.75kw

• Pressure of compressed air : 0.4-0.7

• Overall dimensions (LxWxH)mm : 4700x1400x2000

• Net weight kg : 3000

• Automatic double mitre saw where the cycle is controlled by an electro pneumatic system, that allows three working cycles, selected by a switch on the control panel:

• Both heads cutting at the same time.

• Alternated cut of the saw blades to avoid collision for cutting short pieces

• Cut with one head only The stroke of the saw units is pneumatic, manual positioning of right saw unit. The distance between the saw blades is shown on a tape ruler Standard Equipment - 2 vertical clamps - 2 horizontal clamps

• fix head on the left side

• TCT saw blades included

• Locking points at 45 RH and LH side and 90

• manual locking of intermediate angle positions

• Middle support

• Air regulator with filter and oilier

• Pressure switch

• Electrical board with overload not volt protection, main switch, motor brakes.

• Two hands push buttons for cycle execution

TECHNICAL DATA

• max. cutting length at 90? 2800 mm

• min. cutting length at 45 ? 270 mm

• min. cutting length at 90 ? 225 mm

• max. cutting width at 90 ? 145 mm

• max. cutting width at 45 ? 93 mm

• cutting height 90 mm

• saw blade diameter 300 mm

• two motors 2,2 kW

• Diameter of dust chutes 2 x 80 mm

• Total dust extraction volume 800 m3/h at 21 m/sec.

• It can be used to laminate fleece on the back of veneer to improve the strength and toughness for sanding. Gluing and heating is at the same time. The working speed can be adjusted stepless.

TECHNICAl DATA

•

• Max. processing width : 300mm

• Processing thickness : 0.3 - 1mm

• Feeding speed : 0 - 25m/min

• Total Power : 10.1Kw

• Compressed air : 0.3 m3/h

• Overall dimensions : 3800 x 1100 x 1700mm

• Weight : 1400kg

• SPECIFICATIONS

• P0105 : CO 800 SOLID WHEELS

• R0003 : Voltage V. 400 50HZ three phase

• R0017 : Grooved table 15mm (only with fence for angular cuts)

• R0374 : Inverter kW 4 (HP 5,5)

• R0037 : Bottom high precision blade guide

• R0038 : Steel sawblade 5670x30x0,7 mm; pitc h 10

• R0497 : Safety micro-switch to doors

• R0531 : Die-cast mitre fence

• R2070 : Case packing CO-800 TECHNICAL NOTE. MACHINE AT CE SAFETY NORMS. TABLE TILTING 20 DEGRRE MAX

• for cutting in vertical and horizontal position.

• Heavy duty machine assuring strength with a welded steel frame.

• Automatic shifting frame to avoid the cutting of the plastic strips during the horizontal cuts.

• Bottom aluminium supports with phenolic soles, for a safe support of the panels, and with Lift-up Rollers for a better sliding of the same.

• Manual displacement of the beam and saw carriage for horizontal and vertical cuttings; these last are assured in N� 5 fixed points locking to the frame.

• Manual plunging and returning of saw carriage, by means of ergonomic lever.

• Automatic shifting frame: ELECTRIC.

• Short piece cutting device.

• Integrated dust exhauster with bag or pre-arranged for independent dust collection.

• N? 4 positioners for horizontal cuttings.

• N? 2 Stops for vertical cuttings.

• Lift-up rollers.

• SELF-BRAKING motor.

• Extra short cutting device (RH)

• Supplementary low-level stop

• Sliding support for narrow pieces

• Kit V-Grooving with Adjustable Thickness Stop, for composite materials (cutters not included)

• Cutter with knives 90?

• All standard accessories: safety device, soundproofing, set service tools, user�s manual.

• TECHNICAL SPECIFICATIONS

• Function : Wood turning Fluting Cylinder Engraving Flat Engraving

• Max working size : 1500*300mm This lathe apply to Stair Wooden Railing, the leg of chair & Desk, Sofa etc rotating wooden products machining.

• Lathe Body : Integrally cast (via the finite element analysis and design), 1.6 tons, machining stability, small inertia

• Operational control : 12 Inches large color LCD display, distribution of computer, curve drawing or photo scanning curve plotting, automatic generation of international general G code program files, easy to learn, according to the current machining work piece size requires real-time modified files, can real-time simulation machining simulation, one-click keyboard operation, convenient and quick.

• Spindle Motor : 5.5KW 4 pole Variable stepper motor/580W Beigela stepper motor/2.2kw European Fiat Spindle/0-3500rpm ,Turn knob to adjust any belt speed change?Can add and subtract by cylinder rotation condition in the manufacturing process of rotating speed and feeding speed, to reach to the best processing surface effect.

• X,Y,Z Axis Drive : Yako drive

• Feeding Speed : 3000mm/min

• Linear Guide : Taiwan � CSK High grinding linear square rail

• Drive train : Taiwan TBI High precision ball anti-backlash screw

• Technical support : English teaching videos and instruction book

• Voltage : 380V 50HZ

• Tools : Turning tools 2pcs/Fluting tools 2 pcs/engraving tools 1 box Hardware, Software & Auxiliary configuration Rotary center follow rest (5-6 wood square,);On the precise positioning of double cylinder rack; Electronic automatic braking frequency converter; The tail thimble manual drawing, combined with pneumatic, convenient and flexible; Random wrench etc tool; The basic pattern files; Engraving &groove multi-function spindle and control part; Universal rotary joints, with control and easy to use software. Intelligent protection work surface (limit alarm system), to prevent collisions. Control Software The original COSEN's numerical control woodworking lathe operating system, the realization of automatic dynamic updates, Support for multiple software output code Support Software Autocad/Coreldraw/Type3/Artcam/Ucancam/Caxa/Mastercam/UG etc

• Input Power 3 � 415V

• High Frequency Power 25 KW,

• Transmitting Tube 3CX15000H3

• H.F. Adjustor Hand wheel adjustor

• High Tension Transformer AC8000V, DC10000V. 40KVA

• Rectifier Patented, High Tension resistance, Full wave

• Variable Capacitor Patented, 4 piece one Set,

• Working Area Max range : 2440 X 1220 X 15~80mm, for Frame assemble

• Pressure 5HP Hydraulic pump

• Pressing way V UP and SIDE pressure as well as Upper Massive plate

• Cylinder UP� 2 PCS / Rear x 10 PCS / Side x 2 PCS

• Loading and Unloading Manually loading and unloading

• UP and Lower Plate Upper and bottom plate surface attached with steel plates.

• Press type Dual Inclined Bed with One massive upper plate slides left and right side for up side pressing

• Tube Protector Patented tube protector is to protect the expensive tube from over-heat burnt

• Spark Suppressor Patented spark suppressor is to protect machine plate and work piece from short voltage burnt

• Grounding Whole plate grounding

• Plate positioning Protection Upper plate positioning pressing protection,

• Input Power 3 � 380V

• High Frequency Power 25 KW, Max. 31KW

• Transmitting Tube 3CX15000H3

• H.F. Adjustor Hand wheel adjustor

• High Tension Transformer AC8000V, DC10000V. 40KVA

• Rectifier Patented, High Tension resistance, Full wave

• Variable Capacitor Patented, 4 piece one Set,

• Working Area Max range : 2440 X 1220 X 15~80mm, for frame assemble

• Pressure - 5HP Hydraulic pump

• Pressing way UP and SIDE pressure as well as Upper Massive plate

• Cylinder UP� 2 PCS / Rear x 20 PCS / Side x 8 PCS

• Loading and Unloading Manually loading and unloading

• UP and Lower Plate Upper and bottom plate surface attached with Stainless steel plates.

• Press type Dual Inclined Bed with One massive upper plate slides left and right side for up side pressing

• Tube Protector Patented tube protector is to protect the expensive tube from over-heat burnt

• Spark Suppressor Patented spark suppressor is to protect machine plate and work piece from short voltage burnt

• Grounding Whole plate grounding

• Plate positioning l Protection Upper plate positioning pressing protection,

• Control system Standard control system

• Dimension L:6500mm W:2200mm H:1900mm

• Weight NW:6200KGS. GW:7200KGS.

• Package Wooden Pallet 6700 X 2200mm, 40� container. Plastic coverage

TECHNICAL DATA

• A) Spray Painting Booth 6,0m(L) x 4,0m(W) x 2,8m(H)- 2 Nos. B) Drying Booth ? 7,0m(L) x 9,0m(W) x 2,8m(H) ? 1No. C) Hot Air Handling Unit (Electric Heating) ? 50 KW -1 No.

• '*Without CE Arbor motor:10HP Feed motor: 1HP  Min.working length:250mm(200mm is optional)  Max.working thickness:100mm  Distance between saw and columm:466mm  Saw blade diameter/cutting thickness:305(10-100)mm  Spindle speed:4100rpm Feed speed:16-28m/min  Dust hood outlet diamensions:125mmx 1  Table area:1330*1100mm

• Tehcnical Data:

• WITH Helical Cutterhead(30*12*1.5mm)

• Without CE or CSA;

• Motor For bottom spindle:10HP

• Motor For top spindle:15HP

• Motor For feeding:3HP

• Motor For elevation:1/2HP

• Max. width of stock:610mm

• Thickness range of stock:10-200mm

• Min. length of plane: 310mm

• Feed speed:8-24M/min(inverter)

• SPINDLE SPEED:4000rpm

TECHNICAL DATA

• Booth Type : Dry Series / Negative Pressurized -Overall Dimensions : 3000mm Width X 1500mm Depth X 2400mm Height -Effective Screen : 3000mm Width X 2000mm Height -Structure/Construction : Pre Coated Sand witch Panels (EPS Insulation) -Air Velocity Rate : 0.5 m/s -Motors Rating (Non Flame Proof) : 5 HP -Noise level in booth : 80dba -Paint Arrestance Systems : Cardboard Filter (Imported Columbus Make) EU4 Grade -Electricity Main Supply : 415V, 3PH, 50C/S, AC4 Wire system.

• TECHNICAL SPECIFICATIONS:

• Machine complete with 6 sections

• Every section with 8 clamps, total 48 clamps

• Clamp depth: 50" / working depth: 400~1250mm

• Machine working high will be different by the clamp depth.

• Clamp jaw high: 90mm

• Machine working width: 125" / 3100mm

• Rotary drive motor:1.5kw x 1pc

• Hydraulic pump drive motor: 2.25kw x 1pc

• Pump could be set up the according laminate pressure for the hydraulic tightener system.

• Hydraulic tightener: 1 Set

• Hand push to fit on the clamp.

• Top pneumatic panel flattener: 1 Set

• Capacity: 2000 Kgs. Fork L x W: 1800 x 685mm Lift Ht.: 195mm Fork Lowered Ht. 85mm With Tandem Nylon Wheels Paint Finish: Powder Coated in Melon Yellow Shade.

• Wood Working Table Wood : Beech  L : 2000 mm  B : 600 mm H : 900 mm

• Air flow : 3750 cmh

• Suction Pressure : 250 mm wgp

• Suction Dia x no. of Connection : 120mm x 1 no and 100mm x 01 no

• Bag type : Antistatic 5 micron

• No. of Bag : 02 Top & 02 Bottom

• Motor HP x RPM : 5 hp x 2880

• Power Supply : 415 V, three phase,50 hz, Accessories-Collection Bag, bag clamp, trolley with movable wheel, DOL starter, 3mtrs dust hose.

• 3 Hp Motor - 3 Phase: 415 V

• Air Flow : 2500 Cmh

• Dia 160Mm x 1 Ports

• Dust Collection Bag

• Bag Clamp

• Chasis With Wheels

• Siemens Dol Starter

• Duct Hose 3Mtr and Jubilee clips.
