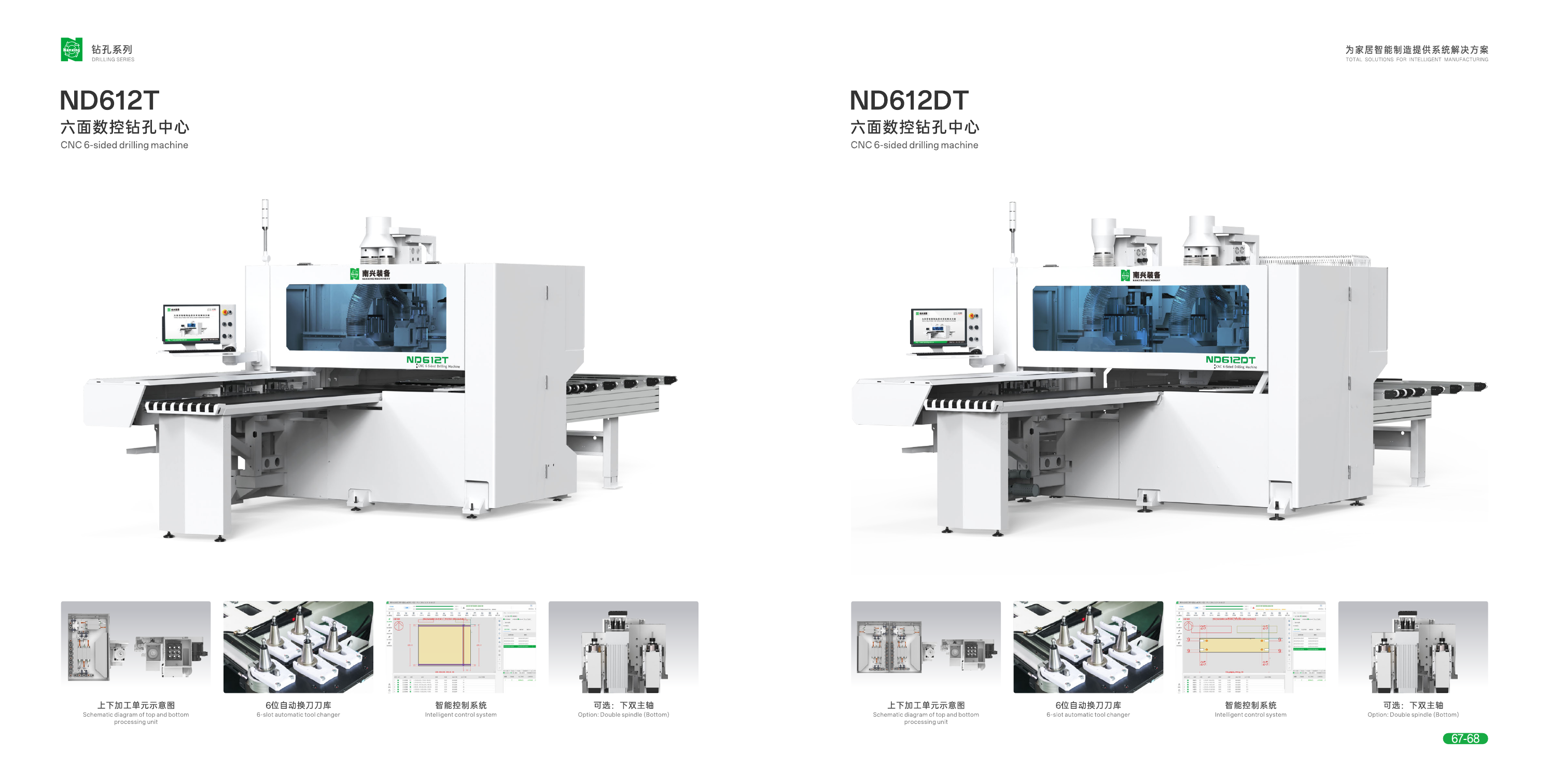

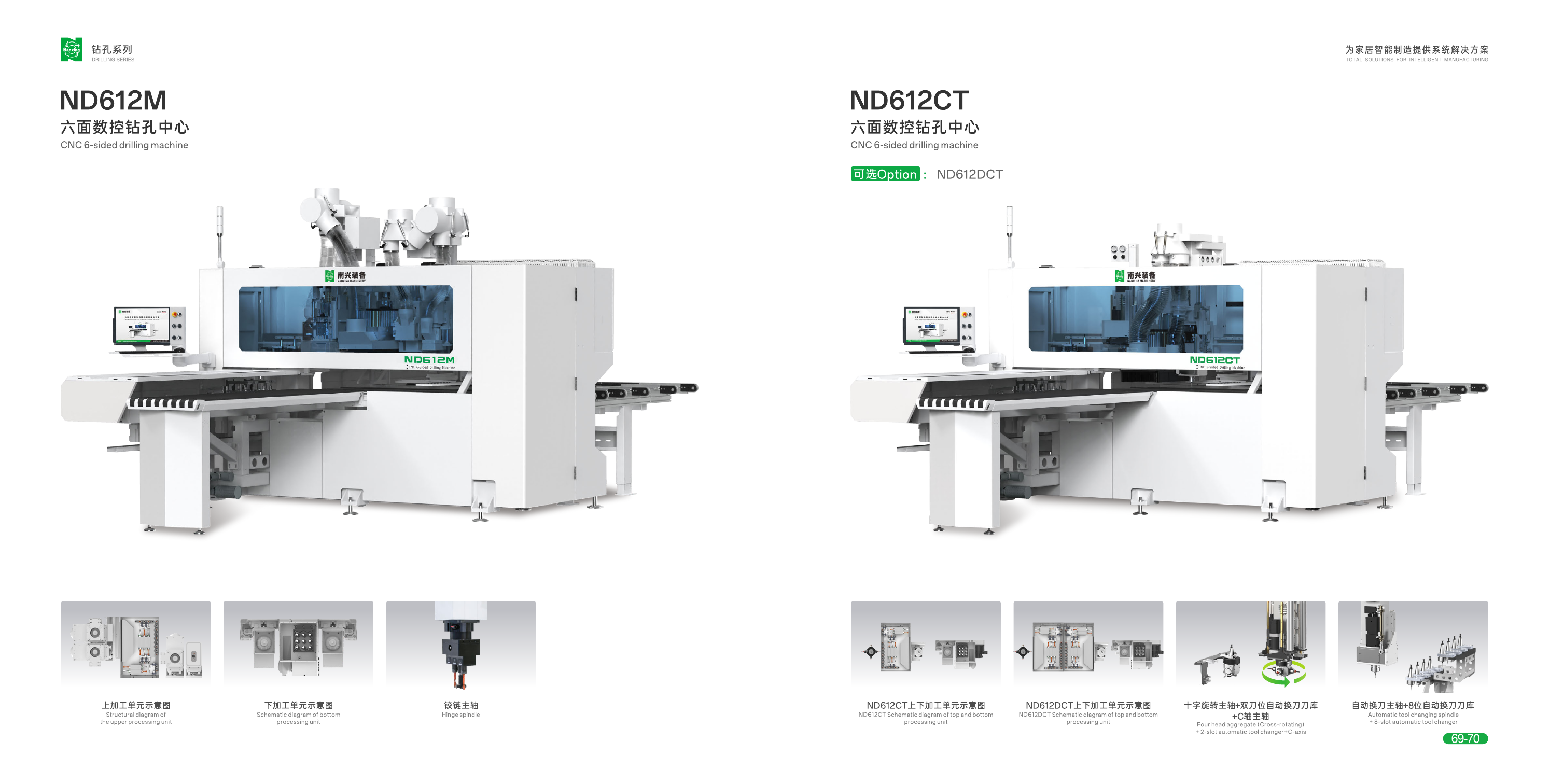

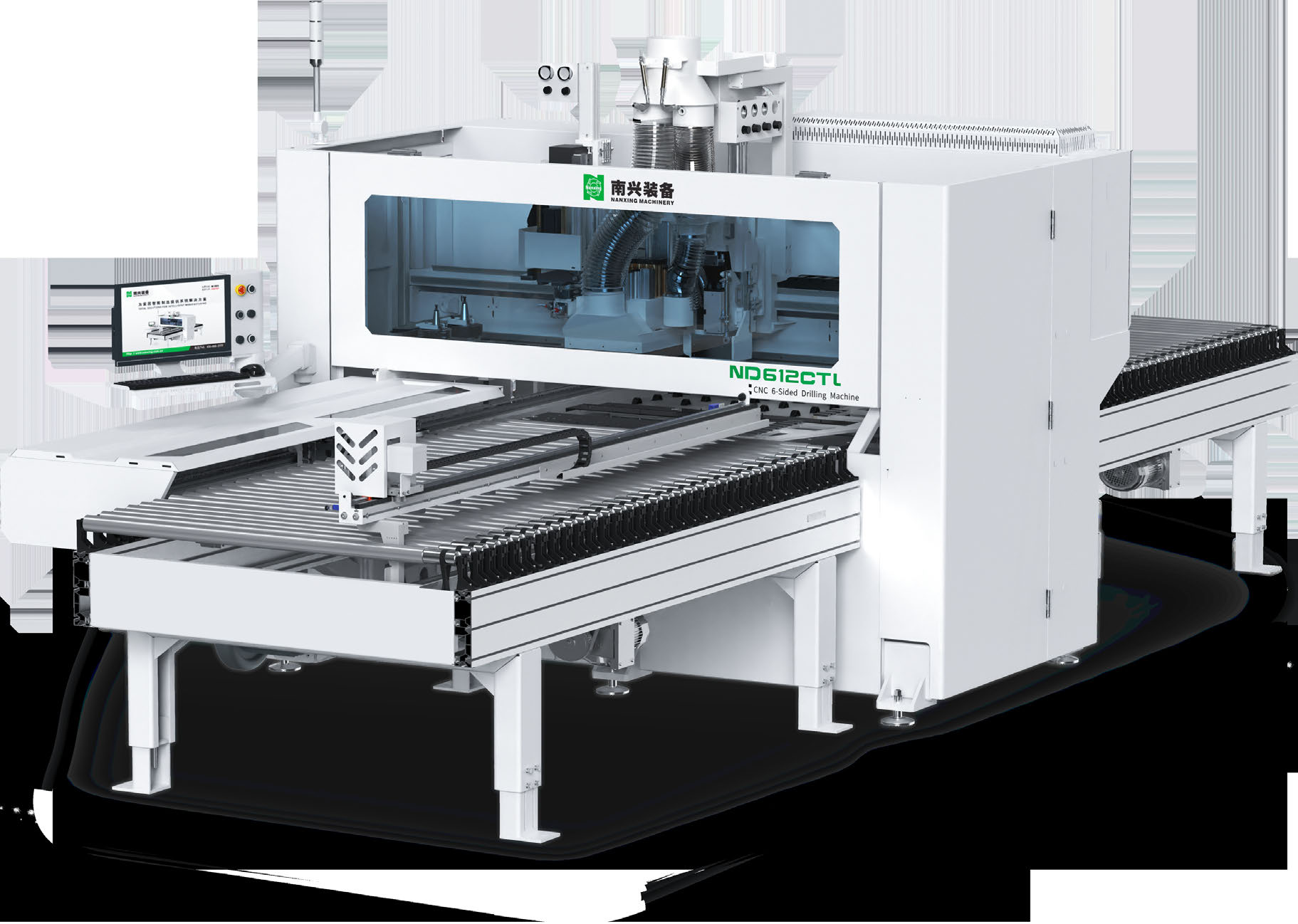

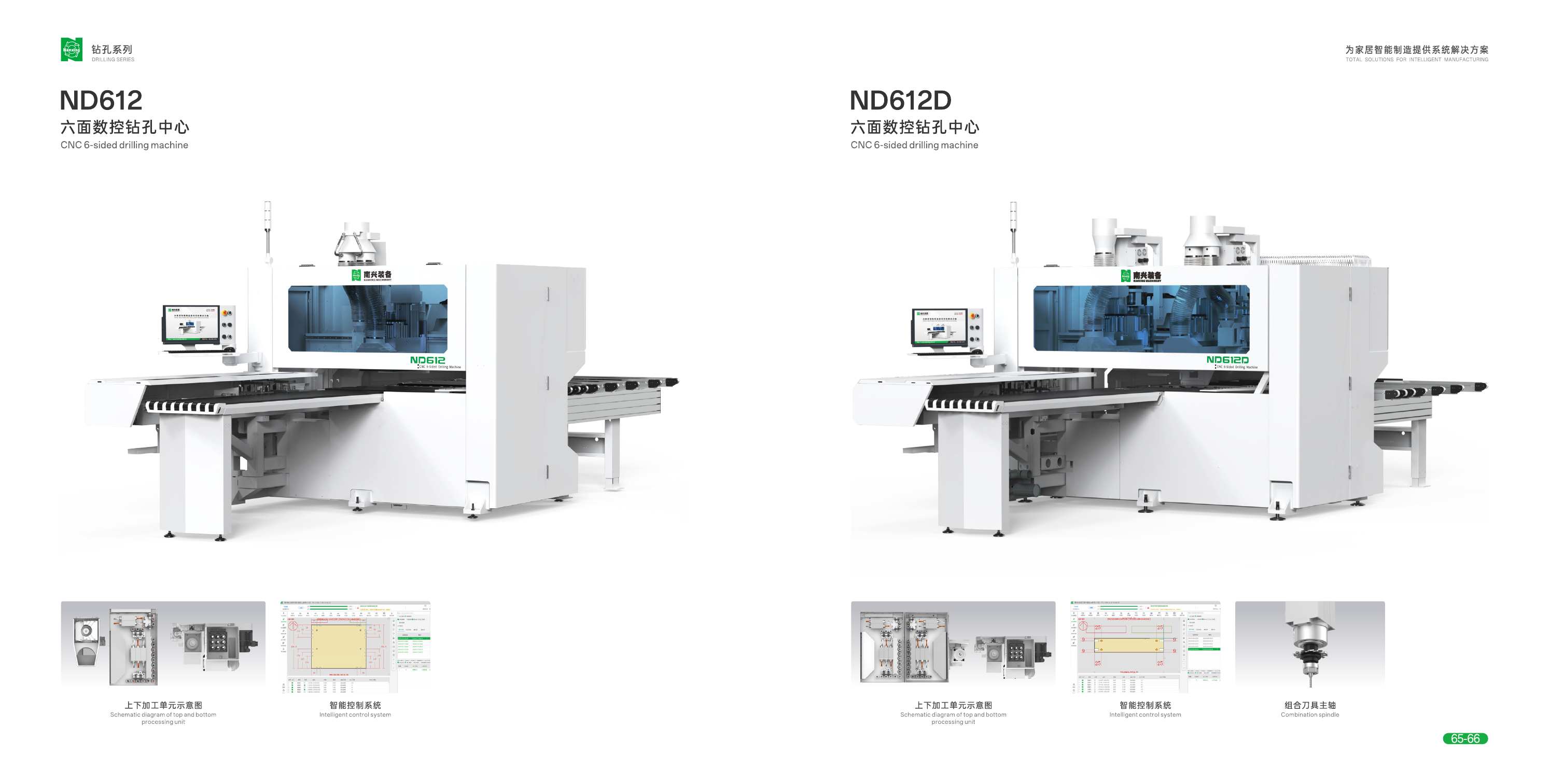

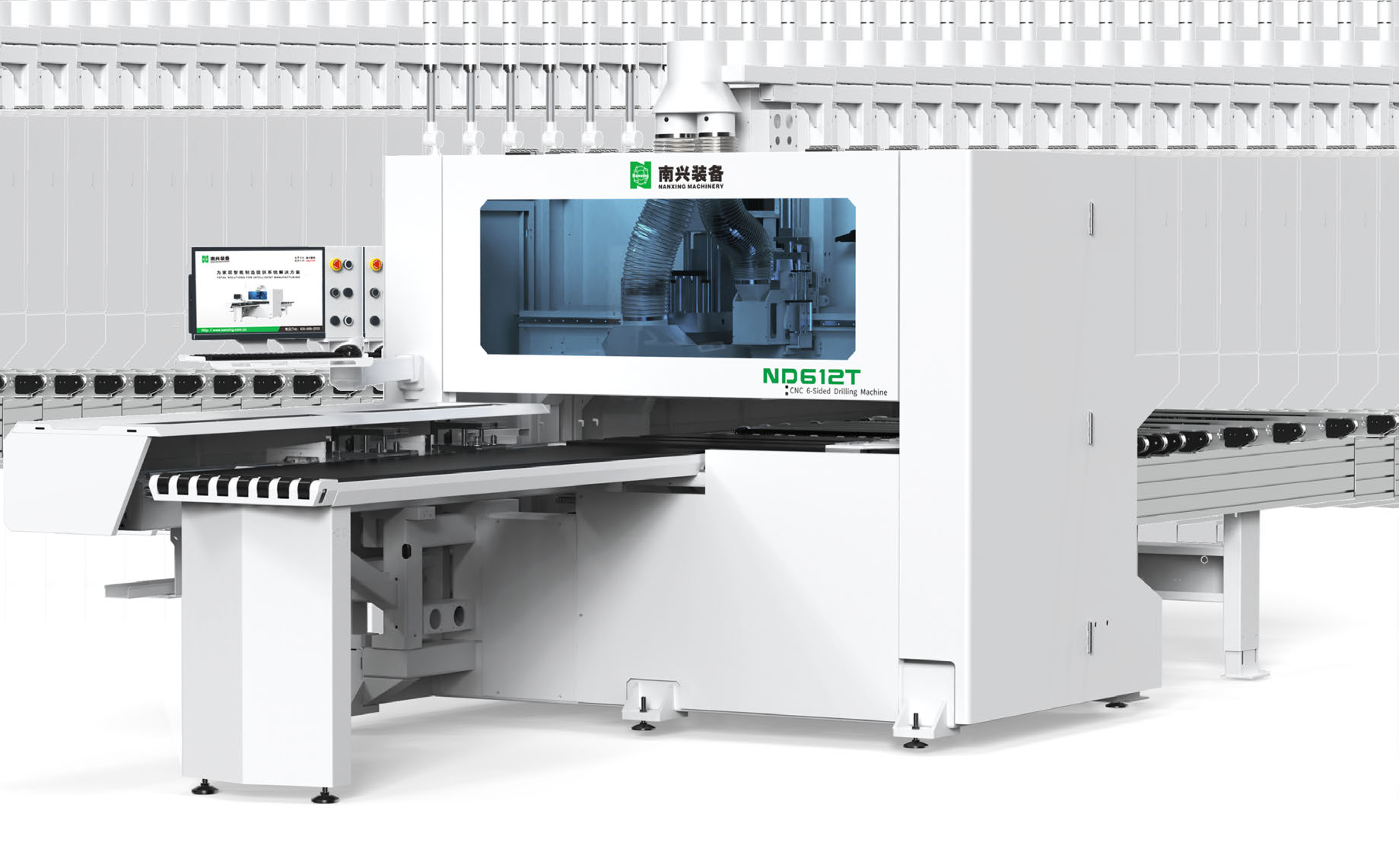

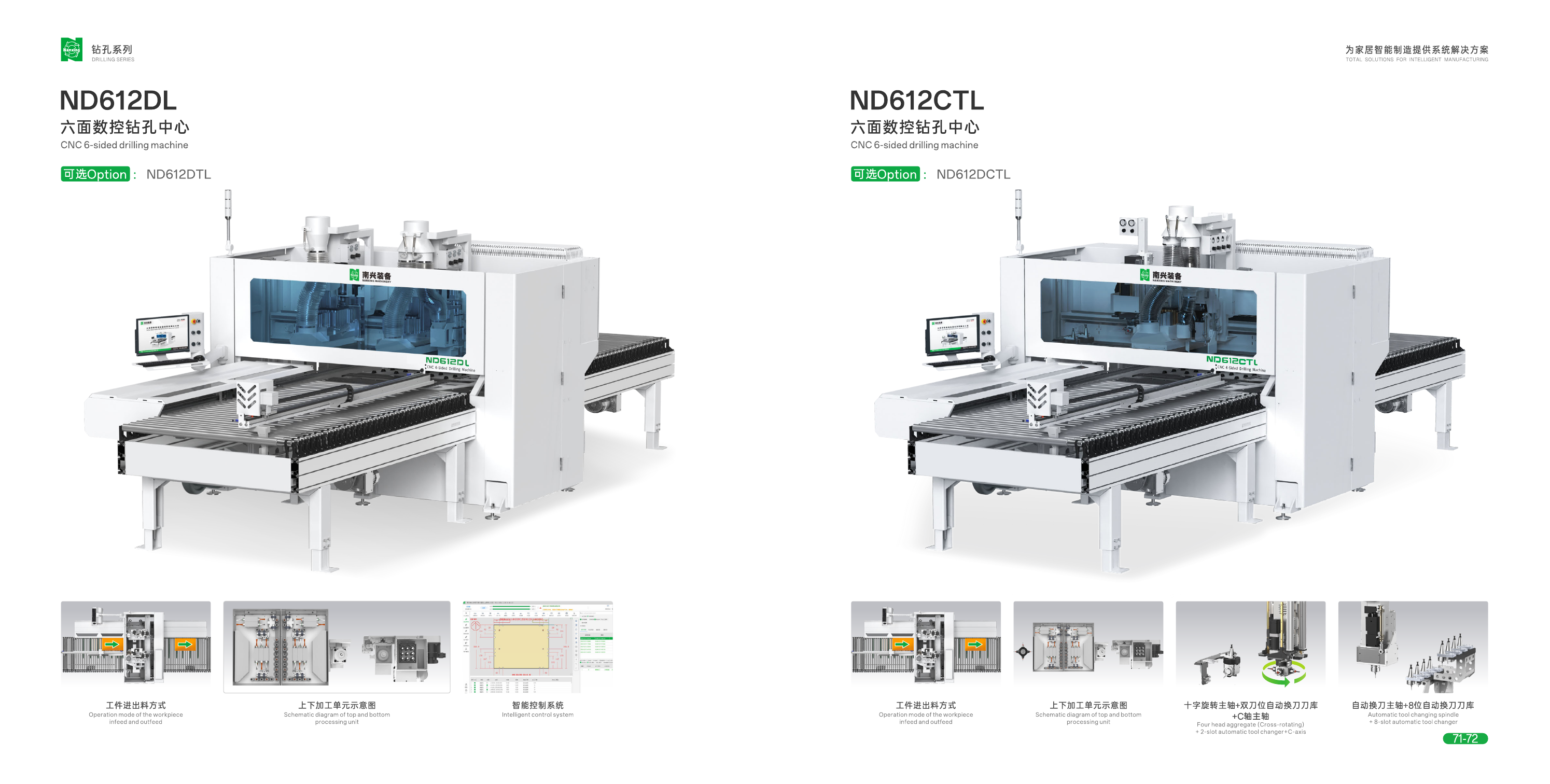

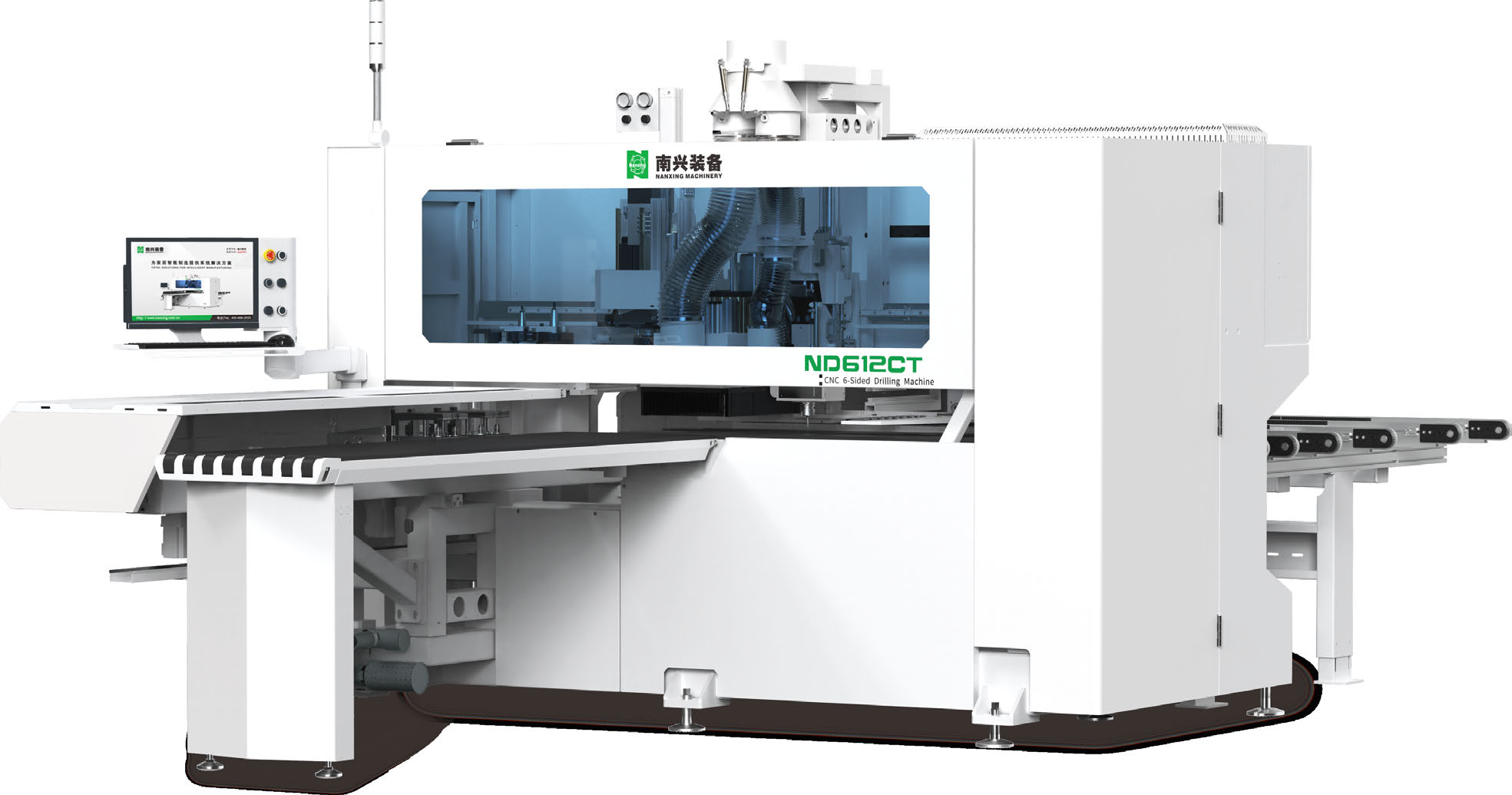

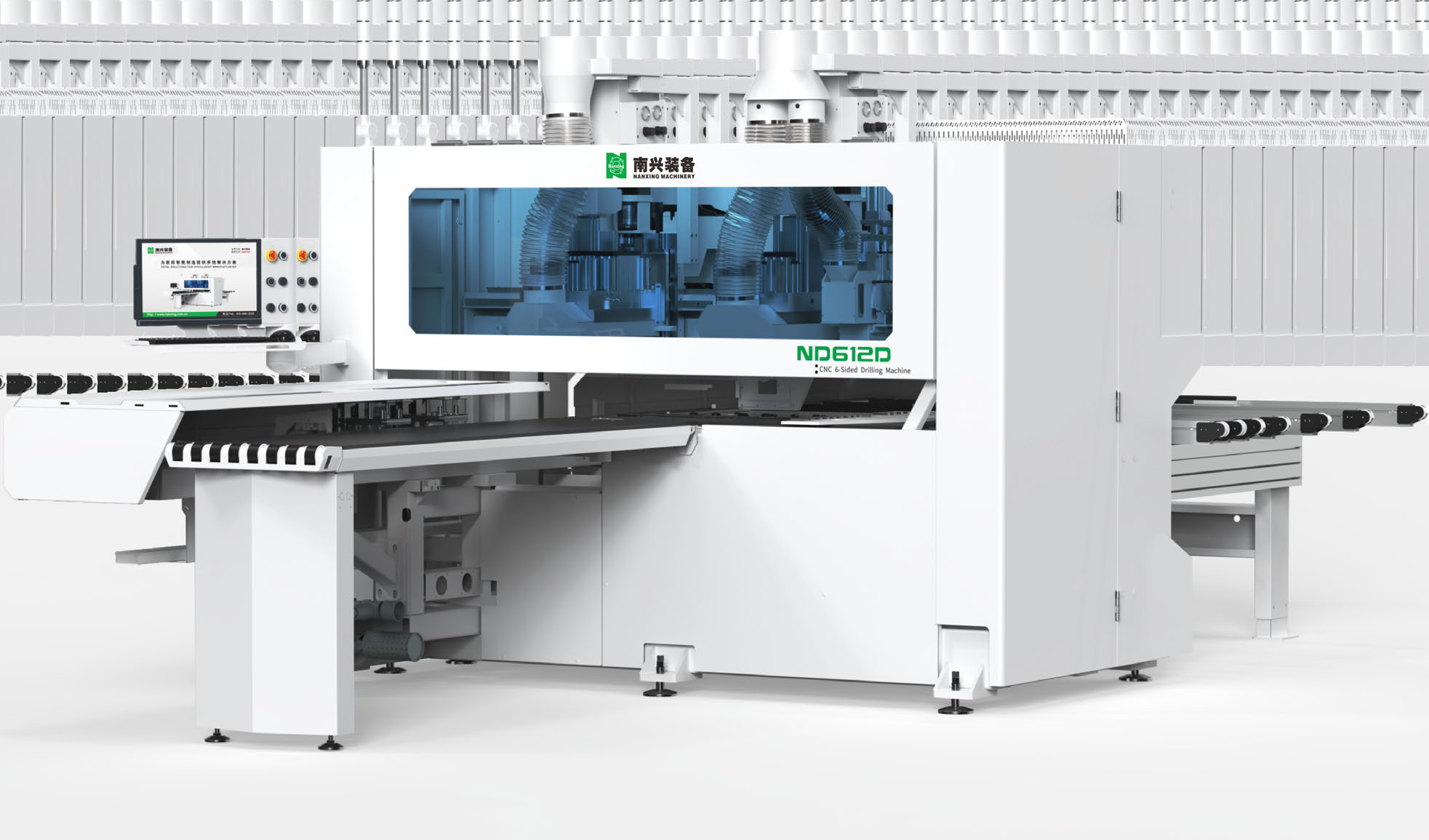

Nanxing CNC 6-Sided Drilling Machine ND61DTSL 415V
₹8,325,000.00 ₹10,406,250.00
Available on Request
FEATURES
- Long clamp beam & fast clamps 5.5m longer high-rigidity clamp
- Feed-in & out table
- Positioning Side aligner & Support / press plates
- Board length, width detector
- 6 slots tool changer
- Tool setting gauge
- 5.5kw+3.5kw main spindle
- Top drilling block 1 boring blocks 2.2kw,
- Optimized drilling blocks layout +saw blade
- 2 boring blocks 2.2kw with Vertical drills: 19+19
- Independent grooving saw 1.7kw; Saw blade size:Ф100*Ф22*δ4 fixed in X direction.
- Bottom drilling block 1.6kw 9 vertical drills
- Min. processing Panel length: 200-3000mm / Panel width 30-1200mm
- Stack processing
- Side Grooving
- Machine is configured with Lamello aggregate & tool
- Anti-handling device for infeed table
- 3No. Dust collection port
- Hand controller
- Control system
- Windows 10 operating system
- Control interface is modern and friendly
- Manual programming interface
- Simulation function
- Easy tools setting
- Statistics function
- Bar-code reader
- File format support (MPR, DXF, BAN, BPP, PDX; XML; XX)
- Side routing-One head aggregate
- Board thickness sensor
- Air jet for Grippe

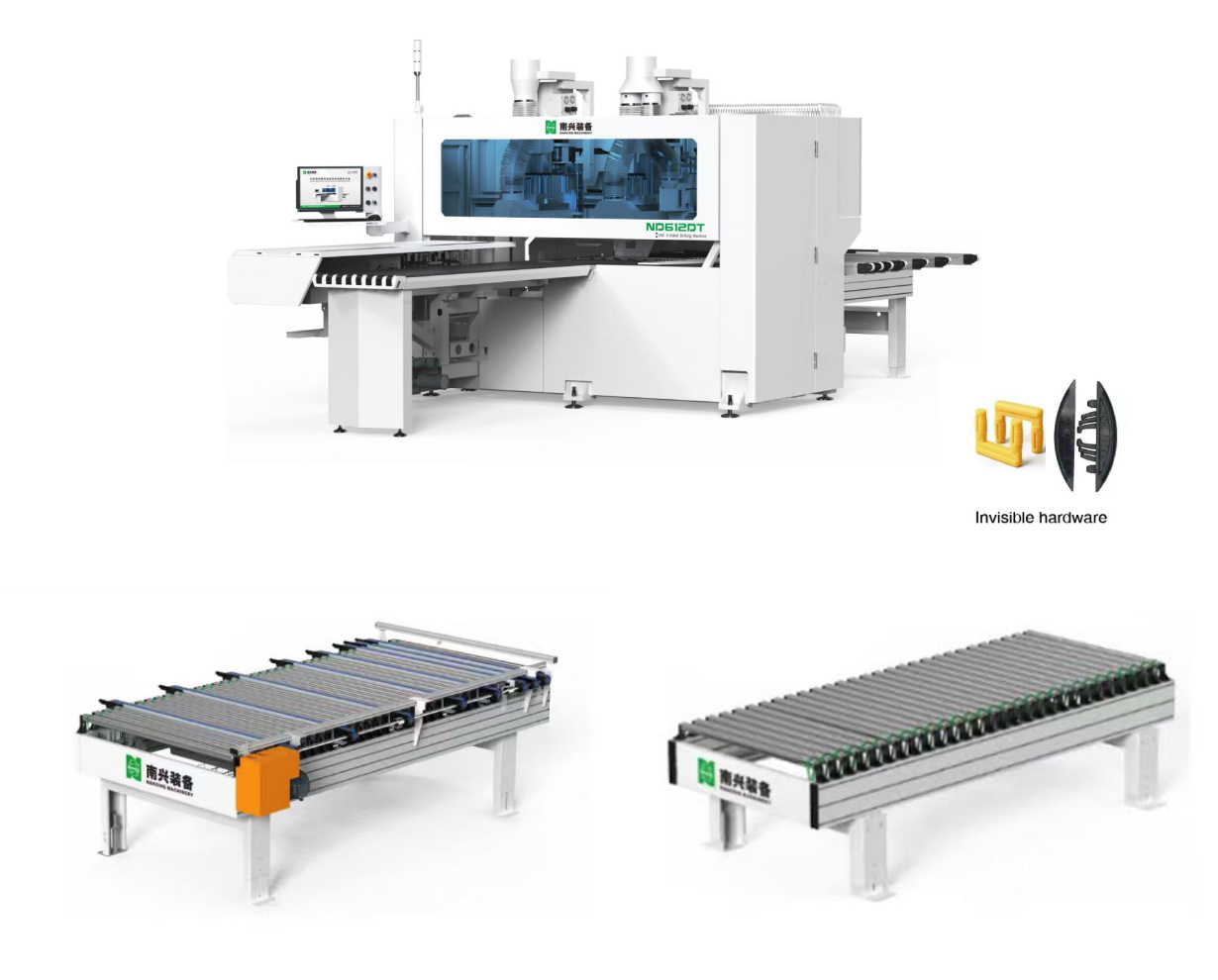

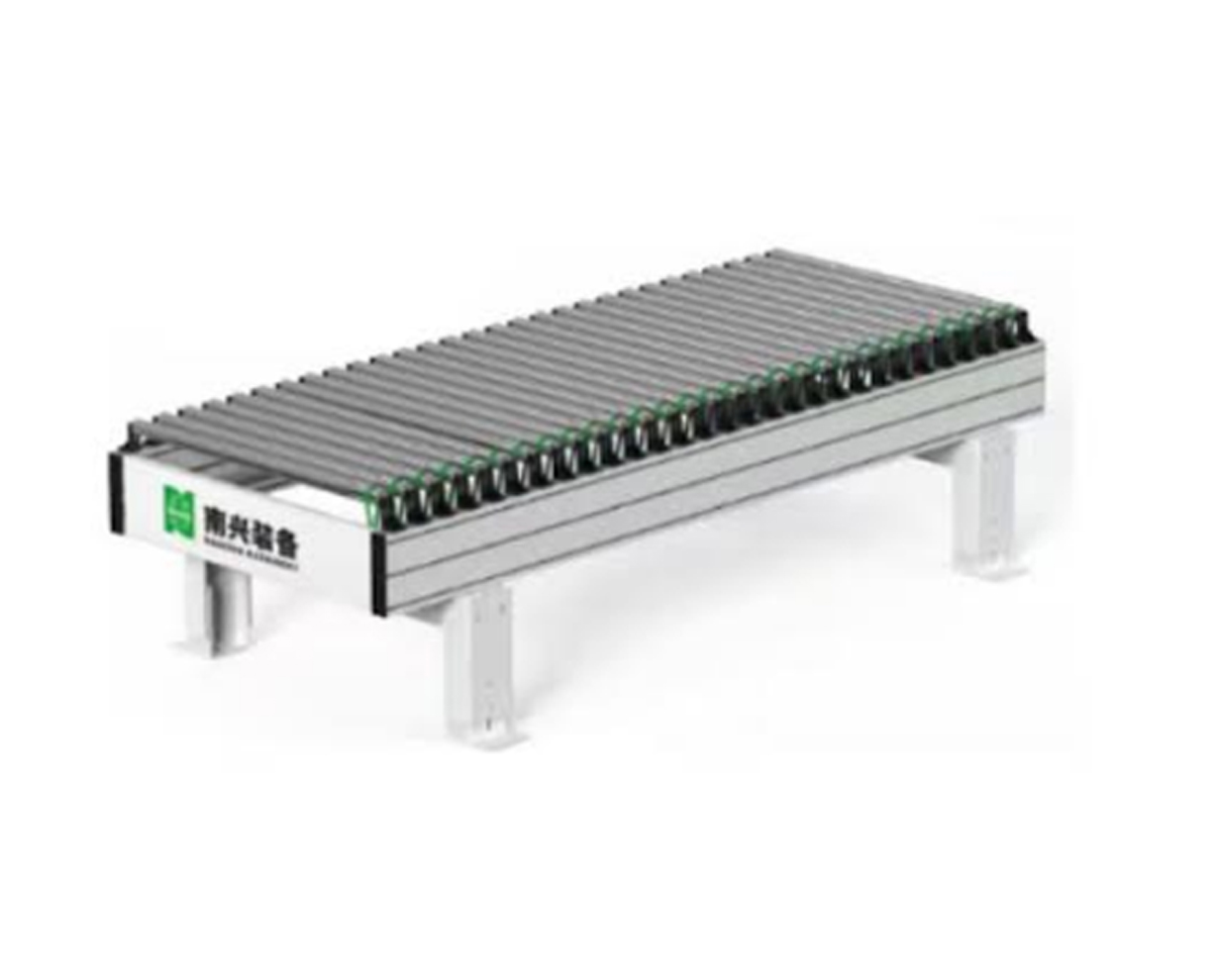

- DC3015L Roller Conveyor

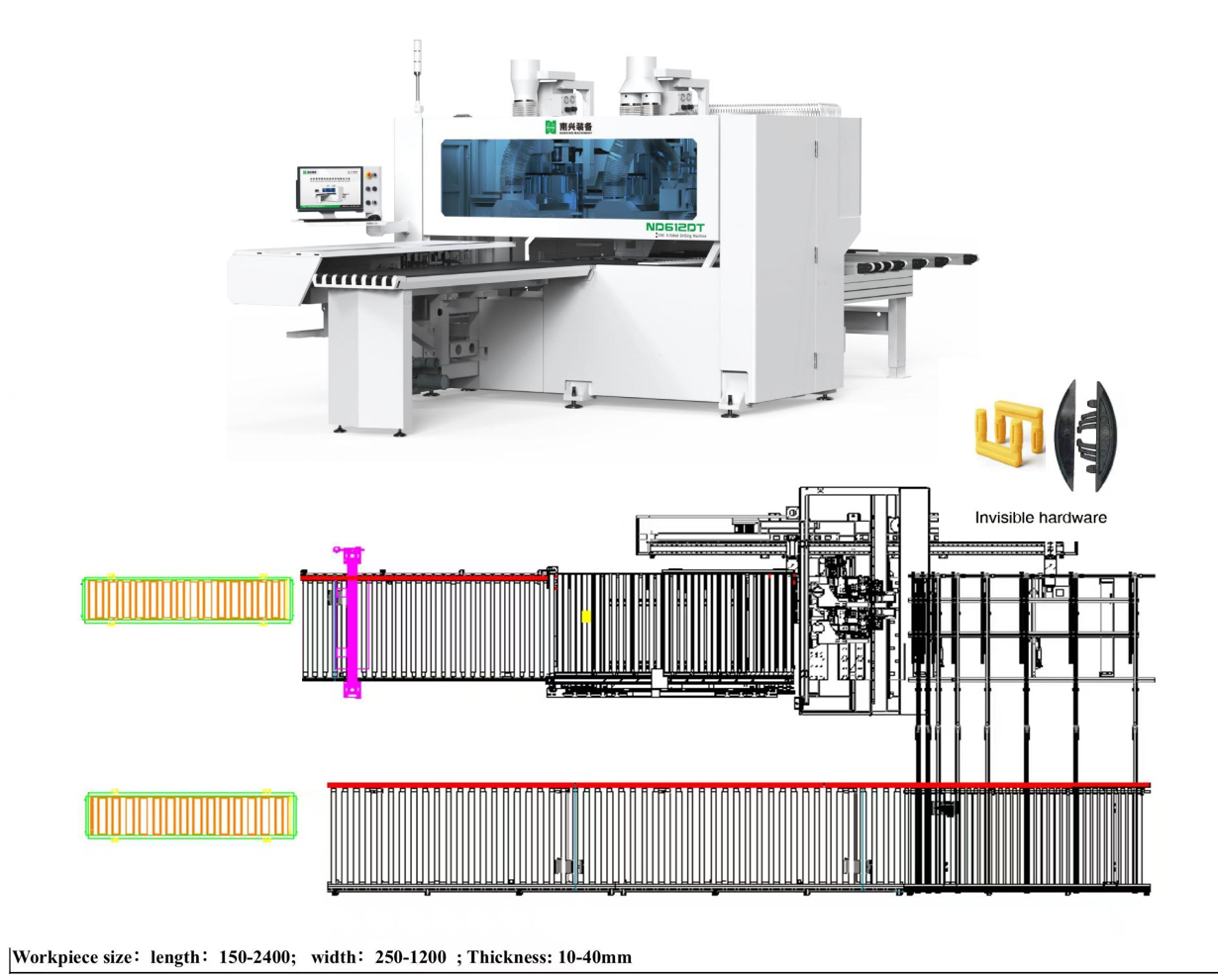

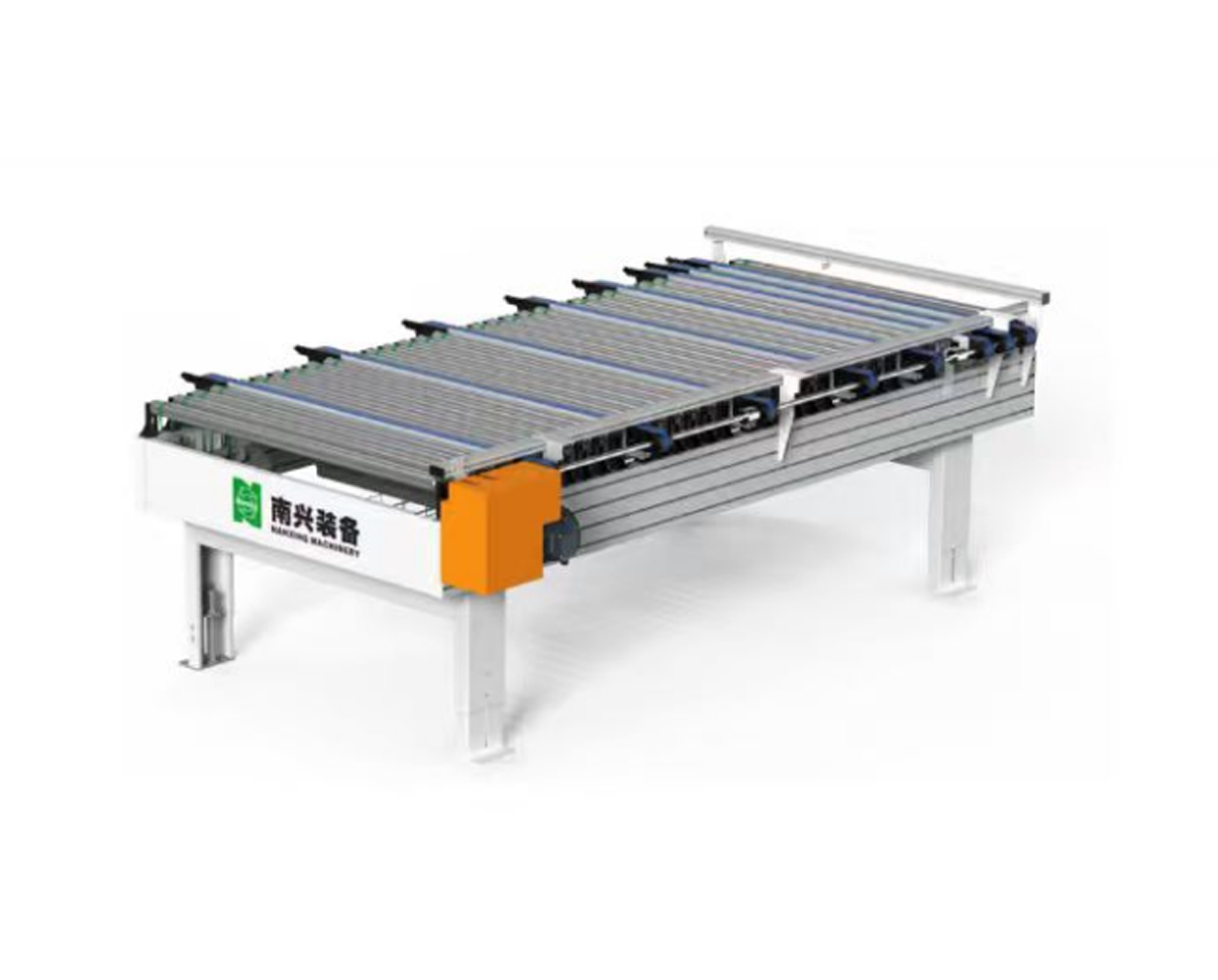

- DCC3015L Roller Conveyor
- DC3515L Roller conveyor
- Electrical control system
- Barcode scanner and its components
TEST
TECHNICAL SPECIFICATIONS:
- Total power : 26.63Kw+3KW
- Power Supply - 415V/50Hz/3PH
- Total weight : 3,850Kg
- Panel size : Length 200-3,000mm
- Panel size : Width 30-1,200mm
- Panel size : Thickness 10-60mm
- Max. traveling speed : X /U axis 135m/min
- Max. traveling speed : Y axis 75m/min
- Max. traveling speed : Z axis 30m/min
- Transmission mode : X axis Rack and pinion
- Transmission mode : Y axis Rack and pinion
- Transmission mode : Z axis Ball screw rod
- Boring blocks qty : Top 2; Bottom 1
- Boring blocks Vert. drills qty (top) : 19*2
- Boring blocks Horiz. drills qty (top) : X: 3× 4 + Y: 2× 4
- Boring blocks Vert. drills qty (Bottom) : 9
- Boring blocks Max drill diameter : Φ35mm
- Boring blocks Drill spacing : 32mm
- Boring blocks Rotation speed : 5000rpm
- Boring blocks Shank diameter : Φ10mm
- Main spindle qty : Top tool ER32 holder ISO30 ; Bottom tool collet ER25
- Main Spindle power : 5.5kw*1 ; 3.5kw×1 max.18000rpm
- Saw blade : Power 1.7kw
- Saw blade : Size Ф 100*Ф 22*x 4
- Saw blade : Processing range 50-700mm
- Dust collector : qty 2
- Dust collector : diameter
- Dust collector : Top 200mm×2
- Dust collector : Lower 125mm×1
- Dust collector : speed ≥28m/min
