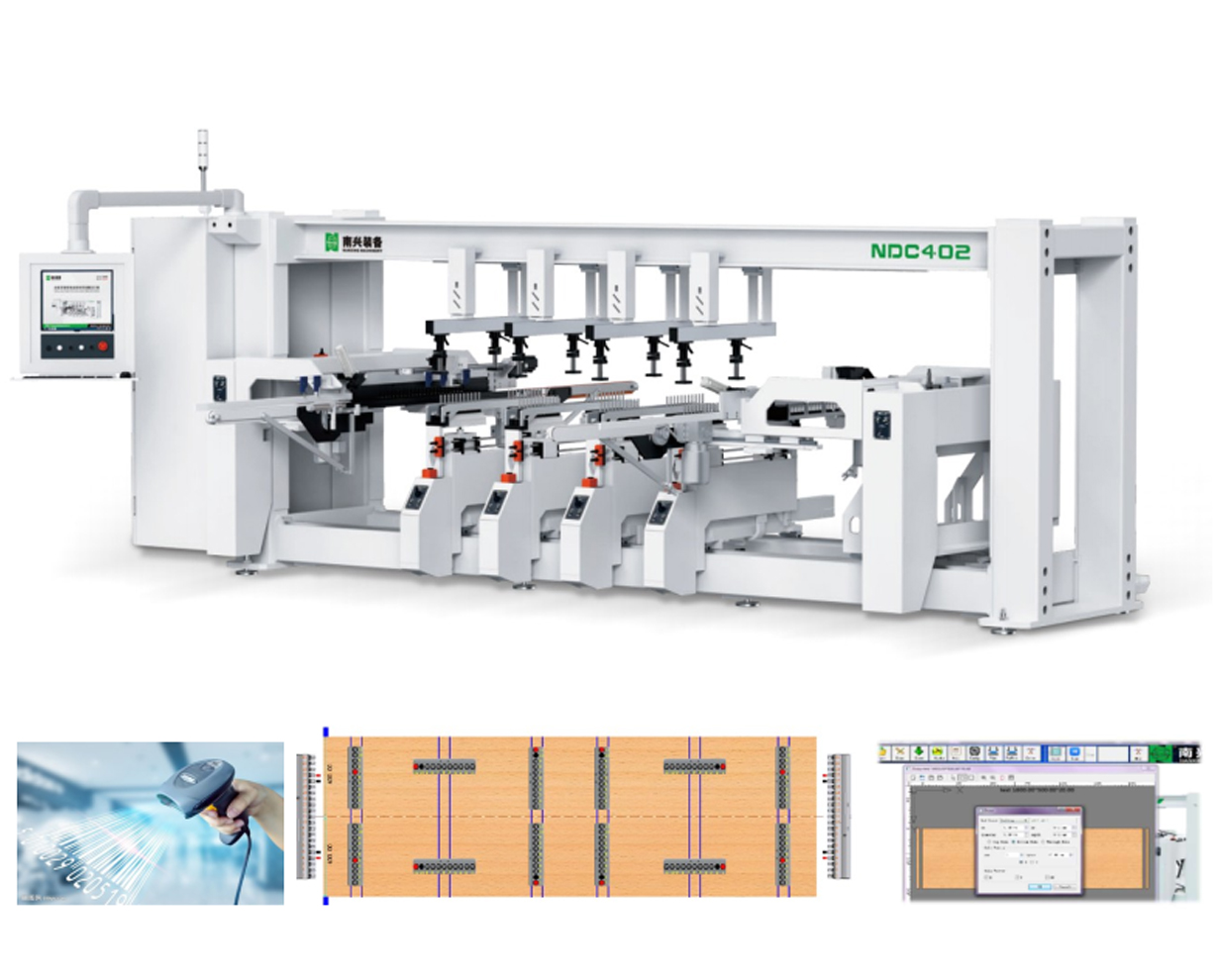

Nanxing Through-feed Drilling Machine with Servo Derived NDC402-(415V)

FEATURES:

• Enough drilling rows 4 vertical rows on bottom, 2 horizontal rows on side enable to finish 3 side drilling in one cycle;

• Feeding fast: 3 section feeding belt with waiting area for least waiting time max. speed of belt is 80m/mim, Max 22pcs/min

• Adjusting fast: Vertical drilling row movement and rear positioning control by servo motors auto positioning, reducing the time of adjusting save time and labor. 9pcs servo motors in total.

• Fast drilling block changing time: quick change and release design, 5s to change block

• Intelligent PC control: support MPR,DXF,MPR format to link with common furniture design software or MES, can scan the label to read drilling info.

• Machine is standard with drawing function, generate rows and drills position based on the drawing automatically, and move without too much setting up work.

Technical DATA:

- Min. panel width: 250 mm0

- Max. panel thickness 50mm

- Lower drilling rows qty. : 4

- Horizontal drilling rows qty : 2

- Boring block power : 1.5kw 2750rpm

- Spacing of drills : 32mm

- Max. vertical drilling depth : 50mm

- Max. horizontal drilling depth : 40mm

- Servo motor qty : 7

- Servo motor power : 0.75kw

- Total power : 28kw

- Approx. weight : 5,200 kg

- Overall dimension : 5,540*3,660*1,950 mm
