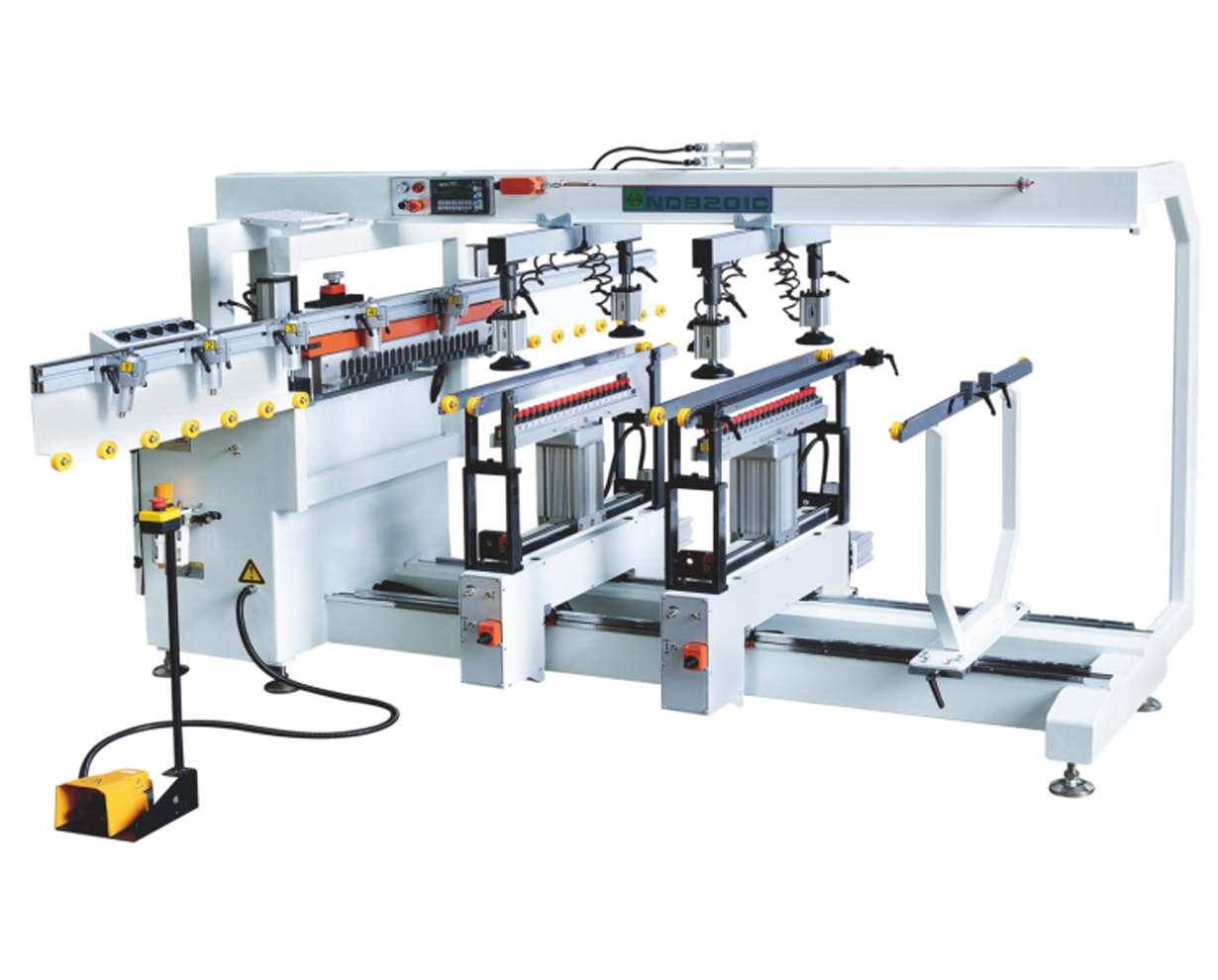

Nanxing Three Head Multi Boring Machine NDB201C 21×2=42
Nanxing Three Head Multi Boring Machine NDB201C 21×2=42

Nanxing Three Head Multi Boring Machine NDB201C 21×2=42

₹550,000.00 ₹687,500.00
Warranty
12 Months
Country of origin
China
GST Extra
18%
Available on Request

3 rows boring: 2 rows on bottom+1 row on side

Nanxing NDB201C — built by Nanxing Mac (China), one of Asia's top-3 woodworking machinery makers, with 30+ years of OEM supply to global furniture brands. Authorised distributor: Caple Industrial Solutions, India.

Best for: Panel furniture production and modular furniture manufacturing.

FeatureAdvantageBenefit
The machine body features a high tensile strength steel structure for long-term stability.Manufactured to Nanxing's BV-certified production standardPredictable performance batch after batch
Boring blocks can rotate 90 degrees and adjust lengthwise along ball screw rods.Repeatable accuracy to ±0.05 mm across every panelDrawer fronts and door panels line up first time, every time
Digital displays on each boring row allow for quick and accurate position monitoring.Production-grade tolerance batch after batchPremium pricing position vs unbranded local fabricators
Quick coupling drill bits include boring depth adjustment and vertical feed deceleration devices.Holes in all six faces in a single setupEliminates the manual hand-drilling step that breaks panel flow
A Delta PLC system controls the machine via an easy-to-use row selection panel.Manufactured to Nanxing's BV-certified production standardPredictable performance batch after batch

Why buy Nanxing from Caple: Authorised India distributor since 2018. Factory-trained engineers across Mumbai, Delhi, Bengaluru, Kolkata. Genuine spares, on-call service, GST invoice. Demo at our Centre of Excellence, Pelhar (Mumbai). Project finance and EMI options available.

TEST

Boring Machine

Nanxing Three Head Multi Boring Machine NDB201C 21×2=42

Multi-spindle boring precision. Every hole, every time.

QUICK SPECS

3460 x 2835 mm

Work Area

6.7kw

Total Power

6.7kw

Power

1300kg

Weight

12 mo / 2000 hr

Warranty

HOW IT WORKS

01

Load Board

02

Align Stops

03

Drill Holes

04

Check Pitch

05

Stack Output

KEY FEATURES
— Max. Panel Width : 2500mm
— Min. Panel Width : 90mm
— Max. Panel Thickness : 70mm
— Max. Vertical Drilling Depth : 70mm
— Vertical Drills Qty. : 11×2×2=44
— Max. Horizontal Drilling Depth : 40mm
— Horizontal Drills Qty. : 21
— Approx. Weight : 1300kg
FEATUREADVANTAGEBENEFIT TO YOU
SAFETY
CE-certified safety designMeets international safety standardsYou get a machine built for operator safety
Emergency stop circuitInstant power cut-off on activationYou get immediate halt in emergencies
Enclosed moving partsReduces contact with rotating componentsYou get a safer working environment
QUALITY
Precision-engineered componentsTight tolerances on all machined partsYou get accurate, consistent output every shift
Rigid steel frame constructionEliminates vibration during operationYou get cleaner cuts and better surface finish
Quality control sensorsAuto-detects deviation in real timeYou get fewer rejects and less rework
USER FRIENDLY
Simple control interfaceEasy-to-read display and controlsYou get quick operator training and confident use
Centralized lubrication pointsAll grease points in one locationYou get faster, easier routine maintenance
Clear diagnostic displaysOn-screen error codes and guidanceYou get quick fault identification and resolution
PRODUCTIVITY
High-speed processing capabilityMore parts per shift than manual methodsYou get significantly higher daily output
Fast changeover designQuick size and program changesYou get more productive hours per working day
Reliable cycle-time consistencySame output rate shift after shiftYou get predictable delivery schedules for customers
ROI
Reduced labour dependencyOne operator can run the machine aloneYou save on staffing costs and wage bills
Lower material wastePrecision cuts reduce offcut lossesYou save on raw material spend every month
Durable long-life componentsExtended service intervalsYou save on spare parts and maintenance costs
TRUST
Authorised Nanxing DistributorDirect factory support and genuine partsYou get the real machine with full manufacturer backing
caple.in — In business since 197450+ years of woodworking machinery expertiseYou get advice from engineers who know the trade
12-month / 2000-hour warrantyWhichever comes first — no ambiguityYou get protected investment from day one
Trained service teamFactory-trained engineers for installation and supportYou get fast, knowledgeable on-site support
Pan-India support networkService coverage across India with multiple demo centresYou get local support wherever your factory is

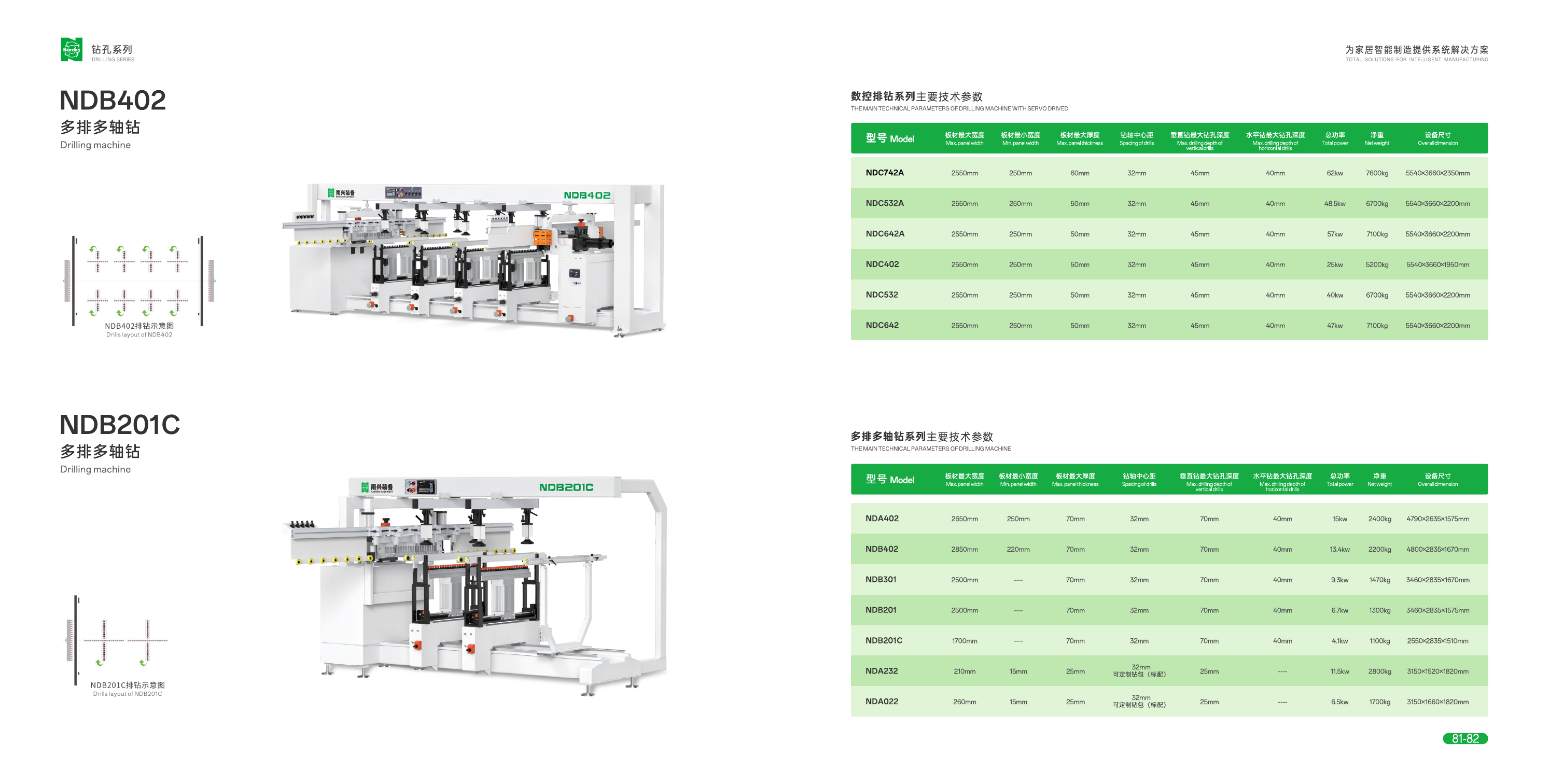

TECHNICAL SPECIFICATIONS
Max. Panel Width2500mm
Min. Panel Width90mm
Max. Panel Thickness70mm
Spacing of Drills32mm
Max. Vertical Drilling Depth70mm
Vertical Drills Qty.11×2×2=44
Max. Horizontal Drilling Depth40mm
Horizontal Drills Qty.21
Total Power6.7kw
Overall Dimension3460×2835×1575mm
Approx. Weight1300kg
FREQUENTLY ASKED QUESTIONS
What is the minimum pitch between drill holes?
The standard pitch is 32 mm to match the European cabinet system. Some models support variable pitch — check the spec table above.
How many spindles does this machine have?
Refer to the spindle count in the Quick Specs section above. Multi-spindle models allow simultaneous vertical and horizontal drilling.
Can I drill both faces of a panel in one pass?
Some models support double-sided drilling. Refer to the product name and specification table to confirm this capability.
What board dimensions can the machine handle?
Refer to the panel size range listed in the Quick Specs and Technical Specifications sections above.
What is the warranty period?
12 months or 2000 operating hours, whichever comes first.
Where can I find the full manual and spare parts list for the NDB201C?
Full documentation for the NDB201C is available through caple.in. Contact our team or book a demo to receive the technical manual and parts catalogue.

What air pressure/CFM does the NDB201C require?

The NDB201C requires an air supply at 6 bar with approximately 10 CFM continuous consumption. Ensure your compressor and drier can deliver this reliably.

What is the total power consumption of the NDB201C?

The NDB201C draws approximately 9 HP (6.7 kW) total power. Use a 16-amp 3-phase 415V supply with separate earthing and a 10 KVA stabiliser for safe operation.

What dust extraction capacity is needed for the NDB201C?

The NDB201C needs approximately 2,060 CFM (3,500 CMH) dust extraction through standard dust ports. We recommend the Dust Collector AXC 3HP | 3000-3500 CMH.

What is the weight of the NDB201C?

The NDB201C weighs 1300kg. Ensure floor load capacity and proper foundation before installation.

What is under the customer’s scope?

Travel, food and stay for service engineers; material handling and lifting equipment; power tools and consumables for machine foundation; operator safety equipment; basic electrical connections up to the machine; general tool kit and measuring instruments — are all under the customer’s scope.
