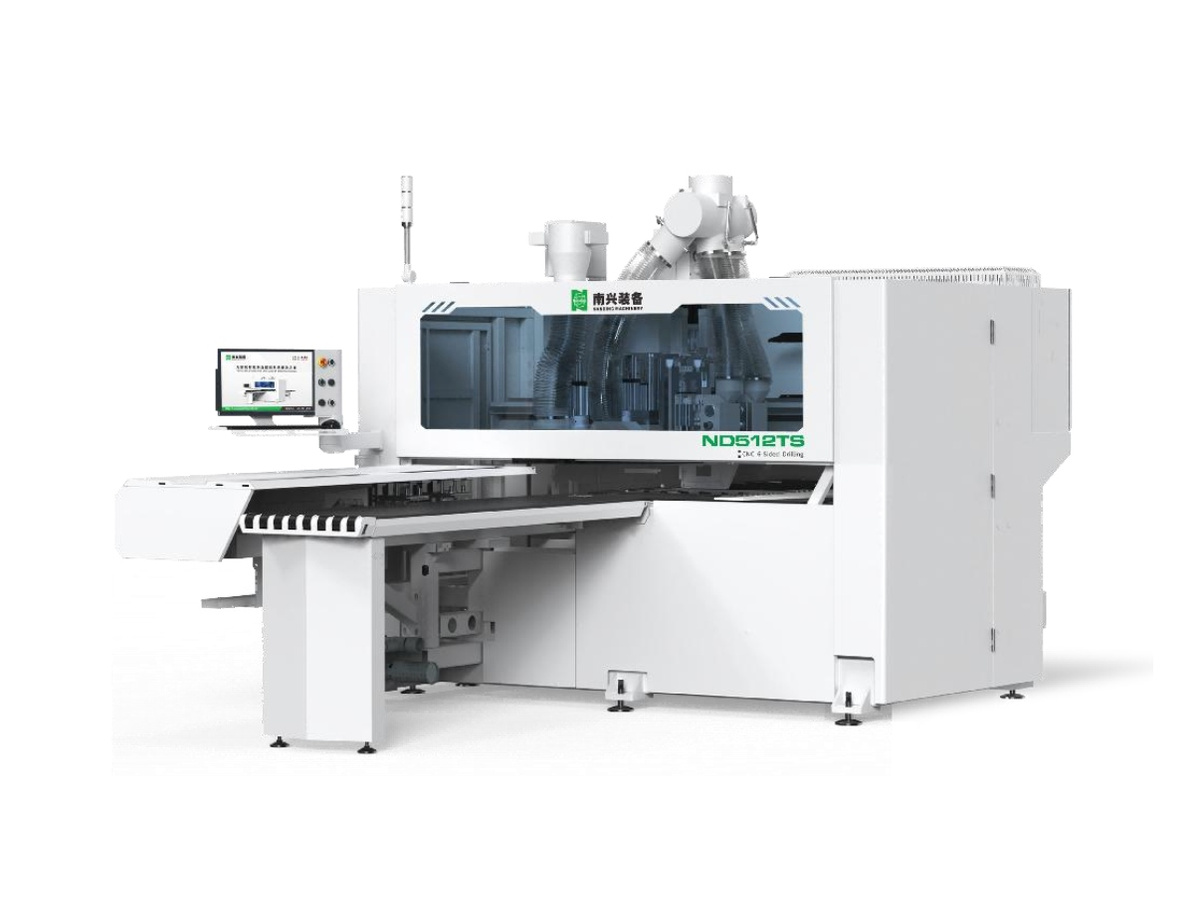

CNC 6-Sided drilling machine ND512TS 415V | AC | Lamello Saw Blade | Double-head aggregate | Air Jet for Gripper
CNC 6-Sided drilling machine ND512TS 415V | AC | Lamello Saw Blade | Double-head aggregate | Air Jet for Gripper

CNC 6-Sided drilling machine ND512TS 415V | AC | Lamello Saw Blade | Double-head aggregate | Air Jet for Gripper

₹2,900,000.00 ₹3,625,000.00
Warranty
12 Months
Country of origin
China
GST Extra
18%
Available on Request

Multi-functional CNC drilling machine is able to drill from 6 sides.

Nanxing ND512TS — built by Nanxing Mac (China), one of Asia's top-3 woodworking machinery makers, with 30+ years of OEM supply to global furniture brands. Authorised distributor: Caple Industrial Solutions, India.

Best for: Batch-size-one production and modular furniture manufacturing.

FeatureAdvantageBenefit
The machine is capable of performing drilling operations from all six sides.Holes in all six faces in a single setupEliminates the manual hand-drilling step that breaks panel flow
Simple routing capabilities provide maximum flexibility for batch-size-one production processes.Manufactured to Nanxing's BV-certified production standardPredictable performance batch after batch
The open-port software supports most common industrial file formats in the market.Manufactured to Nanxing's BV-certified production standardPredictable performance batch after batch
Machine configuration includes one top and one bottom drilling block for efficiency.Manufactured to Nanxing's BV-certified production standardPredictable performance batch after batch
High-speed performance is achieved with maximum travel speeds of 135 meters per minute.Throughput per shift unmatched in this price bandPays back the capex in months not years on volume contracts

Why buy Nanxing from Caple: Authorised India distributor since 2018. Factory-trained engineers across Mumbai, Delhi, Bengaluru, Kolkata. Genuine spares, on-call service, GST invoice. Demo at our Centre of Excellence, Pelhar (Mumbai). Project finance and EMI options available.

TEST

Boring Machine

CNC 6-Sided drilling machine ND512TS 415V | AC | Lamello Saw Blade | Double-head aggregate | Air Jet for Gripper

Multi-spindle boring precision. Every hole, every time.

QUICK SPECS

3962 x 3010 mm

Work Area

135

Feed Speed

21.07kw

Total Power

21.07kw

Power

5000

Speed

415

Power Supply

HOW IT WORKS

01

Load Board

02

Align Stops

03

Drill Holes

04

Check Pitch

05

Stack Output

KEY FEATURES
— Long clamp beam & fast clamps
— Accurate movement of each axis
— Board size detector
— Processing units
— Tool measuring gauge
— 4 slots tool changing magazine
— Machining Workpiece Size
— Stack processing
— Invisible hardware
— Infeed air float table
FEATUREADVANTAGEBENEFIT TO YOU
SAFETY
CE-certified safety designMeets international safety standardsYou get a machine built for operator safety
Emergency stop circuitInstant power cut-off on activationYou get immediate halt in emergencies
Enclosed moving partsReduces contact with rotating componentsYou get a safer working environment
QUALITY
Precision-engineered componentsTight tolerances on all machined partsYou get accurate, consistent output every shift
Rigid steel frame constructionEliminates vibration during operationYou get cleaner cuts and better surface finish
Quality control sensorsAuto-detects deviation in real timeYou get fewer rejects and less rework
USER FRIENDLY
Simple control interfaceEasy-to-read display and controlsYou get quick operator training and confident use
Centralized lubrication pointsAll grease points in one locationYou get faster, easier routine maintenance
Clear diagnostic displaysOn-screen error codes and guidanceYou get quick fault identification and resolution
PRODUCTIVITY
High feed speed (135)More panels processed per hourYou get higher daily output from the same shift
Reliable cycle-time consistencySame output rate shift after shiftYou get predictable delivery schedules for customers
ROI
Reduced labour dependencyOne operator can run the machine aloneYou save on staffing costs and wage bills
Lower material wastePrecision cuts reduce offcut lossesYou save on raw material spend every month
Durable long-life componentsExtended service intervalsYou save on spare parts and maintenance costs
TRUST
Authorised Nanxing DistributorDirect factory support and genuine partsYou get the real machine with full manufacturer backing
caple.in — In business since 197450+ years of woodworking machinery expertiseYou get advice from engineers who know the trade
12-month / 2000-hour warrantyWhichever comes first — no ambiguityYou get protected investment from day one
Trained service teamFactory-trained engineers for installation and supportYou get fast, knowledgeable on-site support
Pan-India support networkService coverage across India with multiple demo centresYou get local support wherever your factory is
TECHNICAL SPECIFICATIONS
Total Power21.07kw
Machine Size3962×3010×2320mm
Power Supply415V/50Hz
Air Supply0.6-0.7MPa
Control SystemSYNTEC
Panel Length200-2,800mm
Panel Width30-1,220mm
Panel Thickness10-60mm
Max. Travelling Speed X/U axis135m/min
Max. Travelling Speed Y axis75m/min
Max. Travelling Speed Z axis30m/min
Max. Travelling Speed V axis30m/min
Drilling Block QtyTop 1 + Bottom 1
Vertical Drills Qty (Top)10
Horizontal Drills Qty (Top)X: 2×2 + Y: 2×2
Vertical Drills Qty (Bottom)9
Max Drill DiameterΦ35mm
Drill Spacing32mm
Drill Rotation Speed5000rpm
Shank DiameterΦ10mm
FREQUENTLY ASKED QUESTIONS
What is the minimum pitch between drill holes?
The standard pitch is 32 mm to match the European cabinet system. Some models support variable pitch — check the spec table above.
How many spindles does this machine have?
Refer to the spindle count in the Quick Specs section above. Multi-spindle models allow simultaneous vertical and horizontal drilling.
Can I drill both faces of a panel in one pass?
Some models support double-sided drilling. Refer to the product name and specification table to confirm this capability.
What board dimensions can the machine handle?
Refer to the panel size range listed in the Quick Specs and Technical Specifications sections above.
What is the warranty period?
12 months or 2000 operating hours, whichever comes first.
Where can I find the full manual and spare parts list for the ND512TS?
Full documentation for the ND512TS is available through caple.in. Contact our team or book a demo to receive the technical manual and parts catalogue.

What air pressure/CFM does the ND512TS require?

The ND512TS requires an air supply at 6 bar with approximately 15 CFM continuous consumption. Ensure your compressor and drier can deliver this reliably.

What is the total power consumption of the ND512TS?

The ND512TS draws approximately 28 HP (21.07 kW) total power. Use a 40-amp 3-phase 415V supply with separate earthing and a 25 KVA stabiliser for safe operation.

What dust extraction capacity is needed for the ND512TS?

The ND512TS needs approximately 4,782 CFM (8,125 CMH) dust extraction through Ø200mm × 2 + Ø125mm × 1. We recommend the Dust Collector AXC | 10HP | 8125 CMH | Duct | ND512TS.

What is the weight of the ND512TS?

The ND512TS weighs Not specified — contact sales. Ensure floor load capacity and proper foundation before installation.

What is under the customer’s scope?

Travel, food and stay for service engineers; material handling and lifting equipment; power tools and consumables for machine foundation; operator safety equipment; basic electrical connections up to the machine; general tool kit and measuring instruments — are all under the customer’s scope.
