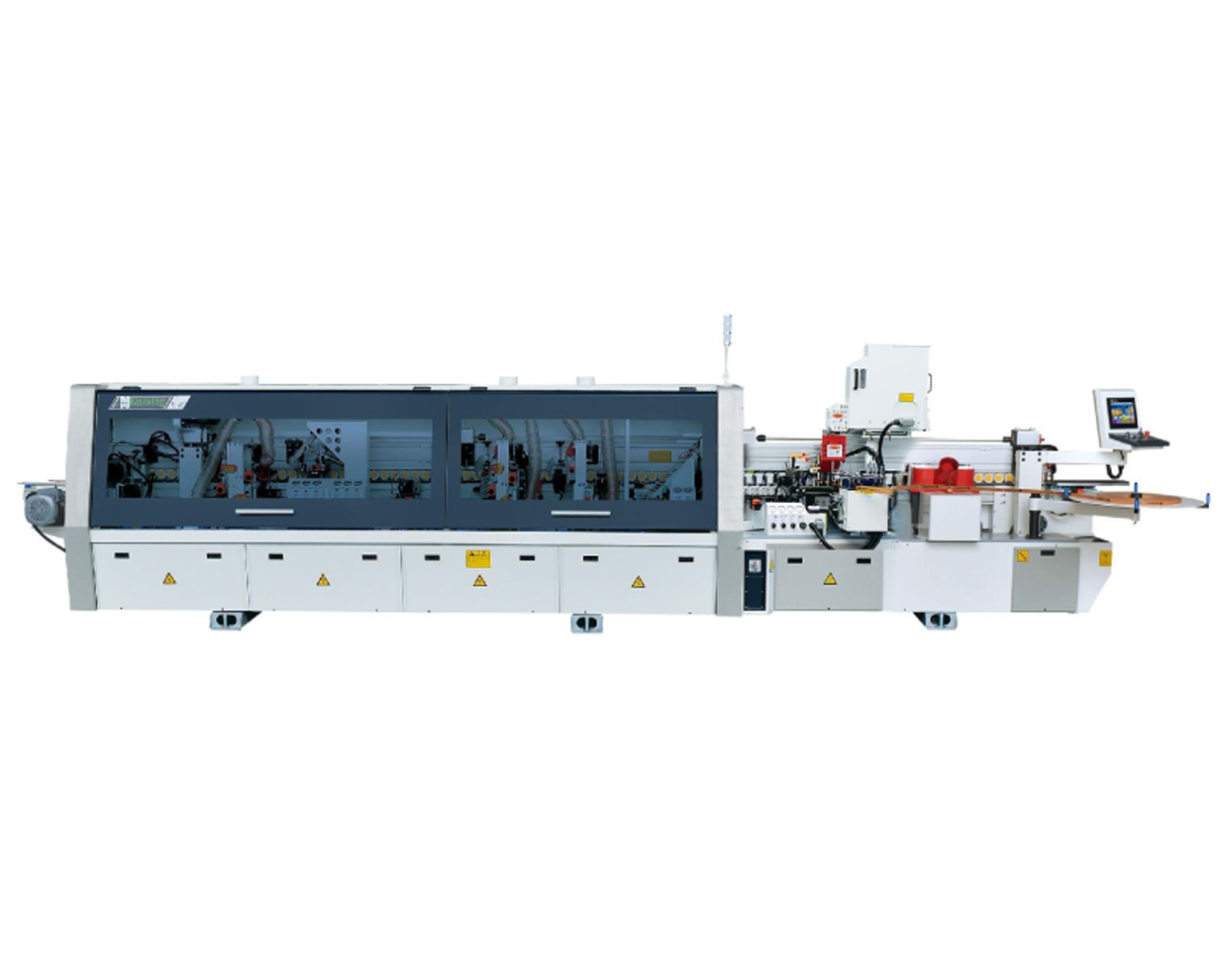

Nanxing Edge Banding Machine (Max.12mm solid wood) NB7CJ-SW(415V) with Corner Rounding
₹2,900,000.00 ₹3,625,000.00
Warranty
12 Months Country of origin
China YouTube Video 1
https://youtu.be/Ca5-KjNlQx0 YouTube Video 2
https://youtu.be/ucAC-m15AsA GST Extra
18% The Nanxing Edge Banding Machine (Max.12mm solid wood) NB7CJ-SW(415V) with Corner Rounding is a high-performance automatic edge banding machine delivering factory-grade edge finish quality for modular furniture production. As a versatile edge bander, it processes PVC edge banding as well as ABS, melamine, and solid wood edging on MDF, particleboard, and plywood panels. This through feed edge banding machine — optimised as an edge banding machine for modular furniture — automates pre-milling, gluing, pressing, trimming, and corner rounding for a seamless, zero-joint edge finish.
Features → Advantages → Benefits
FEATURE
ADVANTAGE
BENEFIT
Frequently Asked Questions
What is an automatic edge banding machine and how does it work?
An automatic edge banding machine applies PVC, ABS, veneer, or acrylic edge tape to the exposed edges of MDF, particle board, and plywood panels in a continuous through-feed process. The Nanxing NB7CJ feeds panels at 20 m/min and performs pre-milling, gluing, edge application, trimming, scraping, and buffing in one pass.
What edge tape materials can the Nanxing edge bander process?
The Nanxing edge bander works with PVC edge tape (0.4mm to 3mm thick), ABS edge tape, real wood veneer tape, acrylic mirror edge, and PP edge tape. It uses EVA hot melt glue for standard applications. PUR glue models are available for high-moisture and exterior applications.
What panel thickness range does the Nanxing edge banding machine handle?
The Nanxing edge banding machine processes panels from 8mm to 60mm thickness. Minimum panel width is typically 80mm. Maximum panel length is unlimited (through-feed design). Suitable for 16mm, 18mm, and 25mm standard furniture board thicknesses.
What is the difference between NB6 and NB7 series Nanxing edge banders?
The NB6 series is Nanxing's entry-level through-feed edge bander with feed speeds of 12–16 m/min, suitable for medium-volume furniture factories. The NB7 series offers higher feed speeds of 18–20 m/min, more functions (pre-milling, corner rounding, laser-ready), and is suited for high-volume production lines processing 200+ panels per shift (indicative — actual throughput depends on panel size, material, and operator skill).
Does the Nanxing edge bander include corner rounding?
Corner rounding is available as a standard or optional function depending on the model. The NB671EMN and NB875 series include automatic corner rounding with R1, R1.5, and R2 radius options. Corner rounding eliminates sharp 90-degree corners on furniture edges for a premium finish.
Is Caple Industrial Solutions the authorised Nanxing dealer in India?
Yes. Caple Industrial Solutions is the authorised dealer for Nanxing woodworking machinery in India. We supply genuine Nanxing machines with full manufacturer warranty, factory-trained service engineers, and genuine spare parts. We have been supplying Nanxing machines in India since 2005.
Where can I see a Nanxing machine demo in India?
Caple Industrial Solutions has multiple demo centres across India. You can visit to see Nanxing machines running on actual furniture panels before purchase. Contact us at Contact Caple Industrial Solutionsor web@caple.in to arrange a visit.
Installation Requirements
What electrical supply is required for the NB7CJ?
The NB7CJ requires 415V, 3-phase, 50Hz power supply. A dedicated isolator and appropriate cable gauge should be installed by a qualified electrician. Refer to the electrical schematic in the installation manual.
What is the total power consumption of the NB7CJ?
Total installed power is 24 kW. Ensure the electrical circuit is rated for this load with appropriate overcurrent protection.
What floor space is required to install the NB7CJ?
Refer to the installation drawing supplied with the machine. Caple service engineers will conduct a site survey prior to installation.
Does the NB7CJ require compressed air?
Yes. Edge banding machines require compressed air for pneumatic clamping and trimming units. Refer to the installation manual for exact pressure requirement.
Does the NB7CJ require dust extraction?
Yes. All woodworking machines require dust extraction. Caple supplies complete factory dust extraction systems. Contact us to design a centralized extraction system for your factory.
Who installs the NB7CJ and how long does installation take?
Caple service engineers handle commissioning and operator training upon site readiness confirmation. Installation can proceed only after full payment and a signed pre-installation checklist. Typical commissioning takes 1–3 working days. Buyer bears all travel, lodging, site labour, and material handling costs. Contact Caple at Contact Caple Industrial Solutionsto schedule installation.
What are the site preparation requirements before delivery?
Before delivery, ensure: (1) Factory floor is clear and levelled — check machine weight and floor load capacity. (2) Electrical supply point is ready at the machine location. (3) Dust extraction ducting is planned if installing a centralized system. (4) Forklift or crane is available for unloading (machines over 500kg require mechanical unloading). Caple service team will share a site checklist upon order confirmation.
