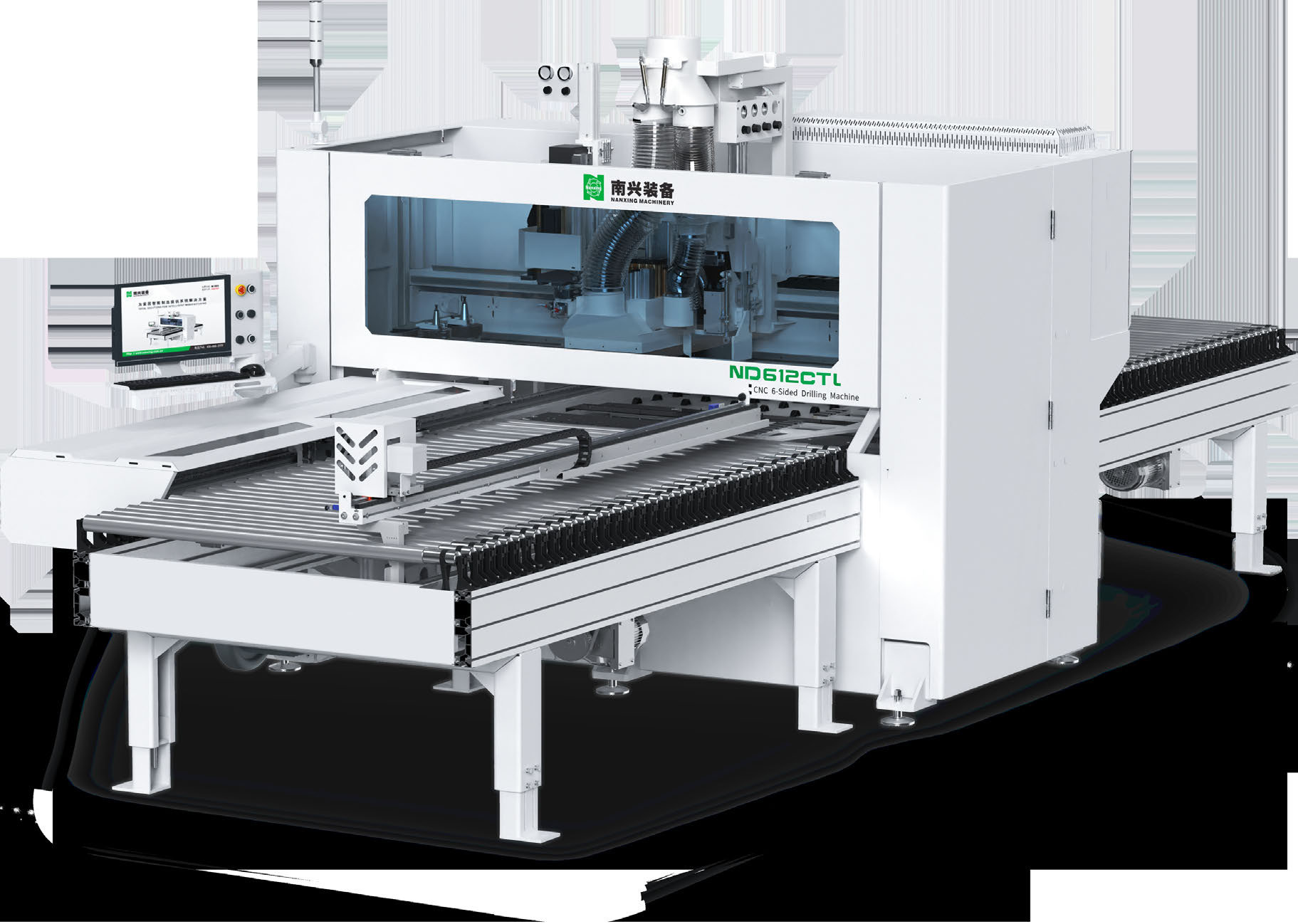

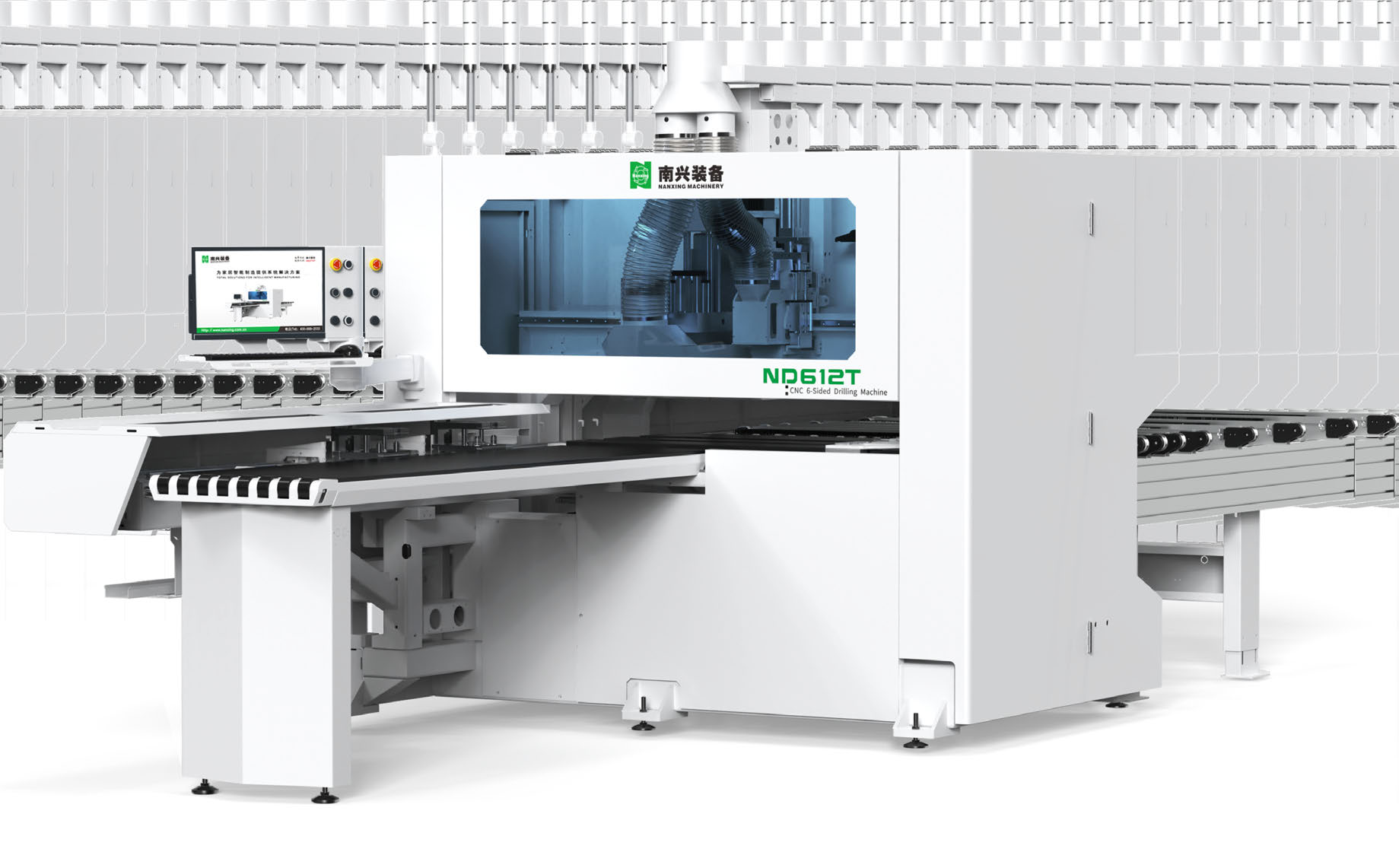

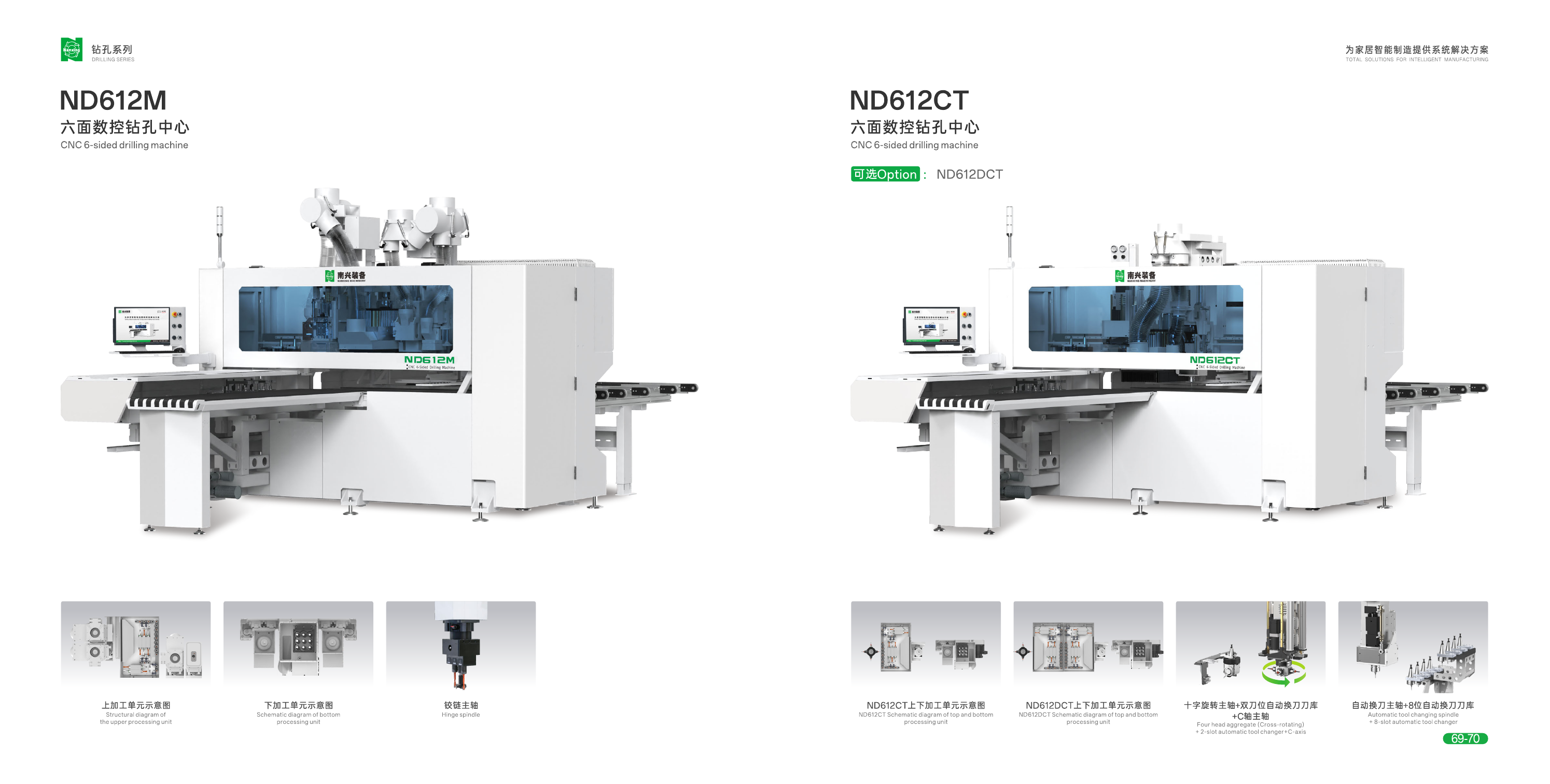

Name: CNC 6-Sided drilling machine ND612TS 415V | AC | Lamello Saw Blade | Double-head aggregate | Air Jet for Gripper
Brand: Nanxing
SKU: ND612TS(AC)-415V
Price: 3350000.0 INR
Availability: OutOfStock

CNC 6-Sided drilling machine ND612TS 415V | AC | Lamello Saw Blade | Double-head aggregate | Air Jet for Gripper

FEATURE

Long clamp beam & fast clamps
Feed-in & out table
Positioning
Board length, width detector
6 slots tool changer
Tool setting gauge
5.5kw+3.5kw main spindle
Optimized drilling block layout + saw blade
Min. processing part
Stack processing

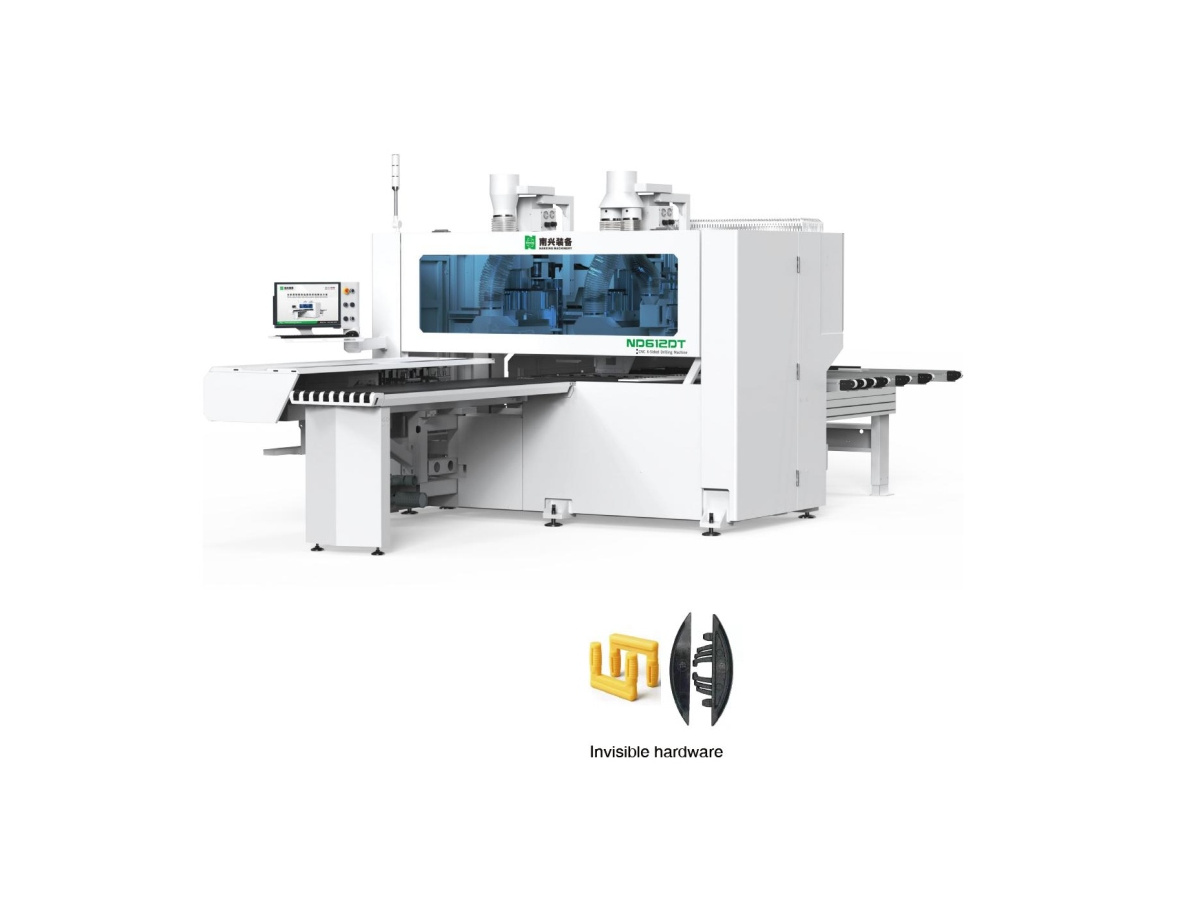

Invisible hardware
Side Grooving
Anti-handling device for infeed table
Dust collection port
Cable chain
Hand controller
Control system
Industrial computer
Excellent electrical components
User-friendly operation
Bar-code reader
File format support
Side routing-Double head aggregate
Board thickness sensor
Air jet for Gripper
Hand wheel
Saw blade for lamello
Standard Toolbox for testing
Air conditioner on control cabinet

TECHNICAL DATA:

Total Power : 25.63kw
Machine Size : 6,150×3,010×2,320mm
Power Supply : 415V/50Hz
Air Supply : 0.6-0.7MPa
Total Weight : 3,850kg
Control System : SYNTEC
Panel Length : 200-3,000mm
Panel Width : 30-1,200mm
Panel Thickness : 10-60mm
Max. Travelling Speed X/U axis : 135m/min
Max. Travelling Speed Y axis : 75m/min
Max. Travelling Speed Z axis : 30m/min
Boring Block Qty : Top 1 + Bottom 1
Vertical Drills Qty (Top) : 19
Horizontal Drills Qty (Top) : X: 3×4 + Y: 2×4
Vertical Drills Qty (Bottom) : 9
Max Drill Diameter : Φ35mm
Drill Spacing : 32mm
Drill Rotation Speed : 5000rpm
Shank Diameter : Φ10mm
Top Main Spindle : 1×5.5kw ER32 ISO30 ATC6 18000rpm
Bottom Main Spindle : 1×3.5kw ER25 18000rpm
Saw Blade Power : 1.7kw
Saw Blade Size : Φ100×Φ22×δ4
Saw Processing Range : 50-700mm
Dust Collector Qty : 2
Dust Collector Diameter : Top 200mm×2 + Lower 125mm×1
Dust Collector Speed : ≥28m/min

Available on Request

₹3,350,000.00

₹4,187,500.00

Customize

TEST

Boring Machine

CNC 6-Sided drilling machine ND612TS 415V | AC | Lamello Saw Blade | Double-head aggregate | Air Jet for Gripper

Multi-spindle boring precision. Every hole, every time.

QUICK SPECS

135

Feed Speed

25.63kw - Machine Size : 6

Total Power

25.63kw

Power

5000

Speed

415

Power Supply

12 mo / 2000 hr

Warranty

HOW IT WORKS

Load Board

Align Stops

Drill Holes

Check Pitch

Stack Output

KEY FEATURES

— Long clamp beam & fast clamps

— Feed-in & out table

— Board length, width detector

— 6 slots tool changer

— Tool setting gauge

— 5.5kw+3.5kw main spindle

— Optimized drilling block layout + saw blade

— Min. processing part

— Stack processing

— Invisible hardware

FEATURE	ADVANTAGE	BENEFIT TO YOU
SAFETY
CE-certified safety design	Meets international safety standards	You get a machine built for operator safety
Emergency stop circuit	Instant power cut-off on activation	You get immediate halt in emergencies
Enclosed moving parts	Reduces contact with rotating components	You get a safer working environment
QUALITY
Precision-engineered components	Tight tolerances on all machined parts	You get accurate, consistent output every shift
Rigid steel frame construction	Eliminates vibration during operation	You get cleaner cuts and better surface finish
Quality control sensors	Auto-detects deviation in real time	You get fewer rejects and less rework
USER FRIENDLY
Tool-free adjustment	No spanners needed for size changes	You get faster changeovers and less idle time
PRODUCTIVITY
High feed speed (135)	More panels processed per hour	You get higher daily output from the same shift
Reliable cycle-time consistency	Same output rate shift after shift	You get predictable delivery schedules for customers
ROI
Reduced labour dependency	One operator can run the machine alone	You save on staffing costs and wage bills
Lower material waste	Precision cuts reduce offcut losses	You save on raw material spend every month
Durable long-life components	Extended service intervals	You save on spare parts and maintenance costs
TRUST
Authorised Nanxing Distributor	Direct factory support and genuine parts	You get the real machine with full manufacturer backing
caple.in — In business since 1974	50+ years of woodworking machinery expertise	You get advice from engineers who know the trade
12-month / 2000-hour warranty	Whichever comes first — no ambiguity	You get protected investment from day one
Trained service team	Factory-trained engineers for installation and support	You get fast, knowledgeable on-site support
Pan-India support network	Service coverage across India with multiple demo centres	You get local support wherever your factory is

TECHNICAL SPECIFICATIONS
Total Power	25.63kw
Machine Size	6,150×3,010×2,320mm
Power Supply	415V/50Hz
Air Supply	0.6-0.7MPa
Total Weight	3,850kg
Control System	SYNTEC
Panel Length	200-3,000mm
Panel Width	30-1,200mm
Panel Thickness	10-60mm
Max. Travelling Speed X/U axis	135m/min
Max. Travelling Speed Y axis	75m/min
Max. Travelling Speed Z axis	30m/min
Boring Block Qty	Top 1 + Bottom 1
Vertical Drills Qty (Top)	19
Horizontal Drills Qty (Top)	X: 3×4 + Y: 2×4
Vertical Drills Qty (Bottom)	9
Max Drill Diameter	Φ35mm
Drill Spacing	32mm
Drill Rotation Speed	5000rpm
Shank Diameter	Φ10mm

FREQUENTLY ASKED QUESTIONS

What is the minimum pitch between drill holes?

The standard pitch is 32 mm to match the European cabinet system. Some models support variable pitch — check the spec table above.

How many spindles does this machine have?

Refer to the spindle count in the Quick Specs section above. Multi-spindle models allow simultaneous vertical and horizontal drilling.

Can I drill both faces of a panel in one pass?

Some models support double-sided drilling. Refer to the product name and specification table to confirm this capability.

What board dimensions can the machine handle?

Refer to the panel size range listed in the Quick Specs and Technical Specifications sections above.

What is the warranty period?

12 months or 2000 operating hours, whichever comes first.

Where can I find the full manual and spare parts list for the ND612TS?

Full documentation for the ND612TS is available through caple.in. Contact our team or book a demo to receive the technical manual and parts catalogue.

What air pressure/CFM does the ND612TS require?

The ND612TS requires an air supply at 6 bar with approximately 15 CFM continuous consumption. Ensure your compressor and drier can deliver this reliably.

What is the total power consumption of the ND612TS?

The ND612TS draws approximately 34 HP (25.63 kW) total power. Use a 50-amp 3-phase 415V supply with separate earthing and a 40 KVA stabiliser for safe operation.

What dust extraction capacity is needed for the ND612TS?

The ND612TS needs approximately 3,978 CFM (6,759 CMH) dust extraction through Ø200mm × 2 + Ø125mm × 1. We recommend the Dust Collector AXC 5HP | 4500-5000 CMH.

What is the weight of the ND612TS?

The ND612TS weighs 3,850kg. Ensure floor load capacity and proper foundation before installation.

What is under the customer’s scope?

Travel, food and stay for service engineers; material handling and lifting equipment; power tools and consumables for machine foundation; operator safety equipment; basic electrical connections up to the machine; general tool kit and measuring instruments — are all under the customer’s scope.
