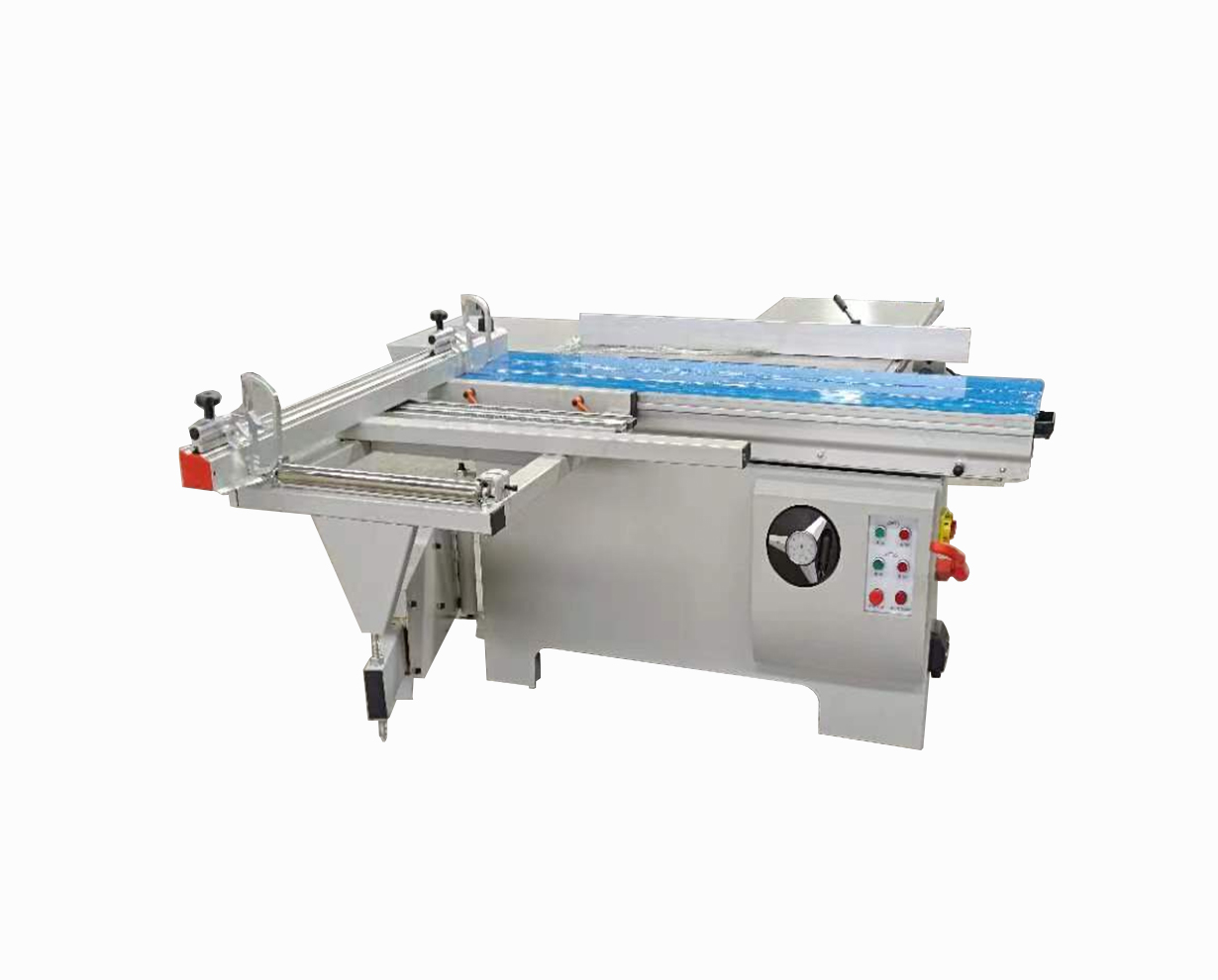

Sliding Panel Saw MJ6112S [1200mm Table | 1200mm Rip-cut fence | 4.75 kW

• Technical Specifications

• Sliding table size : 1200*375MM

• Max cutting length : 1200MM

• Distance between saw and parallel stop : 1250MM

• The best cutting thickness( saw diameter 300mm) : 75MM - 45゜the best cutting thickness : 65MM

• Grooving saw spindle speed : 7000—8000R/ MIN

• Main saw size : Outside diameter 300MM/inner diameter 30MM

• Grooving saw size : Outside diameter 120MM/inner diameter 20MM

• Main saw spindle speed : 4000—6000R/MIN

• Main saw diameter (possible range), mm : 250-300MM

• Motor power : 4 0.75KW

• Saw blade angel : 0 - 45゜

• Outside size : 1200*2450*900mm
