Hot Press Machine

Caple India · Hot Press Machines

Hot presses for HPL, veneer, PVC foil & door lamination

Single-daylight and multi-daylight hot presses from 6x4 ft to 14x5 ft. Used by HPL laminators, door manufacturers, PVC foil pressing lines and veneer shops across India. Heating options: thermic oil, electric, steam. Caple supplies, commissions and services the full press line.

6x4 to 14x5 Foot bed sizes	Thermic / Electric Heating	90-120 sec Cycle for HPL	12 mo Warranty

Get pricing & book a free demo.
Call your regional executive or WhatsApp us — reply within one working day. Visit our Demo Centres in Pelhar and Delhi.

CALL WHATSAPP EMAIL

West & South: +91 70454 59931 · North: +91 99993 94047 · East: +91 95994 87490

✓ Authorised distributor · Premium global brands

★4.5+ Google rating · 120+ reviews

⛰ Free demos · Pelhar & Delhi Demo Centres

⚙ Pan-India service · 3 regional teams

Why Caple for this category

Three reasons it pays for itself

Feature	Advantage	Benefit
Thermic oil heating option	Even temperature across the full platen — no cold spots, no scorching.	Consistent bond quality. Fewer rejections from lamination defects.
Hydraulic ram with pressure control	Adjustable pressure 80-180 tonnes depending on platen size and material.	Right pressure for HPL (lower) vs veneer (higher) — no operator guesswork.
Caple installs & commissions	Site preparation drawings, electrical and hydraulic connection, first-piece test under our supervision.	Productive from week one. No commissioning delays from third-party contractors.

FAQ

Buying questions answered

HPL or veneer — same press? Yes, same press — different temperature and pressure settings. Caple sets up presets for both during commissioning.

Thermic oil vs electric heating? Thermic oil: better for high-volume production, lower running cost. Electric: faster startup, easier maintenance, good for variable jobs. We help you choose.

Cycle time for HPL lamination? 90-120 seconds at 130-140 deg C, 80-100 tonnes pressure. Caple presses meet typical Greenlam, Merino, Century specs.

Do you supply just the press or the full line? Both. Standalone press OR full line with infeed roller table, glue applicator, hot press, outfeed cooling and trimming. Talk to your regional executive.

What service support do you offer? Hydraulic pump rebuild, platen cleaning, temperature sensor replacement, thermic oil flushing — all done by Caple's own service team across 3 regions.

Caple Industrial Solutions — Woodworking machinery, consumables & service for India, Subcontinent, Middle East and Africa. web@caple.in · Brands: Nanxing, SCM, Festool, Lamello, Bessey, Orma, Vitap, Kuper.

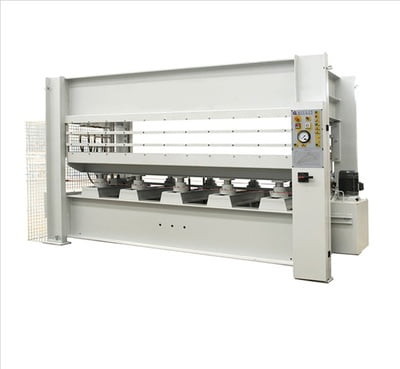

Hot Press Machine BY214X8/12(2)H1RC [2500x1300mm | 120T | Solid Steel | Daylight 2]

TECHNICAL DATA

• Total pressure: 1000KN (100Ton)

• Specific pressure: 3.7Kgf/cm2

• Working layer: 2

• Platen No.& Size: 2-2500x1300x42mm(solid steel drilled hot platen covered with mylar)

• Platen Opening : 170mm

• Cylinder No.: 8

• No. Dia: 85mm

• Max temperature: 120 Deg.

• Heating Type: Electric heating with thermic oil

• Installation power: (4 0.75 36)kw

• Platen opening way: Automatically

• Loading way: Length side, Manually

• Voltage: 3PE 415V 50Hz

• Packing: Bare but properly secured

₹2,300,000.00 ₹2,875,000.00

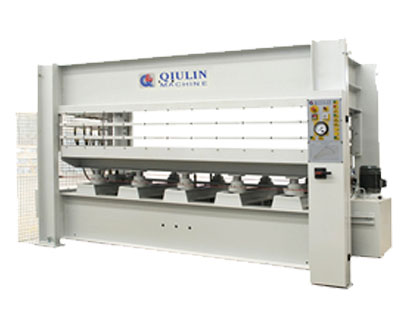

Hot Press Machine BY214X10/16(3)H1RC [3200x1300mm | 160T | Solid Steel | Daylight 2]

TECHNICAl DATA

• Model : BY214X10/16(2)H1RC

• Total pressure : 1600KN

• Specific pressure : 3.8Kgf/cm2

• Working layer : 2 layers

• Platen No.& Size : 3-3200X1300X42mm(solid steel drilled hot platen covered with mylar)

• Platen opening : 170mm

• Cylinder No.& Dia : 10-φ85mm

• Max temperature : 120℃

• Heating way : Electric heating with thermal oil

• Heating medium : thermal oil

• Installation power : 4 1.5 54KW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 415V 50Hz

₹3,100,000.00 ₹3,875,000.00

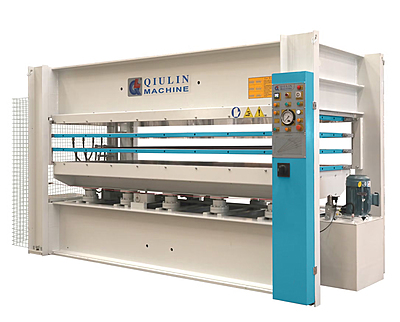

Hot Press Machine BY214X9/16(3)H1RC [3000x1300mm | 160T | Solid Steel | Daylight 3]

TECHNICAL DATA

• Model : BY214X9/16(3)H1RC

• Total pressure : 1600KN

• Specific pressure : 4.1Kgf/cm2

• Working layer : 3

• Platen No.& Size : 4-3000x1300x42mm(solid steel drilled hot platen covered with mylar)

• Platen opening : 120mm

• Cylinder No.& Dia : 10-φ85mm

• Max temperature : 120℃

• Heating way : Electric heating with thermic oil

• Heating medium : Thermic oil

• Installation power : 77.5KW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 415V 50Hz

₹3,050,000.00 ₹3,812,500.00

Hot Press Machine BY214X9/16(2)H1RC [3000x1300mm | 160T | Solid Steel | Daylight 2]

TECHNICAL DATA

• Total pressure : 1600KN

• Specific pressure: : 4.1Kgf/cm2

• Working layer : 2

• Platen No.& Size : 3-3000x1300x42mm(solid steel drilled hot platen covered with mylar)

• Platen opening : 170mm

• Cylinder No.& Dia : 10-φ85mm

• Max temperature : 120℃

• Heating way : Electric heating with thermic oil

• Heating medium: : Thermic oil

• Installation power : 4 1.5 54KW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 415V 50Hz

₹2,800,000.00 ₹3,500,000.00

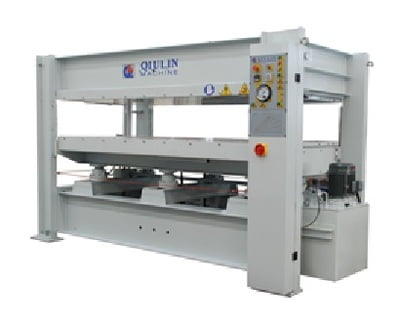

Hot Press Machine BY214X9/16(1)H1RC [3000x1300mm | 160T | Solid Steel | Daylight 1]

TECHNICAL DATA

• Total pressure : 1600KN

• Specific pressure: : 4.1Kgf/cm2

• Working layer : 1

• Platen No.& Size : 2-3000x1300x42mm(solid steel drilled hot platen covered with mylar)

• Platen opening : 360mm

• Cylinder No.& Dia : 10-φ85mm

• Max temperature : 120℃

• Heating way : Electric heating with thermic oil

• Heating medium: : Thermic oil

• Installation power : 4 0.75 36KW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 415V 50Hz

₹2,400,000.00 ₹3,000,000.00

Hot Press Machine BY214X8/16(2)H1RC [2500x1300mm | 160T | Solid Steel | Daylight 2]

TECHNICAl DATA

• Total pressure : 1600KN

• Specific pressure : 5gf/cm2

• Working layer : 2 layers

• Platen No.& Size : 3-2500x1300x42mm(solid steel drilled hot platen covered with mylar)

• Platen opening : 170mm

• Cylinder No.& Dia : 10-φ85mm

• Max temperature : 120℃

• Heating way : Electric heating with thermal oil

• Heating medium : thermal oil

• Installation power : 4 0.75 36KW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 415V 50Hz

₹2,450,000.00 ₹3,062,500.00

Hot Press Machine BY214X8/10(3)H1RC [ 2500x1300 | 100T | Solid Steel | Daylight 3]

TECHNICAL DATA

• Total pressure : 1000KN

• Specific pressure : 3.1gf/cm2

• Working layer : 3 layers

• Platen No.& Size : 4-2500x1300x42mm(solid steel drilled hot platen covered with mylar)

• Platen opening : 120mm

• Cylinder No.& Dia : 6-φ85mm

• Max temperature : 120℃

• Heating way : Electric heating with thermal oil

• Heating medium : thermal oil

• Installation power : (4 0.75 48)KW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 415V 50Hz

₹2,250,000.00 ₹2,812,500.00

Hot Press Machine BY214X8/16(1)H1RC [2500x1300mm | 160T | Solid Steel | Daylight 1]

TECHNICAl DATA

• Model : BY214×8/16(1)H1RC

• Total pressure : 1600KN

• Specific pressure : 5gf/cm2

• Working layer : 1 layers

• Platen No.& Size : 2-2500x1300x42mm(solid steel drilled hot platen covered with mylar)

• Platen opening : 360mm

• Cylinder No.& Dia : 10-φ85mm

• Max temperature : 120℃

• Heating way : Electric heating with thermal oil

• Heating medium : thermal oil

• Installation power : 28.75KW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 380V 50Hz

₹2,250,000.00 ₹2,812,500.00

Hot Press Machine BY214X8/12(3)H1RC [2500x1300 | 120T | Solid Steel | Working Layer 3]

TECHNICAL DATA

• Total pressure: 1000KN (100Ton)

• Specific pressure: 3.7Kgf/cm2

• Working layer: 3

• Platen No.& Size: 2-2500x1300x42mm(solid steel drilled hot platen covered with mylar)

• Platen Opening : 120mm

• Cylinder No.: 8

• No. Dia: 85mm

• Max temperature: 120 Deg.

• Heating Type: Electric heating with thermic oil

• Installation power: (4 0.75 48)kw

• Platen opening way: Automatically

• Loading way: Length side, Manually

• Voltage: 3PE 415V 50Hz

• Packing: Bare but properly secured

₹2,550,000.00 ₹3,187,500.00

Hot Press Machine BY214X8/16(2)H1RC [2500x1300mm | 160T | Solid Steel | Daylight 3]

TECHNICAL DATA

• Total pressure : 1600KN

• Specific pressure : 5gf/cm2

• Working layer : 3 layers

• Platen No.& Size : 4-2500x1300x42mm(solid steel drilled hot platen covered with mylar)

• Platen opening : 120mm

• Cylinder No.& Dia : 10-φ85mm

• Max temperature : 120℃

• Heating way : Electric heating with thermal oil

• Heating medium : thermal oil

• Installation power : 4 0.75 48KW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 415V 50Hz

₹2,700,000.00 ₹3,375,000.00

Hot Press Machine BY214X8/16(5)H1RC [2500x1300mm | 160T| Daylight 5 | 140 Deg.]

TECHNICAL DATA

• Total pressure : 1600KN

• Specific pressure : 5gf/cm2

• Working layer : 5 layers

• Platen No.& Size : 6-2500x1300x42mm(solid steel drilled hot platen covered with mylar)

• Platen opening : 90mm

• Cylinder No.& Dia : 10-85mm

• Max temperature : 140 Deg.

• Heating way : Electric heating with thermal oil

• Heating medium: : thermal oil

• Installation power : 4 1.5 72KW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 415V 50Hz

• Packing : Bare but properly secured

₹3,350,000.00 ₹4,187,500.00

Ormamacchine Press Type Npc Digit 6/110 [3000 x 1300 | 120T | 400mm |Single Daylight]

• a[href="#zppost_rating"], .zpcomments-reviews-ratings { display: none !important }[data-zs-product-details-commentbox-section] { display: none !important }.theme-product-short-desc { width: 100% !important; float: none !important; clear: both !important }.theme-product-detail-right { width: 100% !important; float: none !important }.theme-product-specification-tab { display: none !important }

TECHNICAL DATA

•

• Total Thrust : 120 Ton

• Type of Platen : Fabricated Steel Platen

• Platen Sizes : 3000mm X 1300mm

• Cylinder Dia : 85mm

• Cylinders : 6 No

• Stroke : 400 mm

• Timer Opening&n

₹3,350,000.00 ₹4,187,500.00

Hot Press Machine BY214X10/16(3)H1RC [3200x1300mm | 160T | Solid Steel | Daylight 3]

TECHNICAl DATA

• Model : BY214×10/16(3)H1RC

• Total pressure : 1600KN

• Specific pressure : 4.3Kgf/cm2

• Working layer : 3 layers

• Platen No.& Size : 4-3200x1300x42mm(solid steel drilled hot platen covered with mylar)

• Platen opening : 120mm

• Cylinder No.& Dia : 10-φ85mm

• Max temperature : 120℃

• Heating way : Electric heating with thermal oil

• Heating medium: : thermal oil

• Installation power : (4 1.5 72KW ) 77.5KW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 415V 50Hz

• Packing : Bare but properly secured

• Gross Weight : About 10000.00 kg

₹3,350,000.00 ₹4,187,500.00

Hot Press Machine BY214X8/12(1)H1RC [2500x1300mm | 100T | Solid Steel | Daylight 1]

TECHNICAL DATA

• Total pressure: 1000KN (100Ton)

• Specific pressure: 3.7Kgf/cm2

• Working layer: 1

• Platen No.& Size: 2-2500x1300x42mm(solid steel drilled hot platen covered with mylar)

• Platen Opening : 360mm

• Cylinder No.: 8

• No. Dia: 85mm

• Max temperature: 120 Deg.

• Heating Type: Electric heating with thermic oil

• Installation power: (4 0.75 24)kw

• Platen opening way: Automatically

• Loading way: Length side, Manually

• Voltage:3PE 415V 50Hz

• Packing: Bare but properly secured

₹2,050,000.00 ₹2,562,500.00

Hot Press Machine BY214X10/16(1)H1RC [3200x1300mm | 160T | Solid Steel | Daylight 1]

TECHNICAl DATA

• Model : BY214×10/16(1)H1RC

• Total pressure : 1600KN

• Specific pressure : 3.8Kgf/cm2

• Working layer : 1 layers

• Platen No.& Size : 2-3200x1300x42mm(solid steel drilled hot platen covered with mylar)

• Platen opening : 360mm

• Cylinder No.& Dia : 10-φ85mm

• Max temperature : 120℃

• Heating way : Electric heating with thermal oil

• Heating medium : thermal oil

• Installation power : 4 0.75 36KW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 415V 50Hz

₹2,850,000.00 ₹3,562,500.00

Hot Press Machine BY214X8/10(2)H1RC [ 2500x1300 | 100T | Solid Steel | Daylight 2]

TECHNICAL DATA

• Model : BY214×8/10(2)H1RC

• Total pressure : 1000KN

• Specific pressure : 3.1gf/cm2

• Working layer : 2 layers

• Platen No.& Size : 3-2500x1300x42mm(solid steel drilled hot platen covered with mylar)

• Platen opening : 170mm

• Cylinder No.& Dia : 6-φ85mm

• Max temperature : 120℃

• Heating way : Electric heating with thermal oil

• Heating medium : thermal oil

• Installation power : (4 0.75 36)KW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 415V 50Hz

₹2,000,000.00 ₹2,500,000.00

Hot Press Machine BY214X8/10(1)H1RC [ 2500x1300 | 100T | Solid Steel | Daylight 1]

TECHNICAL DATA

• Total pressure : 1000KN

• Specific pressure : 3.1gf/cm2

• Working layer : 1 layers

• Platen No.& Size : 2-2500x1300x42mm(solid steel drilled hot platen covered with mylar)

• Platen opening : 360mm

• Cylinder No.& Dia : 6-φ85mm

• Max temperature : 120℃

• Heating way : Electric heating with thermal oil

• Heating medium : thermal oil

• Installation power : (4 0.75 24)KW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 415V 50Hz

₹1,750,000.00 ₹2,187,500.00
