Nanxing Edge Banding Machine NB671DNC & CNC 6-Sided Drilling Machine ND612DTSL with Auto conveyor systems
₹19,325,000.00 ₹24,156,250.00
Warranty
12 Months GST Extra
18% Available on Request

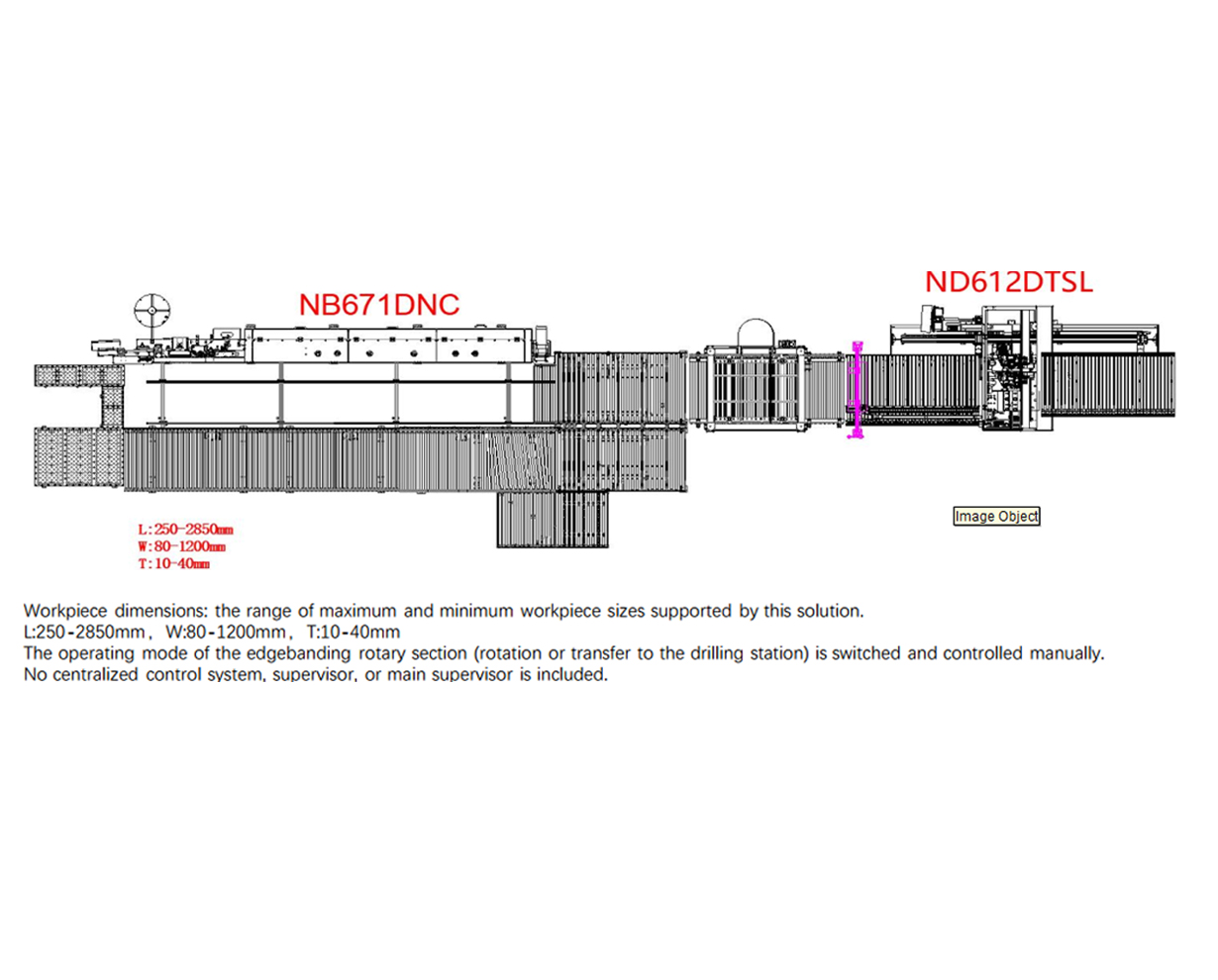

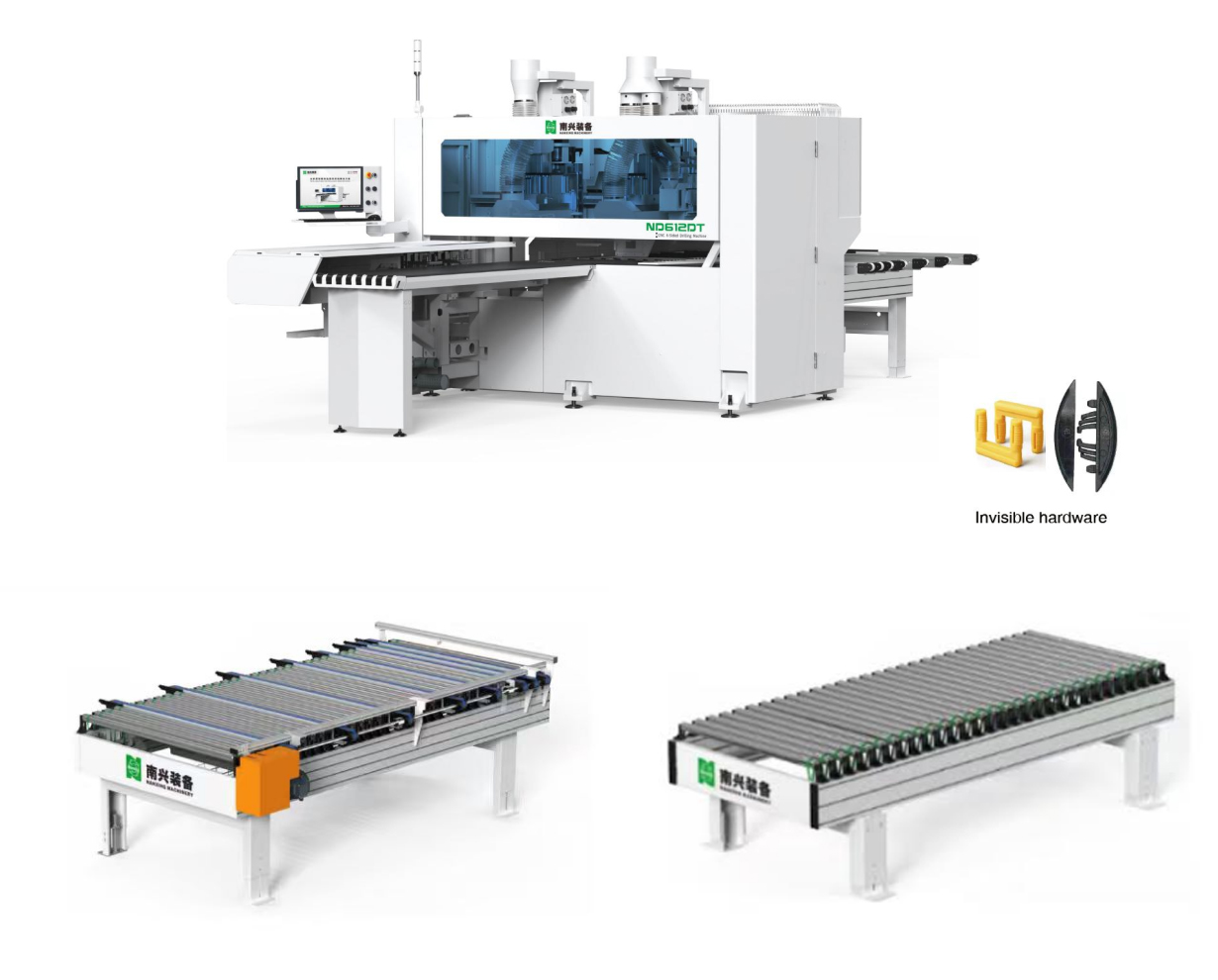

Workpiece dimensions: the range of maximum and minimum workpiece sizes supported by this solution. L:250-2850mm， W:80-1200mm， T:10-40mm The operating mode of the edge banding rotary section (rotation or transfer to the drilling station) is switched and controlled manually. No centralized control system, supervisor, or main supervisor is included. INCLUDES: A-01- Edge Banding Machine NB671DNC 1No. A-02 - Conveyor BCC3517 1No. A-03 - Conveyor BCC3015 1No. A-04 - Conveyor BNC2513 1No. A-05 - Conveyor BC3515 1No. A-06 - Conveyor BC3015 1No. A-07 - Conveyor BC3015 1No. A-08 - Air Floating Table AF2012 1No. A-09 - Air Floating Table AF1306 1No. A-10 - Air Floating Table AF2006 1No. A-11 - Controlling System 1No. A-12 - Buffering Conveyor ACCD330 1No. A-13 - 6-Sided Drilling Machine ND612DTSL 1No.
TEST

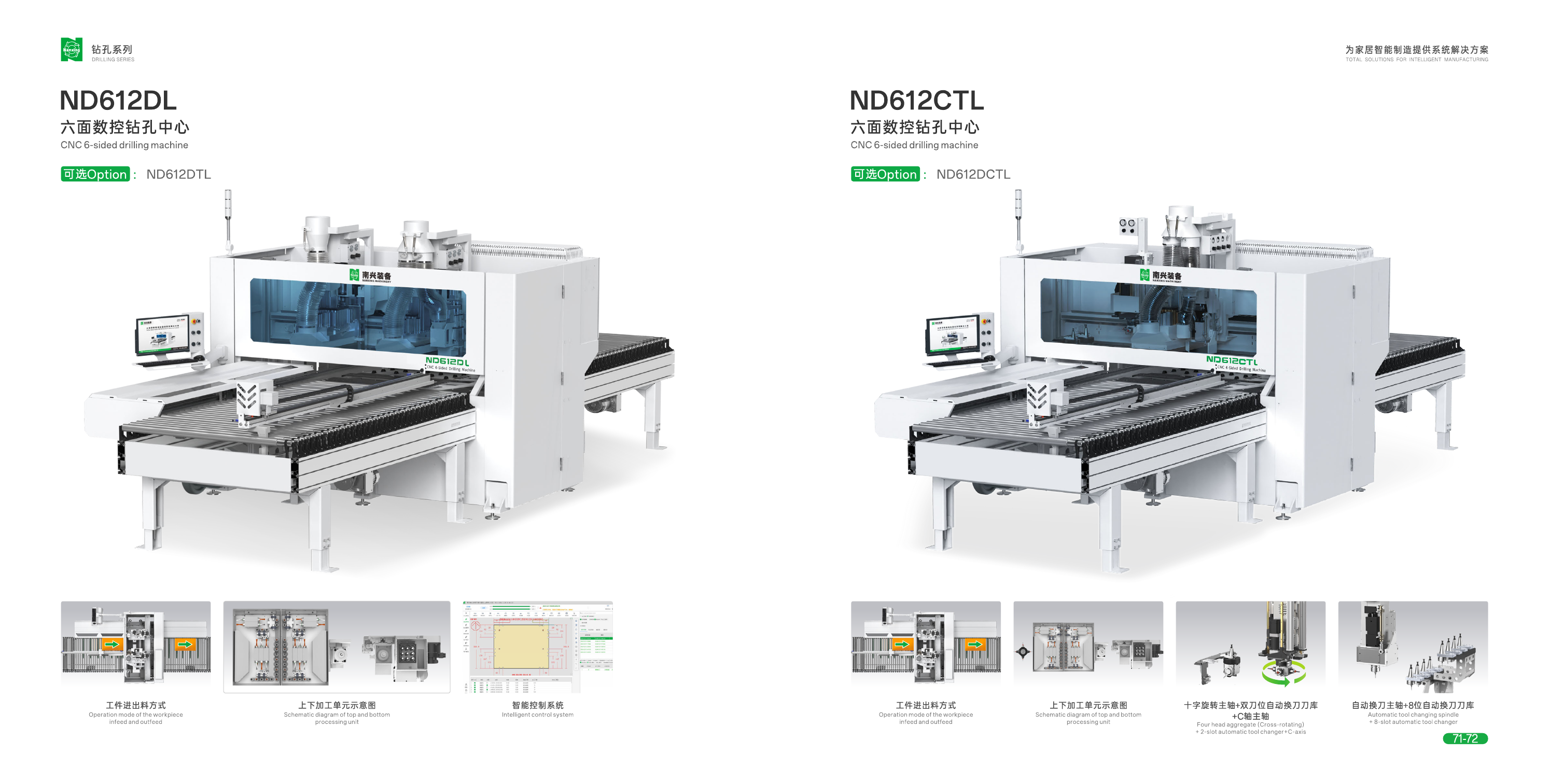

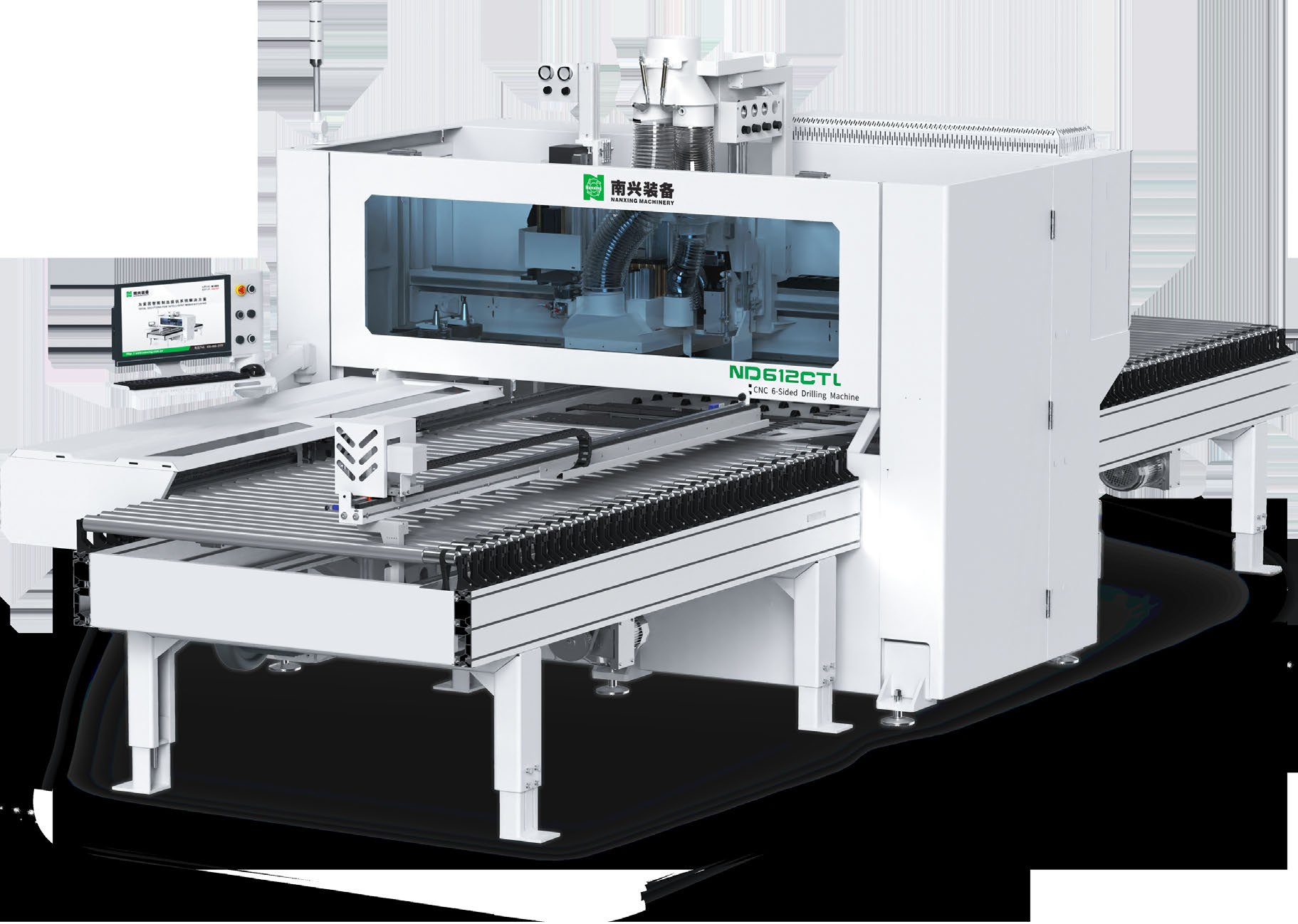

Nanxing CNC 6-Sided Drilling Machine ND61DTSL
FEATURES - Long clamp beam & fast clamps 5.5m longer high-rigidity clamp - Feed-in & out table - Positioning Side aligner & Support / press plates - Board length, width detector - 6 slots tool changer - Tool setting gauge - 5.5kw+3.5kw main spindle - Top drilling block 1 boring blocks 2.2kw, - Optimized drilling blocks layout +saw blade - 2 boring blocks 2.2kw with Vertical drills: 19+19 - Independent grooving saw 1.7kw; Saw blade size:Ф100*Ф22*δ4 fixed in X direction. - Bottom drilling block 1.6kw 9 vertical drills - Min. processing Panel length: 200-3000mm / Panel width 30-1200mm - Stack processing - Side Grooving - Machine is configured with Lamello aggregate & tool - Anti-handling device for infeed table - 3No. Dust collection port - Hand controller - Control system - Windows 10 operating system - Control interface is modern and friendly - Manual programming interface - Simulation function - Easy tools setting - Statistics function - Bar-code reader - File format support (MPR, DXF, BAN, BPP, PDX; XML; XX) - Side routing-One head aggregate - Board thickness sensor - Air jet for GrippeEdge Banding Machine for narrow parts NB671DNC

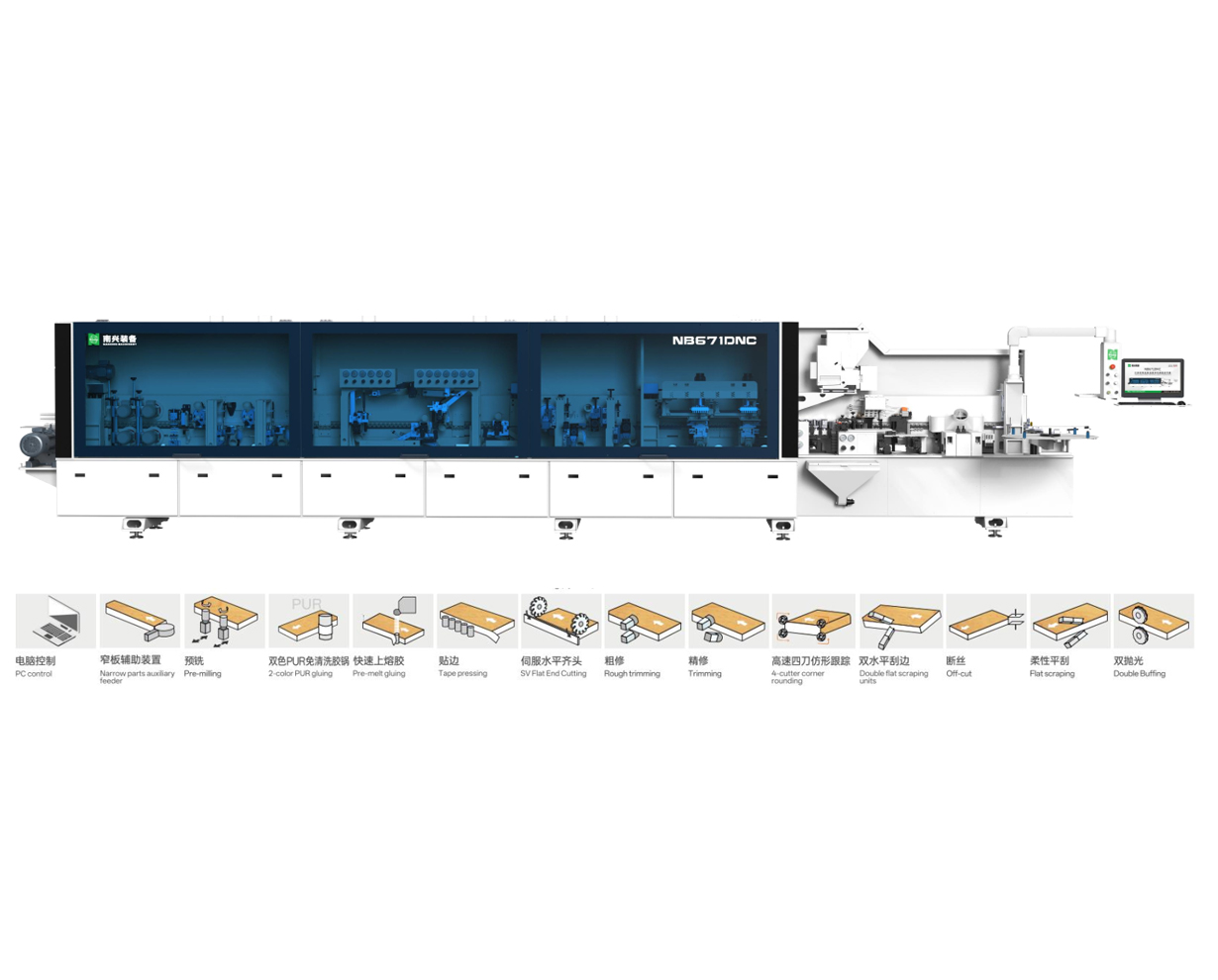

FEATURES - Narrow Panel Feeding Auxiliary Device, - Release Agent sprayer - Pre-Milling - Pre-Heating - 2-Color PUR Gluing System - Pre-melt gluing units - Tape Feeding - Five-Roller Tape Presser, - Servo end cutting - Rough trimming - Fine trimming - High-Speed 4-motor corner rounding - 2 sets Flat tracing arm Scraping units - Off cut Device - Flat scraping, - clean agent sprayer, - 2 sets buffing;
