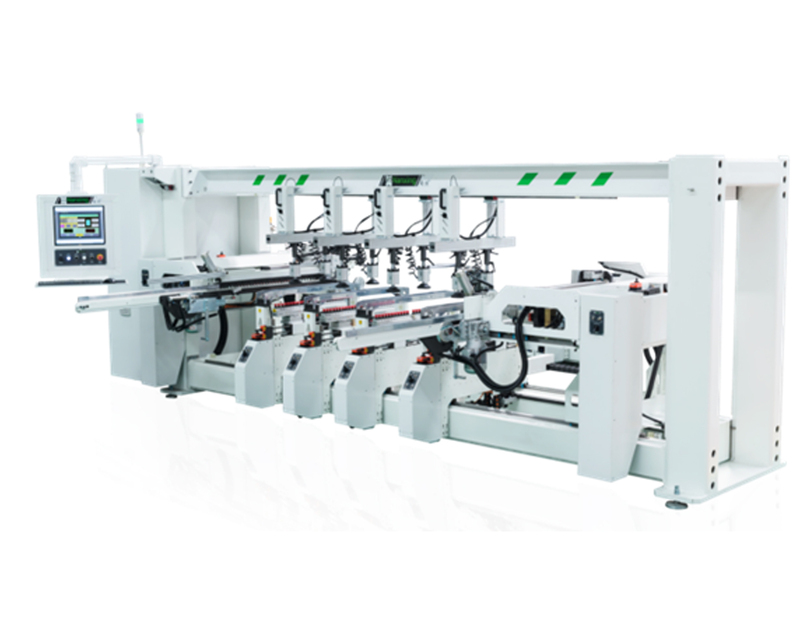

Name: Nanxing Through-feed Drilling Machine with 42 Set of Drill and Line Function NDC702(415V)
Brand: Nanxing
SKU: NDC702(415V)
Price: 14800000.0 INR
Availability: OutOfStock

FESTURES

• Auto feed-in and feed-out

• Top presser

• Precise positioning on working area

• Drilling rows

• Optional special drilling block. Movement of drilling rows

• Quick release and fix

• Processing data

• Feeding assistant

• Drag chains

• Safety device

• E-stop and foot switch

• Control cabinet

• PC Control

• Customize Drill Head 42set

• Line Function 1 Set

Technical Data

• Max panel width : 2550 mm

• Min. panel width : 250 mm

• Max. panel thickness : 50mm

• Lower drilling rows quantity : 7

• Horizontal drilling rows quantity : 2

• Boring block power : 1.5kw 2750rpm

• Spacing of drills : 32mm

• Max. vertical drilling depth : 50mm

• Max. horizontal drilling depth : 40mm

• Servo motor quantity : 13

• Servo motor power : 0.75kw

• Total power : 33kw

• Power Supply : 415V/50hz/3p

• Approx. weight : 7,500 kg

• Overall dimension : 5,540 x 6601 x 1950 mm

• Max. speed of feeding belt : 80m/min

• Max space of two horizontal drills : 640mm

• Max space of two vertical drills : 885mm

• Min space of two vertical drills : 128mm

• The height of working area : 965-1010mm

Available on Request

₹14,800,000.00

Customize

TEST

Boring Machine

Nanxing Through-feed Drilling Machine with 42 Set of Drill and Line Function NDC702(415V)

Multi-spindle boring precision. Every hole, every time.

QUICK SPECS

width : 2550 mm - Min. panel width : 250 mm - Max. panel thickness : 50mm - Lower drilling rows quantity : 7 - Horizontal drilling rows quantity : 2 - Boring block power : 1.5kw 2750rpm - Spacing of drills : 32mm - Max. vertical drilling depth : 50mm - Max. horizontal drilling depth : 40mm - Servo motor quantity : 13 - Servo motor power : 0.75kw - Total power : 33kw - Power Supply : 415V/50hz/3p - Approx. weight : 7

Max Panel

540 x 6601 mm

Work Area

Feed Speed

0.75kw - Total power : 33kw - Power Supply : 415V/50hz/3p - Approx. weight : 7

Motor Power

33kw - Power Supply : 415V/50hz/3p - Approx. weight : 7

Total Power

1.5kw

Power

HOW IT WORKS

Load Board

Align Stops

Drill Holes

Check Pitch

Stack Output

KEY FEATURES

— Auto feed-in and feed-out

— Precise positioning on working area

— Optional special drilling block. Movement of drilling rows

— Quick release and fix

— Processing data

— Feeding assistant

— E-stop and foot switch

— Control cabinet

— Customize Drill Head 42set

— Line Function 1 Set

FEATURE	ADVANTAGE	BENEFIT TO YOU
SAFETY
Emergency stop button	Immediate machine halt	You get peace of mind with instant shutdown
QUALITY
Precision-engineered components	Tight tolerances on all machined parts	You get accurate, consistent output every shift
Rigid steel frame construction	Eliminates vibration during operation	You get cleaner cuts and better surface finish
Quality control sensors	Auto-detects deviation in real time	You get fewer rejects and less rework
USER FRIENDLY
Automatic feeding system	Hands-free panel transport	You get a single operator running the full cycle
PRODUCTIVITY
High feed speed (80)	More panels processed per hour	You get higher daily output from the same shift
Reliable cycle-time consistency	Same output rate shift after shift	You get predictable delivery schedules for customers
ROI
Reduced labour dependency	One operator can run the machine alone	You save on staffing costs and wage bills
Lower material waste	Precision cuts reduce offcut losses	You save on raw material spend every month
Durable long-life components	Extended service intervals	You save on spare parts and maintenance costs
TRUST
Authorised Nanxing Distributor	Direct factory support and genuine parts	You get the real machine with full manufacturer backing
caple.in — In business since 1974	50+ years of woodworking machinery expertise	You get advice from engineers who know the trade
12-month / 2000-hour warranty	Whichever comes first — no ambiguity	You get protected investment from day one
Trained service team	Factory-trained engineers for installation and support	You get fast, knowledgeable on-site support
Pan-India support network	Service coverage across India with multiple demo centres	You get local support wherever your factory is

TECHNICAL SPECIFICATIONS
Max panel width	2550 mm
Min. panel width	250 mm
Max. panel thickness	50mm
Lower drilling rows quantity	7
Horizontal drilling rows quantity	2
Boring block power	1.5kw 2750rpm
Spacing of drills	32mm
Max. vertical drilling depth	50mm
Max. horizontal drilling depth	40mm
Servo motor quantity	13
Servo motor power	0.75kw
Total power	33kw
Power Supply	415V/50hz/3p
Approx. weight	7,500 kg
Overall dimension	5,540 x 6601 x 1950 mm
Max. speed of feeding belt	80m/min
Max space of two horizontal drills	640mm
Max space of two vertical drills	885mm
Min space of two vertical drills	128mm
The height of working area	965-1010mm

FREQUENTLY ASKED QUESTIONS

What is the minimum pitch between drill holes?

The standard pitch is 32 mm to match the European cabinet system. Some models support variable pitch — check the spec table above.

How many spindles does this machine have?

Refer to the spindle count in the Quick Specs section above. Multi-spindle models allow simultaneous vertical and horizontal drilling.

Can I drill both faces of a panel in one pass?

Some models support double-sided drilling. Refer to the product name and specification table to confirm this capability.

What board dimensions can the machine handle?

Refer to the panel size range listed in the Quick Specs and Technical Specifications sections above.

What is the warranty period?

12 months or 2000 operating hours, whichever comes first.

Where can I find the full manual and spare parts list for the NDC702?

Full documentation for the NDC702 is available through caple.in. Contact our team or book a demo to receive the technical manual and parts catalogue.

What air pressure/CFM does the NDC702 require?

The NDC702 requires an air supply at 6 bar with approximately 10 CFM continuous consumption. Ensure your compressor and drier can deliver this reliably.

What is the total power consumption of the NDC702?

The NDC702 draws approximately 44 HP (33 kW) total power. Use a 63-amp 3-phase 415V supply with separate earthing and a 40 KVA stabiliser for safe operation.

What dust extraction capacity is needed for the NDC702?

The NDC702 needs approximately 1,766 CFM (3,000 CMH) dust extraction through standard dust ports. We recommend the Dust Collector AXC 3HP | 3000-3500 CMH.

What is the weight of the NDC702?

The NDC702 weighs 7,500 kg. Ensure floor load capacity and proper foundation before installation.

What is under the customer’s scope?

Travel, food and stay for service engineers; material handling and lifting equipment; power tools and consumables for machine foundation; operator safety equipment; basic electrical connections up to the machine; general tool kit and measuring instruments — are all under the customer’s scope.
