Who is the authorised Nanxing dealer in India?

Caple Industrial Solutions is the authorised Nanxing dealer in India with 7 demo centres across Mumbai, Delhi, Bengaluru, Kolkata and Ahmedabad. Call +91 70454 59931.

What machines do I need for a modular kitchen factory?

A modular kitchen factory needs a panel saw, edge bander, multi boring machine, CNC router and dust collector. Caple offers turnkey packages for 25 to 100 boards per day.

What is the price of a CNC router in India?

CNC router prices in India range from 15 lakh to 1.5 crore depending on axes, table size and automation. Caple offers Nanxing and SCM CNC routers with demo and pan-India service.

Which is better for edge banding PUR or EVA glue?

PUR gives invisible joints resistant to heat and moisture, ideal for kitchens. EVA is cost effective for standard furniture. Caple supplies both PUR and EVA edge banders from Nanxing.

Does Caple supply woodworking machines to Middle East and Africa?

Yes. Caple exports to UAE, Saudi Arabia, Qatar, Oman, Kenya, Nigeria, South Africa, Bangladesh, Sri Lanka and Nepal. Contact web@caple.in for export enquiries.

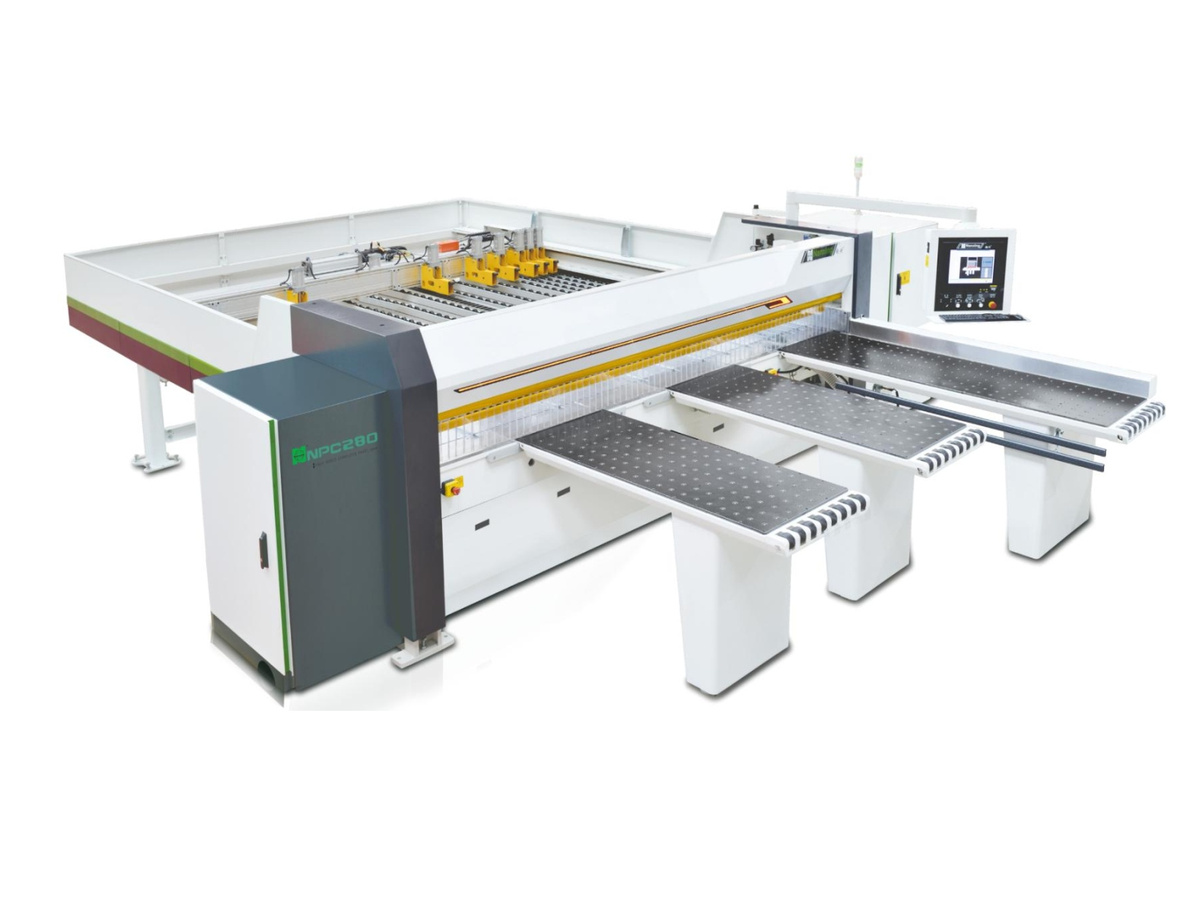

Nanxing CNC Beam Saw NPC280-18.5KW 9 Gripper | Opticut | Label Printer | Blade Set | AC | Grooving

₹2,700,000.00 ₹3,375,000.00

Warranty

12 Months

Country of origin

China

Specifications

GST Extra

18%

Available on Request

Features

• Machine frame

• Professional assembly line

• Quality control

• Steel table plate

• Air float feed table

• Side operation rod

• Pressure beam

• Hand protector

• Piano dust cover

• Side alignment

• Gripper

• Anti-dropping device

• Saw unit

• Dust collection

• Automatic lubrication system

• Machine control

• Optimizing software NXPareto

• Operation software

• Control cabinet

• Printer

• Opticut software

TECHNICAL DATA: Panel Dividing Saw NPC280

• Max. Cutting Length : 2,780mm

• Max. Cutting Thickness : 120mm

• Main Saw Motor Power : 18.5kw

• Main Saw Rotating Speed : 3,910rpm/min

• Main Saw Blade Diameter : Φ380mm (max Φ400)

• Main Saw Blade Shaft Diameter : Φ60mm

• Scoring Saw Rotating Speed : 4,300rpm/min

• Scoring Saw Blade Diameter : Φ200mm

• Scoring Saw Blade Shaft Diameter : Φ45mm

• Saw Carriage Motor Power : 2kw

• Forward Speed : 90m/min

• Backward Speed : 120m/min

• Automatic Feeding Motor : 2kw

• Max. Feeding Speed : 85m/min

• IPC : 15'' Windows 7 | USB port: 4 pcs

• Air Requirement : 0.6 MPa

• Dust Extraction : Φ150mm×3; 28m/min

• Power Supply : 415V/50HZ/3P

• Total Power : 27.7kw

• Overall Dimension : 6,400×4,995×1,830mm

• Net Weight : 4,800kg

TEST

Panel Saw

Accurate panel cutting. Fast throughput. Clean results.

QUICK SPECS

Feed Speed

18.5kw - Main Saw Rotating Speed : 3

Motor Power

27.7kw - Overall Dimension : 6

Total Power

18.5kw

Power

910

Speed

415

Power Supply

HOW IT WORKS

Load Panel

Set Fence

Rip Cut

Cross Cut

Stack Parts

KEY FEATURES

— Professional assembly line

— Quality control

— Steel table plate

— Air float feed table

— Side operation rod

— Piano dust cover

— Anti-dropping device

— Dust collection

— Automatic lubrication system

— Machine control

FEATURE	ADVANTAGE	BENEFIT TO YOU
SAFETY
Safety guards & covers	Protects operator from moving parts	You get a safer workshop environment
QUALITY
Precision-engineered components	Tight tolerances on all machined parts	You get accurate, consistent output every shift
Rigid steel frame construction	Eliminates vibration during operation	You get cleaner cuts and better surface finish
Quality control sensors	Auto-detects deviation in real time	You get fewer rejects and less rework
USER FRIENDLY
Automatic feeding system	Hands-free panel transport	You get a single operator running the full cycle
PRODUCTIVITY
High feed speed (90)	More panels processed per hour	You get higher daily output from the same shift
Reliable cycle-time consistency	Same output rate shift after shift	You get predictable delivery schedules for customers
ROI
Reduced labour dependency	One operator can run the machine alone	You save on staffing costs and wage bills
Lower material waste	Precision cuts reduce offcut losses	You save on raw material spend every month
Durable long-life components	Extended service intervals	You save on spare parts and maintenance costs
TRUST
Authorised Nanxing Distributor	Direct factory support and genuine parts	You get the real machine with full manufacturer backing
caple.in — In business since 1974	50+ years of woodworking machinery expertise	You get advice from engineers who know the trade
12-month / 2000-hour warranty	Whichever comes first — no ambiguity	You get protected investment from day one
Trained service team	Factory-trained engineers for installation and support	You get fast, knowledgeable on-site support
Pan-India support network	Service coverage across India with multiple demo centres	You get local support wherever your factory is

TECHNICAL SPECIFICATIONS
TECHNICAL DATA	Panel Dividing Saw NPC280
Max. Cutting Length	2,780mm
Max. Cutting Thickness	120mm
Main Saw Motor Power	18.5kw
Main Saw Rotating Speed	3,910rpm/min
Main Saw Blade Diameter	Φ380mm (max Φ400)
Main Saw Blade Shaft Diameter	Φ60mm
Scoring Saw Rotating Speed	4,300rpm/min
Scoring Saw Blade Diameter	Φ200mm
Scoring Saw Blade Shaft Diameter	Φ45mm
Saw Carriage Motor Power	2kw
Forward Speed	90m/min
Backward Speed	120m/min
Automatic Feeding Motor	2kw
Max. Feeding Speed	85m/min
IPC	15'' Windows 7 \| USB port: 4 pcs
Air Requirement	0.6 MPa
Dust Extraction	Φ150mm×3; 28m/min
Power Supply	415V/50HZ/3P
Total Power	27.7kw

FREQUENTLY ASKED QUESTIONS

What panel sizes can this saw cut?

The machine handles standard sheet sizes up to the dimensions listed in the Quick Specs above.

Can I make both rip cuts and cross cuts?

Yes, the machine supports both rip and cross-cut operations. Some models also include a scoring blade for chip-free cuts.

What blade size does this machine use?

Refer to the Technical Specifications table above for the blade diameter specification.

Is a single operator sufficient to run this machine?

Yes, with proper setup the machine can be operated by one person. Material handling aids (roller tables) are recommended for large panels.

What is the cut depth capacity?

See the Technical Specifications section above for the maximum depth of cut.

Where can I find the full manual and spare parts list for the NPC280?

Full documentation for the NPC280 is available through caple.in. Contact our team or book a demo to receive the technical manual and parts catalogue.

What air pressure/CFM does the NPC280-18 require?

The NPC280-18 requires an air supply at 7 bar with approximately 6.5 CFM continuous consumption. Ensure your compressor and drier can deliver this reliably.

What is the total power consumption of the NPC280-18?

The NPC280-18 draws approximately 37 HP (27.7 kW) total power. Use a 63-amp 3-phase 415V supply with separate earthing and a 50 KVA stabiliser for safe operation.

What dust extraction capacity is needed for the NPC280-18?

The Nanxing CNC Beam Saw NPC280-18.5KW 9 Gripper needs approximately 3,151 CFM (5,350 CMH) dust extraction through Ø150mm × 3. Because beam saws generate high fine-dust load, we recommend a Reverse Pulse Jet dust collector — specifically the Dust Collector AXC Reverse Pulse Jet 7.5HP — 6,500 CMH. RPJ design auto-cleans filter cartridges preventing clog and maintaining airflow.

What is the weight of the NPC280-18?

The NPC280-18 weighs 4,800kg. Ensure floor load capacity and proper foundation before installation.

What is under the customer’s scope?

Travel, food and stay for service engineers; material handling and lifting equipment; power tools and consumables for machine foundation; operator safety equipment; basic electrical connections up to the machine; general tool kit and measuring instruments — are all under the customer’s scope.
