Dust Extractors - Stand Alone

• Technical Specification:

• Suction Port Size : Dia 125 OD x 3 No

• Motor : 5 HP/2P

• Dust Collector Capacity : 4500-5000

• Required Capacit At 30 m/s : 3975 CMH

• Fan Model Dust Colletor : AXC-HMS-22.5-ARR ''A '' AXC-PDC-5 HP- DS

• MPN : AXC-PDC-5 HP- DS

• No.of Top Bag : 14 high efficiency Polyester Needle felt Non-woven anti- static Filter bags with Teflon coating inside.

• No.of Bottom Bags : 2 collection bag to collect .35 m3

• DOL starter

• PDC Suction adaptor & Machine adaptor.

• Total assembly mounted on a rigid movable trolley with wheels having jack.

• GI fabricated and powder coated Aerodynamic ducts for better suction efficiency. PVC Flexible Hose and Clamps.

• Φ250 x 1000Long.

• Φ11” clamps= 2 nos.

• Technical Specification:

• Suction Port Size : Dia 150 x 1 No Dia 125 x 2No Dia 75 (Cleaning Port) = 1 No

• Motor : 10 HP/2P

• Dust Collector Capacity : 7000-8000

• Required Capacit At 30 m/s : 5060 CMH

• Fan Model Dust Colletor : AXC-HMS-26-ARR ''A '' AXC-PDC-10 HP- DS

• MPN : AXC-PDC-10 HP- DS

• No.of Top Bag : 14 high efficiency Polyester Needle felt Non-woven anti- static Filter bags with Teflon coating inside.

• No.of Bottom Bags : 2 collection bag to collect .35 m3

• DOL starter.

• PDC Suction adaptor & Machine adaptor.

• 1Set Total assembly mounted on a rigid movable trolley with wheels having jack.

• 1Set PVC FLEXIBLE HOSE AND CLAMPS.

• Technical Specification:

• Suction Port Size : Dia 200 x 2 No Dia 125 x 1No

• Motor : 10 HP/2P

• Dust Collector Capacity : 7000-8000

• Required Capacit At 30 m/s : 8125 CMH

• Fan Model Dust Colletor : AXC-HMS-26-ARR ''A '' AXC-PDC-10 HP- DS

• MPN : AXC-PDC-10 HP- DS

• No.of Top Bag : 14 high efficiency Polyester Needle felt Non-woven anti- static Filter bags with Teflon coating inside.

• No.of Bottom Bags : 2 collection bag to collect .35 m3

• DOL starter.

• PDC Suction adaptor & Machine adaptor.

• 1Set Total assembly mounted on a rigid movable trolley with wheels having jack.

• 1Set GI fabricated and powder coated special Aerodynamic ducts on top of machine with duct supports, wire rope support for hanging ducts from roof with Clamps, Turn buckle for tensioning.

• 1Set PVC Flexible Hose and Clamps.

• 1Set PU Flexible Hose & Clamps. Φ200

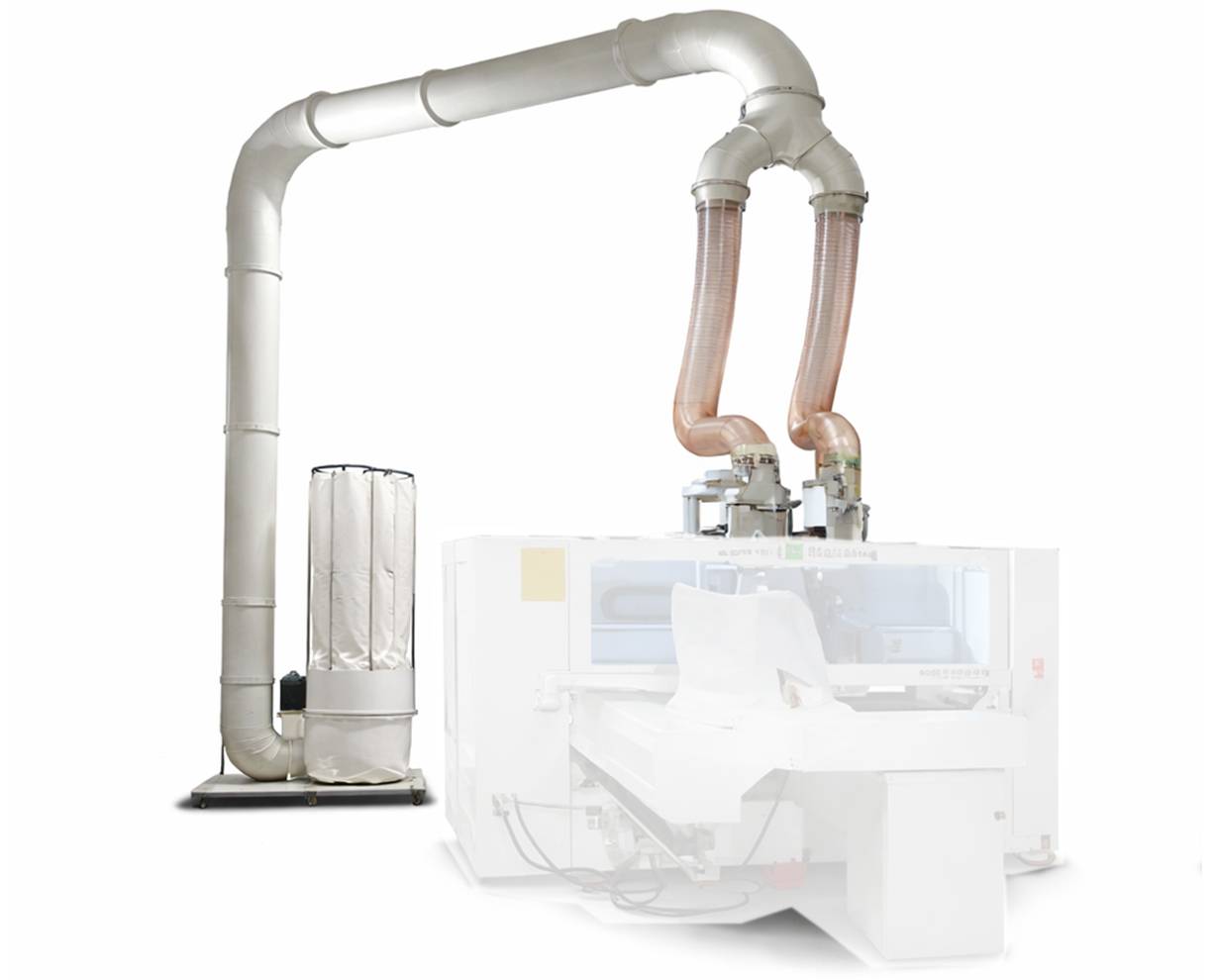

• Portable Dust Extraction with High Suction Efficiency for NB612FT2 Technical Specification:

• Suction Port Size : Dia 200 x 1 No Dia 125 x 1No

• Motor : 7.5 HP/2P

• Dust Collector Capacity : 6000-6500

• Required Capacit At 30 m/s : 4725 CMH

• Fan Model Dust Colletor : AXC-HMS-26-ARR ''A '' AXC-PDC-7.5 HP- DS

• MPN : AXC-PDC-7.5 HP- DS

• No.of Top Bag : 14 high efficiency Polyester Needle felt Non-woven anti- static Filter bags with Teflon coating inside.

• No.of Bottom Bags : 2 collection bag to collect .35 m3

• DOL starter.

• PDC Suction adaptor & Machine adaptor.

• 1Set Total assembly mounted on a rigid movable trolley with wheels having jack.

• 1Set GI fabricated and powder coated special Aerodynamic ducts on top of machine with duct supports, wire rope support for hanging ducts from roof with Clamps, Turn buckle for tensioning.

• 1Set PVC Flexible Hose and Clamps.

• 1Set PU Flexible Hose & Clamps. Φ200

• Technical Specification:

• Suction Port Size : Dia 125 OD x 5 No

• Motor : 10 HP/2P

• Dust Collector Capacity : 7000-8000

• Required Capacit At 30 m/s : 6625 CMH

• Fan Model Dust Colletor : AXC-HMS-26-ARR ''A '' AXC-PDC-10 HP- DS

• MPN : AXC-PDC-10 HP- DS

• No.of Top Bag : 14 high efficiency Polyester Needle felt Non-woven anti-static Filter bags with Teflon coating inside-12M2

• No.of Bottom Bags : 2 collection bag to collect .35 m3

• L&T make DOL starter

• Suction adaptor.

• Total assembly mounted on a rigid movable trolley with wheels having jack.

• GI fabricated and powder coated special Aerodynamic ducts on top of machine with duct supports, wire rope support for hanging ducts from roof with Clamps, Turn buckle for tensioning. PU & PVC Flexible Hose and Clamps.

• PU-Φ350 x 1000Long.

• PVC-Φ125 x 2500 Long,

• Φ15” clamps= 2 nos.Φ6” clamps= 8 nos.

• Technical Specification:

• Suction Port Size : Dia 125 OD x 5 No

• Motor : 10 HP/2P

• Dust Collector Capacity : 7000-8000

• Required Capacit At 30 m/s : 6625 CMH

• Fan Model Dust Colletor : AXC-HMS-26-ARR ''A '' AXC-PDC-10 HP- DS

• MPN : AXC-PDC-10 HP- DS

• No.of Top Bag : 14 high efficiency Polyester Needle felt Non-woven anti-static Filter bags with Teflon coating inside-12M2

• No.of Bottom Bags : 2 collection bag to collect .35 m3

• L&T make DOL starter

• Suction adaptor.

• Total assembly mounted on a rigid movable trolley with wheels having jack. "- 1Set GI fabricated and powder coated special Aerodynamic ducts on top of machine with duct supports, wire rope support for hanging ducts from roof with Clamps, Turn buckle for tensioning." PU & PVC Flexible Hose and Clamps.

• PU-Φ350 x 1000Long.

• PVC-Φ125 x 2500 Long,

• Φ15” clamps= 2 nos.Φ6” clamps= 8 nos.

• Technical Specification:

• Suction Port Size : Dia 125 OD x 7 No

• Motor : 10 HP/2P

• Dust Collector Capacity : 7000-8000

• Required Capacit At 30 m/s : 9275 CMH

• Fan Model Dust Colletor : AXC-HMS-26-ARR ''A '' AXC-PDC-10 HP- DS

• MPN : AXC-PDC-10 HP- DS

• No.of Top Bag : 14 high efficiency Polyester Needle felt Non-woven anti-static Filter bags with Teflon coating inside-12M2

• No.of Bottom Bags : 2 collection bag to collect .35 m3

• L&T make DOL starter

• Suction adaptor.

• Total assembly mounted on a rigid movable trolley with wheels having jack.

• 1Set GI fabricated and powder coated special Aerodynamic ducts on top of machine with duct supports, wire rope support for hanging ducts from roof with Clamps, Turn buckle for tensioning." PU & PVC Flexible Hose and Clamps.

• PU-Φ350 x 1000Long.

• PVC-Φ125 x 2500 Long,

• Φ15” clamps= 2 nos.Φ6” clamps= 8 nos.

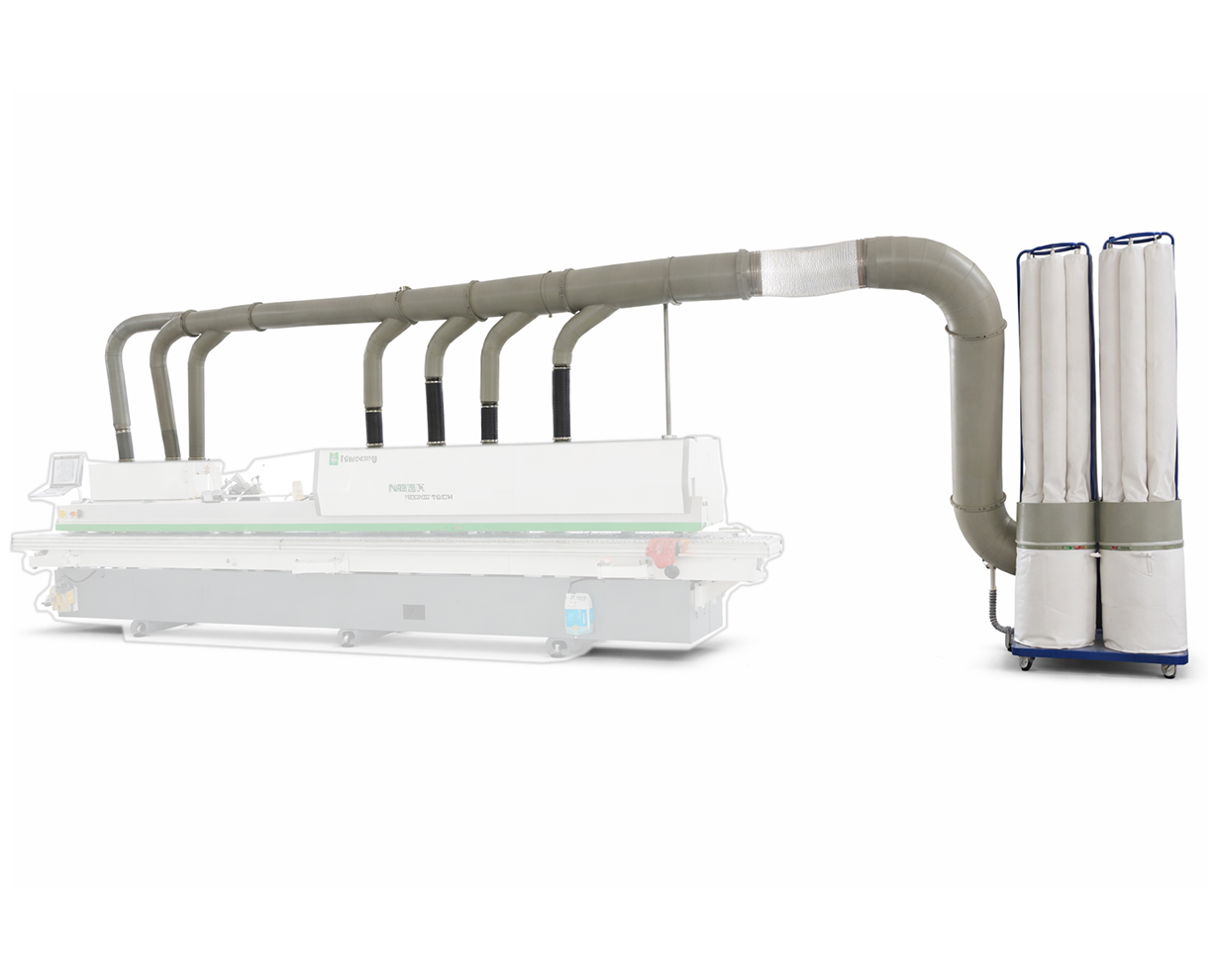

• Technical Specification:

• Suction Port Size : Dia 125 OD x 8 No

• Motor : 10 HP/2P

• Dust Collector Capacity : 7000-8000

• Required Capacity At 30 m/s : 10600 CMH

• Fan Model Dust Collator : AXC-HMS-26-ARR ''A '' AXC-PDC-10 HP- DS

• MPN : AXC-PDC-10 HP- DS

• No.of Top Bag : 14 high efficiency Polyester Needle felt Non-woven anti-static Filter bags with Teflon coating inside-12M2

• No.of Bottom Bags : 2 collection bag to collect .35 m3

• L&T make DOL starter

• Suction adaptor.

• Total assembly mounted on a rigid movable trolley with wheels having jack. "- 1Set GI fabricated and powder coated special Aerodynamic ducts on top of machine with duct supports, wire rope support for hanging ducts from roof with Clamps, Turn buckle for tensioning." PU & PVC Flexible Hose and Clamps.

• PU-Φ350 x 1000Long.

• PVC-Φ125 x 2500 Long,

• Φ15" clamps= 2 nos.Φ6" clamps= 8 nos.

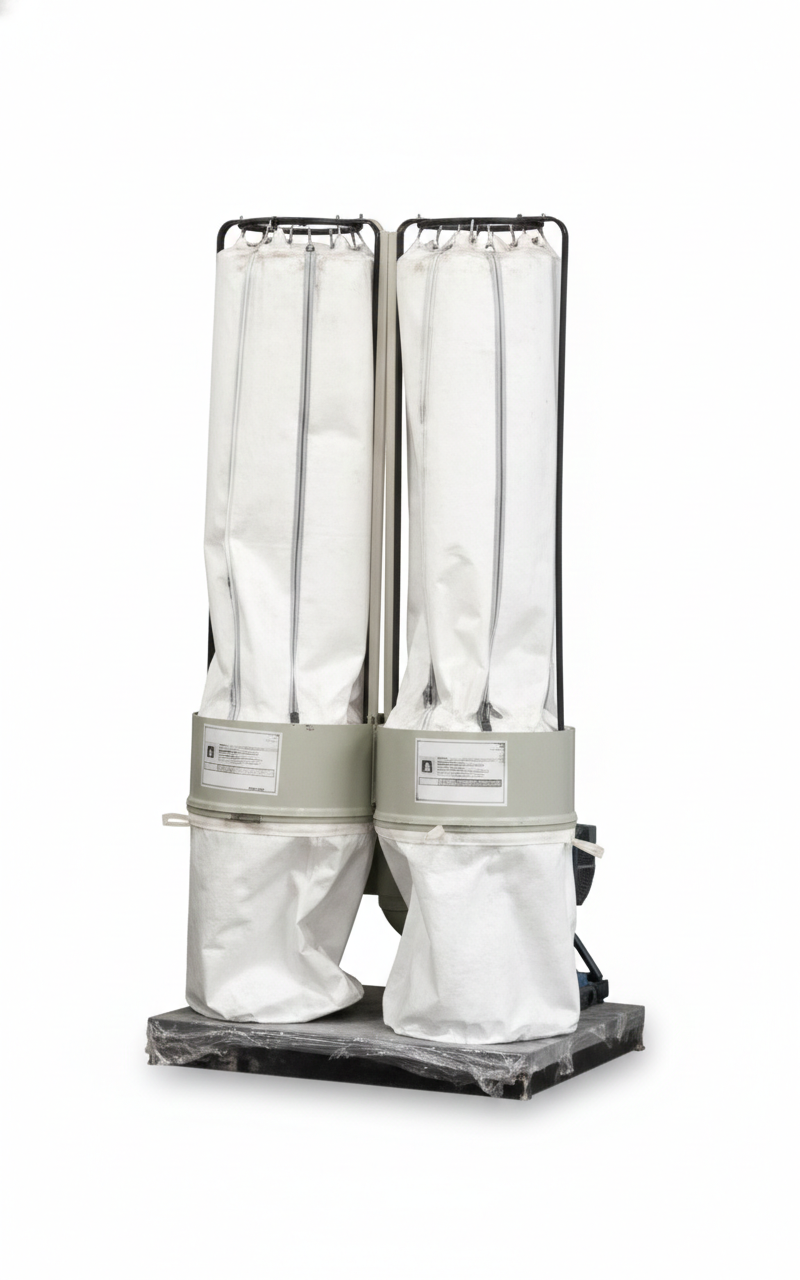

• minimum capacity of 4500-5000 CMH comprises of directly driven Centrifugal Fan type AXC-HMS-22.5-Arr”A” driven by 5hp/2p motor, Technical Specification

• Top 14no high efficiency Polyester Needle felt Non-woven anti-static Filter bags with Teflon coating inside.

• Bottom2 no collection bag to collect .35 m3.

• DOL starter.

• PDC Suction adaptor & Machine adaptor.

• Total assembly mounted on a rigid movable trolley with wheels having jack

• GI fabricated and powder coated Aerodynamic ducts for better suction efficiency.

• PVC Flexible Hose and Clamps.

• Dia. 250 x 1000Long.

• Dia.11” clamps= 2 nos.

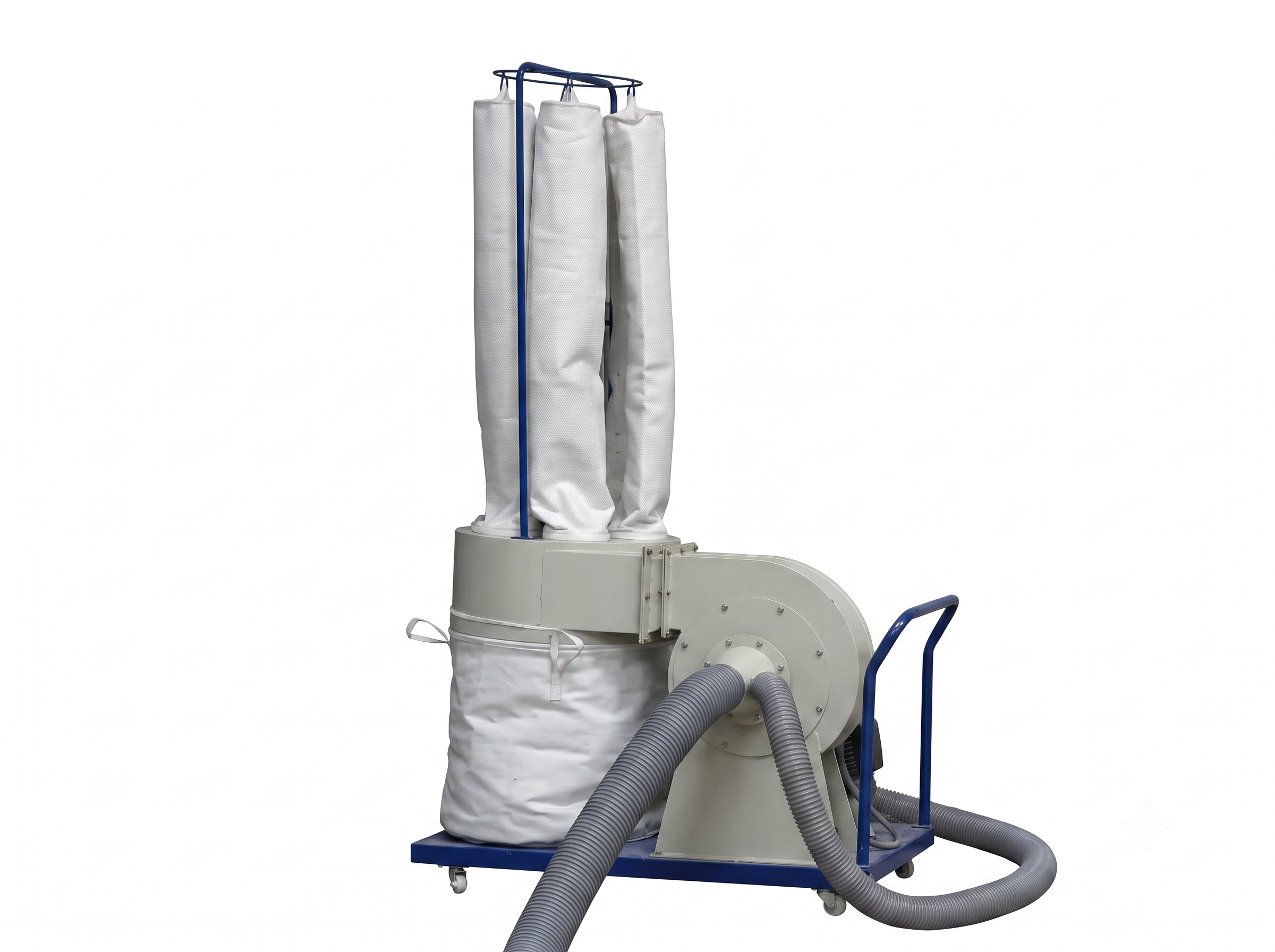

• for capacity of 3000-3500 CMH comprises of directly driven Centrifugal Fan typeAXC-HMS-21.5-Arr”A” driven by 3hp/2p ABB motor, Technical Specification

• Top7no high efficiency Polyester Needle felt Non-woven anti-static Filter bags with Teflon coating inside.

• Bottom1no collection bag to collect .175 m3.

• DOL starter and

• Suction adaptor.

• Total assembly mounted on a rigid movable trolley with wheels having jack PVC/PU Flexible Hose and Clamps.

• Dia. 125 x 4000 Long.PVC Hose

• Dia. 100 x 4000 Long.PVC Hose OR

• Dia.100 x 3000 Long.PVC Hose Φ80 x 2000 Long PU HOSE.

• Dia. 6” clamps= 2 nos.

• Dia. 4” clamps= 2 nos.

• Dia.5” clamps= 2 nos.

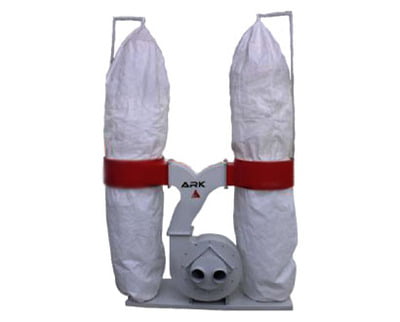

• Air flow-2900 CMH, 3 HP Double Bag With Navbharat Make Motor, Stater, 120mm Dia Hose X 3 Mtr Length (Connection Dia 120mm X 1 No. & 100mm X 1 No.)

• Air flow : 3750 cmh

• Suction Pressure : 250 mm wgp

• Suction Dia x no. of Connection : 120mm x 1 no and 100mm x 01 no

• Bag type : Antistatic 5 micron

• No. of Bag : 02 Top & 02 Bottom

• Motor HP x RPM : 5 hp x 2880

• Power Supply : 415 V, three phase,50 hz, Accessories-Collection Bag, bag clamp, trolley with movable wheel, DOL starter, 3mtrs dust hose.

• 3 Hp Motor - 3 Phase: 415 V

• Air Flow : 2500 Cmh

• Dia 160Mm x 1 Ports

• Dust Collection Bag

• Bag Clamp

• Chasis With Wheels

• Siemens Dol Starter

• Duct Hose 3Mtr and Jubilee clips.
