Nanxing Edge Banding Machine NB671DNC with Auto conveyor systems

₹8,650,000.00 ₹10,812,500.00
Warranty
12 Months
GST Extra
18%
Available on Request

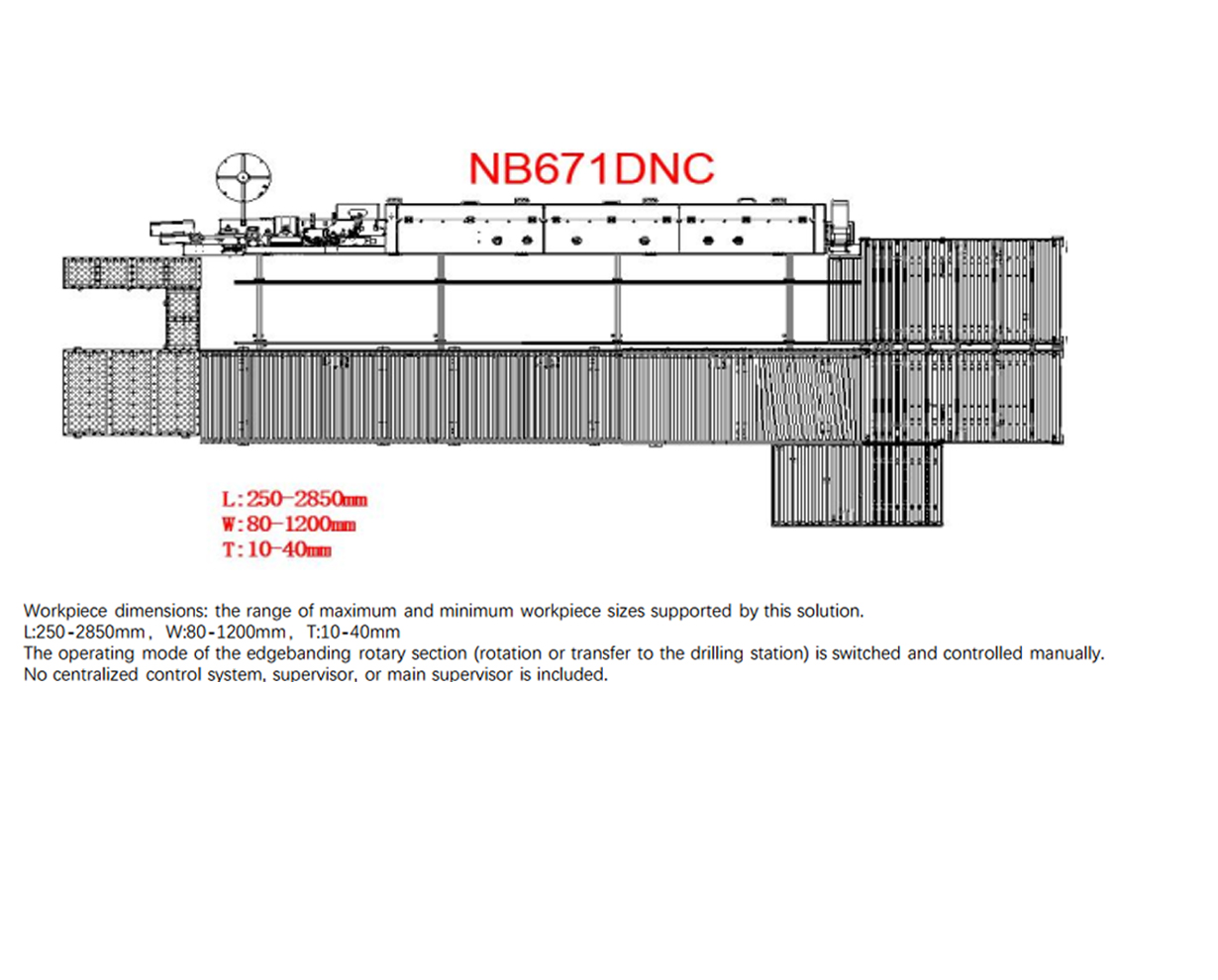

• Workpiece dimensions: the range of maximum and minimum workpiece sizes supported by this solution. L:250-2850mm, W:80-1200mm, T:10-40mm The operating mode of the edge banding rotary section (rotation or transfer to the drilling station) is switched and controlled manually. No centralized control system, supervisor, or main supervisor is included. INCLUDES: A-01- Edge Banding Machine NB671DNC 1No. A-02

• Conveyor BCC3517 1No. A-03

• Conveyor BCC3015 1No. A-04

• Conveyor BNC2513 1No. A-05

• Conveyor BC3515 1No. A-06

• Conveyor BC3015 1No. A-07

• Conveyor BC3015 1No. A-08

• Air Floating Table AF2012 1No. A-09

• Air Floating Table AF1306 1No. A-10

• Air Floating Table AF2006 1No. A-11

• Controlling System 1No.

TEST

Edge Bander

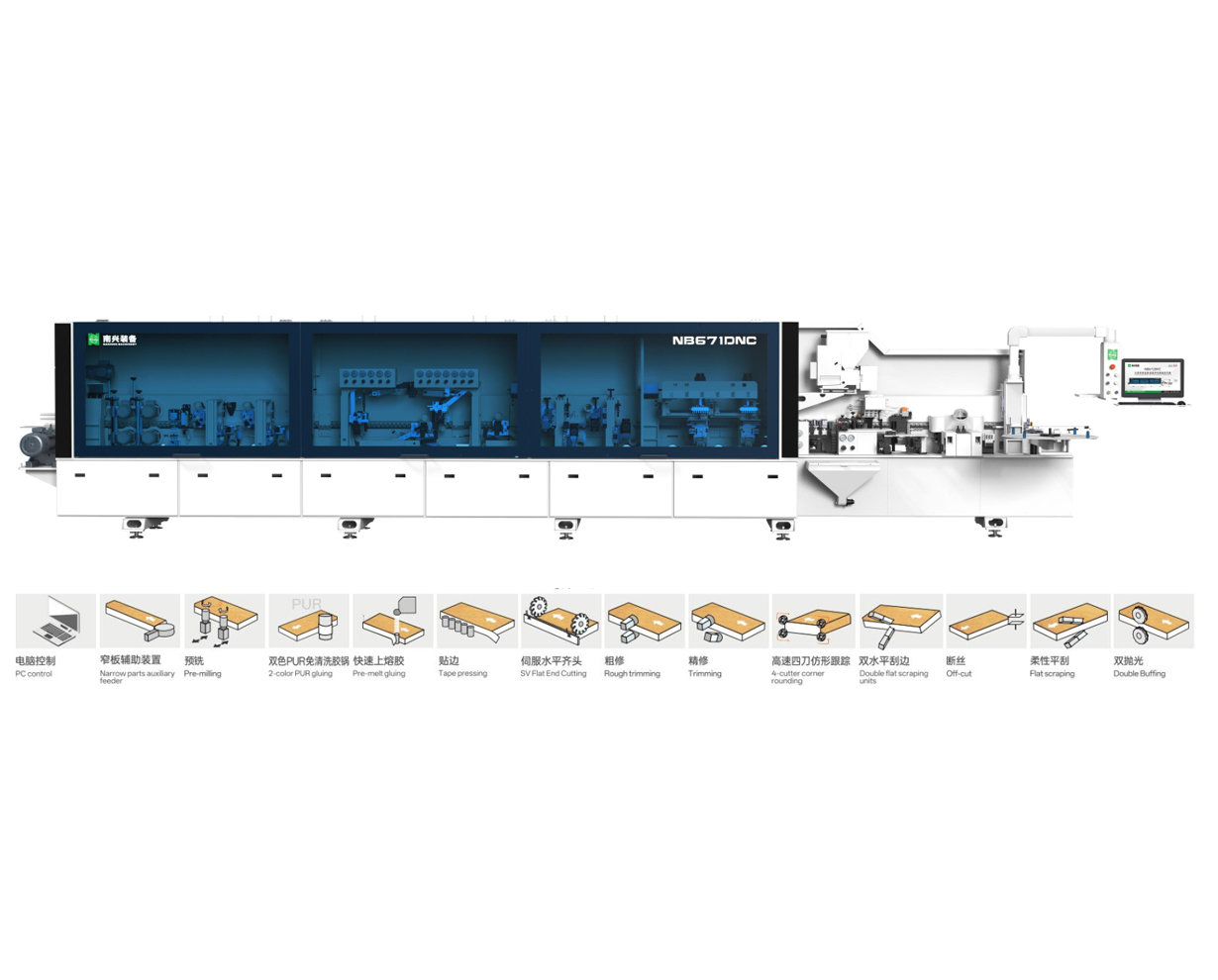

Nanxing Edge Banding Machine NB671DNC with Auto conveyor systems

Professional edge banding. Precise bonds. Zero compromise.

QUICK SPECS

0.4–3 mm

Edge Thick

EVA / PUR

Glue

12 mo / 2000 hr

Warranty

HOW IT WORKS

01

Feed Panel

02

Apply Glue

03

Bond Edge

04

Trim Ends

05

Buff Finish

KEY FEATURES
— Workpiece dimensions: the range of maximum and minimum workpiece sizes supported by this solution
— The operating mode of the edge banding rotary section (rotation or transfer to the drilling station) is switched and controlled manually
— No centralized control system, supervisor, or main supervisor is included
— A-01- Edge Banding Machine NB671DNC 1No
— A-02 - Conveyor BCC3517 1No
— A-03 - Conveyor BCC3015 1No
— A-04 - Conveyor BNC2513 1No
— A-05 - Conveyor BC3515 1No
— A-06 - Conveyor BC3015 1No
— A-07 - Conveyor BC3015 1No
FEATUREADVANTAGEBENEFIT TO YOU
SAFETY
CE-certified safety designMeets international safety standardsYou get a machine built for operator safety
Emergency stop circuitInstant power cut-off on activationYou get immediate halt in emergencies
Enclosed moving partsReduces contact with rotating componentsYou get a safer working environment
QUALITY
Precision-engineered componentsTight tolerances on all machined partsYou get accurate, consistent output every shift
Rigid steel frame constructionEliminates vibration during operationYou get cleaner cuts and better surface finish
Quality control sensorsAuto-detects deviation in real timeYou get fewer rejects and less rework
USER FRIENDLY
Simple control interfaceEasy-to-read display and controlsYou get quick operator training and confident use
Centralized lubrication pointsAll grease points in one locationYou get faster, easier routine maintenance
Clear diagnostic displaysOn-screen error codes and guidanceYou get quick fault identification and resolution
PRODUCTIVITY
High-speed processing capabilityMore parts per shift than manual methodsYou get significantly higher daily output
Fast changeover designQuick size and program changesYou get more productive hours per working day
Reliable cycle-time consistencySame output rate shift after shiftYou get predictable delivery schedules for customers
ROI
Reduced labour dependencyOne operator can run the machine aloneYou save on staffing costs and wage bills
Lower material wastePrecision cuts reduce offcut lossesYou save on raw material spend every month
Durable long-life componentsExtended service intervalsYou save on spare parts and maintenance costs
TRUST
Authorised Nanxing DistributorDirect factory support and genuine partsYou get the real machine with full manufacturer backing
caple.in — In business since 197450+ years of woodworking machinery expertiseYou get advice from engineers who know the trade
12-month / 2000-hour warrantyWhichever comes first — no ambiguityYou get protected investment from day one
Trained service teamFactory-trained engineers for installation and supportYou get fast, knowledgeable on-site support
Pan-India support networkService coverage across India with multiple demo centresYou get local support wherever your factory is
TECHNICAL SPECIFICATIONS
Workpiece dimensionsthe range of maximum and minimum workpiece sizes supported by this solution.
FREQUENTLY ASKED QUESTIONS
What edge tape materials can this machine process?
The machine is compatible with PVC, ABS, melamine, veneer, and acrylic edge tapes in varying thicknesses. Refer to the technical specification sheet for the exact thickness range.
What board thickness range does this edge bander support?
The machine handles standard panel thicknesses used in furniture production. Check the spec table above for the exact min/max board thickness.
Do I need a skilled operator to run this machine?
No. The intuitive controls allow a trained semi-skilled operator to run production after a short commissioning session from our team.
What type of glue does the machine use?
The machine uses EVA hotmelt glue (standard). Some models also support PUR glue systems for demanding applications.
How long does installation and training take?
Installation, commissioning and operator training take approximately 1–3 days for standard machines and 3–5 days for large CNC or multi-axis machines, depending on site readiness and operator availability.
Where can I find the full manual and spare parts list for the NB671DNC?
Full documentation for the NB671DNC is available through caple.in. Contact our team or book a demo to receive the technical manual and parts catalogue.

What air pressure/CFM does the NB671DNC require?

The NB671DNC requires an air supply at 6 bar with approximately 15 CFM continuous consumption. Ensure your compressor and drier can deliver this reliably.

What is the total power consumption of the NB671DNC?

The NB671DNC has a total power consumption of Not specified — contact sales. Ensure adequate electrical supply for the machine.

What dust extraction capacity is needed for the NB671DNC?

The NB671DNC needs approximately 2,649 CFM (4,500 CMH) dust extraction through standard dust ports. We recommend the Dust Collector AXC 5HP | 4500-5000 CMH.

What are the overall dimensions of the NB671DNC?

The NB671DNC measures Not specified — contact sales (L x W x H). Plan adequate floor space including operator access zones.

What is the weight of the NB671DNC?

The NB671DNC weighs Not specified — contact sales. Ensure floor load capacity and proper foundation before installation.

What is under the customer’s scope?

Travel, food and stay for service engineers; material handling and lifting equipment; power tools and consumables for machine foundation; operator safety equipment; basic electrical connections up to the machine; general tool kit and measuring instruments — are all under the customer’s scope.
