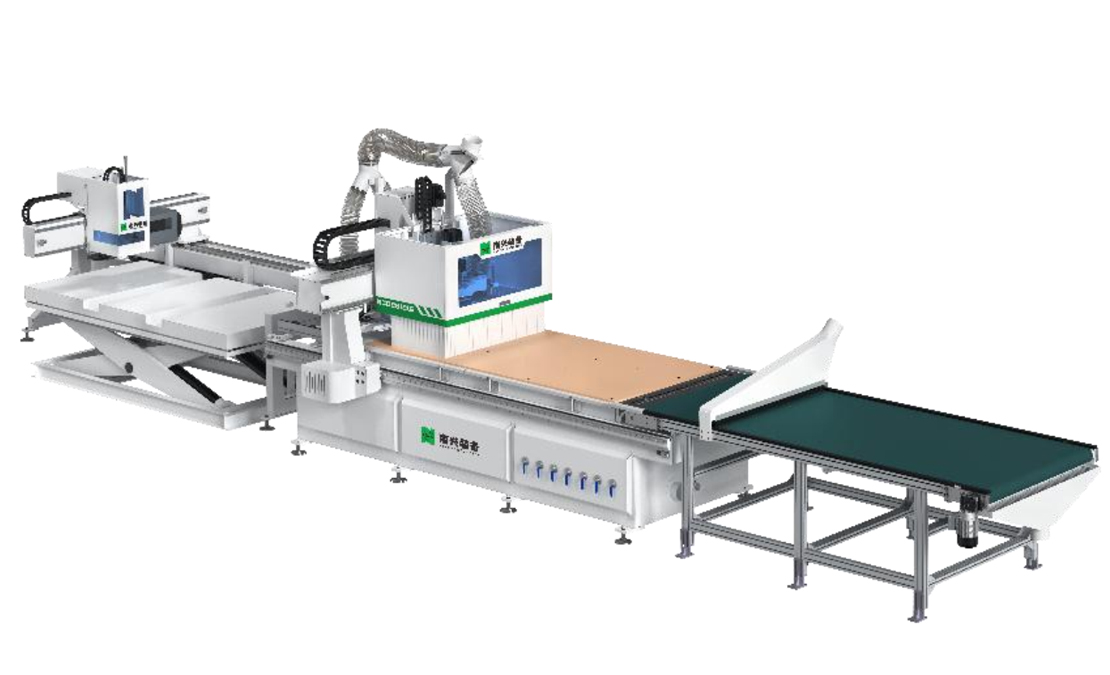

CNC Nesting Machine with AL&UL NCG2812LE(AC) with 12kw Spindle with Drill Head

₹2,800,000.00 ₹3,500,000.00
Warranty
12 Months
Country of origin
China
GST Extra
18%
Available on Request

FEATURES:

  • 1pc Vacuum Pump
  • Automatic Loading
  • Pre-Positioning Vacuum Cup
  • Vacuum cup and roller bracket
  • Rotatable Labelling
  • Movement of each axis Servo motore
  • Automatic Greasing
  • Side Positioning Cylinders & Positioning Cups
  • 12 kw main Spindle + V10 Drilling block
  • Automatic Line Tool Changer 12 Slots
  • Unloading Pusher
  • Rear Positioning Cylinders and Dust Collector
  • Auto Unloading
  • Start/Stop Button on gantry
  • Tank Cable Chain
  • Tool Setting gauge and locker
  • Hand Wheel and Foot Switch
  • Computer with Windows Dell Display USB Port & easy for remote assistance
  • Control System
  • Optimizing Software
  • Workpiece Editor Software
  • Online Optimization Software (One Year free of charge)
  • Pressure Roller
  • 2no. Standard Tool Holder
  • FCC
  • Air Conditioner  for Control Cabin

 TECHNICAL SPECIFICATIONS:

  • Control system : SYNTEC
  • Working range X : X-axis: 2,800 mm
  • Working range Y : Y-axis: 1,220 mm
  • Working range Z : Z-axis: 50 mm
  • Working table : Size: 2,800×1,220 mm Height: 950mm
  • Max. traveling speed X : X-axis: 100 m/min
  • Max. traveling speed Y : Y-axis: 100 m/min
  • Max. traveling speed Z : Z-axis: 200 m/min
  • Main spindle Quantity : 1
  • Main spindle Power : 12 kW
  • Main spindle Tool Holder : ISO30
  • Main spindle Tool Speed : 24000 rpm
  • ATC : Servo control Line tool changer with 12 slots
  • Vacuum pump Quantity : 1
  • Vacuum pump Power : 7.5 kW
  • Vacuum pump Suction flow rate : 250 m3/h
  • Dust extraction Diameter : 150 mm*1x125mm*3 Speed required: 28 m/s
  • Air supply : 6-7 kg/cm2
  • Power supply : 415V, 3-phase, 50 Hz
  • Total power : 27.31 kW
  • Floor space : L×W×H: 11000×2460×2500 mm
  • Net weight : 4,600 kg

TEST

CNC Router

CNC Nesting Machine with AL&UL NCG2812LE(AC) with 12kw Spindle with Drill Head

Precision routing and nesting. Built for serious production.

QUICK SPECS

1000 x 2460 mm

Work Area

100

Feed Speed

27.31 kW - Floor space : L×W×H: 11000×2460×2500 mm - Net weight : 4

Total Power

12 kW

Power

24000

Speed

12 mo / 2000 hr

Warranty

HOW IT WORKS

01

Load Panel

02

Set Zero

03

CNC Route

04

Drill Holes

05

Unload Part

KEY FEATURES
— 1pc Vacuum Pump
— Automatic Loading
— Pre-Positioning Vacuum Cup
— Vacuum cup and roller bracket
— Rotatable Labelling
— Movement of each axis - Servo motore
— Automatic Greasing
— Side Positioning Cylinders & Positioning Cups
— 12 kw main Spindle + V10 Drilling block
— Automatic Line Tool Changer 12 Slots
FEATUREADVANTAGEBENEFIT TO YOU
SAFETY
CE-certified safety designMeets international safety standardsYou get a machine built for operator safety
Emergency stop circuitInstant power cut-off on activationYou get immediate halt in emergencies
Enclosed moving partsReduces contact with rotating componentsYou get a safer working environment
QUALITY
Servo motor drive systemPrecise, repeatable positioningYou get consistent quality across every board
USER FRIENDLY
Automatic feeding systemHands-free panel transportYou get a single operator running the full cycle
Tool-free adjustmentNo spanners needed for size changesYou get faster changeovers and less idle time
PRODUCTIVITY
High feed speed (100)More panels processed per hourYou get higher daily output from the same shift
Reliable cycle-time consistencySame output rate shift after shiftYou get predictable delivery schedules for customers
ROI
Reduced labour dependencyOne operator can run the machine aloneYou save on staffing costs and wage bills
Lower material wastePrecision cuts reduce offcut lossesYou save on raw material spend every month
Durable long-life componentsExtended service intervalsYou save on spare parts and maintenance costs
TRUST
Authorised Nanxing DistributorDirect factory support and genuine partsYou get the real machine with full manufacturer backing
caple.in — In business since 197450+ years of woodworking machinery expertiseYou get advice from engineers who know the trade
12-month / 2000-hour warrantyWhichever comes first — no ambiguityYou get protected investment from day one
Trained service teamFactory-trained engineers for installation and supportYou get fast, knowledgeable on-site support
Pan-India support networkService coverage across India with multiple demo centresYou get local support wherever your factory is
TECHNICAL SPECIFICATIONS
Control systemSYNTEC
Working range XX-axis: 2,800 mm
Working range YY-axis: 1,220 mm
Working range ZZ-axis: 50 mm
Working tableSize: 2,800×1,220 mm Height: 950mm
Max. traveling speed XX-axis: 100 m/min
Max. traveling speed YY-axis: 100 m/min
Max. traveling speed ZZ-axis: 200 m/min
Main spindle Quantity1
Main spindle Power12 kW
Main spindle Tool HolderISO30
Main spindle Tool Speed24000 rpm
ATCServo control Line tool changer with 12 slots
Vacuum pump Quantity1
Vacuum pump Power7.5 kW
Vacuum pump Suction flow rate250 m3/h
Dust extraction Diameter150 mm*1x125mm*3 Speed required: 28 m/s
Air supply6-7 kg/cm2
Power supply415V, 3-phase, 50 Hz
Total power27.31 kW
FREQUENTLY ASKED QUESTIONS
What file formats does the CNC accept?
The machine typically accepts standard G-code and industry formats compatible with popular CAD/CAM software. Confirm compatibility during the demo.
Can this machine handle nested-based production?
Yes, CNC routers from Nanxing are designed for full nesting workflow — cutting, routing, and drilling in a single program cycle.
What spindle speed range does this machine support?
Spindle speed varies by model. Refer to the technical specification section above for the rated RPM.
How many operators are needed to run the machine?
Typically 1 operator for loading and unloading; the machine cycles automatically from there.
What is the machine's warranty?
12 months or 2000 operating hours, whichever is earlier.
Where can I find the full manual and spare parts list for the NCG2812LE?
Full documentation for the NCG2812LE is available through caple.in. Contact our team or book a demo to receive the technical manual and parts catalogue.

What air pressure/CFM does the NCG2812LE require?

The NCG2812LE requires an air supply at 6 bar with approximately 15 CFM continuous consumption. Ensure your compressor and drier can deliver this reliably.

What is the total power consumption of the NCG2812LE?

The NCG2812LE draws approximately 37 HP (27.31 kW) total power. Use a 50-amp 3-phase 415V supply with separate earthing and a 40 KVA stabiliser for safe operation.

What dust extraction capacity is needed for the NCG2812LE?

The CNC Nesting Machine with AL&UL NCG2812LE(AC) with 12kw Spindle with Drill Head needs approximately 1,060 CFM (1,800 CMH) dust extraction through Ø150mm × 1. Because nestings generate high fine-dust load, we recommend a Reverse Pulse Jet dust collector — specifically the Dust Collector AXC Reverse Pulse Jet 5HP — 5,000 CMH. RPJ design auto-cleans filter cartridges preventing clog and maintaining airflow.

What are the overall dimensions of the NCG2812LE?

The CNC Nesting Machine with AL&UL NCG2812LE(AC) with 12kw Spindle with Drill Head measures 11,000 × 2,460 × 2,500 mm (L × W × H) — equivalent to 36'1" × 8'1" × 8'2". Machine footprint is 27.1 m² (291 sq ft). Plan at least 823 sq ft including 1.5 m operator access zones on all sides.

What is the weight of the NCG2812LE?

The NCG2812LE weighs 4,600 kg. Ensure floor load capacity and proper foundation before installation.

What is under the customer’s scope?

Travel, food and stay for service engineers; material handling and lifting equipment; power tools and consumables for machine foundation; operator safety equipment; basic electrical connections up to the machine; general tool kit and measuring instruments — are all under the customer’s scope.
