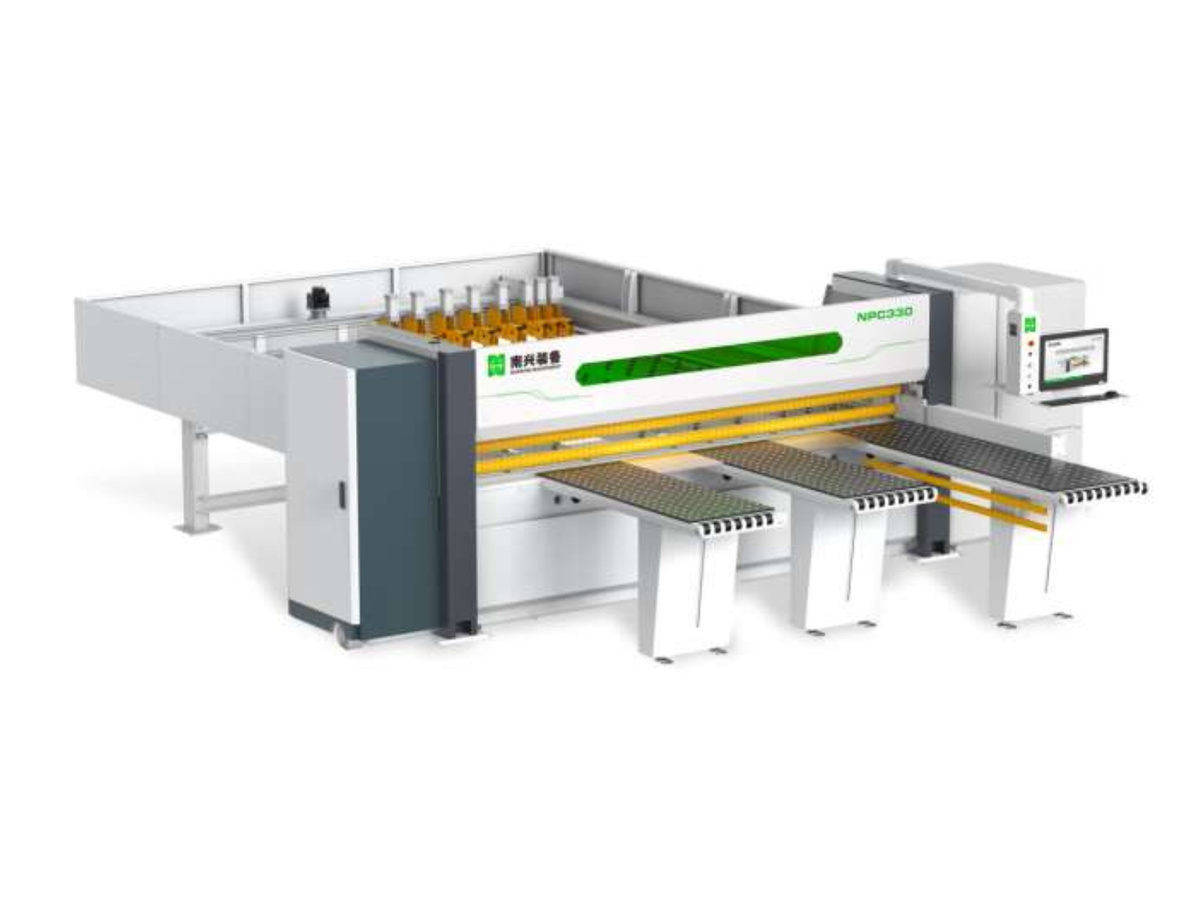

Nanxing CNC Beam Saw NPC330-18.5KW | 3 Longer Air Table | Opticut | Label Printer | Blade Set | AC | Grooving

• Features

• Machine body

• Professional assembly line

• Quality control

• Steel table plate

• Air float feed table

• Side operation rod

• Pressure beam

• Hand protector

• Piano dust cover

• Servo side alignment

• Gripper

• Anti-dropping device

• Integrated saw carriage

• Full covered fence

• Dust collection

• Automatic lubrication system

• Machine control

• Operation software

• Control cabinet

• Optimizing software Auto CUT

• Long air floating tables

• Label Printer

• Servo grooving function

• Air conditioner on control cabinet

TECHNICAL DATA

• Max. Cutting Length : 3,270mm

• Max. Cutting Thickness : 120mm

• Main Saw Motor Power : 18.5kw

• Main Saw Rotating Speed : 3,910rpm/min

• Main Saw Blade Diameter : Φ450mm

• Main Saw Blade Shaft Diameter : Φ60mm

• Scoring Saw Rotating Speed : 4,300rpm/min

• Scoring Saw Blade Diameter : Φ200mm

• Scoring Saw Blade Shaft Diameter : Φ45mm

• Saw Carriage Motor Power : 2.2kw

• Forward Speed : 90m/min

• Backward Speed : 120m/min

• Automatic Feeding Motor : 2kw

• Max. Feeding Speed : 85m/min

• IPC : 21.5'' Windows 7

• Air Requirement : 0.6 MPa

• Dust Extraction : Φ150mm×3; 28m/min

• Power Supply : 415V/50Hz/3P

• Total Power : 27.7kw

• Overall Dimension : 6,900×5,400×1,820mm

• Net Weight : 4,850kg

Available on Request

₹2,900,000.00

₹3,625,000.00

Customize

TEST

Panel Saw

Accurate panel cutting. Fast throughput. Clean results.

QUICK SPECS

85m/min

Feed Speed

18.5kw - Main Saw Rotating Speed : 3

Motor Power

27.7kw

Total Power

18.5kw

Power

910

Speed

4,850kg

Weight

HOW IT WORKS

Load Panel

Set Fence

Rip Cut

Cross Cut

Stack Parts

KEY FEATURES

— Professional assembly line

— Quality control

— Steel table plate

— Air float feed table

— Side operation rod

— Piano dust cover

— Servo side alignment

— Anti-dropping device

— Integrated saw carriage

— Full covered fence

FEATURE	ADVANTAGE	BENEFIT TO YOU
SAFETY
Safety guards & covers	Protects operator from moving parts	You get a safer workshop environment
QUALITY
Servo motor drive system	Precise, repeatable positioning	You get consistent quality across every board
USER FRIENDLY
Automatic feeding system	Hands-free panel transport	You get a single operator running the full cycle
PRODUCTIVITY
High feed speed (85m/min)	More panels processed per hour	You get higher daily output from the same shift
Reliable cycle-time consistency	Same output rate shift after shift	You get predictable delivery schedules for customers
ROI
Reduced labour dependency	One operator can run the machine alone	You save on staffing costs and wage bills
Lower material waste	Precision cuts reduce offcut losses	You save on raw material spend every month
Durable long-life components	Extended service intervals	You save on spare parts and maintenance costs
TRUST
Authorised Nanxing Distributor	Direct factory support and genuine parts	You get the real machine with full manufacturer backing
caple.in — In business since 1974	50+ years of woodworking machinery expertise	You get advice from engineers who know the trade
12-month / 2000-hour warranty	Whichever comes first — no ambiguity	You get protected investment from day one
Trained service team	Factory-trained engineers for installation and support	You get fast, knowledgeable on-site support
Pan-India support network	Service coverage across India with multiple demo centres	You get local support wherever your factory is

TECHNICAL SPECIFICATIONS
Max. Cutting Length	3,270mm
Max. Cutting Thickness	120mm
Main Saw Motor Power	18.5kw
Main Saw Rotating Speed	3,910rpm/min
Main Saw Blade Diameter	Φ450mm
Main Saw Blade Shaft Diameter	Φ60mm
Scoring Saw Rotating Speed	4,300rpm/min
Scoring Saw Blade Diameter	Φ200mm
Scoring Saw Blade Shaft Diameter	Φ45mm
Saw Carriage Motor Power	2.2kw
Forward Speed	90m/min
Backward Speed	120m/min
Automatic Feeding Motor	2kw
Max. Feeding Speed	85m/min
IPC	21.5'' Windows 7
Air Requirement	0.6 MPa
Dust Extraction	Φ150mm×3; 28m/min
Power Supply	415V/50Hz/3P
Total Power	27.7kw
Overall Dimension	6,900×5,400×1,820mm

FREQUENTLY ASKED QUESTIONS

What panel sizes can this saw cut?

The machine handles standard sheet sizes up to the dimensions listed in the Quick Specs above.

Can I make both rip cuts and cross cuts?

Yes, the machine supports both rip and cross-cut operations. Some models also include a scoring blade for chip-free cuts.

What blade size does this machine use?

Refer to the Technical Specifications table above for the blade diameter specification.

Is a single operator sufficient to run this machine?

Yes, with proper setup the machine can be operated by one person. Material handling aids (roller tables) are recommended for large panels.

What is the cut depth capacity?

See the Technical Specifications section above for the maximum depth of cut.

Where can I find the full manual and spare parts list for the NPC330?

Full documentation for the NPC330 is available through caple.in. Contact our team or book a demo to receive the technical manual and parts catalogue.

What air pressure/CFM does the NPC330-18 require?

The NPC330-18 requires an air supply at 6 bar with approximately 15 CFM continuous consumption. Ensure your compressor and drier can deliver this reliably.

What is the total power consumption of the NPC330-18?

The NPC330-18 draws approximately 37 HP (27.7 kW) total power. Use a 50-amp 3-phase 415V supply with separate earthing and a 40 KVA stabiliser for safe operation.

What dust extraction capacity is needed for the NPC330-18?

The Nanxing CNC Beam Saw NPC330-18.5KW needs approximately 3,151 CFM (5,350 CMH) dust extraction through Ø150mm × 3. Because beam saws generate high fine-dust load, we recommend a Reverse Pulse Jet dust collector — specifically the Dust Collector AXC Reverse Pulse Jet 7.5HP — 6,500 CMH. RPJ design auto-cleans filter cartridges preventing clog and maintaining airflow.

What is the weight of the NPC330-18?

The NPC330-18 weighs 4,850kg. Ensure floor load capacity and proper foundation before installation.

What is under the customer’s scope?

Travel, food and stay for service engineers; material handling and lifting equipment; power tools and consumables for machine foundation; operator safety equipment; basic electrical connections up to the machine; general tool kit and measuring instruments — are all under the customer’s scope.
