Cold Press Machine

A cold press is a machine used in woodworking and laminating to produce flat and composite panels for high-pressure laminate and veneer pressing. Unlike a hot press, it does not use heat to bond the materials. Instead, it relies on pressure alone to bond the layers of material together.

A cold press produces solid wood panels, veneers, and engineered wood. The cold press process involves laying a stack of material between two platens, closing the press, and applying pressure to bond the layers together.

Cold pressing is often used when heat-sensitive materials are bonded or when the final product requires minimal dimensional changes. Like hot presses, cold presses are used in various industries, including furniture production, cabinetry, and flooring manufacturing.

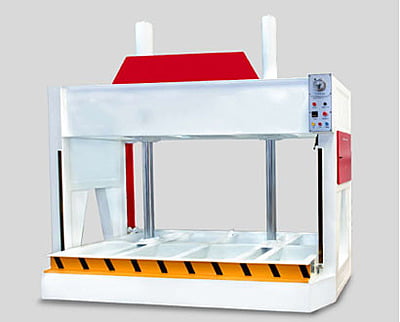

Hydraulic Cold Press CH3248-100TT [1250x2500, 100T, 1300mm, 5.5kW]

TECHNICAL DATA

• Name Model : 2.5*1.25m trip1.3m

• Max higher : 3.4m

• Pressing plate size : 1250*2500

• Number of Cylinder : 4pcs

• Pressure : 100T

• Opening distance : 1300mm

• Thickness of pressing plate : 900mm

• Installed power : 5.5kw

• Overall dimensions : 2910*1250mm

• Net weight : 3T Excluded Hydraulic Oil

₹750,000.00 ₹937,500.00

Hydraulic Cold Press CH40410-100TT [1250x3000, 100T, 1300mm, 5.5kW]

TECHNICAL DATA

• Name Model : 3 X 1.25m trip1.3m

• Max higher : 3.4m

• Pressing plate size : 1250 X 3000

• Number of Cylinder : 4pcs

• Pressure : 100T

• Opening distance : 1300m

• Installed power : 5.5kw

• Overall dimensions : 3400 X 1250mm

• Power supply : 415V 3PH 50 HZ.

• Net weight : @3T - 8 bolt for cyl lock

• Bottom and top need make it full cover by steel

• Side need use the steel road and need the bearing type for lifting - 300mm bottom thickness/190mm top platen - 15 mm plate thickness Excluded Hydraulic Oil

₹900,000.00 ₹1,125,000.00

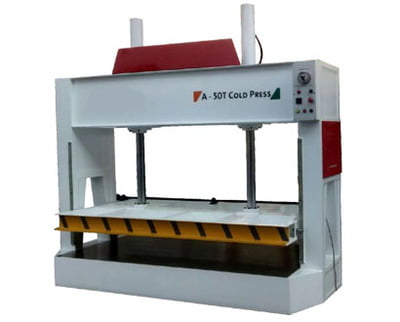

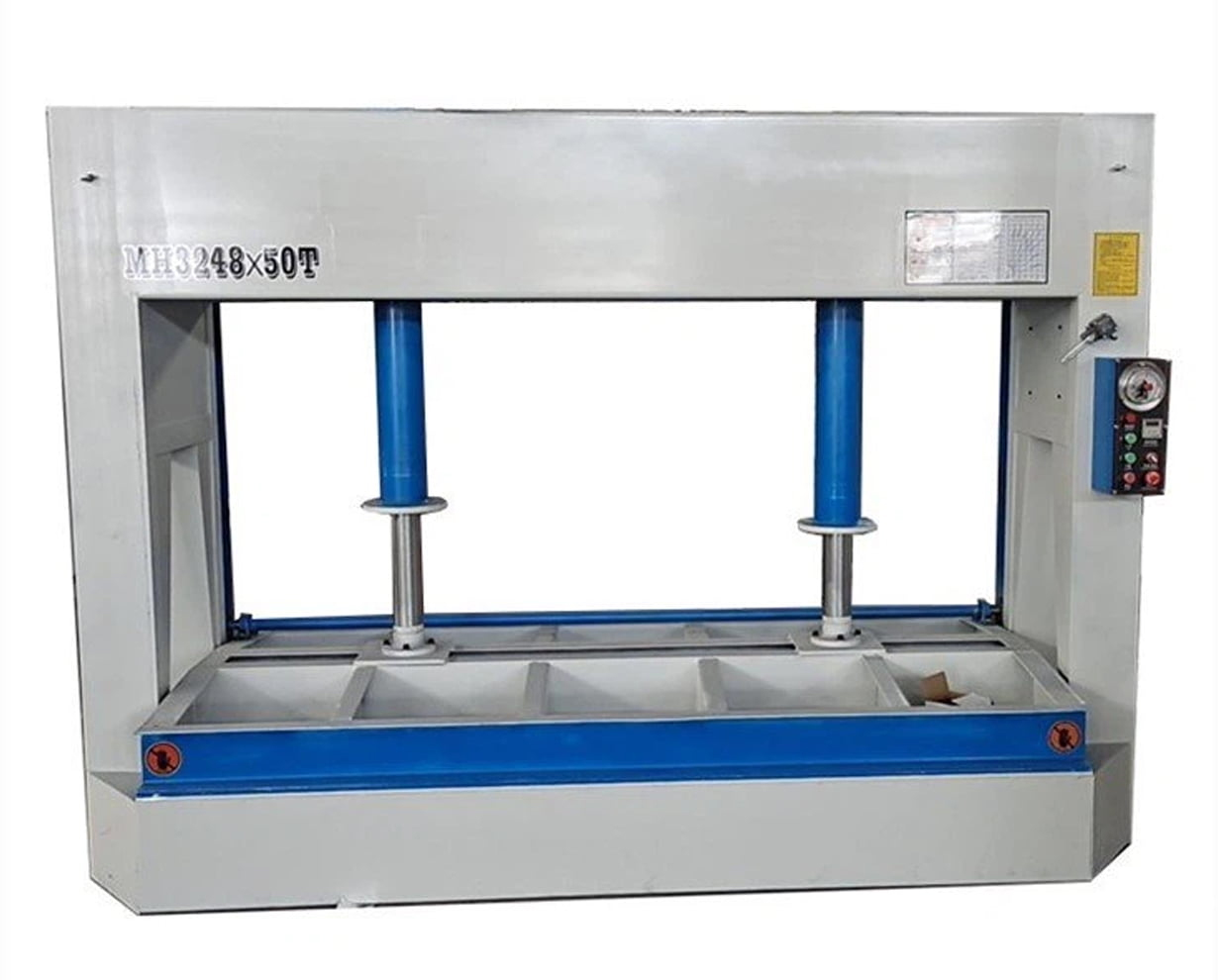

Hydraulic Cold Press CH3248-50TT [1250x2500, 50T, 1300mm, 4kW]

TECHNICAL DATA

• Name Model : 2.5 X 1.25 trip1.3m

• Max higher : 3.4m

• Pressing plate size : 1250 X 2500

• Pressure : 50T

• Opening distance : 1300m

• Thickness of pressing plate : 900mm

• Installed power : 4kw

• Power : 415V 50Hz 3 Phase

• Overall dimensions : 2910 X 1250mm

• Net weight : 1.9T - 8 bolt for cyl lock

• Bottom and top need make it full cover by steel

• Side need use the steel road and need the bearing type for lifting - 300mm bottom thickness/190mm top platen - 15 mm plate thickness Excluded Hydraulic Oil

₹500,000.00 ₹625,000.00

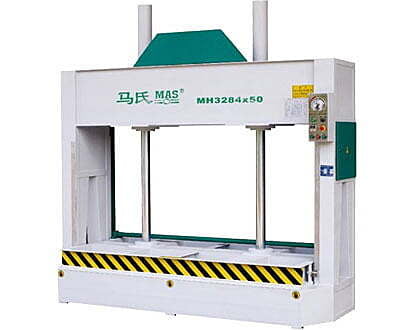

Hydraulic Cold Press Mh3284X50 [2500x1250mm | 50T]

TECHNICAL DATA

• Working table size : 2500x1250 mm

• Max. Pressure : 50 T

• Max. Work piece thickness :900 mm

• Total Power :4 kw

• Net Weight : 2100 kg

• Overall Dimensions : 2900x1330x2850 mm

₹550,000.00 ₹687,500.00
