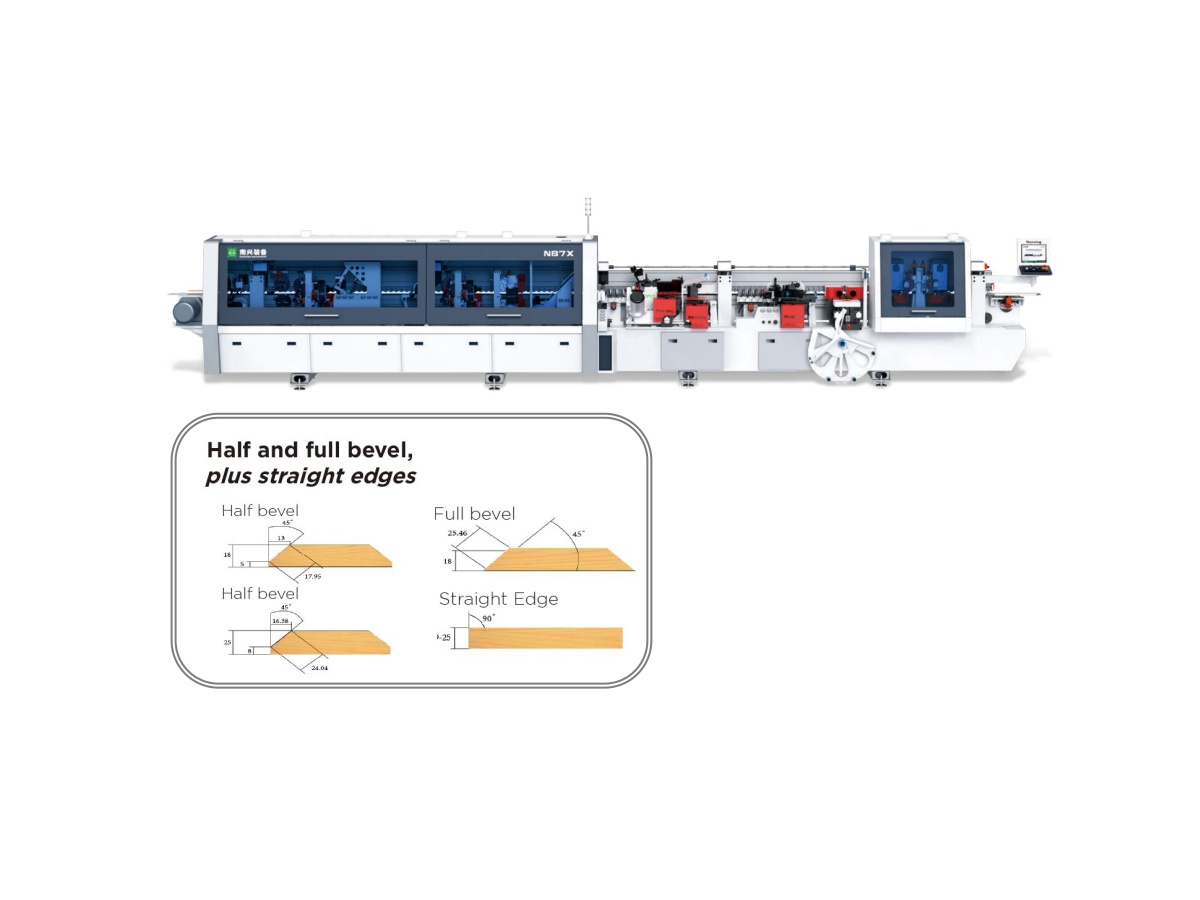

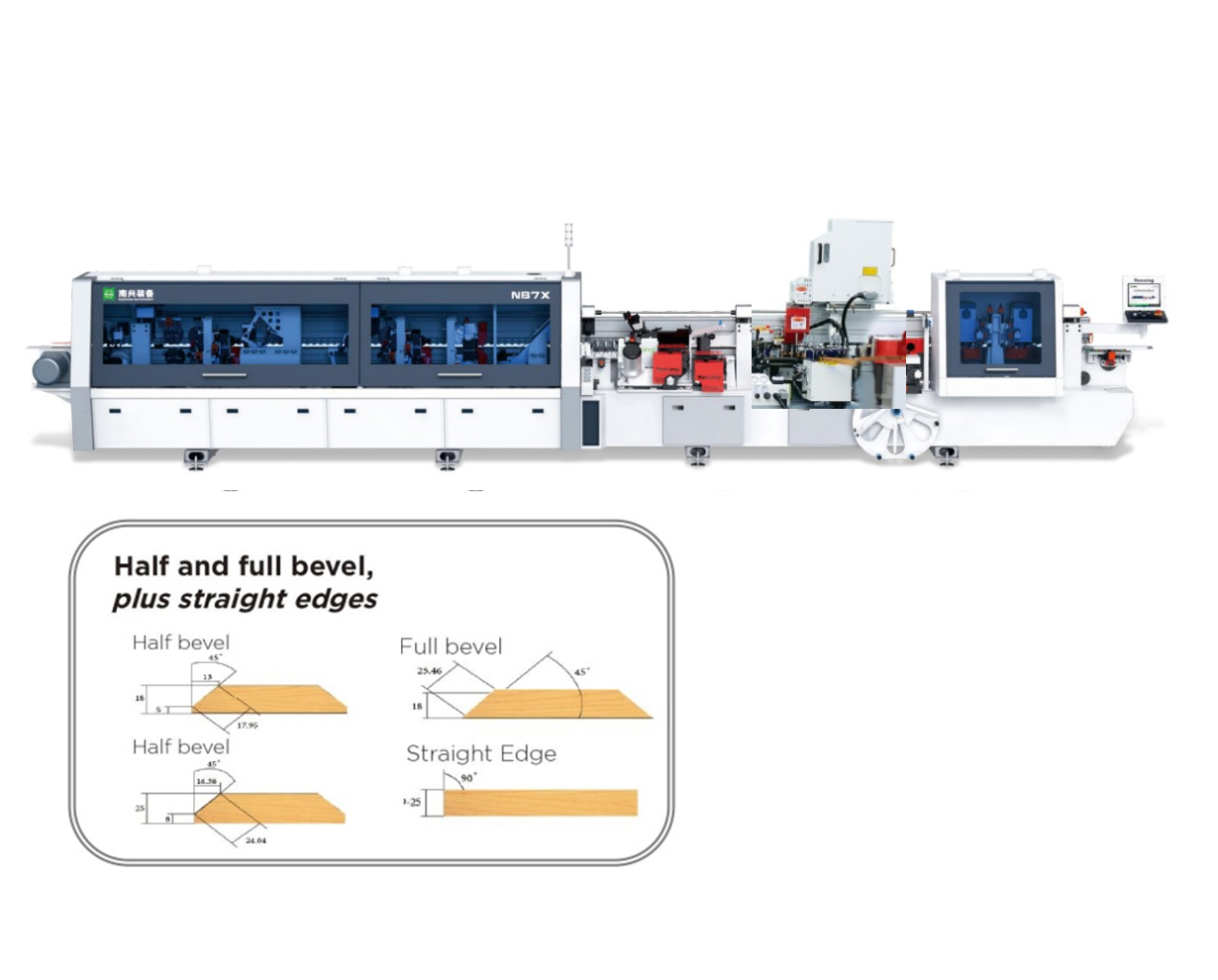

Name: Nanxing Edge Banding Machine for Inclined Edge with Pre Melter | Pneumatic adjust gate
Brand: Nanxing
SKU: NB370(NB7X)-415V
Price: 3650000.0 INR
Availability: OutOfStock

FEATURE:

Conveyor
Release agent sprayer
Bevel edge milling
Straight edge pre-milling
Pre-heating
Edge tape grooving device
Pre-melter gluing system
Pneumatic Adjust Gate (Controlled By Cylinder)
Auto glue pumping + 25kg glue basin
Bevel and straight gluing
Hot air blowing gun
Edge tape pressing
Lubrication system
End trimming
Rough Trimming unit
Fine trimming unit
Corner trimming unit
Profile scraping unit
Flat scraping
Clean agent spray
Buffing
Dust collection
Safety device
Remote Switch
Control system
Energy saving
Electric equipment
Processing diagram

TECHNICAL DATA:

Panel Length : ≥150mm
Panel Width : ≥120mm (inclined) / ≥150mm (straight)
Panel Thickness : 9-50mm (straight) / 15-25mm (half bevel) / 15-25mm (fully bevel)
Edge Tape Thickness : 0.4-2mm
Feeding Speed : 14/18m/min
Min. Panel Size : ≥150×120mm
Dust Collector : Φ125mm×6
Total Power : 42kw
Overall Dimension : 9,800×1,050×1,650mm
Net Weight : 3900kg

Available on Request

₹3,650,000.00

₹4,562,500.00

Customize

TEST

Edge Bander

Nanxing Edge Banding Machine for Inclined Edge with Pre Melter | Pneumatic adjust gate

Professional edge banding. Precise bonds. Zero compromise.

QUICK SPECS

≥150×120mm - Dust Collector : Φ125mm×6 - Total Power : 42kw - Overall Dimension : 9

Panel Size

150 x 120 mm

Work Area

Feed Speed

42kw - Overall Dimension : 9

Total Power

42kw

Power

3900kg

Weight

HOW IT WORKS

Feed Panel

Apply Glue

Bond Edge

Trim Ends

Buff Finish

KEY FEATURES

— Release agent sprayer

— Bevel edge milling

— Straight edge pre-milling

— Edge tape grooving device

— Pre-melter gluing system

— Pneumatic Adjust Gate (Controlled By Cylinder)

— Auto glue pumping + 25kg glue basin

— Bevel and straight gluing

— Hot air blowing gun

— Edge tape pressing

FEATURE	ADVANTAGE	BENEFIT TO YOU
SAFETY
CE-certified safety design	Meets international safety standards	You get a machine built for operator safety
Emergency stop circuit	Instant power cut-off on activation	You get immediate halt in emergencies
Enclosed moving parts	Reduces contact with rotating components	You get a safer working environment
QUALITY
Pre-melt glue system	Stable glue temperature and flow	You get clean, gap-free edge bonds every time
USER FRIENDLY
Automatic feeding system	Hands-free panel transport	You get a single operator running the full cycle
PRODUCTIVITY
High feed speed (18)	More panels processed per hour	You get higher daily output from the same shift
Reliable cycle-time consistency	Same output rate shift after shift	You get predictable delivery schedules for customers
ROI
Reduced labour dependency	One operator can run the machine alone	You save on staffing costs and wage bills
Lower material waste	Precision cuts reduce offcut losses	You save on raw material spend every month
Durable long-life components	Extended service intervals	You save on spare parts and maintenance costs
TRUST
Authorised Nanxing Distributor	Direct factory support and genuine parts	You get the real machine with full manufacturer backing
caple.in — In business since 1974	50+ years of woodworking machinery expertise	You get advice from engineers who know the trade
12-month / 2000-hour warranty	Whichever comes first — no ambiguity	You get protected investment from day one
Trained service team	Factory-trained engineers for installation and support	You get fast, knowledgeable on-site support
Pan-India support network	Service coverage across India with multiple demo centres	You get local support wherever your factory is

TECHNICAL SPECIFICATIONS
Panel Length	≥150mm
Panel Width	≥120mm (inclined) / ≥150mm (straight)
Panel Thickness	9-50mm (straight) / 15-25mm (half bevel) / 15-25mm (fully bevel)
Edge Tape Thickness	0.4-2mm
Feeding Speed	14/18m/min
Min. Panel Size	≥150×120mm
Dust Collector	Φ125mm×6
Total Power	42kw
Overall Dimension	9,800×1,050×1,650mm
Net Weight	3900kg

FREQUENTLY ASKED QUESTIONS

What edge tape materials can this machine process?

The machine is compatible with PVC, ABS, melamine, veneer, and acrylic edge tapes in varying thicknesses. Refer to the technical specification sheet for the exact thickness range.

What board thickness range does this edge bander support?

The machine handles standard panel thicknesses used in furniture production. Check the spec table above for the exact min/max board thickness.

Do I need a skilled operator to run this machine?

No. The intuitive controls allow a trained semi-skilled operator to run production after a short commissioning session from our team.

What type of glue does the machine use?

The machine uses EVA hotmelt glue (standard). Some models also support PUR glue systems for demanding applications.

How long does installation and training take?

Installation, commissioning and operator training take approximately 1–3 days for standard machines and 3–5 days for large CNC or multi-axis machines, depending on site readiness and operator availability.

What air pressure/CFM does the Nanxing Edge Banding Machine for Inclined Edge with Pre Melter | Pneumatic adjust gate require?

The Nanxing Edge Banding Machine for Inclined Edge wit requires an air supply at 6 bar with approximately 15 CFM continuous consumption. Ensure your compressor and drier can deliver this reliably.

What is the total power consumption of the Nanxing Edge Banding Machine for Inclined Edge with Pre Melter | Pneumatic adjust gate?

The Nanxing Edge Banding Machine for Inclined Edge wit draws approximately 56 HP (42 kW) total power. Use a 80-amp 3-phase 415V supply with separate earthing and a 50 KVA stabiliser for safe operation.

What dust extraction capacity is needed for the Nanxing Edge Banding Machine for Inclined Edge with Pre Melter | Pneumatic adjust gate?

The Nanxing Edge Banding Machine for Inclined Edge with Pre Melter needs approximately 4,358 CFM (7,400 CMH) dust extraction through Ø125mm × 6. We recommend the Dust Collector AXC 10HP — 10,600 CMH.

What are the overall dimensions of the Nanxing Edge Banding Machine for Inclined Edge with Pre Melter | Pneumatic adjust gate?

The Nanxing Edge Banding Machine for Inclined Edge with Pre Melter | Pneumatic adjust gate measures 9,800×1,050×1,650mm (L x W x H). Plan adequate floor space including operator access zones.

What is the weight of the Nanxing Edge Banding Machine for Inclined Edge with Pre Melter | Pneumatic adjust gate?

The Nanxing Edge Banding Machine for Inclined Edge with Pre Melter | Pneumatic adjust gate weighs 3900kg. Ensure floor load capacity and proper foundation before installation.

What is under the customer’s scope?

Travel, food and stay for service engineers; material handling and lifting equipment; power tools and consumables for machine foundation; operator safety equipment; basic electrical connections up to the machine; general tool kit and measuring instruments — are all under the customer’s scope.
