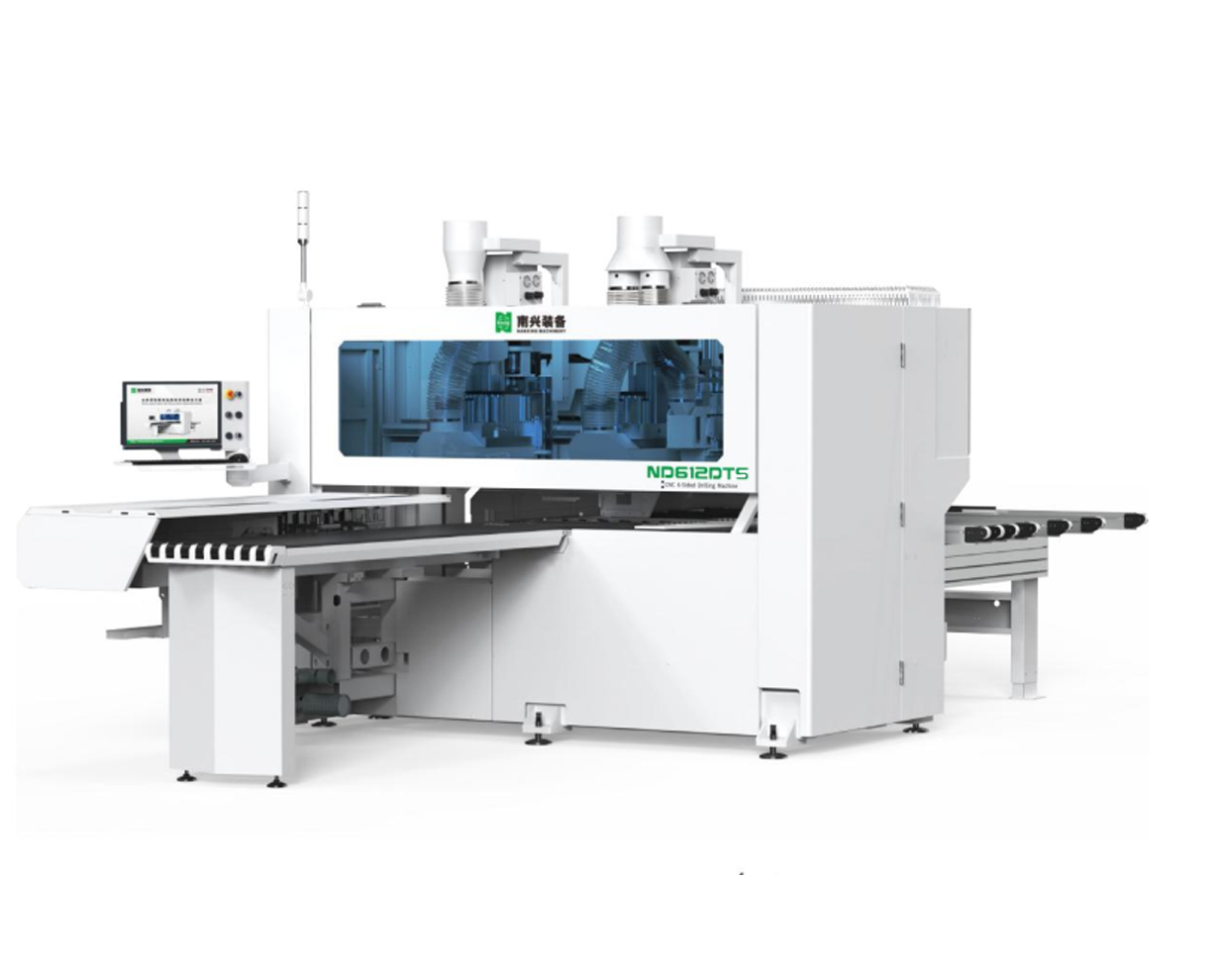

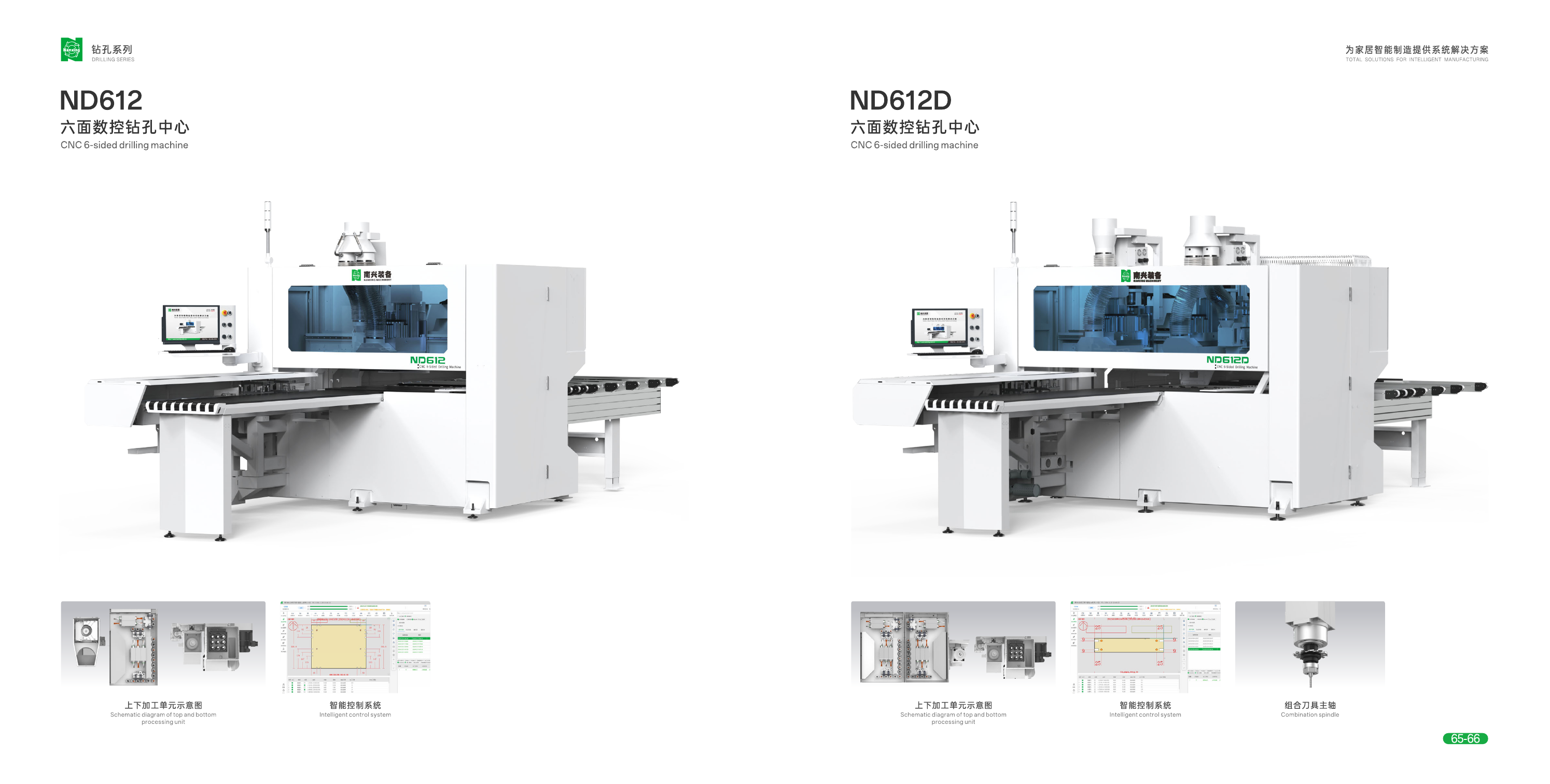

Nanxing CNC 6-Sided Drilling Machine ND61DTS 415V
₹6,675,000.00 ₹8,343,750.00
Available on Request
FEATURES - Long clamp beam & fast clamps 5.5m longer high-rigidity clamp - Feed-in & out table - Positioning Side aligner & Support / press plates - Board length, width detector - 6 slots tool changer - Tool setting gauge - 5.5kw+3.5kw main spindle - Top drilling block 1 boring blocks 2.2kw, - Optimized drilling blocks layout +saw blade - 2 boring blocks 2.2kw with Vertical drills: 19+19 - Independent grooving saw 1.7kw; Saw blade size:Ф100*Ф22*δ4 fixed in X direction. - Bottom drilling block 1.6kw 9 vertical drills - Min. processing Panel length: 200-3000mm / Panel width 30-1200mm - Stack processing - Side Grooving - Machine is configured with Lamello aggregate & tool - Anti-handling device for infeed table - 3No. Dust collection port - Hand controller - Control system - Windows 10 operating system - Control interface is modern and friendly - Manual programming interface - Simulation function - Easy tools setting - Statistics function - Bar-code reader - File format support (MPR, DXF, BAN, BPP, PDX; XML; XX) - Side routing-One head aggregate - Board thickness sensor - Air jet for Grippe
TEST
TECHNICAL SPECIFICATIONS: - Total power : 26.63Kw - Power Supply - 415V/50Hz/3PH - Total weight : 3,850Kg - Panel size : Length 200-3,000mm - Panel size : Width 30-1,200mm - Panel size : Thickness 10-60mm - Max. traveling speed : X /U axis 135m/min - Max. traveling speed : Y axis 75m/min - Max. traveling speed : Z axis 30m/min - Transmission mode : X axis Rack and pinion - Transmission mode : Y axis Rack and pinion - Transmission mode : Z axis Ball screw rod - Boring blocks qty : Top 2; Bottom 1 - Boring blocks Vert. drills qty (top) : 19*2 - Boring blocks Horiz. drills qty (top) : X: 3× 4 + Y: 2× 4 - Boring blocks Vert. drills qty (Bottom) : 9 - Boring blocks Max drill diameter : Φ35mm - Boring blocks Drill spacing : 32mm - Boring blocks Rotation speed : 5000rpm - Boring blocks Shank diameter : Φ10mm - Main spindle qty : Top tool ER32 holder ISO30 ; Bottom tool collet ER25 - Main Spindle power : 5.5kw*1 ; 3.5kw×1 max.18000rpm - Saw blade : Power 1.7kw - Saw blade : Size Ф 100*Ф 22*x 4 - Saw blade : Processing range 50-700mm - Dust collector : qty 2 - Dust collector : diameter - Dust collector : Top 200mm×2 - Dust collector : Lower 125mm×1 - Dust collector : speed ≥28m/min
