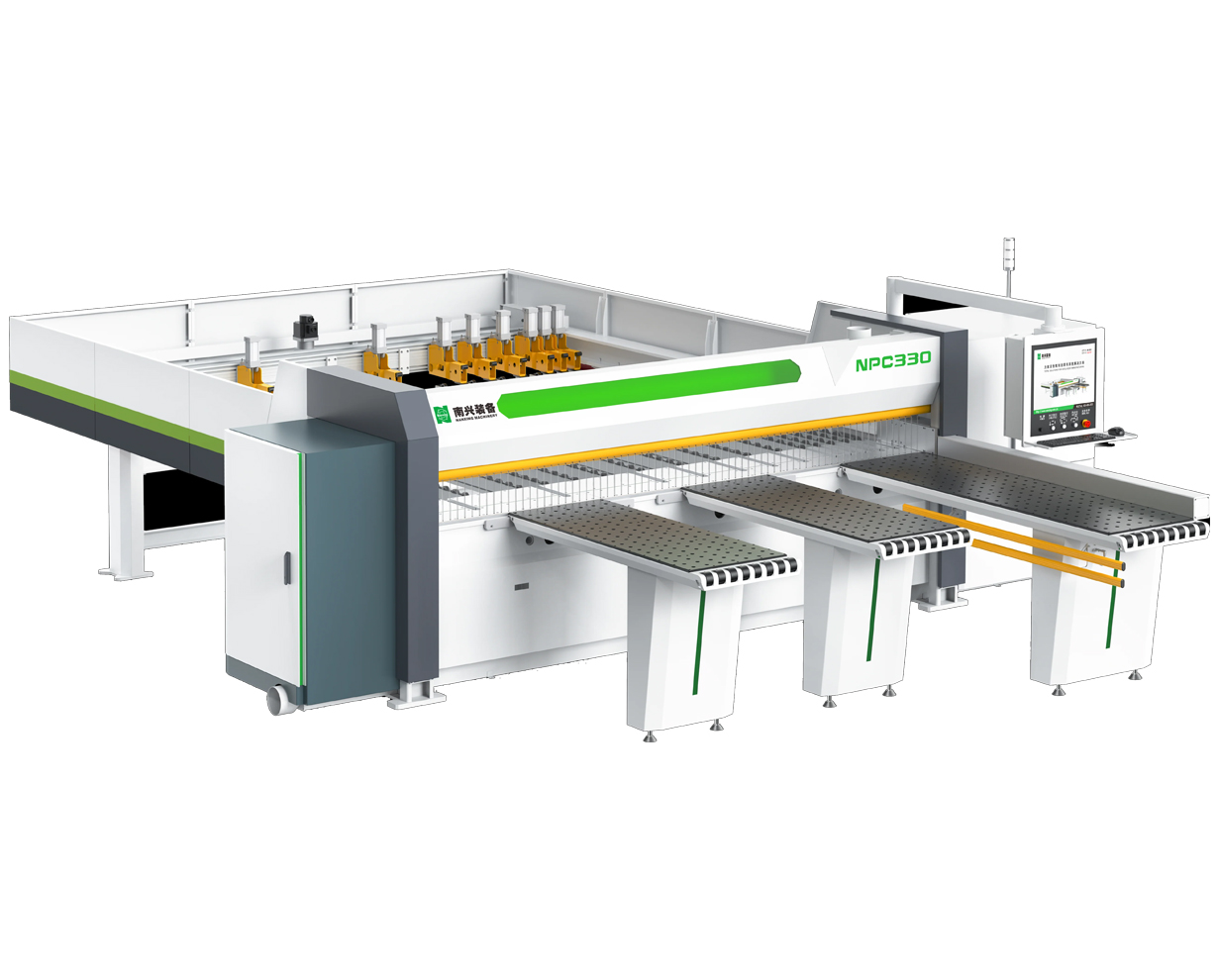

Name: Nanxing Panel Dividing Saw with Printer+Software NPC330S 24.2KW (3270x90mm)
Brand: Nanxing
SKU: NPC330S-(24.2KW)415V
Price: 3650000.0 INR
Availability: OutOfStock

Nanxing Panel Dividing Saw with Printer+Software NPC330S 24.2KW (3270x90mm)

• FEATURES

• Air float feed table

• Side operation rod

• Pressure beam servo

• Hand Protector

• Piano dust cover

• Servo Side alignment

• Gripper

• Anti-dropping device

• Integrated Sawing Carriage

• Main Saw/Scoring Saw separate control

• 1xset Saw blade

• Full cover safety fence with door.

• Dust Collection Port 150mmx3no & 76X1

• Auto Lubrication System

• Computer :CPU i5 Memory 8G,WIN7 64-bit Professional Edition ,Duel Port

• Operation Software

• Control Cabinet

• Optimization software Auto Cut

• Label Printer TECHNICAL SPECIFICATIONS:

• Max. cutting length : 3270mm

• Max. cutting thickness : 90mm

• Main Saw Motor power : 15kw

• Main Saw Rotating speed : 3910rpm/min

• Saw blade diameter : 380mm (Max400mm)

• Saw blade shaft diameter : 60mm

• Rotating speed : 4,300rpm/min

• Saw blade diameter : 200mm

• Saw blade shaft diameter : 45mm

• Saw carriage Motor power : 2.2kw

• Saw carriage Forward speed : 90m/min

• Saw carriage Backward speed : 120m/min

• Automatic feeding motor : 2kw

• Max. feeding speed : 85m/min

• IPC 21.5'' Windows 7 : USB port: 4 pcs

• Air Requirement : 0.6 MPa

• Dust extraction Diameter : 150mm*3; 76mm*1 28m/min

• Power supply : 3P 415V / 50Hz

• Total power : 24.2kw

• Length

• Width

• Height : 6900 x 5495 x 1820mm

• Net weight : 4560kg

Available on Request

₹3,650,000.00

₹4,562,500.00

Customize

TEST

Panel Saw

Nanxing Panel Dividing Saw with Printer+Software NPC330S 24.2KW (3270x90mm)

Accurate panel cutting. Fast throughput. Clean results.

QUICK SPECS

6900 x 5495 mm

Work Area

Feed Speed

15kw - Main Saw Rotating speed : 3910rpm/min - Saw blade diameter : 380mm (Max400mm) - Saw blade shaft diameter : 60mm - Rotating speed : 4

Motor Power

24.2kw - Length *Width *Height : 6900 x 5495 x 1820mm - Net weight : 4560kg

Total Power

15kw

Power

3910

Speed

HOW IT WORKS

Load Panel

Set Fence

Rip Cut

Cross Cut

Stack Parts

KEY FEATURES

— Air float feed table

— Side operation rod

— Pressure beam servo

— Piano dust cover

— Servo Side alignment

— Anti-dropping device

— Integrated Sawing Carriage

— Main Saw/Scoring Saw separate control

— 1xset Saw blade

— Full cover safety fence with door

FEATURE	ADVANTAGE	BENEFIT TO YOU
SAFETY
Safety guards & covers	Protects operator from moving parts	You get a safer workshop environment
QUALITY
Servo motor drive system	Precise, repeatable positioning	You get consistent quality across every board
USER FRIENDLY
Automatic feeding system	Hands-free panel transport	You get a single operator running the full cycle
PRODUCTIVITY
High feed speed (90)	More panels processed per hour	You get higher daily output from the same shift
Reliable cycle-time consistency	Same output rate shift after shift	You get predictable delivery schedules for customers
ROI
Reduced labour dependency	One operator can run the machine alone	You save on staffing costs and wage bills
Lower material waste	Precision cuts reduce offcut losses	You save on raw material spend every month
Durable long-life components	Extended service intervals	You save on spare parts and maintenance costs
TRUST
Authorised Nanxing Distributor	Direct factory support and genuine parts	You get the real machine with full manufacturer backing
caple.in — In business since 1974	50+ years of woodworking machinery expertise	You get advice from engineers who know the trade
12-month / 2000-hour warranty	Whichever comes first — no ambiguity	You get protected investment from day one
Trained service team	Factory-trained engineers for installation and support	You get fast, knowledgeable on-site support
Pan-India support network	Service coverage across India with multiple demo centres	You get local support wherever your factory is

TECHNICAL SPECIFICATIONS
Computer	CPU i5 Memory 8G,WIN7 64-bit Professional Edition ,Duel Port
Max. cutting length	3270mm
Max. cutting thickness	90mm
Main Saw Motor power	15kw
Main Saw Rotating speed	3910rpm/min
Saw blade diameter	380mm (Max400mm)
Saw blade shaft diameter	60mm
Rotating speed	4,300rpm/min
Saw carriage Motor power	2.2kw
Saw carriage Forward speed	90m/min
Saw carriage Backward speed	120m/min
Automatic feeding motor	2kw
Max. feeding speed	85m/min
IPC 21.5’’ Windows 7	USB port: 4 pcs
Air Requirement	0.6 MPa
Dust extraction Diameter	150mm3; 76mm1 28m/min
Power supply	3P 415V / 50Hz
Total power	24.2kw
Length Width Height	6900 x 5495 x 1820mm
Net weight	4560kg

FREQUENTLY ASKED QUESTIONS

What panel sizes can this saw cut?

The machine handles standard sheet sizes up to the dimensions listed in the Quick Specs above.

Can I make both rip cuts and cross cuts?

Yes, the machine supports both rip and cross-cut operations. Some models also include a scoring blade for chip-free cuts.

What blade size does this machine use?

Refer to the Technical Specifications table above for the blade diameter specification.

Is a single operator sufficient to run this machine?

Yes, with proper setup the machine can be operated by one person. Material handling aids (roller tables) are recommended for large panels.

What is the cut depth capacity?

See the Technical Specifications section above for the maximum depth of cut.

Where can I find the full manual and spare parts list for the NPC330S?

Full documentation for the NPC330S is available through caple.in. Contact our team or book a demo to receive the technical manual and parts catalogue.

What air pressure/CFM does the NPC330S require?

The NPC330S requires an air supply at 6 bar with approximately 15 CFM continuous consumption. Ensure your compressor and drier can deliver this reliably.

What is the total power consumption of the NPC330S?

The NPC330S draws approximately 32 HP (24.2 kW) total power. Use a 40-amp 3-phase 415V supply with separate earthing and a 30 KVA stabiliser for safe operation.

What dust extraction capacity is needed for the NPC330S?

The Nanxing Panel Dividing Saw with Printer+Software NPC330S 24.2KW (3270x90mm) needs approximately 3,151 CFM (5,350 CMH) dust extraction through Ø150mm × 3. Because beam saws generate high fine-dust load, we recommend a Reverse Pulse Jet dust collector — specifically the Dust Collector AXC Reverse Pulse Jet 7.5HP — 6,500 CMH. RPJ design auto-cleans filter cartridges preventing clog and maintaining airflow.

What is the weight of the NPC330S?

The NPC330S weighs 4560kg. Ensure floor load capacity and proper foundation before installation.

What is under the customer’s scope?

Travel, food and stay for service engineers; material handling and lifting equipment; power tools and consumables for machine foundation; operator safety equipment; basic electrical connections up to the machine; general tool kit and measuring instruments — are all under the customer’s scope.
