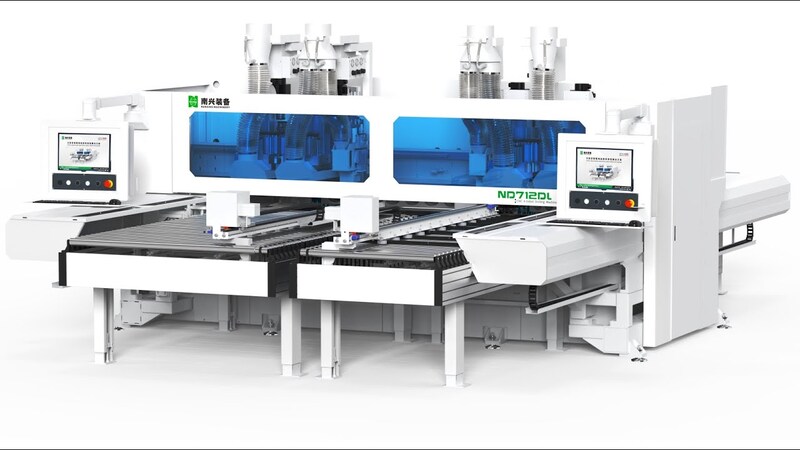

CNC 6-Sided Drilling Machine with Double Work Station ND712DL(1200+650)
CNC 6-Sided Drilling Machine with Double Work Station ND712DL(1200+650)

CNC 6-Sided Drilling Machine with Double Work Station ND712DL(1200+650)

₹8,550,000.00 ₹10,687,500.00
Warranty
12 Months
Country of origin
China
GST Extra
18%
Available on Request

High technology compact machine making possible to drill holes on 6 sides.

Nanxing ND61DTS — built by Nanxing Mac (China), one of Asia's top-3 woodworking machinery makers, with 30+ years of OEM supply to global furniture brands. Authorised distributor: Caple Industrial Solutions, India.

Best for: Mass production of panel furniture and modular cabinetry.

FeatureAdvantageBenefit
This machine completes six-sided drilling and top/bottom grooving in a single process.Holes in all six faces in a single setupEliminates the manual hand-drilling step that breaks panel flow
The long guiding rail with dual clampers ensures rapid and stable workpiece movement.Manufactured to Nanxing's BV-certified production standardPredictable performance batch after batch
Integrated self-recording functions allow for efficient production management and statistical tracking.Every panel labeled and tracked from cut to installZero-error site assembly, fewer call-backs from the customer
Automatic panel size detection minimizes manual errors and enhances overall processing precision.Production-grade tolerance batch after batchPremium pricing position vs unbranded local fabricators
Users can choose between powered or simple conveyors to create automated production lines.Manufactured to Nanxing's BV-certified production standardPredictable performance batch after batch

Why buy Nanxing from Caple: Authorised India distributor since 2018. Factory-trained engineers across Mumbai, Delhi, Bengaluru, Kolkata. Genuine spares, on-call service, GST invoice. Demo at our Centre of Excellence, Pelhar (Mumbai). Project finance and EMI options available.

TEST

Boring Machine

CNC 6-Sided Drilling Machine with Double Work Station ND712DL(1200+650)

Multi-spindle boring precision. Every hole, every time.

QUICK SPECS

135

Feed Speed

48.36KW - Machine size : 7

Total Power

48.36KW

Power

5000

Speed

415

Power Supply

12 mo / 2000 hr

Warranty

HOW IT WORKS

01

Load Board

02

Align Stops

03

Drill Holes

04

Check Pitch

05

Stack Output

KEY FEATURES
— Control system : SYNTEC
— Max.traveling speed (X/U) axis : : 135m/min
— Max. traveling speed Y axis : : 75m/min
— Max. traveling speed Z axis : : 30m/min
— Max. traveling speed (X/U) axis : : 135m/min
— Transmission mode X & Y : Rack and pinion
— Transmission mode Z : Ball screw rod
— Drilling blocks
— Boring block qty : Top 2+2 , Bottom1+1
— Vert. drills qty(top) : 19*4
FEATUREADVANTAGEBENEFIT TO YOU
SAFETY
CE-certified safety designMeets international safety standardsYou get a machine built for operator safety
Emergency stop circuitInstant power cut-off on activationYou get immediate halt in emergencies
Enclosed moving partsReduces contact with rotating componentsYou get a safer working environment
QUALITY
Precision-engineered componentsTight tolerances on all machined partsYou get accurate, consistent output every shift
Rigid steel frame constructionEliminates vibration during operationYou get cleaner cuts and better surface finish
Quality control sensorsAuto-detects deviation in real timeYou get fewer rejects and less rework
USER FRIENDLY
Simple control interfaceEasy-to-read display and controlsYou get quick operator training and confident use
Centralized lubrication pointsAll grease points in one locationYou get faster, easier routine maintenance
Clear diagnostic displaysOn-screen error codes and guidanceYou get quick fault identification and resolution
PRODUCTIVITY
High feed speed (135)More panels processed per hourYou get higher daily output from the same shift
Reliable cycle-time consistencySame output rate shift after shiftYou get predictable delivery schedules for customers
ROI
Reduced labour dependencyOne operator can run the machine aloneYou save on staffing costs and wage bills
Lower material wastePrecision cuts reduce offcut lossesYou save on raw material spend every month
Durable long-life componentsExtended service intervalsYou save on spare parts and maintenance costs
TRUST
Authorised Nanxing DistributorDirect factory support and genuine partsYou get the real machine with full manufacturer backing
caple.in — In business since 197450+ years of woodworking machinery expertiseYou get advice from engineers who know the trade
12-month / 2000-hour warrantyWhichever comes first — no ambiguityYou get protected investment from day one
Trained service teamFactory-trained engineers for installation and supportYou get fast, knowledgeable on-site support
Pan-India support networkService coverage across India with multiple demo centresYou get local support wherever your factory is
TECHNICAL SPECIFICATIONS
Total power48.36KW
Machine size7,400*4,470*2,380mm
Power supply415V/50Hz3PH/415V/60Hz3PH
Air supply0.6-0.7MPa
Total weight6,300Kg
Control systemSYNTEC
Panel Length200-3,000mm
Panel Width50-1200mm
Panel thickness10-60mm
Max.traveling speed (X/U) axis: 135m/min
Max. traveling speed Y axis: 75m/min
Max. traveling speed Z axis: 30m/min
Max. traveling speed (X/U) axis: 135m/min
Transmission mode X & YRack and pinion
Transmission mode ZBall screw rod
Boring block qtyTop 2+2 , Bottom1+1
Vert. drills qty(top)19*4
Horiz. drills qty(top)X:3×8+Y:2x4
Vert. drills qty(Bottom)9x2
Max. drill diameter35mm Dia.
FREQUENTLY ASKED QUESTIONS
What is the minimum pitch between drill holes?
The standard pitch is 32 mm to match the European cabinet system. Some models support variable pitch — check the spec table above.
How many spindles does this machine have?
Refer to the spindle count in the Quick Specs section above. Multi-spindle models allow simultaneous vertical and horizontal drilling.
Can I drill both faces of a panel in one pass?
Some models support double-sided drilling. Refer to the product name and specification table to confirm this capability.
What board dimensions can the machine handle?
Refer to the panel size range listed in the Quick Specs and Technical Specifications sections above.
What is the warranty period?
12 months or 2000 operating hours, whichever comes first.
Where can I find the full manual and spare parts list for the ND712DL?
Full documentation for the ND712DL is available through caple.in. Contact our team or book a demo to receive the technical manual and parts catalogue.

What air pressure/CFM does the ND712DL require?

The ND712DL requires an air supply at 6 bar with approximately 15 CFM continuous consumption. Ensure your compressor and drier can deliver this reliably.

What is the total power consumption of the ND712DL?

The ND712DL draws approximately 65 HP (48.36 kW) total power. Use a 80-amp 3-phase 415V supply with separate earthing and a 63 KVA stabiliser for safe operation.

What dust extraction capacity is needed for the ND712DL?

The ND712DL needs approximately 1,766 CFM (3,000 CMH) dust extraction through standard dust ports. We recommend the Dust Collector AXC 3HP | 3000-3500 CMH.

What is the weight of the ND712DL?

The ND712DL weighs 6,300Kg. Ensure floor load capacity and proper foundation before installation.

What is under the customer’s scope?

Travel, food and stay for service engineers; material handling and lifting equipment; power tools and consumables for machine foundation; operator safety equipment; basic electrical connections up to the machine; general tool kit and measuring instruments — are all under the customer’s scope.
