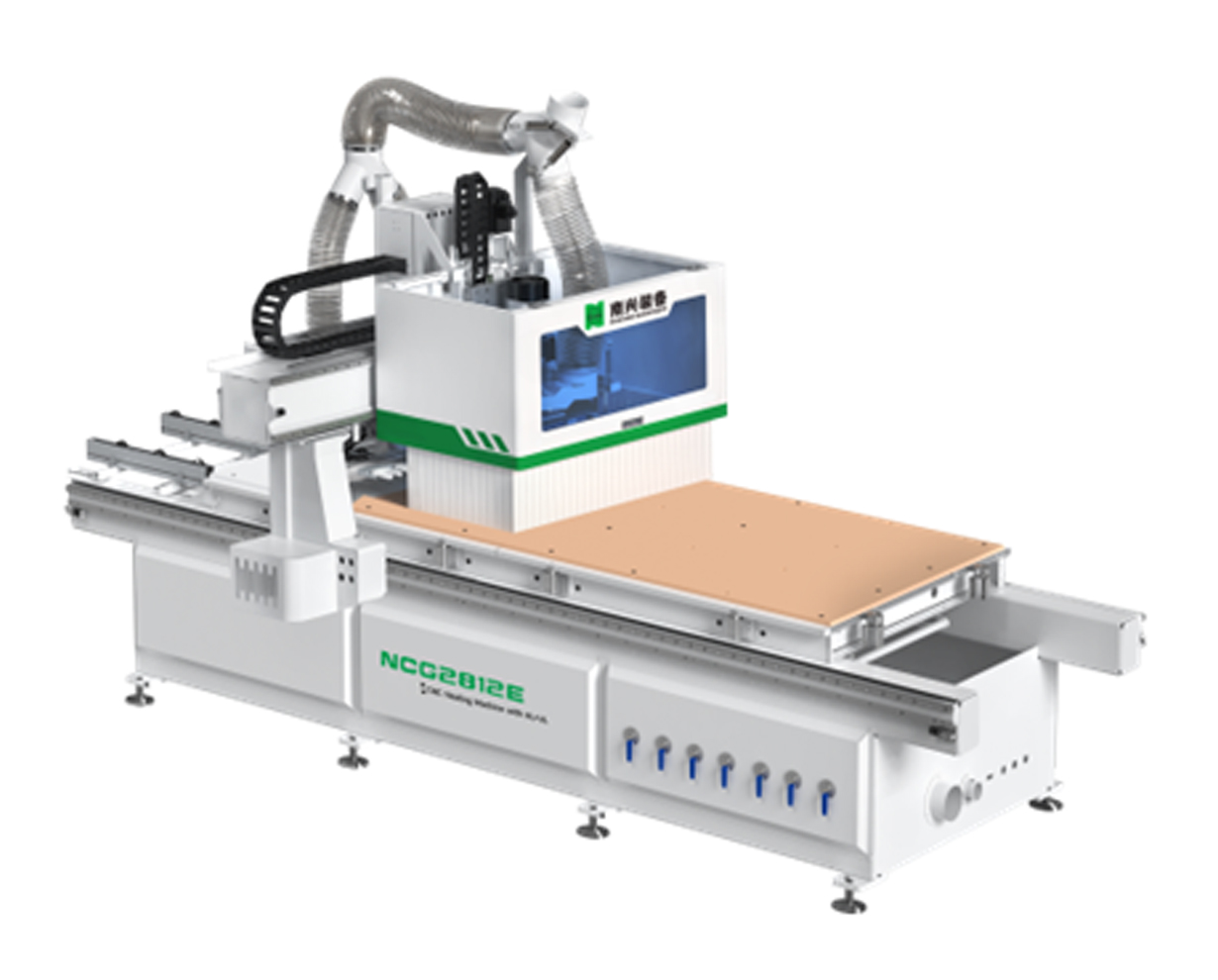

Name: Nanxing CNC Nesting Machine NCG2812E without Drill Block & Optimization NACC | 9KW | AC | Pressure Roller
Brand: Nanxing
SKU: NCG2812E(AC+PR+9KW)
Price: 1550000.0 INR
Availability: OutOfStock

FEATURE

1pc vacuum pump
Movement of each axis
Automatic greasing
Side positioning cylinders
9kw main Spindle
Automatic Line tool changer with 12 slots
Start/Stop Button on gantry
Tank cable chain
Tool setting gauge and locker
Hand controller
Electric equipment
SYNTEC Control System
Pressure Roller
Air conditioner on control cabinet

TECHNICAL DATA:

Control System : SYNTEC
Working Range X-axis : 2,800mm
Working Range Y-axis : 1,220mm
Working Range Z-axis : 50mm
Working Table Size : 2,800×1,220mm
Working Table Height : 950mm
Max. Travelling Speed X-axis : 100m/min
Max. Travelling Speed Y-axis : 100m/min
Max. Travelling Speed Z-axis : 20m/min
Main Spindle Power : 9kw
Main Spindle Rotating Speed : 24,000rpm
Tool Holder Type : ISO30
ATC : Line tool changer with 12 slots
Vacuum Pump Qty : 1
Vacuum Pump Power : 7.5kw
Suction Flow Rate : 250m³/h
Dust Extraction : Φ150mm×1 + Φ125mm×1; 28m/s
Air Pressure Required : 6~7 kg/cm²
Power Supply : 415V/50Hz
Total Power : 24kw
Floor Space : 4,220 x 2,270 x 2,500mm
Net Weight : 2,500kg

Available on Request

₹1,550,000.00

₹1,937,500.00

Customize

TEST

CNC Router

Nanxing CNC Nesting Machine NCG2812E without Drill Block & Optimization NACC | 9KW | AC | Pressure Roller

Precision routing and nesting. Built for serious production.

QUICK SPECS

Table Size

100

Feed Speed

24kw - Floor Space : 4

Total Power

9kw

Power

000

Speed

415

Power Supply

HOW IT WORKS

Load Panel

Set Zero

CNC Route

Drill Holes

Unload Part

KEY FEATURES

— 1pc vacuum pump

— Movement of each axis

— Automatic greasing

— Side positioning cylinders

— 9kw main Spindle

— Automatic Line tool changer with 12 slots

— Start/Stop Button on gantry

— Tank cable chain

— Tool setting gauge and locker

— Hand controller

FEATURE	ADVANTAGE	BENEFIT TO YOU
SAFETY
CE-certified safety design	Meets international safety standards	You get a machine built for operator safety
Emergency stop circuit	Instant power cut-off on activation	You get immediate halt in emergencies
Enclosed moving parts	Reduces contact with rotating components	You get a safer working environment
QUALITY
Precision-engineered components	Tight tolerances on all machined parts	You get accurate, consistent output every shift
Rigid steel frame construction	Eliminates vibration during operation	You get cleaner cuts and better surface finish
Quality control sensors	Auto-detects deviation in real time	You get fewer rejects and less rework
USER FRIENDLY
Automatic feeding system	Hands-free panel transport	You get a single operator running the full cycle
Tool-free adjustment	No spanners needed for size changes	You get faster changeovers and less idle time
PRODUCTIVITY
High feed speed (100)	More panels processed per hour	You get higher daily output from the same shift
Reliable cycle-time consistency	Same output rate shift after shift	You get predictable delivery schedules for customers
ROI
Reduced labour dependency	One operator can run the machine alone	You save on staffing costs and wage bills
Lower material waste	Precision cuts reduce offcut losses	You save on raw material spend every month
Durable long-life components	Extended service intervals	You save on spare parts and maintenance costs
TRUST
Authorised Nanxing Distributor	Direct factory support and genuine parts	You get the real machine with full manufacturer backing
caple.in — In business since 1974	50+ years of woodworking machinery expertise	You get advice from engineers who know the trade
12-month / 2000-hour warranty	Whichever comes first — no ambiguity	You get protected investment from day one
Trained service team	Factory-trained engineers for installation and support	You get fast, knowledgeable on-site support
Pan-India support network	Service coverage across India with multiple demo centres	You get local support wherever your factory is

TECHNICAL SPECIFICATIONS
TECHNICAL DATA	CNC Nesting Machine NCG2812E
Control System	SYNTEC
Working Range X-axis	2,800mm
Working Range Y-axis	1,220mm
Working Range Z-axis	50mm
Working Table Size	2,800×1,220mm
Working Table Height	950mm
Max. Travelling Speed X-axis	100m/min
Max. Travelling Speed Y-axis	100m/min
Max. Travelling Speed Z-axis	20m/min
Main Spindle Power	9kw
Main Spindle Rotating Speed	24,000rpm
Tool Holder Type	ISO30
ATC	Line tool changer with 12 slots
Vacuum Pump Qty	1
Vacuum Pump Power	7.5kw
Suction Flow Rate	250m³/h
Dust Extraction	Φ150mm×1 + Φ125mm×1; 28m/s
Air Pressure Required	6~7 kg/cm²
Power Supply	415V/50Hz

FREQUENTLY ASKED QUESTIONS

What file formats does the CNC accept?

The machine typically accepts standard G-code and industry formats compatible with popular CAD/CAM software. Confirm compatibility during the demo.

Can this machine handle nested-based production?

Yes, CNC routers from Nanxing are designed for full nesting workflow — cutting, routing, and drilling in a single program cycle.

What spindle speed range does this machine support?

Spindle speed varies by model. Refer to the technical specification section above for the rated RPM.

How many operators are needed to run the machine?

Typically 1 operator for loading and unloading; the machine cycles automatically from there.

What is the machine's warranty?

12 months or 2000 operating hours, whichever is earlier.

Where can I find the full manual and spare parts list for the NCG2812E?

Full documentation for the NCG2812E is available through caple.in. Contact our team or book a demo to receive the technical manual and parts catalogue.

What air pressure/CFM does the NCG2812E require?

The NCG2812E requires an air supply at 6 bar with approximately 15 CFM continuous consumption. Ensure your compressor and drier can deliver this reliably.

What is the total power consumption of the NCG2812E?

The NCG2812E draws approximately 32 HP (24 kW) total power. Use a 40-amp 3-phase 415V supply with separate earthing and a 30 KVA stabiliser for safe operation.

What dust extraction capacity is needed for the NCG2812E?

The Nanxing CNC Nesting Machine NCG2812E without Drill Block & Optimization NACC needs approximately 1,060 CFM (1,800 CMH) dust extraction through Ø150mm × 1. Because nestings generate high fine-dust load, we recommend a Reverse Pulse Jet dust collector — specifically the Dust Collector AXC Reverse Pulse Jet 5HP — 5,000 CMH. RPJ design auto-cleans filter cartridges preventing clog and maintaining airflow.

What are the overall dimensions of the NCG2812E?

The NCG2812E measures Not specified — contact sales (L x W x H). Plan adequate floor space including operator access zones.

What is the weight of the NCG2812E?

The NCG2812E weighs 2,500kg. Ensure floor load capacity and proper foundation before installation.

What is under the customer’s scope?

Travel, food and stay for service engineers; material handling and lifting equipment; power tools and consumables for machine foundation; operator safety equipment; basic electrical connections up to the machine; general tool kit and measuring instruments — are all under the customer’s scope.
