Nanxing Edge Banding Machine NB670N-415V for Narrow Parts | PUR | 2 Color PUR Heater | Flat Scrapping

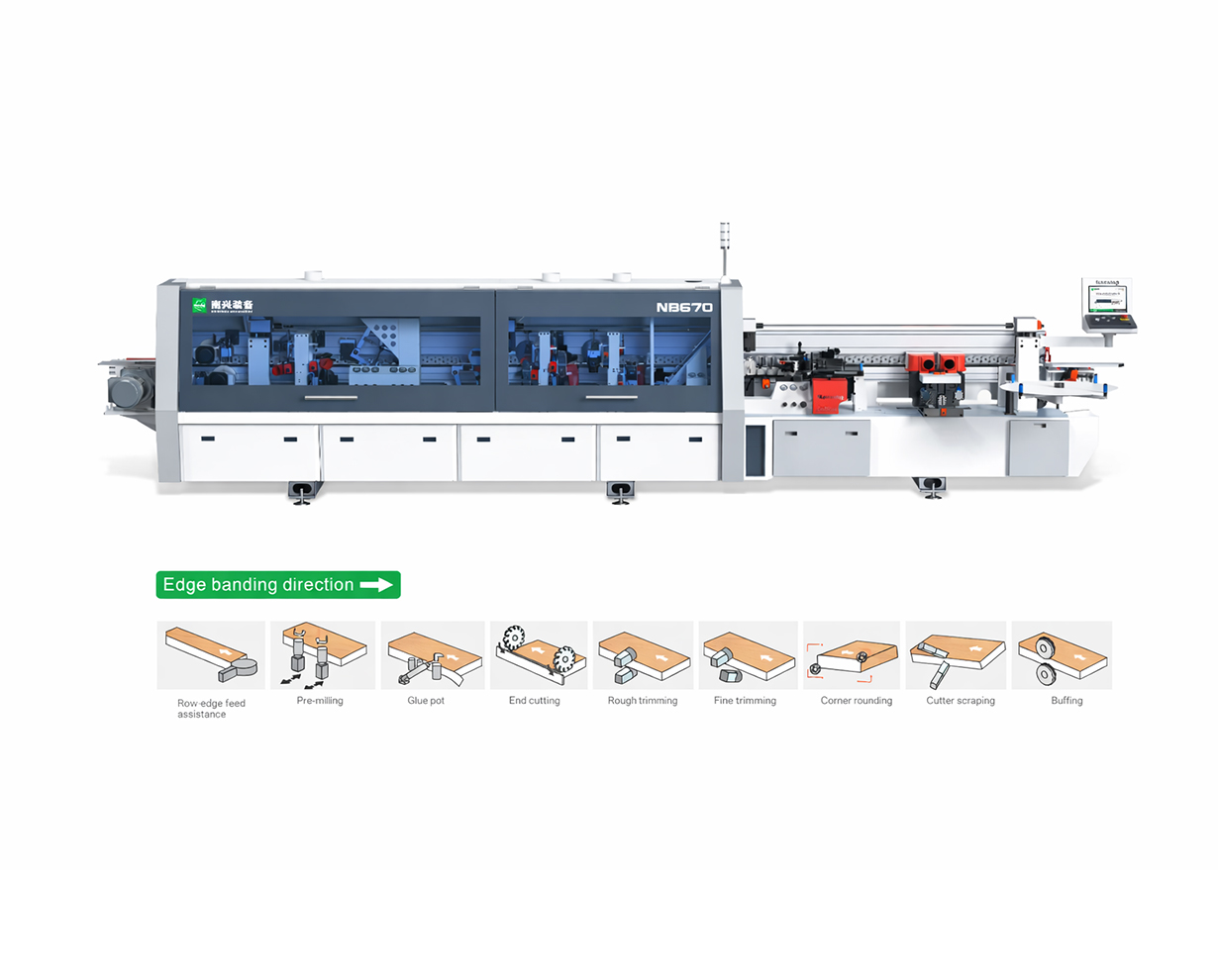

Features - Pre-milling cite - Assistance for narrow edge cite - Pre-heating cite - PUR gluing applicator - 2-color PUR heater - Edge tape supporter cite - Snipping cite - Pressure rollers cite - Lubrication system cite - End trimming cite - Rough trimming cite - Fine trimming cite - Corner trimming unit cite - Scraping cite - Clean agent sprayer cite - Flat scraping - Buffing cite - Dust collection cite - Safety device cite - Remote switch and indicator light cite - Control system cite - Energy saving cite - Production report cite - Electric equipment cite - Technical Data cite - Electric equipment cite - Technical Data cite TECHNICAL DATA: - Panel Length : ≥200mm - Panel Width : ≥40mm (45mm when corner trimming) - Panel Thickness : 9-60 mm - Edge Tape Thickness : 0.4-3 mm - Feeding Speed : 16/20/24 m/min (16 m/min for corner trimming) - Min. Panel Size : 200∗40∗9mm (Long) / 200∗45∗9mm (Short) - Dust Collector : ϕ125mm×4 - Total Power : 22.4 Kw - Overall Dimension : 7,700×1,450×1,650mm - Weight : Approx. 2,800 kg - Power Supply : 415 V; 50 Hz - Air pressure required: 0.7MPa - Operation system 10’’ touch screen - Dust collector Φ125mm×4 - Total power: 22.4 Kw - Approx. weight: 2,800 kg - Overall dimension: 7,700*1,450*1,650 mm
