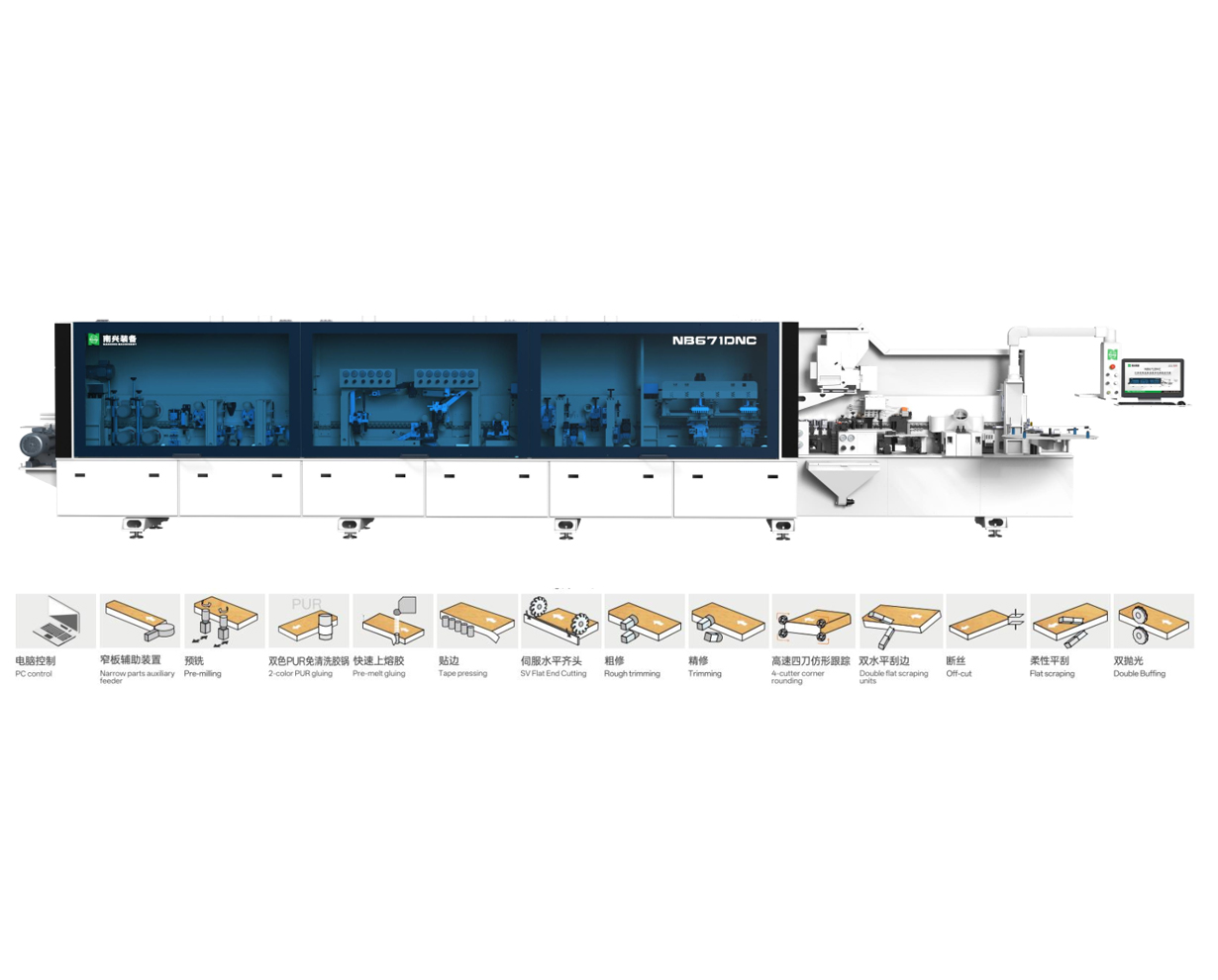

Nanxing Edge Banding Machine for narrow parts NB671DNC

Name: Nanxing Edge Banding Machine for narrow parts NB671DNC
Brand: Nanxing
SKU: NB671DNC
Price: 5050000.0 INR
Availability: OutOfStock

₹5,050,000.00 ₹6,312,500.00

Warranty

12 Months

Country of origin

China

Specifications

GST Extra

18%

Available on Request

• FEATURES

• Narrow Panel Feeding Auxiliary Device,

• Release Agent sprayer

• Pre-Milling

• Pre-Heating

• 2-Color PUR Gluing System

• Pre-melt gluing units

• Tape Feeding

• Five-Roller Tape Presser,

• Servo end cutting

• Rough trimming

• Fine trimming

• High-Speed 4-motor corner rounding

• 2 sets Flat tracing arm Scraping units

• Off cut Device

• Flat scraping,

• clean agent sprayer,

• 2 sets buffing; TECHNICAL SPECIFICATION

• Panel length : 120mm

• Panel width : 35mm

• Mini workpiece size : 300x35

• Panel thickness : 8 - 60mm

• Tape thickness : 0.4 - 3mm

• Dust collector : φ 125mm x 7

• Total power : 34.5KW

• Infeed speed : 18/22/26m/min

• Machine Size : 10000 x 1050 x 1930mm

• Net Weight : 5080kg

TEST

Edge Bander

Nanxing Edge Banding Machine for narrow parts NB671DNC

Professional edge banding. Precise bonds. Zero compromise.

QUICK SPECS

0000 x 1050 mm

Work Area

18/22/26m/min - Machine Size : 10000 x 1050 x 1930mm - Net Weight : 5080kg

Feed Speed

34.5KW - Infeed speed : 18/22/26m/min - Machine Size : 10000 x 1050 x 1930mm - Net Weight : 5080kg

Total Power

34.5KW

Power

5080kg

Weight

12 mo / 2000 hr

Warranty

HOW IT WORKS

Feed Panel

Apply Glue

Bond Edge

Trim Ends

Buff Finish

KEY FEATURES

— Narrow Panel Feeding Auxiliary Device,

— Release Agent sprayer

— 2-Color PUR Gluing System

— Pre-melt gluing units

— Five-Roller Tape Presser,

— Servo end cutting

— High-Speed 4-motor corner rounding

— 2 sets Flat tracing arm Scraping units

— clean agent sprayer,

— 2 sets buffing;

FEATURE	ADVANTAGE	BENEFIT TO YOU
SAFETY
CE-certified safety design	Meets international safety standards	You get a machine built for operator safety
Emergency stop circuit	Instant power cut-off on activation	You get immediate halt in emergencies
Enclosed moving parts	Reduces contact with rotating components	You get a safer working environment
QUALITY
Servo motor drive system	Precise, repeatable positioning	You get consistent quality across every board
USER FRIENDLY
Simple control interface	Easy-to-read display and controls	You get quick operator training and confident use
Centralized lubrication points	All grease points in one location	You get faster, easier routine maintenance
Clear diagnostic displays	On-screen error codes and guidance	You get quick fault identification and resolution
PRODUCTIVITY
High feed speed (18/22/26m/min - Machine Size : 10000 x 1050 x 1930mm - Net Weight : 5080kg)	More panels processed per hour	You get higher daily output from the same shift
Reliable cycle-time consistency	Same output rate shift after shift	You get predictable delivery schedules for customers
ROI
Reduced labour dependency	One operator can run the machine alone	You save on staffing costs and wage bills
Lower material waste	Precision cuts reduce offcut losses	You save on raw material spend every month
Durable long-life components	Extended service intervals	You save on spare parts and maintenance costs
TRUST
Authorised Nanxing Distributor	Direct factory support and genuine parts	You get the real machine with full manufacturer backing
caple.in — In business since 1974	50+ years of woodworking machinery expertise	You get advice from engineers who know the trade
12-month / 2000-hour warranty	Whichever comes first — no ambiguity	You get protected investment from day one
Trained service team	Factory-trained engineers for installation and support	You get fast, knowledgeable on-site support
Pan-India support network	Service coverage across India with multiple demo centres	You get local support wherever your factory is

TECHNICAL SPECIFICATIONS
Panel length	120mm
Panel width	35mm
Mini workpiece size	300x35
Panel thickness	8 - 60mm
Tape thickness	0.4 - 3mm
Dust collector	φ 125mm x 7
Total power	34.5KW
Infeed speed	18/22/26m/min
Machine Size	10000 x 1050 x 1930mm
Net Weight	5080kg

FREQUENTLY ASKED QUESTIONS

What edge tape materials can this machine process?

The machine is compatible with PVC, ABS, melamine, veneer, and acrylic edge tapes in varying thicknesses. Refer to the technical specification sheet for the exact thickness range.

What board thickness range does this edge bander support?

The machine handles standard panel thicknesses used in furniture production. Check the spec table above for the exact min/max board thickness.

Do I need a skilled operator to run this machine?

No. The intuitive controls allow a trained semi-skilled operator to run production after a short commissioning session from our team.

What type of glue does the machine use?

The machine uses EVA hotmelt glue (standard). Some models also support PUR glue systems for demanding applications.

How long does installation and training take?

Installation, commissioning and operator training take approximately 1–3 days for standard machines and 3–5 days for large CNC or multi-axis machines, depending on site readiness and operator availability.

Where can I find the full manual and spare parts list for the NB671DNC?

Full documentation for the NB671DNC is available through caple.in. Contact our team or book a demo to receive the technical manual and parts catalogue.

What air pressure/CFM does the NB671DNC require?

The NB671DNC requires an air supply at 6 bar with approximately 15 CFM continuous consumption. Ensure your compressor and drier can deliver this reliably.

What is the total power consumption of the NB671DNC?

The NB671DNC draws approximately 46 HP (34.5 kW) total power. Use a 63-amp 3-phase 415V supply with separate earthing and a 50 KVA stabiliser for safe operation.

What dust extraction capacity is needed for the NB671DNC?

The Nanxing Edge Banding Machine for narrow parts NB671DNC needs approximately 5,094 CFM (8,650 CMH) dust extraction through Ø125mm × 7. We recommend the Dust Collector AXC 10HP — 10,600 CMH.

What are the overall dimensions of the NB671DNC?

The Edge Banding Machine for narrow parts NB671DNC measures 10,000 × 1,050 × 1,930 mm (L × W × H) — equivalent to 32'10" × 3'5" × 6'4". Machine footprint is 10.5 m² (113 sq ft). Plan at least 567 sq ft including 1.5 m operator access zones on all sides.

What is the weight of the NB671DNC?

The NB671DNC weighs 5080kg. Ensure floor load capacity and proper foundation before installation.

What is under the customer’s scope?

Travel, food and stay for service engineers; material handling and lifting equipment; power tools and consumables for machine foundation; operator safety equipment; basic electrical connections up to the machine; general tool kit and measuring instruments — are all under the customer’s scope.
