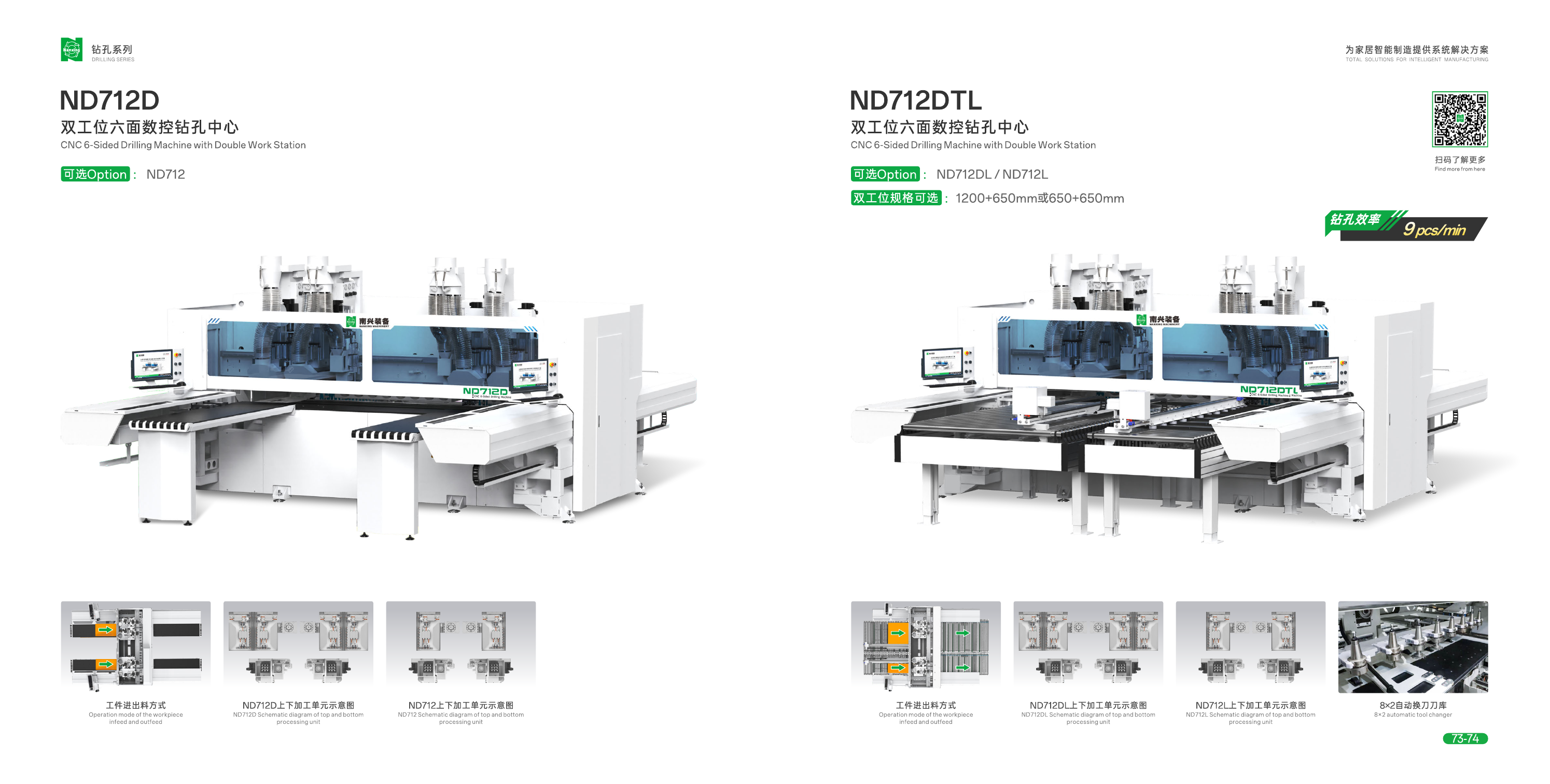

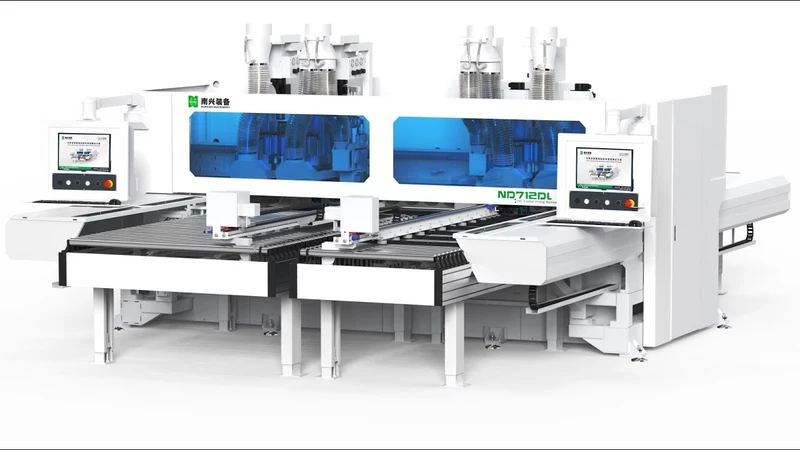

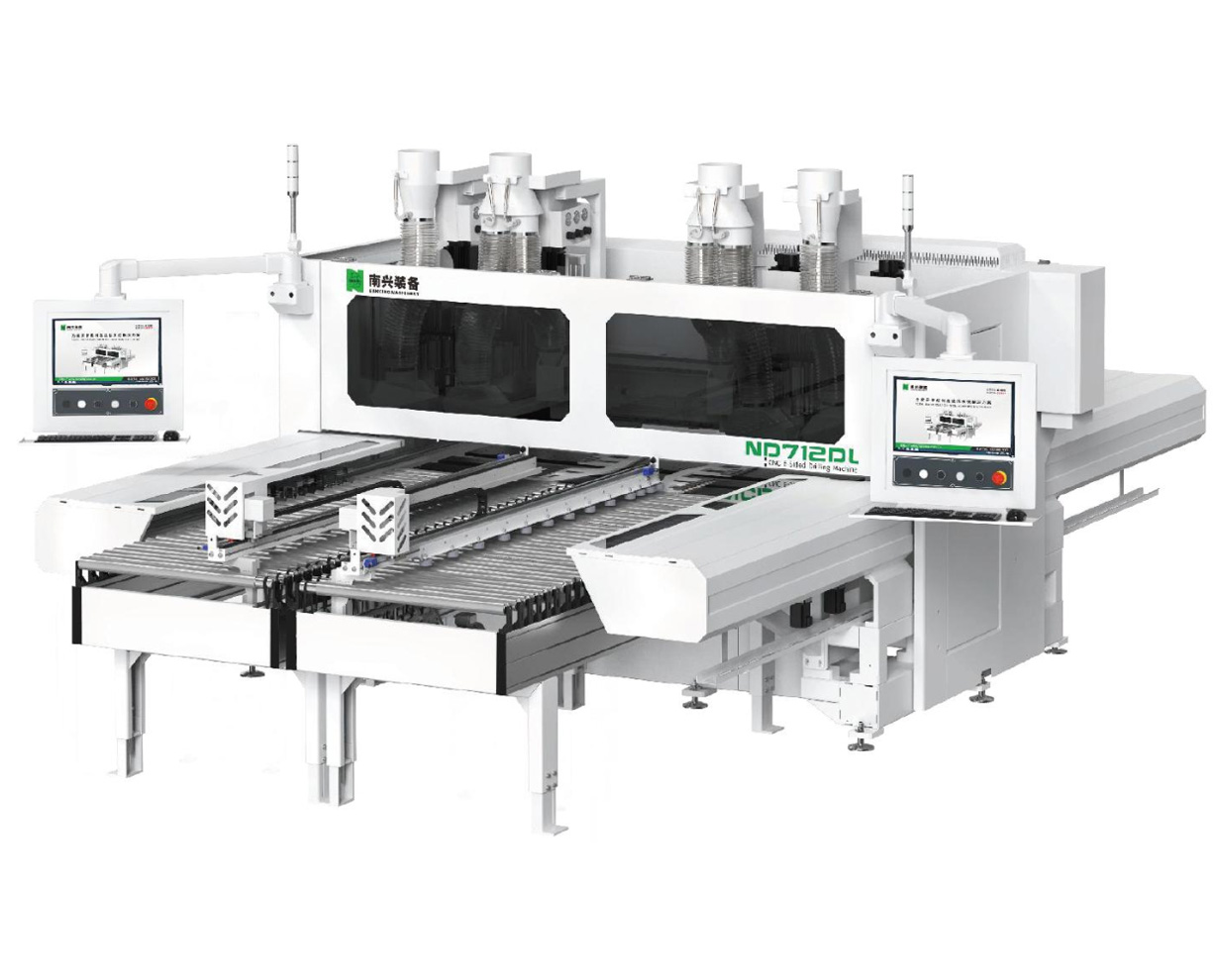

CNC 6-Sided Drilling Machine with Double Work Station ND712DL(650+650)
CNC 6-Sided Drilling Machine with Double Work Station ND712DL(650+650)

CNC 6-Sided Drilling Machine with Double Work Station ND712DL(650+650)

TECHNICAL SPECIFICATIONS
  • Total power : 48.36KW
  • Machine size : 7,400*4,470*2,380mm
  • Power supply : 415V/50Hz3PH/415V/60Hz3PH
  • Air supply : 0.6-0.7MPa
  • Total weight : 6,300Kg
  • Control system : SYNTEC
  • Panel Length : 200-3,000mm
  • Panel Width : 50-650mm
  • Panel thickness : 10-60mm
  • Max.traveling speed (X/U) axis :  : 135m/min
  • Max.traveling speed Y axis :  : 75m/min
  • Max.traveling speed Z axis :  : 30m/min
  • Max.traveling speed (X/U) axis :  : 135m/min
  • Transmission mode X & Y : Rackandpinion
  • Transmission mode Z : Ball screw rod
  • Drilling blocks
  • Boring block qty : Top 2+2 , Bottom1+1
  • Vert.drillsqty(top) : 19*4
  • Horiz.drills qty(top) : X:3×8+Y:2x4
  • Vert.drillsqty(Bottom) : 9x2
  • Max. drill diameter : 35mm Dia.
  • Drill spacing : 32mm
  • Rotation speed : 5000rpm
  • Shank diameter : 10mm
  • Main spindle qty : 4*ER32
  • Main spindle power : 4*3.5kwmax.18000rpm
Available on Request
₹7,900,000.00
₹9,875,000.00
