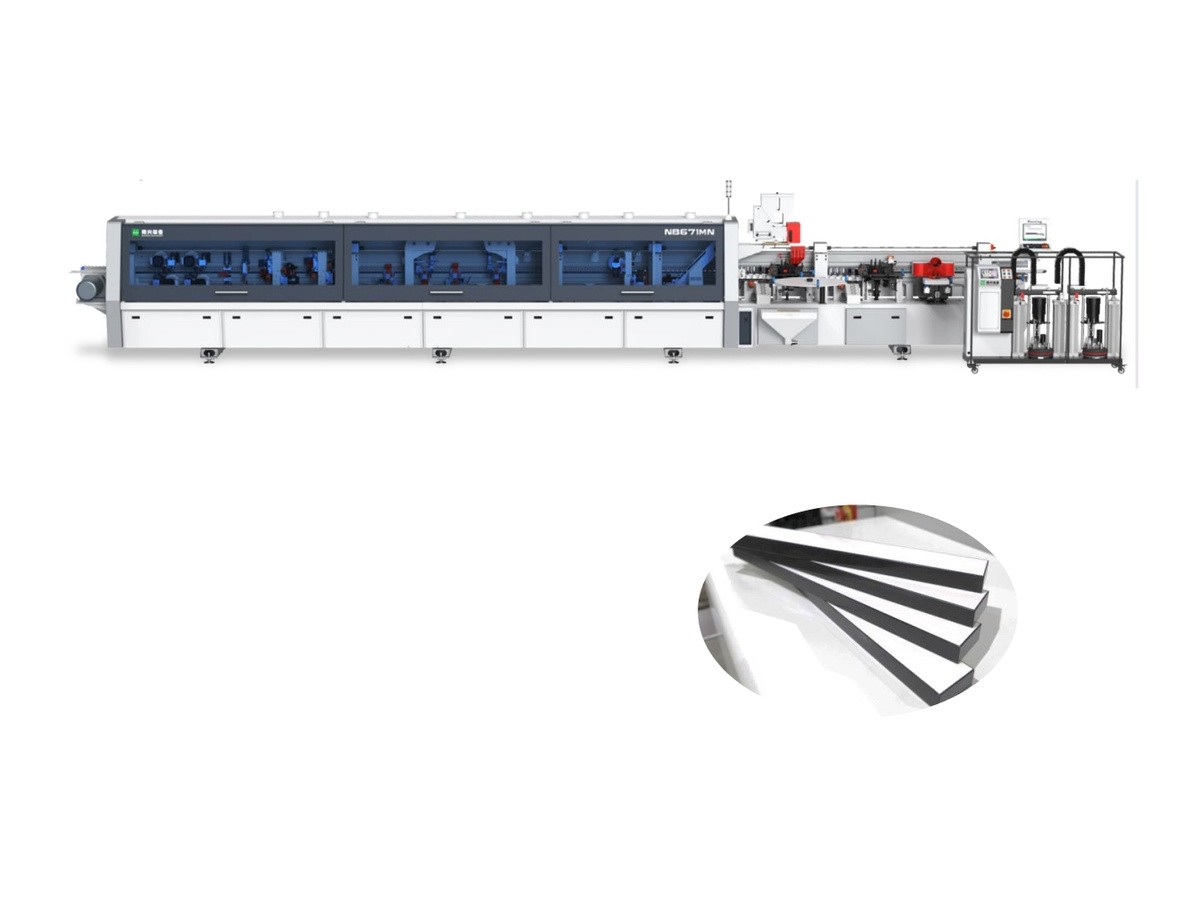

Name: Nanxing Edge Banding Machine NB671EMN(NB7CJMN) for Narrow Edges | Pre Melter | Pneumatic adjust gate | 2 Colour PUR
Brand: Nanxing
SKU: NB671EMN(NB7CJMN)415V
Price: 3300000.0 INR
Availability: OutOfStock

FEATURE

Top presser
Conveyor
Pre-milling
Assistance for narrow edge
2 sets of pre-heating
2 sets of gluing units
2 sets servo edge tape feeders
2 sets of pressure rollers
Lubrication system
End trimming
2 sets of fine trimming units with 2 position pneumatic one set with R1.5 & other with R1
Corner trimming unit
Dust collection
2 sets of scraping units with 2 position pneumatic with R1.5 & other with R1
Off cut device and flat scraping
2 sets of buffing units
Safety device
Remote switch and indicator light
Control system
Energy saving
Production report
Electric equipment
Narrow workpiece solution

TECHNICAL DATA:

Narrow Long Edge : 40×200×9mm
Narrow Short Edge : 45×200×9mm
Panel Thickness (Narrow Edge, Corner Trim On) : ≤25mm
Panel Thickness : 9-60mm
Edge Tape Thickness : 0.4-3mm
Feed Speed : 16/18/20m/min
Feed Speed (Narrow Edge, Corner Trim On) : 16m/min
Dust Extraction : Φ125mm×5
Total Power : 30.1kw
Overall Dimension : 9800×1450×1650mm
Net Weight : 3670kg

Available on Request

₹3,300,000.00

₹4,125,000.00

Customize

TEST

Edge Bander

Nanxing Edge Banding Machine NB671EMN(NB7CJMN) for Narrow Edges | Pre Melter | Pneumatic adjust gate | 2 Colour PUR

Professional edge banding. Precise bonds. Zero compromise.

QUICK SPECS

9800 x 1450 mm

Work Area

16/18/20m/min - Feed Speed (Narrow Edge

Feed Speed

Dimension 9800×1450

×1650 mm

Dimension

30.1kw

Power

3670kg

Weight

12 mo / 2000 hr

Warranty

HOW IT WORKS

Feed Panel

Apply Glue

Bond Edge

Trim Ends

Buff Finish

KEY FEATURES

— Assistance for narrow edge

— 2 sets of pre-heating

— 2 sets of gluing units

— 2 sets servo edge tape feeders

— 2 sets of pressure rollers

— Lubrication system

— 2 sets of fine trimming units with 2 position pneumatic one set with R1.5 & other with R1

— Corner trimming unit

— Dust collection

— 2 sets of scraping units with 2 position pneumatic with R1.5 & other with R1

FEATURE	ADVANTAGE	BENEFIT TO YOU
SAFETY
CE-certified safety design	Meets international safety standards	You get a machine built for operator safety
Emergency stop circuit	Instant power cut-off on activation	You get immediate halt in emergencies
Enclosed moving parts	Reduces contact with rotating components	You get a safer working environment
QUALITY
Servo motor drive system	Precise, repeatable positioning	You get consistent quality across every board
USER FRIENDLY
Simple control interface	Easy-to-read display and controls	You get quick operator training and confident use
Centralized lubrication points	All grease points in one location	You get faster, easier routine maintenance
Clear diagnostic displays	On-screen error codes and guidance	You get quick fault identification and resolution
PRODUCTIVITY
High feed speed (16/18/20m/min - Feed Speed (Narrow Edge)	More panels processed per hour	You get higher daily output from the same shift
Reliable cycle-time consistency	Same output rate shift after shift	You get predictable delivery schedules for customers
ROI
Reduced labour dependency	One operator can run the machine alone	You save on staffing costs and wage bills
Lower material waste	Precision cuts reduce offcut losses	You save on raw material spend every month
Durable long-life components	Extended service intervals	You save on spare parts and maintenance costs
TRUST
Authorised Nanxing Distributor	Direct factory support and genuine parts	You get the real machine with full manufacturer backing
caple.in — In business since 1974	50+ years of woodworking machinery expertise	You get advice from engineers who know the trade
12-month / 2000-hour warranty	Whichever comes first — no ambiguity	You get protected investment from day one
Trained service team	Factory-trained engineers for installation and support	You get fast, knowledgeable on-site support
Pan-India support network	Service coverage across India with multiple demo centres	You get local support wherever your factory is

TECHNICAL SPECIFICATIONS
Narrow Long Edge	40×200×9mm
Narrow Short Edge	45×200×9mm
Panel Thickness	9-60mm
Edge Tape Thickness	0.4-3mm
Feed Speed	16/18/20m/min
Feed Speed (Narrow Edge, Corner Trim On)	16m/min
Dust Extraction	Φ125mm×5
Total Power	30.1kw
Overall Dimension	9800×1450×1650mm
Net Weight	3670kg

FREQUENTLY ASKED QUESTIONS

What edge tape materials can this machine process?

The machine is compatible with PVC, ABS, melamine, veneer, and acrylic edge tapes in varying thicknesses. Refer to the technical specification sheet for the exact thickness range.

What board thickness range does this edge bander support?

The machine handles standard panel thicknesses used in furniture production. Check the spec table above for the exact min/max board thickness.

Do I need a skilled operator to run this machine?

No. The intuitive controls allow a trained semi-skilled operator to run production after a short commissioning session from our team.

What type of glue does the machine use?

The machine uses EVA hotmelt glue (standard). Some models also support PUR glue systems for demanding applications.

How long does installation and training take?

Installation, commissioning and operator training take approximately 1–3 days for standard machines and 3–5 days for large CNC or multi-axis machines, depending on site readiness and operator availability.

Where can I find the full manual and spare parts list for the NB671EMN?

Full documentation for the NB671EMN is available through caple.in. Contact our team or book a demo to receive the technical manual and parts catalogue.

What air pressure/CFM does the NB671EMN require?

The NB671EMN requires an air supply at 6 bar with approximately 15 CFM continuous consumption. Ensure your compressor and drier can deliver this reliably.

What is the total power consumption of the NB671EMN?

The NB671EMN draws approximately 40 HP (30.1 kW) total power. Use a 50-amp 3-phase 415V supply with separate earthing and a 40 KVA stabiliser for safe operation.

What dust extraction capacity is needed for the NB671EMN?

The Nanxing Edge Banding Machine NB671EMN(NB7CJMN) for Narrow Edges needs approximately 3,651 CFM (6,200 CMH) dust extraction through Ø125mm × 5. We recommend the Dust Collector AXC 10HP — 6,625 CMH.

What are the overall dimensions of the NB671EMN?

The Edge Banding Machine NB671EMN(NB7CJMN) for Narrow Edges measures 9,800 × 1,450 × 1,650 mm (L × W × H) — equivalent to 32'2" × 4'9" × 5'5". Machine footprint is 14.2 m² (153 sq ft). Plan at least 613 sq ft including 1.5 m operator access zones on all sides.

What is the weight of the NB671EMN?

The NB671EMN weighs 3670kg. Ensure floor load capacity and proper foundation before installation.

What is under the customer’s scope?

Travel, food and stay for service engineers; material handling and lifting equipment; power tools and consumables for machine foundation; operator safety equipment; basic electrical connections up to the machine; general tool kit and measuring instruments — are all under the customer’s scope.
