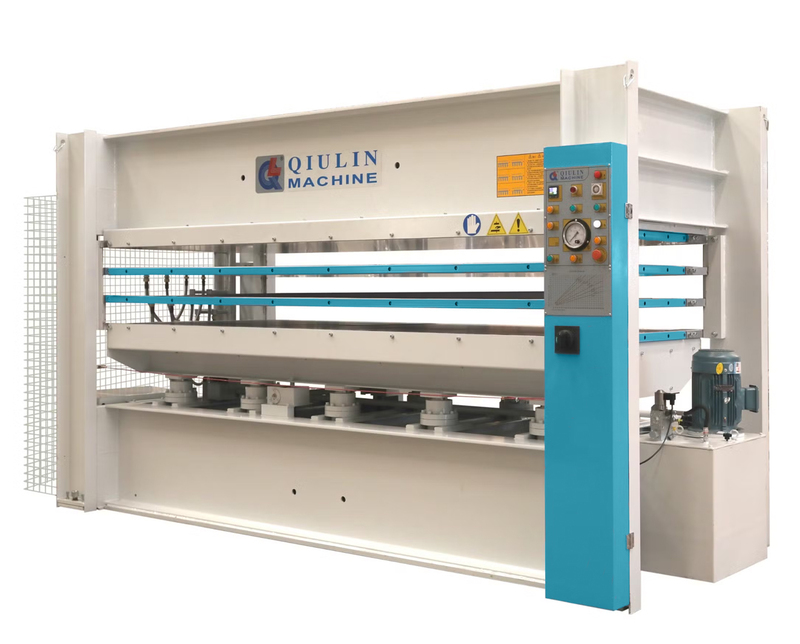

Hot Press Machine BY214X8/12(2)H1RC [2500x1300mm | 120T | Solid Steel | Daylight 2]
₹2,600,000.00 ₹3,250,000.00
Warranty
12 Months GST Extra
18% Available on Request
TECHNICAL DATA:
- Total pressure: 1000KN (100Ton)
- Specific pressure: 3.7Kgf/cm2
- Working layer: 2
- Platen No.& Size: 2-2500x1300x42mm(solid steel drilled hot platen covered with mylar)
- Platen Opening : 170mm
- Cylinder No.: 8
- No. Dia: 85mm
- Max temperature: 120 Deg.
- Heating Type: Electri
| Features → Advantages → Benefits | ||
|---|---|---|
| Feature / Fact | Advantage (So what?) | Benefit (You get / You save) |
| ▲ SAFETY | ||
| Emergency stop on both sides | Immediate halt from infeed or outfeed position | Protects operator from platen and hydraulic system hazards |
| Overload pressure protection valve | Hydraulic pressure relief prevents structural overload | Prevents frame damage and catastrophic failure during operation |
| Interlocked safety guards on hydraulic zone | Guards prevent access while press is in motion | Eliminates crush injury risk during pressing cycle |
| ★ QUALITY | ||
| Solid steel frame — 1000KN capacity | Rigid frame maintains parallel platens throughout press cycle | Uniform bond pressure across entire board — no edge delamination |
| Precision temperature control ±2°C | Even heat distribution across full platen surface | Consistent glue cure — no cold spots or over-cured patches on MDF/veneer boards |
| Hydraulic synchronised pressure | Pressure applied evenly across all cylinders simultaneously | Flat, stress-free panels with no warping — ready for next process |
| ⚡ PRODUCTIVITY | ||
| Multi-daylight capacity pressing | Multiple boards pressed per cycle | More panels per hour — reduces bottleneck in lamination line |
| Fast hydraulic closing speed | Press closes and opens in under 60 seconds | High cycle rate — more pressing cycles per shift |
| PLC automatic cycle control | Operator sets pressure, time, temperature once — press runs automatically | One operator can manage press and adjacent work simultaneously |
| ● RELIABILITY | ||
| Solid steel welded frame construction | Heavy-gauge steel resists flex and fatigue across millions of cycles | Machine outlasts the factory — low depreciation over 15+ years |
| ISO hydraulic components | Standard hydraulic fittings and seals from global suppliers | Spare parts available anywhere — no waiting for imported proprietary parts |
| Sealed hydraulic circuit | Closed hydraulic system prevents contamination and leaks | Minimal maintenance — no oil changes needed for years under normal use |
| ₹ ROI | ||
| Replaces outsourced lamination | In-house pressing eliminates subcontracting cost per board | indicative payback — actual results depend on utilisation for factories pressing 50+ boards/day |
| Reduces rejected panels | Consistent pressure and temperature eliminates delamination waste | Saves material cost — no scrapping of improperly bonded boards |
| Caple finance options available | Flexible EMI and lease arrangements for MSME factories | Acquire machine without depleting working capital |
| ✓ TRUST | ||
| Caple Industrial Solutions — authorised dealer since 1974 | 4th-generation family business with 2,000+ factory installations across India | Single point of contact for machine, spare parts, service, and operator training |
| Multiple demo centres across India | See the press in operation on your own board material before purchase | Buy with confidence — no surprises after delivery |
| Pan-India service network | Trained service engineers in Mumbai, Delhi, Bengaluru, Kolkata, Ahmedabad | Rapid response — critical machine back in production fast |
