Industrial Sanding Machines for Wood, MDF and Veneer Panels in India

Better surface quality, less rework and more consistent production.

Caple Industrial Solutions supplies wide-belt sanders for calibration and surface sanding, brush and profile sanders for doors and shaped parts, and edge and vertical belt sanders. We support machine selection, sample trials, installation, operator training and service across India.

Sanding and Surface Preparation Guide

The free 11-page PDF covers sanding heads, grit ranges, a grit-to-micron table, process recipes, reference specifications, site readiness, dust limits and buying questions.

Download the sanding guide (PDF)
1. Sanding processes explained
ProcessPurposeTypical use
Cali­brationControl thickness and remove excess materialMDF, plywood, solid-wood panels
Raw sandingPrepare an even surfaceWood, MDF, suitable veneer
Fine sandingRefine texture and remove sanding marksVeneer, solid wood, panels
Primer and sealer sandingRemove raised fibres and coating defectsPainted doors, shutters, panels
Cross sandingTransverse belt removes tape, glue lines and joint marksVeneered panels
Super­finishingOscillating pad belt for very fine finishingLacquer and high-gloss work
Brush and profile sandingReach grooves, contours and shaped detailsCabinet doors, mouldings
BuffingPolish a fully cured coating to the required glossHigh-gloss panels
2. Sanding heads and grit ranges
HeadRoleTypical grit
RollerStock removal and calibrationP40–P180
Combination roller and padCalibration and fine sanding in one unitP80–P400
Segmented padSectional pressure that protects edgesUp to P400
Cross belt and superfinishFine and high-gloss finishingP600–P2000
Brush and discProfiles, recesses and grain openingP150–P360

Contact hardness matters: a steel or hard roller (about 85 Shore A) calibrates accurately; medium rollers (45–55 Shore A) suit general sanding; soft rollers (20–30 Shore A) follow the surface for veneer and lacquer.

3. Reference specification: 1,350 mm two-head wide-belt sander

A common panel-factory set-up: a calibrating roller in head 1 and a combination roller with sectional pad in head 2. Values vary by model.

Working width1,350 mm
Working thickness4–170 mm
Belt size1,370 × 2,150 mm
Heads140 mm roller, 85 Shore A; 160 mm roller, 45 Shore A, with sectional pad
Main motor11 kW (15 HP), two-speed option
Belt speed9 / 18 m/s
Feed speed4.5 / 9 m/min, or 3.5–18 m/min variable
ControlsDigital thickness readout, motorised table, ammeter, stored programmes

Safety features to look for: over-thickness switch, infeed safety bar, emergency stops, head brake, lockable isolator and auto-stop on belt break, belt run-off or loss of air.

4. Site readiness checklist
  • Power: 400–415 V, 3-phase + neutral + earth, 50 Hz; 10 mm² 4-core cable; 4-pole 40 A breaker.
  • Stabiliser: 25–30 kVA where voltage fluctuates.
  • Earthing: dedicated earth, minimum 8 mm copper or 10 mm aluminium.
  • Compressed air: 6.5 bar at the machine, dry air, 12 mm line; about 26 cfm per belt cleaner.
  • Dust extraction: 2 × 195 mm outlets, about 5,500 m³/h; duct velocity 20–25 m/s.
  • Installation: about two days with trial panels ready.

See our dust collectors for woodworking.

5. Sanding-to-finishing workflow
  1. Inspect moisture, thickness, flatness and defects.
  2. Calibrate only as much as the dimension requires.
  3. Sand progressively; never skip more than one grit grade.
  4. Clean and inspect.
  5. Apply sealer or primer, then denib lightly without cutting through edges.
  6. Apply and cure the topcoat; polish only fully cured coatings.
  7. Inspect against acceptance criteria and save the approved recipe.
6. Abrasive grit selection
  • Raw sanding: P80–P150, finishing at P150–P180 before stain.
  • Primer and sealer sanding: P220–P320.
  • Lacquer between coats: P320–P600.
  • High-gloss preparation: P1000–P2500, then buffing.

Grit number alone does not set final roughness or removal. Trial on representative samples before approving settings.

7. Quality checks and troubleshooting
DefectCheck first
Scratches after coatingGrit sequence, skipped grits, worn or loaded belts
Burn marksFeed speed, pressure, belt wear and cleaning
Sand-through on edgesRemoval setting, pad segments, veneer thickness
Uneven thicknessCalibration, feed belt and roller condition
Tape or glue lines on veneerAdd a cross-belt stage
Raised fibresMoisture content and sealer sanding step

Change one variable at a time.

8. Dust safety, cost and ROI

Wood dust is a recognised carcinogen. Use engineered extraction, conductive and earthed ducts, guarding and dry air, and never mix metal and wood dust in one system.

Cost per accepted panel = relevant production costs ÷ accepted panels. Include abrasives, labour, power, air, extraction, coating, rework, maintenance and downtime, and compare before and after any change. See surface finishing processes.

9. Frequently asked questions

Which sanding machine suits MDF and plywood panels? A two-head wide-belt sander with a calibrating roller and a combination head suits most panel factories.

Which machine sands profiled shutters? A brush and disc sander reaches grooves and contours on raw and primed doors.

Can Caple trial my panels? Yes. Send your material, part sizes and finish requirement for a sample trial.

The right sanding process meets your surface standard at the lowest cost per accepted panel. Send us your material, part sizes and finish requirement for a configuration and sample trial.

Discuss your sanding requirement on WhatsApp
Category
  • 1
    • 6
    • 1
    • 1
    • 4
Brands
No matches found
1
2
10
Category
  • 1
    • 6
    • 1
    • 1
    • 4
Brands
No matches found
1
2
10
Show more
-

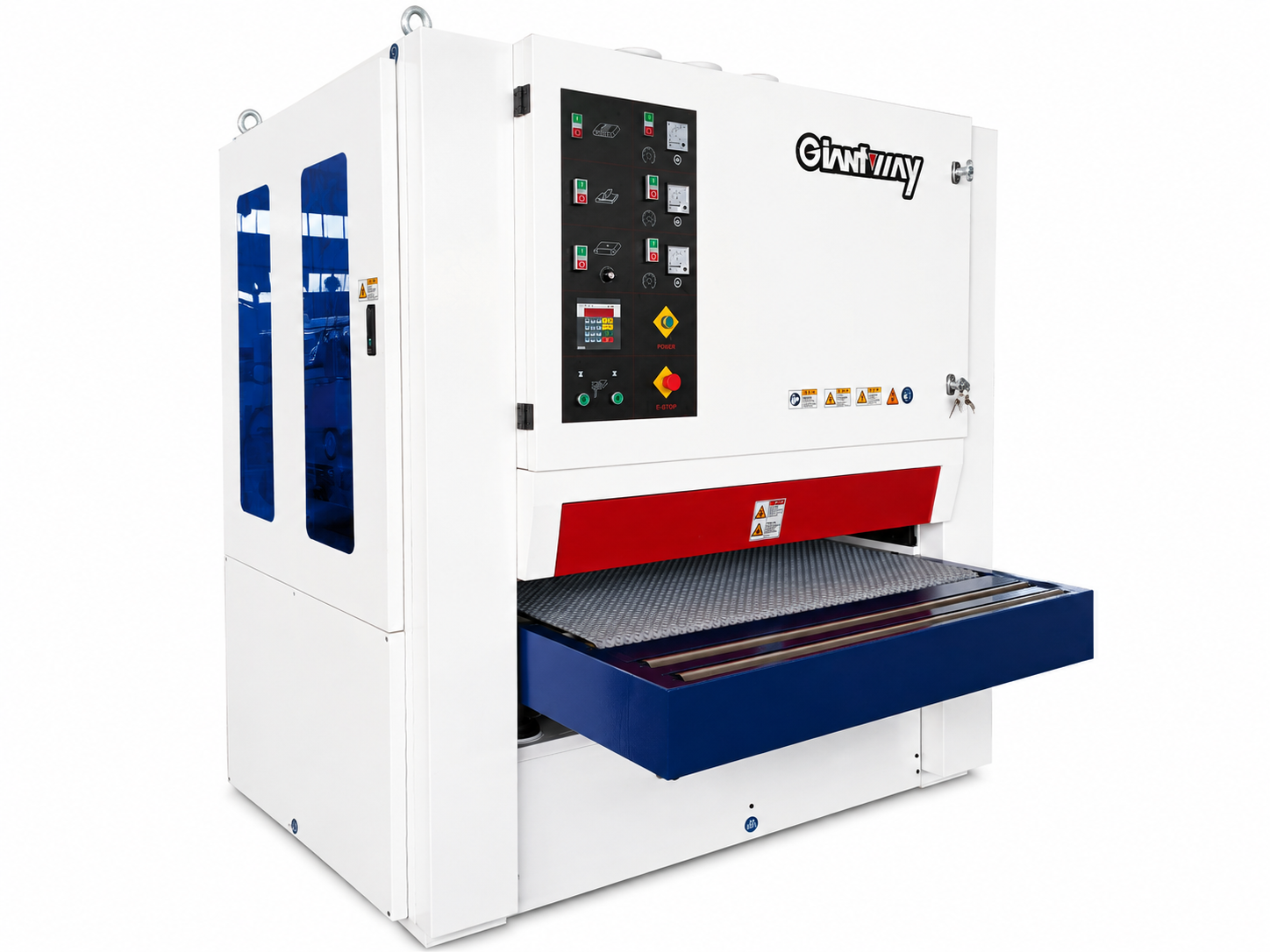

Giantway Wide Belt Veneer Sander SGJ1300R-RB [ 1300mm Working Width | Roller + Roller | Total Power: 33.43kW ]

TECHNICAL DATA
- Model : SGJ1300R-RB
- Configuration : Roller + Roller
- Service Side : Right
- First roller diameter : 320mm
- Second roller diameter : 320mm
- First roller rubber hardness : Shore A 26
- Second roller rubber hardness : Shore A 22
- Working table height : 850mm
- Working width : 40-1300mm
- Working thickness : 1-100mm
- Feeding speed : 0-19m/min
- First belt speed : Max 12m/s (with inverter)
- Second belt speed : Max 12m/s (with inverter)
- Sanding belt size : 1330 x 2620mm
- Feeding belt size : 1300 x 3740mm
- Total power : 33.43kw
- First belt motor : 15kw
- Second belt motor : 15kw
- Motors position : Inside the machine
- Feeding motor : 3 kw
- Lift & decline motor : 0.18kw - 4P
- Brush motor : 0.25kw - 6P
- Working pressure : 0.4-0.8Mpa
- Compressed air consumption : 1 CBM/min
- Overall dimension : 2090 x 2370 x 2220mm
- Weight : About 4300kgs
- Machine Frame : Steel structure with 30mm steel board, 200mm tube steel, manganese steel beam and 120 x 60 steel tube; main motors positioned inside the body in a protected position
- Transmission : Main motor to working units with V-belts and pulleys
- Emergency Stop : Disk brakes on each working unit
- Standard Paint : Light white and blue
- Standard : Manufactured per CE regulations according to European general machine directive
- Lifting System : Double gear box to ensure lifting torque; double lifting chains for power transmission
- Lifting Columns : Ball screws inside the lifting column for precise and smooth lifting
- Pressure System : Pressing units positioned in front and rear of each working unit hold workpieces on the conveyor belt
- Press Rollers : Three spring-loaded press rollers with disc springs compensate panel thickness difference; assembled on easy-to-adjust roller holders
- Feeding Table : Fixed table for a constant passline; steel construction with planarity tolerance within 0.05mm; fine-ground and heat-treated surface to avoid conveyor belt wear
- Conveyor Belt : Rubber surface at appropriate hardness; top profile according to operation requirement
- Feed Drive : Motor with bevel gear reducer; feeding speed continuously variable from 0 to 19m/min
- Feed Table Extension : Front side extension with steel idle rollers
- Working System : Working system moves up & down
- 1st Working Unit : Dia 320mm rubber sanding roller with sanding belt tension unit, electronic oscillation, dust hood and safety systems
- 2nd Working Unit : Same as 1st working unit; Dia 320mm rubber sanding roller with sanding belt tension unit, electronic oscillation, dust hood and safety systems
- Sanding Roller : Helicoidal grooves for cooling; SKF bearings inside
- Sanding Motors : Motor with inverter for variable belt speed
- Belt Cleaning : Air jet blowers clean and cool the sanding belt
- Belt Tension Unit : Tension roller, tension switch, limit switch, tension pressure meter and eccentric shaft
- 3rd Working Unit (Cleaning System) : Rotary air jet blowers and top cleaning brush for cleaning the panels
- Bottom Cleaning Brush : Under the feeding table; cleans the conveyor belt to avoid secondary contamination
- Electric System : Electric plant at the front of the machine with main switch, PLC, contactors, breakers, transformer and inverters; built on standard CE rules
- Electric Parts : Teco brand
- Sensors : Banner sensor; Omron limit switch
- Pneumatic System : Oil/air nebulizer, solenoid valve and air pressure relay; AirTAC brand pneumatic parts
- Control System : Front control panel with push buttons and micro computer; ampere meter, touch screen and table up & down buttons
₹4,050,000.00 ₹5,062,500.00

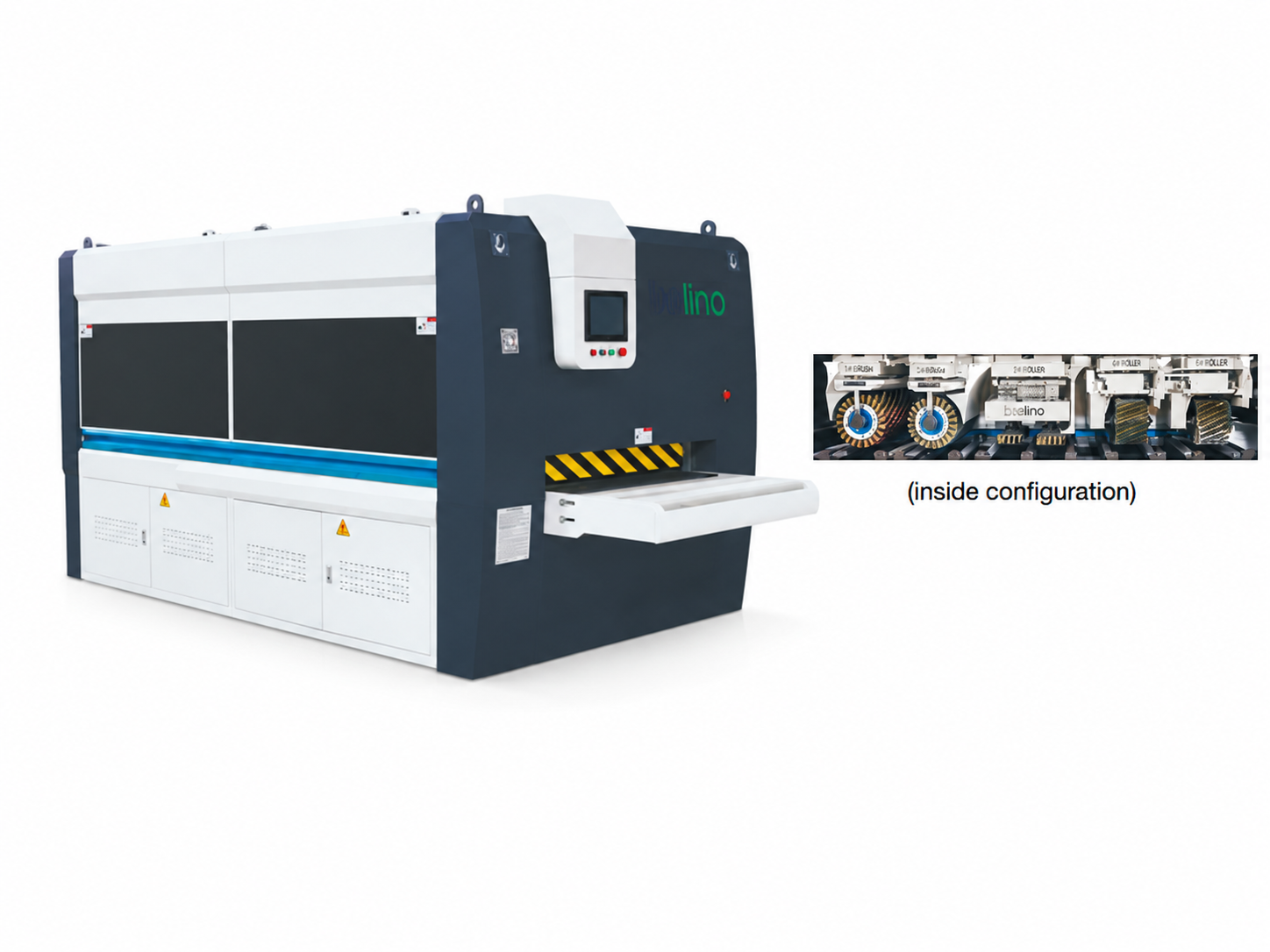

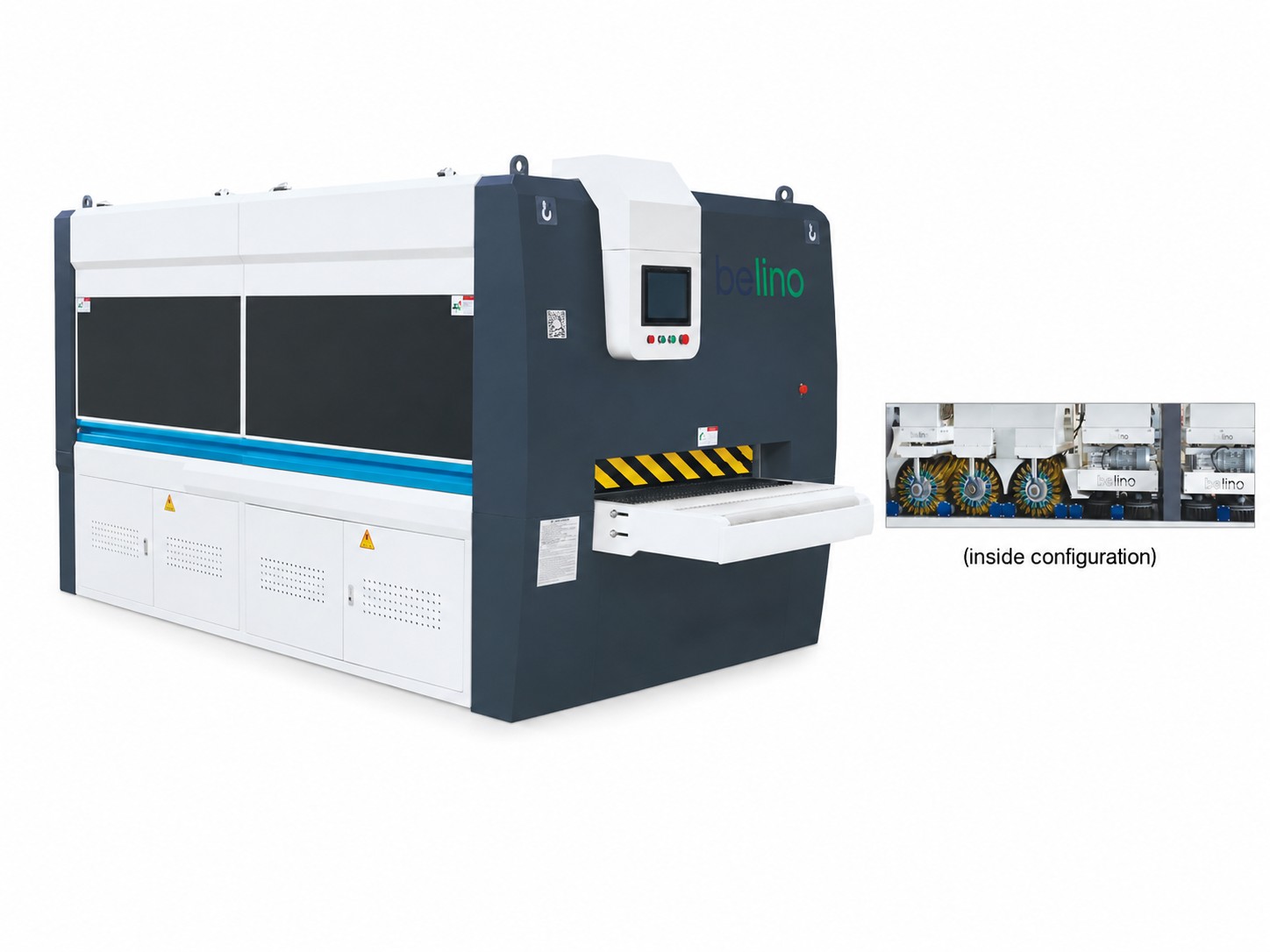

Belino Wide Profile Sanding Machine SP-R1300M4 [ 1,300 mm Processing Width | 1–9 m/min Feed | 8.6 kW ]

Detailed Description
The Belino SP-R1300M4 is a heavy-duty wide profile sanding machine designed for raw-material and primer
sanding on flat or uneven surfaces. It processes solid wood, MDF and veneer panels up to 1,300 mm wide
and is suited to doors, windows, kitchen cabinets and furniture components. PLC touch-screen control,
individually adjustable sanding functions and an end-of-line dust-sweeping unit support repeatable surface
preparation.

Technical SPECIFICATIONS:

- Model : SP-R1300M4
- Maximum Processing Width : 1,300 mm
- Minimum Processing Length : 400 mm
- Processing Thickness : 10–130 mm
- Workbench Height : 850 mm
- Feeding Speed : 1–9 m/min
- Conveyor Motor Power : 1.5 kW
- Power Supply : 415 V / 50 Hz / 3 Phase
- Dust-Extraction Inlets : Ø150 mm × 3
- Total Power : 8.6 kW
- Machine Dimensions (L × W × H) : 3,200 × 2,200 × 2,100 mm
- Machine Weight : 2,300 kg
₹2,150,000.00 ₹2,687,500.00

Wide Profile Sanding Machine SP-R1300M7 [ 3-Spiral Roller | 2-Round Pad | 13.95kW ]

A heavy-duty, 1,300 mm wide profile sanding machine for raw-material and primer sanding of solid wood, MDF and veneer components used in doors, windows, kitchens and custom furniture.

TECHNICAL SPECIFICATIONS:
  • Maximum Processing Width: 1,300 mm
  • Minimum Processing Length: 400 mm
  • Processing Thickness: 10–130 mm
  • Work Bench Height: 850 mm
  • Feeding Speed: 1–12 m/min
  • Conveyor Motor Power: 1.5 kW
  • Spiral Roller Motor Power: 1.5 kW × 3 units
  • Round-Pad Motor Power: 0.55 kW × 4 units
  • Total/Main Power: 13.95 kW
  • Power Supply: 415 V / 50 Hz / 3 Phase
  • Dust-Extraction Outlets: Ø200 mm × 5
  • Machine Dimensions: 4,630 × 2,200 × 2,100 mm
  • Machine Weight: 4,200 kg

₹3,800,000.00 ₹4,750,000.00

Wide Profile Sanding Machine SP-R1300M6 [ 2-Spiral Roller | Round Pad | 2-Multi-Roller | Round Pad Swing | 13.5kW ]

A heavy-duty, 1,300 mm wide profile sanding machine for raw-material and primer sanding of solid wood, MDF and veneer components used in doors, windows, kitchens and custom furniture.

TECHNICAL SPECIFICATIONS:
  • Maximum Processing Width: 1,300 mm
  • Minimum Processing Length: 400 mm
  • Processing Thickness: 10–130 mm
  • Work Bench Height: 850 mm
  • Feeding Speed: 1–12 m/min
  • Conveyor Motor Power: 1.5 kW
  • Spiral Roller Motor Power: 1.5 kW x 2 units
  • Round Pad Swing Motor Power: 0.55 kW
  • Round Pad Motor Power: 0.75 kW x 1 unit
  • Multi-Roller Motor Power: 0.75 kW x 2 units
  • Total/Main Power: 13.5 kW
  • Power Supply: 415 V / 50 Hz / 3 Phase
  • Dust Extraction Outlets: Ø200 mm × 5
  • Machine Dimensions (L x W x H): 4,330 x 2,200 x 2,100 mm
  • Machine Weight: 3,800 kg

₹3,450,000.00 ₹4,312,500.00

Wide Profile Sanding Machine SP-R1300M9 [ 3-Spiral Roller | 4-Round Pad | 2-Multi-Roller | Round Pad Swing | 17.25kW ]

The Belino SP-R1300M9 is a heavy-duty wide profile shaped sanding machine engineered for high-precision raw-material and primer sanding on flat or contoured surfaces. Ideal for manufacturing doors, windows, kitchen cabinets and custom furniture, it processes solid wood, MDF and veneer panels up to 1,300 mm wide.

Technical Specifications
  • Model: SP-R1300M9
  • Maximum Processing Width: 1,300 mm
  • Minimum Processing Length: 400 mm
  • Processing Thickness: 10–130 mm
  • Work Bench Height: 850 mm
  • Feeding Speed: 1–12 m/min
  • Conveyor Motor Power: 1.5 kW
  • Spiral Roller Motor Power: 1.5 kW × 3 units
  • Round Pad Swing Motor Power: 0.55 kW
  • Round Pad Motor Power: 0.55 kW × 4 units
  • Multi-Roller Motor Power: 0.75 kW × 2 units
  • Total/Main Power: 17.25 kW
  • Power Supply: 415 V / 50 Hz / 3 Phase
  • Dust Extraction Outlets: Ø200 mm × 5
  • Machine Dimensions (L × W × H): 5,330 × 2,200 × 2,100 mm
  • Machine Weight: 5,200 kg
₹4,800,000.00 ₹6,000,000.00

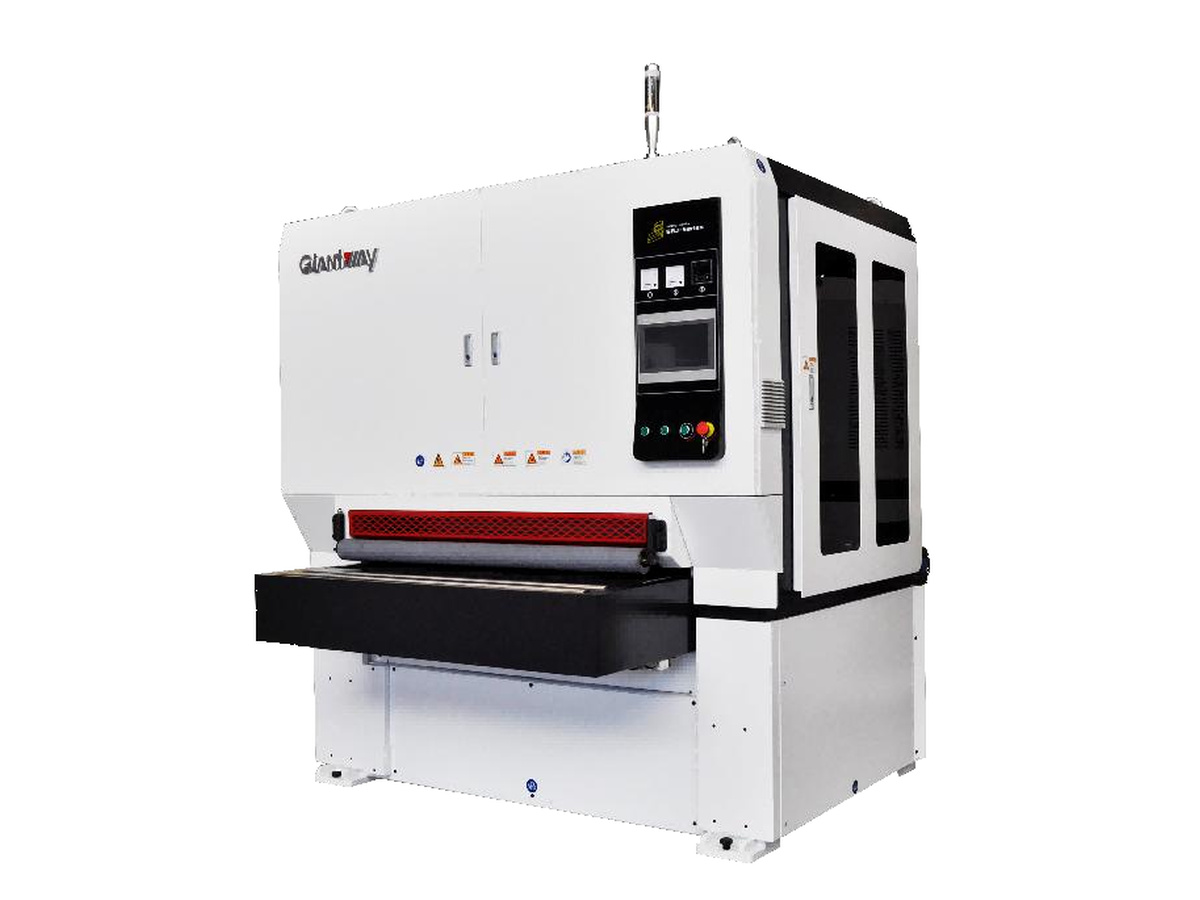

Wide Belt Sander with Double Belt SGJ1300R-RPA [STANDARD STEEL ROLLER | + COMBINATION (ROLLER AND PAD) | TOTAL Power: 40.62KW]

Technical Specifications
• Model / Type : SGJ1300R-RPA (Standard Type)
• Contact Roller Diameter (mm) : 240
• Calibrating Roller Diameter (mm) : 210
• Working Width (mm) : 40 – 1300
• Working Thickness (mm) : 2.5 – 150
• Feeding Speed (m/min) : 0 – 19
• First Belt Speed (m/s) : 24
• Second Belt Speed (m/s) : 18
• Sanding Belt Size (mm) : 1330 × 2200
• Total Power (kW) : 40.62
• First Belt Motor Power (kW) : 22
• Second Belt Motor Power (kW) : 15
• Motors Position : Inside
• Feeding Motor Power (kW) : 3 (Inverter)
• Lift & Decline Motor Power (kW) : 0.37
• Brush Motor Power (kW) : 0.25
• Working Pressure (MPa) : 0.4 – 0.8
• Compressed Air Consumption (CBM/min) : 1
• Overall Dimensions (mm) : 2300 × 2000 × 2120
• Weight (kg) : 3600
₹2,100,000.00 ₹2,625,000.00

Lacquered Panel Wide Belt Sander DW-13025A

STANDARD SPECIFICATIONS:

  • Sanding belt oscillation controlled by photocell sensor.
  • Microcomputer controlled thickness setting.
  • Automatic control for conveyor belt tracking.
  • Front and rear head equipped with rubber covered pressure roller.
  • Levelling adjustment for sanding drum and pressure device.
  • Independent start controls for main motor.
  • Panel cleaning brush roller
  • Motor overload protection.
  • Feed speed is controlled by Variable Speed.
  • The conveyor belt is Heavy Duty type.
  • The machine body I made by all steel, not be wired by H iron.
  • The speed of Sanding belt & Scotch Brite Roller are controlled Inverter.
  • Air jet sanding belt cleaning device.
  • Emergency Stop Device
  • - Sanding belt break or midtrack.
  • - Power failure.
  • - Main Motor overload.

TECHNICAL DATA:

  • Main Motor : 15 HP
  • Scotch Brite Roller : 7-1/2 HP
  • Feed Motor : 5 HP
  • Table Hoist Motor : 1 HP
  • Brush Roller : 1/2 HP
  • Sanding Belt : 52" x 75"
  • Feed speed is controlled by Inverter


₹4,800,000.00 ₹6,000,000.00

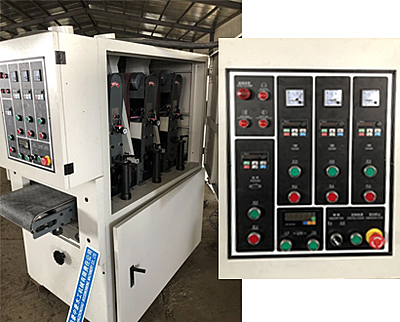

Sanding Machine Type MVT-1500(1AT+1SB)

TECHNICAL DATA

• Working sides: 1

• Minimum length of pieces: 200 mm

• Minimum width of pieces: 100 mm

• Maximum thickness of pieces: 90 mm

• Working speed adjustable with inverter: from 5 to 25 m/min

• Drive motor power: 1.1 kW

• Working height ( /- 30 mm): 900 mm

• Total installed power: 6.5 kW

• Electrical voltage: 400 V (3 Phases, 50 Hz NEUTRAL)

• Machine color: RAL 7035 (Light Grey)

• Machine length: 3,100 mm

• Machine width: min. 1,600 mm

₹4,900,000.00 ₹6,125,000.00

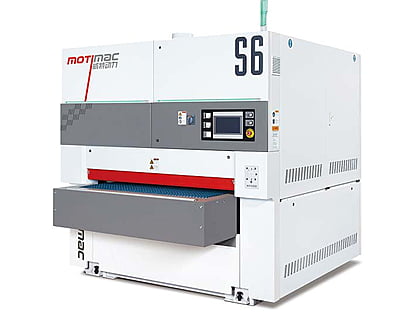

Wide Belt Sander with Planer+drum WT-KR1300

TECHNICAL DATA

• Max. Working width : 1300mm

• Min. Working Length : 280mm

• Working Thickness : 10-150mm

• First unit: planer Diameter : 80mm

• Second unit: Diameter : 240mm

• First Unit: Motor : 30kw

• Second Unit: Motor : 22kw

• Conveyor belt: Motor : 4kw

• Lifting Motor : 0.55kw

• Brush roller: Motor : 1.5kw

• Total Power : 58kw

• First unit : planer

• Second unit : 80HA

• Conveyor belt: Speed : 5-24m/min

• Abrasive Belt Size : 1350*2620mm

• Air Pressure : 0.6Mpa

• Overall Dimensions : 223x×2700×2450-2600mm

• Worktable height : 900mm

• Net Weight : 4600 kgs

• Air jet cleaning for sandpaper : YES

• Table : Fixed

• Conveyor belt centered automatically : YES

• PLC control : YES

• Iron pallet with soft package : YES

• Voltage : 415v/50hz/3phase

• Production lead time : 55days GENERAL

FEATURES

• Body Frame

• The base has a strong body frame in welded steel, to guarantee the stability and durability of the entire structure.

• All laser cutting, no seam gaps. This can make sure the sanding precision.

• All the body frame steel is annealing process. Reduce the internal stress of steel and ensure the stability of the overall machine. Base * steel structure with electric cabinet on the machine front

• Equipped with a thick, wear-resistant stainless steel work table that guarantees precision and sturdiness during any type of machining operation. * The work table is positioned at 900mm from the ground, thus ensure ease of panel loading and unloading. * sanding belts introduction from the machine right side * powered adjustment of working thickness * main motor positioned inside the base Electrical equipment * automatic star-delta start of the main motor * overload protections on the motors * IP54 motor protection Emergency and safety devices * safety detection for over-thickness * Disc brakes. This motorcycle-drived system guarantees speed and safety. * automatic brake for rapid shutdown of the operating group * front and rear emergency push-button * padlockable main switch * automatic emergency stop machine for:

• sanding belt breaking

• not-tensioned sanding belt

• lateral outplacement of sanding belt

• absence of compressed air

• overload on main motor

₹4,450,000.00 ₹5,562,500.00

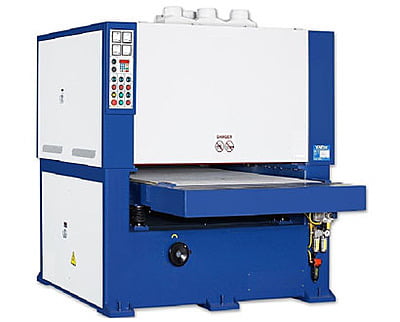

Heavy Duty, Wide Belt Sander with belt 52" x 83"

• FEATURES 1. Sanding belt oscillation controlled by photocell sensor. 2. Microcomputer controlled thickness setting. 3. Automatic control for conveyor belt tracking. 4. Front and rear head equipped with chrome plated pressure plate & rubber covered pressure roller. 5. Leveling adjustment for sanding drum and pressure device. 6. Independent start control for main motor. 7. Automatic 2

• Step startinging on main motor. 8. Motor overload protection. 9. Emergency Stop Device -- Sanding belt break or mistrack. Power failure. Main Motor overload. 10. Variable feed speed 11. The conveyor belt is Heavy Duty type. 12. The machine body is made by all steel, not be wired by H iron.

TECHNICAl DATA

• Main Motor: 40.30 HP Feed Motor: 5 HP Table Hoist Motor: 1 HP Sanding Belt: 52" x 75" Panel Cleaning Brush Roller 1 Set Air Jet Sanding Belt Cleaning Device 2 Set

₹4,200,000.00 ₹5,250,000.00

Heavy Duty, Wide Belt Sander with belt 52" x 75"

• FEATURES 1. Sanding belt oscillation controlled by photocell sensor. 2. Microcomputer controlled thickness setting. 3. Automatic control for conveyor belt tracking. 4. Front and rear head equipped with chrome plated pressure plate & rubber covered pressure roller. 5. Leveling adjustment for sanding drum and pressure device. 6. Independent start control for main motor. 7. Automatic 2

• Step startinging on main motor. 8. Motor overload protection. 9. Emergency Stop Device -- Sanding belt break or mistrack. Power failure. Main Motor overload. 10. Variable feed speed 11. The conveyor belt is Heavy Duty type. 12. The machine body is made by all steel, not be wired by H iron.

TECHNICAl DATA

• Main Motor: 40.30 HP Feed Motor: 5 HP Table Hoist Motor: 1 HP Sanding Belt: 52" x 75" Panel Cleaning Brush Roller 1 Set Air Jet Sanding Belt Cleaning Device 2 Set

₹3,950,000.00 ₹4,937,500.00

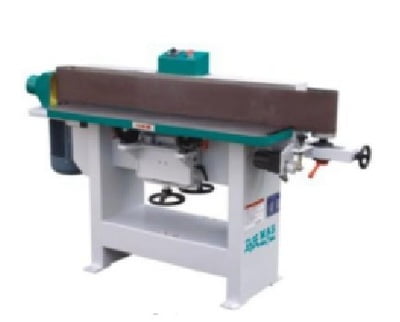

Edge Sander MM2617

• Sanding Belt Size: 3120x170mm

• Drive Wheel Speed: 2890rpm

• Vibration Time: 57 times/min

• Total Power: 4.025kw

₹200,000.00 ₹250,000.00

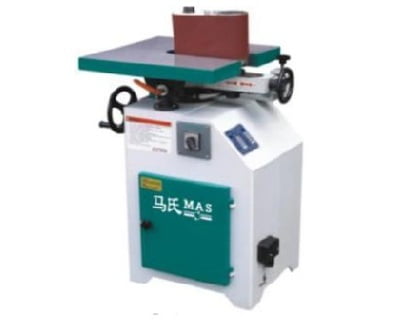

Vertical Belt Sander (Sponge Roller)

TECHNICAL DATA

• Sanding Belt Size: 670x150mm

• Roller Dia.: Dia.102mm

• Power: 1.5kw

• Dust Exit: 100x1

• Weight: About 150Kg

• Overall Size: 71x53x100mm

₹120,000.00 ₹150,000.00
caple.in, Skill Ambassador for ffsc.in, mobilises, trains and places freshers for India’s woodworking, furniture manufacturing and modular interior industry with skilled manpower support.
Plan your woodworking factory — from 25 to 1,000 boards per day.Machinery recommendation and ROI projection based on your production requirements.
Speak to a Machinery Expert

Caple Industrial Solutions  ·  Est. 1974

Authorised distributor for Nanxing and Lamello in India — supplying CNC routers, beam saws, edge banders, nesting machines, CNC drilling machines, and joinery systems to furniture manufacturers and OEM production lines nationwide.

In earlier years, Caple formerly served as a regional dealer for Jai Industries, Homag India, Festool, Altendorf, and SCM Group. We no longer represent those brands. All third-party brand names are trademarks of their respective owners.

+91 70454 59931 web@caple.in

Mon – Sat  ·  10:00 AM – 7 PM IST

Locations
Malad, Mumbai — Head Office · 3,000 sq ft
Pelhar — Centre of Excellence · 13,500 sq ft
Delhi — Showroom · 3,000 sq ft
Pan India — Sales & Service

© 2026 Caple Industrial Solutions. All rights reserved.

GST-registered supplier of industrial woodworking machinery and factory solutions in India.

Items have been added to cart.
One or more items could not be added to cart due to certain restrictions.
View Cart
Added to cart
Quantity updated
- An error occurred. Please try again later.
Deleted from cart
- An error occurred. Please try again later.
Chat on WhatsApp
