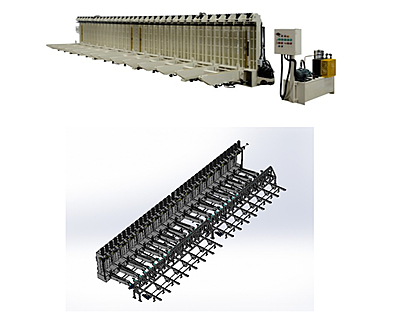

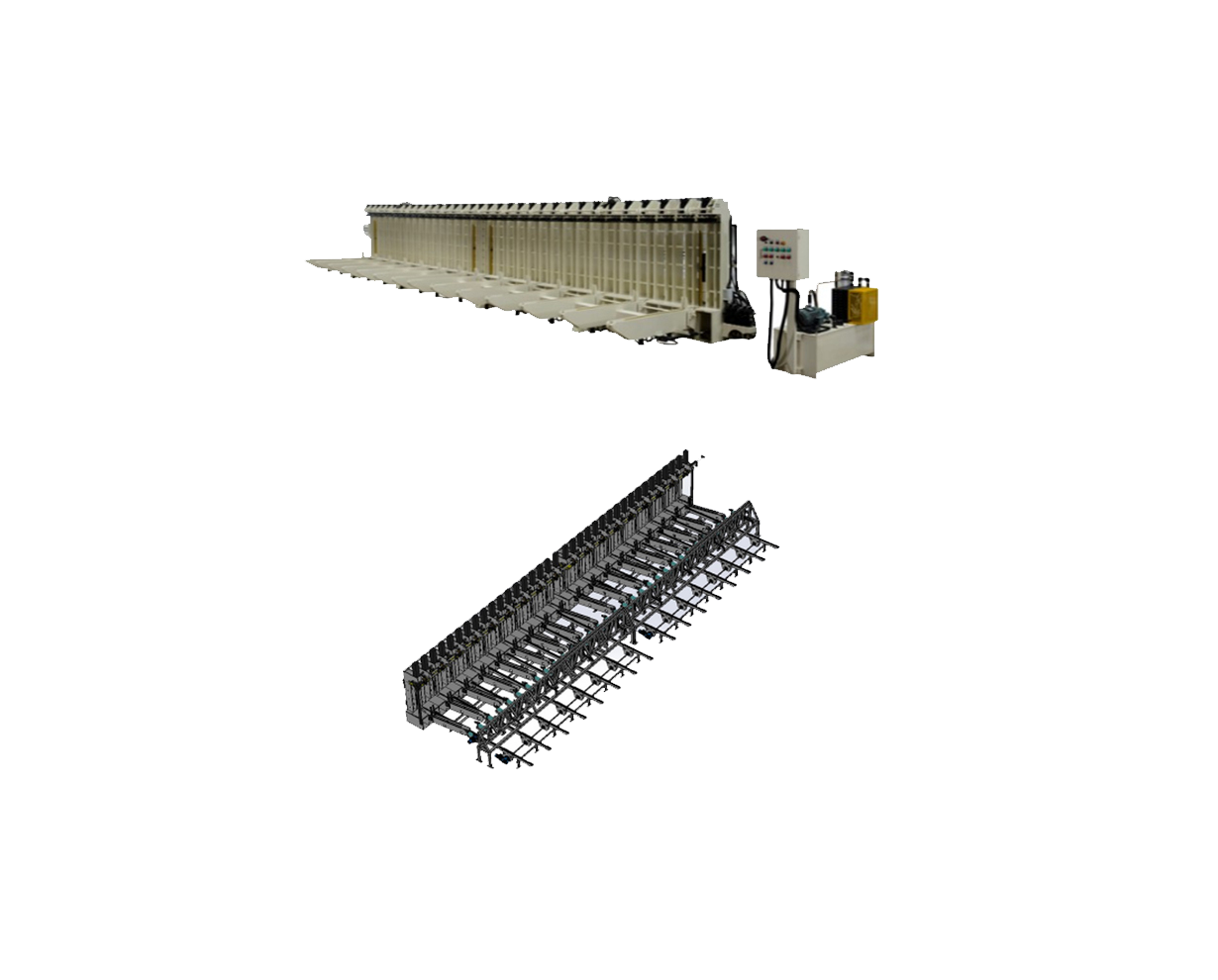

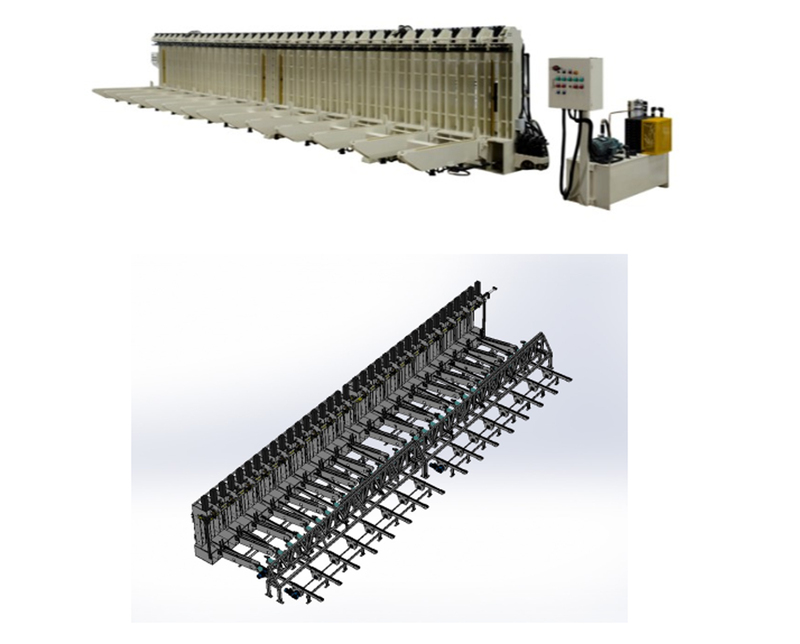

KTCC Heavy-Duty Vertical Press 5M

• TECHNICAL SPECIFICATIONS:

• Ultra heavy-duty design vertical press.

• Number of press bed: 5000mm.

• Heavy-duty type vertical press.

• Convenient downward-opening door for easier loading and unloading.

• Hydraulic operated directional valve: Electrical.

• Hydraulic door lock system.

• PLC controlled system.

• Press bed size: 5000mm x 1200mm x 150mm

• Main hydraulic cylinder: D80 x80mm ST

• Side hydraulic cylinder: D40 x 150mm ST

• Door lifting hydraulic cylinder: D63.

• Door lock hydraulic cylinder: D40.

• Outfeed pusher hydraulic cylinder: D40.

• D80 cylinder with high pressure open/close valves.

• D40 cylinder with high pressure open/close valves.

• Hydraulic control system: 1 Units.

• Hydraulic motor: 15HP.

• Maximum hydraulic pressure: 15 kg/cm2
