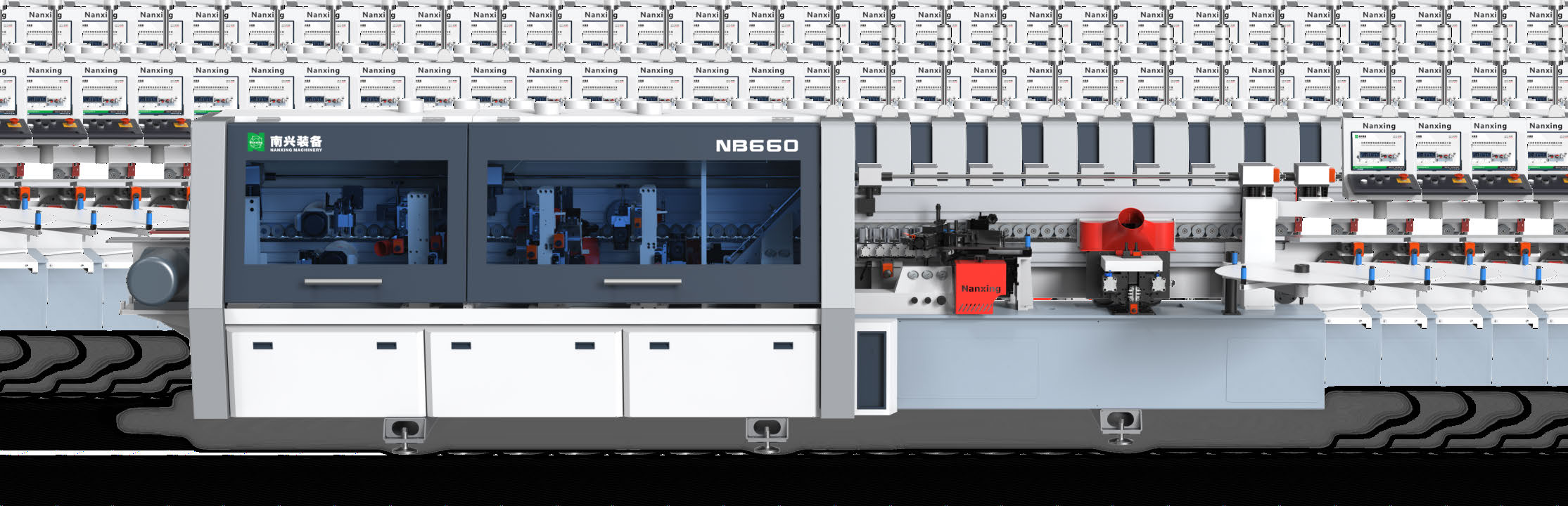

Nanxing Edge Banding Machine NB670N-415V for Narrow Parts | Pre Melter | Pneumatic adjust gate
Features
• Pre-milling
• Assistance for narrow edge
• Pre-heating
• Pre-melter gluing system
• Auto glue pumping 25kg glue basin
• edge tape supporter
• Snipping
• Pressure rollers
• Lubrication system
• End trimming
• Rough trimming
• Fine trimming
• Corner trimming unit
• Scraping
• Clean agent sprayer
• Buffing
• Dust collection
• Safety device
• Remote switch and indicator light
• Control system
• Energy saving
• Production report
• Electric equipment
• Technical Data
• Electric equipment
• Technical Data
TECHNICAL DATA
• Panel Length : ≥200mm
• Panel Width : ≥40mm (45mm when corner trimming)
• Panel Thickness : 9-60 mm
• Edge Tape Thickness : 0.4-3 mm
• Feeding Speed : 16/20/24 m/min (16 m/min for corner trimming)
• Min. Panel Size : 200∗40∗9mm (Long) / 200∗45∗9mm (Short)
• Dust Collector : ϕ125mm×4
• Total Power : 22.4 Kw
• Overall Dimension : 7,700×1,450×1,650mm
• Weight : Approx. 2,800 kg
• Power Supply : 415 V; 50 Hz
• Air pressure required: 0.7MPa
• Operation system 10’’ touch screen
• Dust collector Φ125mm×4
• Total power: 22.4 Kw
• Approx. weight: 2,800 kg
• Overall dimension: 7,700*1,450*1,650 mm
| Pre-Melt PUR on Narrow Parts. No Shortcuts. |
Panel length ≥120mm | Panel width ≥40mm | Min panel size 120x120mm(4 sides) 200x40mm (long edge) 40x200 (short edge) | Panel thickness ≤25mm(Narrow edge & Corner rounding on) 9-60mm | Edge tape thickness 0.4-3mm | Feeding speed 16/20/24m/min |
| How It Works | |||||||||||||||||
|
| Key Features | |
25mm(Narrow edge & Corner rounding on) | |
(with upper gluing unit 27,7kw) | |
7700×1050×1850mm(with upper gluing unit) | |
Compact press rollers cooperate with additional assistance rollers on front andin between make it possible to do narrow edge banding work | |
Automatic standby, one-button wake-up device and energy saving; | |
Most electric components are in world famous brand; |
| Features, Advantages & Benefits | ||
| Feature | Advantage | Benefit to You |
| Safety | ||
| Anti-kickback feed system | Pneumatic pressure rollers hold the panel firmly throughout the process | You get consistent banding and a safer operator environment |
| Guarded moving parts | All rotating units enclosed with interlocked safety covers | You get protection from accidental contact with cutters and blades |
| Emergency stop | E-stop accessible from multiple points along the machine | You get rapid shutdown capability in any emergency |
| Quality | ||
| Precision fine trimming | Servo-driven trimming units follow panel contour exactly | You get flush edges with no step or witness line |
| Temperature-controlled glue | PLC-controlled glue pot maintains optimal adhesion temperature | You get consistent bond strength across all edge tape materials |
| Scraping and buffing | Post-trim scraper and polishing wheel remove any residue | You get a showroom-quality finish straight off the machine |
| User Friendly | ||
| Touch screen control | 7-inch colour touchscreen with recipe storage | You save setup time — recall any job profile instantly |
| Quick glue changeover | Tool-free glue pot access for colour or material changes | You save 20+ minutes per colour changeover |
| Self-diagnostics | On-screen fault codes guide operator to the issue | You save troubleshooting time — problems resolved faster |
| Productivity | ||
| High feed speed | Feed speeds up to 26m/min on select models | You process more panels per shift with the same labour |
| Stanby mode | Machine enters energy-saving standby between jobs | You save electricity without sacrificing warm-up time |
| Full cycle in one pass | Glue, trim, scrape and buff in a single pass through the machine | You eliminate manual finishing steps — faster throughput |
| ROI | ||
| Low energy standby | Standby mode reduces idle power consumption | You save on electricity bills during breaks and shifts changes |
| Long service life | Industrial-grade components designed for 3-shift operation | You get years of reliable production — lower cost per panel |
| Reduced reject rate | Consistent banding quality means fewer panels scrapped | You save on material cost — less rework and waste |
| Trust | ||
| Authorised Distributor | Official Nanxing distributor in India | You get genuine machines, original parts, and manufacturer-backed support |
| caple.in | Since 1974 | 50+ years of woodworking machinery expertise across India | You get a trusted partner with deep industry knowledge |
| Warranty | 12 months or 2000 hours whichever is earlier | You get protected investment — lower risk from day one |
| Trained Service Team | Factory-trained engineers; genuine spare parts stocked in India | You get fast turnaround on service calls — minimal production loss |
| Pan-India Support | Multiple demo centres for installation and ongoing support | You save on downtime with rapid-response service desk |
| Technical Specifications | |
| Model | NB670N |
| Panel length | ≥120mm |
| Panel width | ≥40mm |
| Min panel size | 120x120mm(4 sides) 200x40mm (long edge) 40x200 (short edge) |
| Panel thickness | ≤25mm(Narrow edge & Corner rounding on) 9-60mm |
| Edge tape thickness | 0.4-3mm |
| Feeding speed | 16/20/24m/min |
| Total power | 24kw (with upper gluing unit 27,7kw) |
| Overall dimension | 7700×1050×1650mm 7700×1050×1850mm(with upper gluing unit) |
| Net weight | 3,670KG |
| Frequently Asked Questions |
What edge tape thickness can this machine handle? The NB670N handles edge tape from 0.4-3mm. This covers everything from ultra-thin PVC veneer to solid wood strips on premium models. |
Does this machine support PUR adhesive? Select Nanxing models support PUR (polyurethane reactive) hot-melt adhesive, which provides a stronger, more heat-resistant bond than standard EVA glue. Check the model specification or ask our team for clarification. |
What panel thickness range is supported? The machine processes panels from ≤25mm(Narrow edge & Corner rounding on) 9-60mm thickness, covering standard MDF, chipboard, plywood, and solid wood panels used in furniture production. |
What maintenance does an edge bander require? Routine maintenance includes daily cleaning of the glue pot, weekly inspection of trimming cutters, and periodic replacement of buffing wheels and scraper blades. Nanxing machines have coded wiring for easy troubleshooting. |
What is the feed speed? Feed speed is 16/20/24m/min depending on the edge tape material and panel thickness. Faster speeds are used for PVC; solid wood strip banding runs at lower speeds. |
Can I use this machine for both light and dark glue colours? Dual-colour PUR models include two glue pots that switch with a single button press. This eliminates glue colour contamination when switching between light and dark edge tapes during a shift. |
What warranty is included? All Nanxing machines supplied by caple.in include a warranty of 12 months or 2000 hours whichever is earlier, with factory-trained service engineers and spare parts stocked in India. |
How long does installation take? Installation typically takes 1–2 days depending on site readiness. caple.in provides on-site installation and commissioning with a trained engineer to ensure the machine is producing within 48 hours of delivery. |
