Press Machine

• TECHNICAL SPECIFICATIONS:

• Ultra heavy-duty design vertical press.

• Number of press bed: 5000mm.

• Heavy-duty type vertical press.

• Convenient downward-opening door for easier loading and unloading.

• Hydraulic operated directional valve: Electrical.

• Hydraulic door lock system.

• PLC controlled system.

• Press bed size: 5000mm x 1200mm x 150mm

• Main hydraulic cylinder: D80 x80mm ST

• Side hydraulic cylinder: D40 x 150mm ST

• Door lifting hydraulic cylinder: D63.

• Door lock hydraulic cylinder: D40.

• Outfeed pusher hydraulic cylinder: D40.

• D80 cylinder with high pressure open/close valves.

• D40 cylinder with high pressure open/close valves.

• Hydraulic control system: 1 Units.

• Hydraulic motor: 15HP.

• Maximum hydraulic pressure: 15 kg/cm2

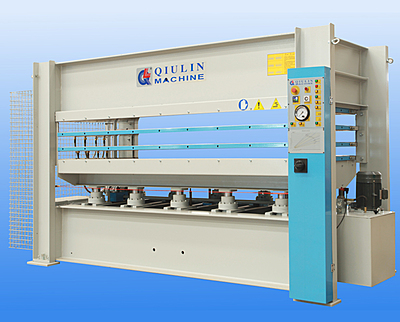

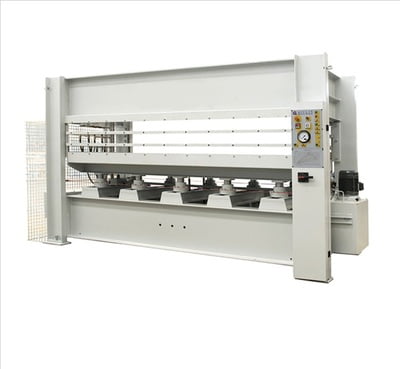

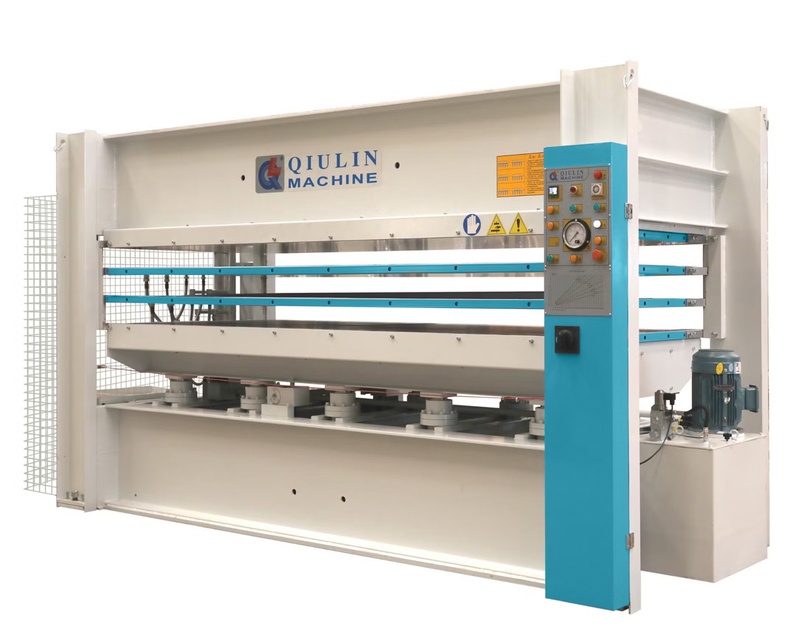

TECHNICAL DATA

• Total pressure: 1000KN (100Ton)

• Specific pressure: 3.7Kgf/cm2

• Working layer: 2

• Platen No.& Size: 2-2500x1300x42mm(solid steel drilled hot platen covered with mylar)

• Platen Opening : 170mm

• Cylinder No.: 8

• No. Dia: 85mm

• Max temperature: 120 Deg.

• Heating Type: Electric heating with thermic oil

• Installation power: (4 0.75 36)kw

• Platen opening way: Automatically

• Loading way: Length side, Manually

• Voltage: 3PE 415V 50Hz

• Packing: Bare but properly secured

TECHNICAl DATA

• Model : BY214X10/16(2)H1RC

• Total pressure : 1600KN

• Specific pressure : 3.8Kgf/cm2

• Working layer : 2 layers

• Platen No.& Size : 3-3200X1300X42mm(solid steel drilled hot platen covered with mylar)

• Platen opening : 170mm

• Cylinder No.& Dia : 10-φ85mm

• Max temperature : 120℃

• Heating way : Electric heating with thermal oil

• Heating medium : thermal oil

• Installation power : 4 1.5 54KW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 415V 50Hz

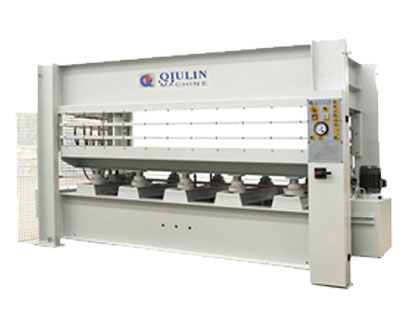

TECHNICAL DATA

• Model : BY214X9/16(3)H1RC

• Total pressure : 1600KN

• Specific pressure : 4.1Kgf/cm2

• Working layer : 3

• Platen No.& Size : 4-3000x1300x42mm(solid steel drilled hot platen covered with mylar)

• Platen opening : 120mm

• Cylinder No.& Dia : 10-φ85mm

• Max temperature : 120℃

• Heating way : Electric heating with thermic oil

• Heating medium : Thermic oil

• Installation power : 77.5KW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 415V 50Hz

TECHNICAL DATA

• Total pressure : 1600KN

• Specific pressure: : 4.1Kgf/cm2

• Working layer : 2

• Platen No.& Size : 3-3000x1300x42mm(solid steel drilled hot platen covered with mylar)

• Platen opening : 170mm

• Cylinder No.& Dia : 10-φ85mm

• Max temperature : 120℃

• Heating way : Electric heating with thermic oil

• Heating medium: : Thermic oil

• Installation power : 4 1.5 54KW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 415V 50Hz

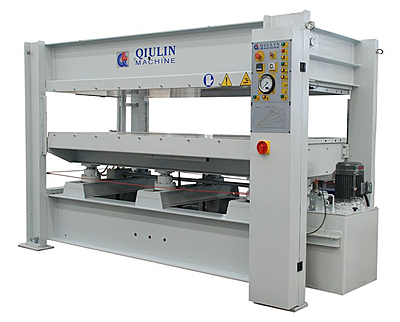

TECHNICAL DATA

• Total pressure : 1600KN

• Specific pressure: : 4.1Kgf/cm2

• Working layer : 1

• Platen No.& Size : 2-3000x1300x42mm(solid steel drilled hot platen covered with mylar)

• Platen opening : 360mm

• Cylinder No.& Dia : 10-φ85mm

• Max temperature : 120℃

• Heating way : Electric heating with thermic oil

• Heating medium: : Thermic oil

• Installation power : 4 0.75 36KW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 415V 50Hz

TECHNICAl DATA

• Total pressure : 1600KN

• Specific pressure : 5gf/cm2

• Working layer : 2 layers

• Platen No.& Size : 3-2500x1300x42mm(solid steel drilled hot platen covered with mylar)

• Platen opening : 170mm

• Cylinder No.& Dia : 10-φ85mm

• Max temperature : 120℃

• Heating way : Electric heating with thermal oil

• Heating medium : thermal oil

• Installation power : 4 0.75 36KW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 415V 50Hz

TECHNICAL DATA

• Total pressure : 1000KN

• Specific pressure : 3.1gf/cm2

• Working layer : 3 layers

• Platen No.& Size : 4-2500x1300x42mm(solid steel drilled hot platen covered with mylar)

• Platen opening : 120mm

• Cylinder No.& Dia : 6-φ85mm

• Max temperature : 120℃

• Heating way : Electric heating with thermal oil

• Heating medium : thermal oil

• Installation power : (4 0.75 48)KW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 415V 50Hz

TECHNICAl DATA

• Model : BY214×8/16(1)H1RC

• Total pressure : 1600KN

• Specific pressure : 5gf/cm2

• Working layer : 1 layers

• Platen No.& Size : 2-2500x1300x42mm(solid steel drilled hot platen covered with mylar)

• Platen opening : 360mm

• Cylinder No.& Dia : 10-φ85mm

• Max temperature : 120℃

• Heating way : Electric heating with thermal oil

• Heating medium : thermal oil

• Installation power : 28.75KW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 380V 50Hz

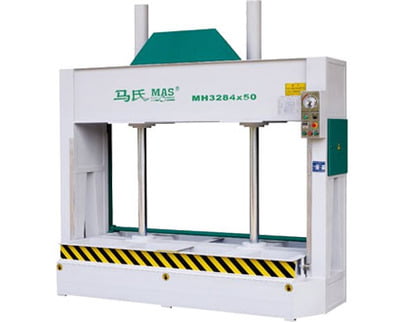

TECHNICAL DATA

• Name Model : 2.5*1.25m trip1.3m

• Max higher : 3.4m

• Pressing plate size : 1250*2500

• Number of Cylinder : 4pcs

• Pressure : 100T

• Opening distance : 1300mm

• Thickness of pressing plate : 900mm

• Installed power : 5.5kw

• Overall dimensions : 2910*1250mm

• Net weight : 3T Excluded Hydraulic Oil

TECHNICAL DATA

• Name Model : 3 X 1.25m trip1.3m

• Max higher : 3.4m

• Pressing plate size : 1250 X 3000

• Number of Cylinder : 4pcs

• Pressure : 100T

• Opening distance : 1300m

• Thickness of pressing plate : 900mm

• Installed power : 5.5kw

• Overall dimensions : 3400 X 1250mm

• Power supply : 415V 3PH 50 HZ.

• Net weight : @3T - 8 bolt for cyl lock

• Bottom and top need make it full cover by steel

• Side need use the steel road and need the bearing type for lifting - 300mm bottom thickness/190mm top platen - 15 mm plate thickness Excluded Hydraulic Oil

TECHNICAL DATA

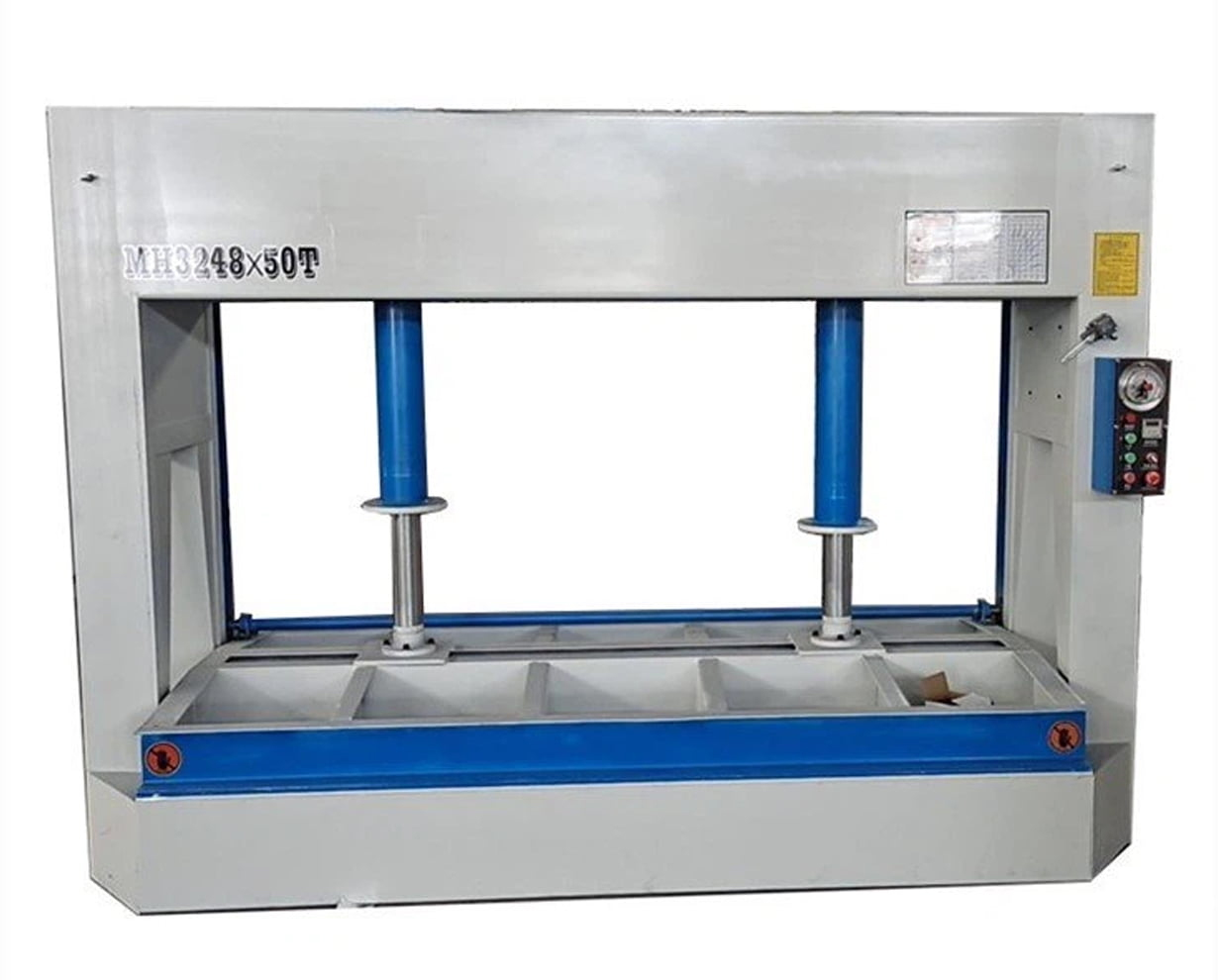

• Name Model : 2.5 X 1.25 trip1.3m

• Max higher : 3.4m

• Pressing plate size : 1250 X 2500

• Pressure : 50T

• Opening distance : 1300m

• Thickness of pressing plate : 900mm

• Installed power : 4kw

• Power : 415V 50Hz 3 Phase

• Overall dimensions : 2910 X 1250mm

• Net weight : 1.9T - 8 bolt for cyl lock

• Bottom and top need make it full cover by steel

• Side need use the steel road and need the bearing type for lifting - 300mm bottom thickness/190mm top platen - 15 mm plate thickness Excluded Hydraulic Oil

TECHNICAL DATA

• Total pressure: 1000KN (100Ton)

• Specific pressure: 3.7Kgf/cm2

• Working layer: 3

• Platen No.& Size: 2-2500x1300x42mm(solid steel drilled hot platen covered with mylar)

• Platen Opening : 120mm

• Cylinder No.: 8

• No. Dia: 85mm

• Max temperature: 120 Deg.

• Heating Type: Electric heating with thermic oil

• Installation power: (4 0.75 48)kw

• Platen opening way: Automatically

• Loading way: Length side, Manually

• Voltage: 3PE 415V 50Hz

• Packing: Bare but properly secured

TECHNICAL DATA

• Total pressure : 1600KN

• Specific pressure : 5gf/cm2

• Working layer : 3 layers

• Platen No.& Size : 4-2500x1300x42mm(solid steel drilled hot platen covered with mylar)

• Platen opening : 120mm

• Cylinder No.& Dia : 10-φ85mm

• Max temperature : 120℃

• Heating way : Electric heating with thermal oil

• Heating medium : thermal oil

• Installation power : 4 0.75 48KW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 415V 50Hz

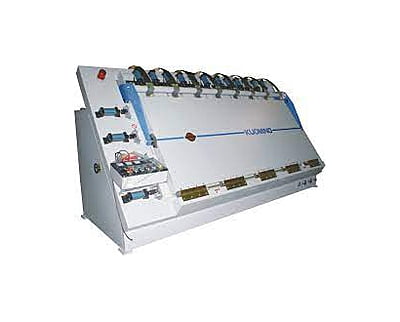

• Input Power 3 � 415V

• High Frequency Power 25 KW,

• Transmitting Tube 3CX15000H3

• H.F. Adjustor Hand wheel adjustor

• High Tension Transformer AC8000V, DC10000V. 40KVA

• Rectifier Patented, High Tension resistance, Full wave

• Variable Capacitor Patented, 4 piece one Set,

• Working Area Max range : 2440 X 1220 X 15~80mm, for Frame assemble

• Pressure 5HP Hydraulic pump

• Pressing way V UP and SIDE pressure as well as Upper Massive plate

• Cylinder UP� 2 PCS / Rear x 10 PCS / Side x 2 PCS

• Loading and Unloading Manually loading and unloading

• UP and Lower Plate Upper and bottom plate surface attached with steel plates.

• Press type Dual Inclined Bed with One massive upper plate slides left and right side for up side pressing

• Tube Protector Patented tube protector is to protect the expensive tube from over-heat burnt

• Spark Suppressor Patented spark suppressor is to protect machine plate and work piece from short voltage burnt

• Grounding Whole plate grounding

• Plate positioning Protection Upper plate positioning pressing protection,

• Input Power 3 � 380V

• High Frequency Power 25 KW, Max. 31KW

• Transmitting Tube 3CX15000H3

• H.F. Adjustor Hand wheel adjustor

• High Tension Transformer AC8000V, DC10000V. 40KVA

• Rectifier Patented, High Tension resistance, Full wave

• Variable Capacitor Patented, 4 piece one Set,

• Working Area Max range : 2440 X 1220 X 15~80mm, for frame assemble

• Pressure - 5HP Hydraulic pump

• Pressing way UP and SIDE pressure as well as Upper Massive plate

• Cylinder UP� 2 PCS / Rear x 20 PCS / Side x 8 PCS

• Loading and Unloading Manually loading and unloading

• UP and Lower Plate Upper and bottom plate surface attached with Stainless steel plates.

• Press type Dual Inclined Bed with One massive upper plate slides left and right side for up side pressing

• Tube Protector Patented tube protector is to protect the expensive tube from over-heat burnt

• Spark Suppressor Patented spark suppressor is to protect machine plate and work piece from short voltage burnt

• Grounding Whole plate grounding

• Plate positioning l Protection Upper plate positioning pressing protection,

• Control system Standard control system

• Dimension L:6500mm W:2200mm H:1900mm

• Weight NW:6200KGS. GW:7200KGS.

• Package Wooden Pallet 6700 X 2200mm, 40� container. Plastic coverage

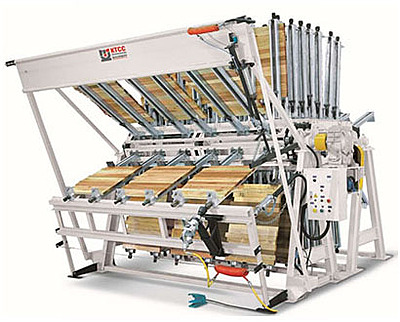

• TECHNICAL SPECIFICATIONS:

• Machine complete with 6 sections

• Every section with 8 clamps, total 48 clamps

• Clamp depth: 50" / working depth: 400~1250mm

• Machine working high will be different by the clamp depth.

• Clamp jaw high: 90mm

• Machine working width: 125" / 3100mm

• Rotary drive motor:1.5kw x 1pc

• Hydraulic pump drive motor: 2.25kw x 1pc

• Pump could be set up the according laminate pressure for the hydraulic tightener system.

• Hydraulic tightener: 1 Set

• Hand push to fit on the clamp.

• Top pneumatic panel flattener: 1 Set

TECHNICAL DATA

• Total pressure : 1600KN

• Specific pressure : 5gf/cm2

• Working layer : 5 layers

• Platen No.& Size : 6-2500x1300x42mm(solid steel drilled hot platen covered with mylar)

• Platen opening : 90mm

• Cylinder No.& Dia : 10-85mm

• Max temperature : 140 Deg.

• Heating way : Electric heating with thermal oil

• Heating medium: : thermal oil

• Installation power : 4 1.5 72KW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 415V 50Hz

• Packing : Bare but properly secured

• a[href="#zppost_rating"], .zpcomments-reviews-ratings { display: none !important }[data-zs-product-details-commentbox-section] { display: none !important }.theme-product-short-desc { width: 100% !important; float: none !important; clear: both !important }.theme-product-detail-right { width: 100% !important; float: none !important }.theme-product-specification-tab { display: none !important }

TECHNICAL DATA

•

• Total Thrust : 120 Ton

• Type of Platen : Fabricated Steel Platen

• Platen Sizes : 3000mm X 1300mm

• Cylinder Dia : 85mm

• Cylinders : 6 No

• Stroke : 400 mm

• Timer Opening&n

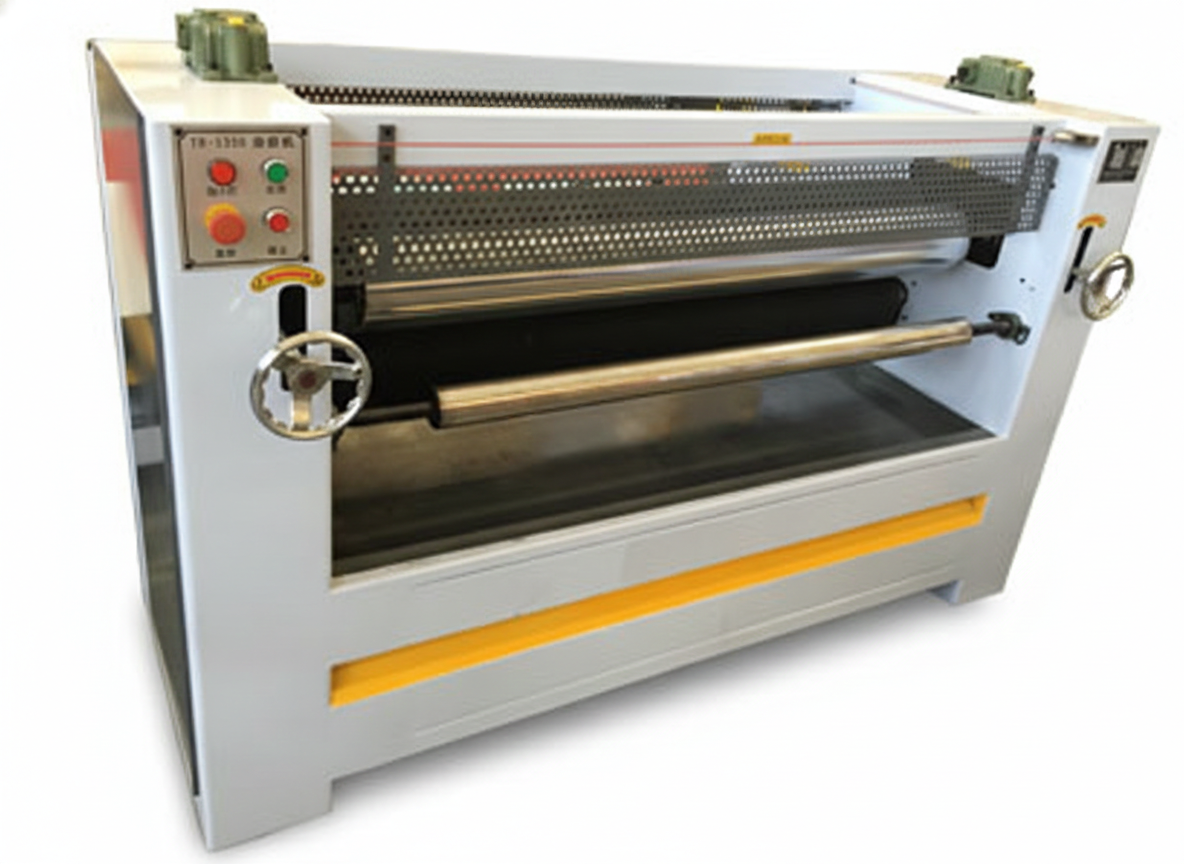

• Gluing rod size: Dia.190x1350mm (Chromed glue rod)

• Feeding Speed: 18m/min

• Power: 2.2kw

• Gluing rod size: Dia.190x1350mm (Chromed glue rod)

• Feeding Speed: 20m/min

• Power: 1.5kw

TECHNICAl DATA

• Model : BY214×10/16(3)H1RC

• Total pressure : 1600KN

• Specific pressure : 4.3Kgf/cm2

• Working layer : 3 layers

• Platen No.& Size : 4-3200x1300x42mm(solid steel drilled hot platen covered with mylar)

• Platen opening : 120mm

• Cylinder No.& Dia : 10-φ85mm

• Max temperature : 120℃

• Heating way : Electric heating with thermal oil

• Heating medium: : thermal oil

• Installation power : (4 1.5 72KW ) 77.5KW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 415V 50Hz

• Packing : Bare but properly secured

• Gross Weight : About 10000.00 kg

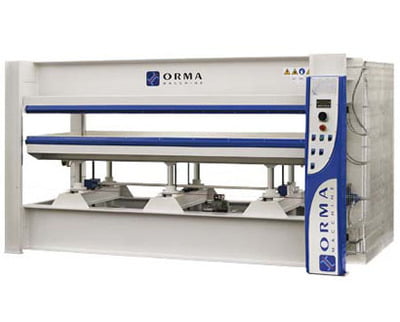

TECHNICAL DATA

• Total pressure: 1000KN (100Ton)

• Specific pressure: 3.7Kgf/cm2

• Working layer: 1

• Platen No.& Size: 2-2500x1300x42mm(solid steel drilled hot platen covered with mylar)

• Platen Opening : 360mm

• Cylinder No.: 8

• No. Dia: 85mm

• Max temperature: 120 Deg.

• Heating Type: Electric heating with thermic oil

• Installation power: (4 0.75 24)kw

• Platen opening way: Automatically

• Loading way: Length side, Manually

• Voltage:3PE 415V 50Hz

• Packing: Bare but properly secured

TECHNICAl DATA

• Model : BY214×10/16(1)H1RC

• Total pressure : 1600KN

• Specific pressure : 3.8Kgf/cm2

• Working layer : 1 layers

• Platen No.& Size : 2-3200x1300x42mm(solid steel drilled hot platen covered with mylar)

• Platen opening : 360mm

• Cylinder No.& Dia : 10-φ85mm

• Max temperature : 120℃

• Heating way : Electric heating with thermal oil

• Heating medium : thermal oil

• Installation power : 4 0.75 36KW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 415V 50Hz

TECHNICAL DATA

• Model : BY214×8/10(2)H1RC

• Total pressure : 1000KN

• Specific pressure : 3.1gf/cm2

• Working layer : 2 layers

• Platen No.& Size : 3-2500x1300x42mm(solid steel drilled hot platen covered with mylar)

• Platen opening : 170mm

• Cylinder No.& Dia : 6-φ85mm

• Max temperature : 120℃

• Heating way : Electric heating with thermal oil

• Heating medium : thermal oil

• Installation power : (4 0.75 36)KW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 415V 50Hz

TECHNICAL DATA

• Total pressure : 1000KN

• Specific pressure : 3.1gf/cm2

• Working layer : 1 layers

• Platen No.& Size : 2-2500x1300x42mm(solid steel drilled hot platen covered with mylar)

• Platen opening : 360mm

• Cylinder No.& Dia : 6-φ85mm

• Max temperature : 120℃

• Heating way : Electric heating with thermal oil

• Heating medium : thermal oil

• Installation power : (4 0.75 24)KW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 415V 50Hz

TECHNICAL DATA

• Working table size : 2500x1250 mm

• Max. Pressure : 50 T

• Max. Work piece thickness :900 mm

• Total Power :4 kw

• Net Weight : 2100 kg

• Overall Dimensions : 2900x1330x2850 mm
