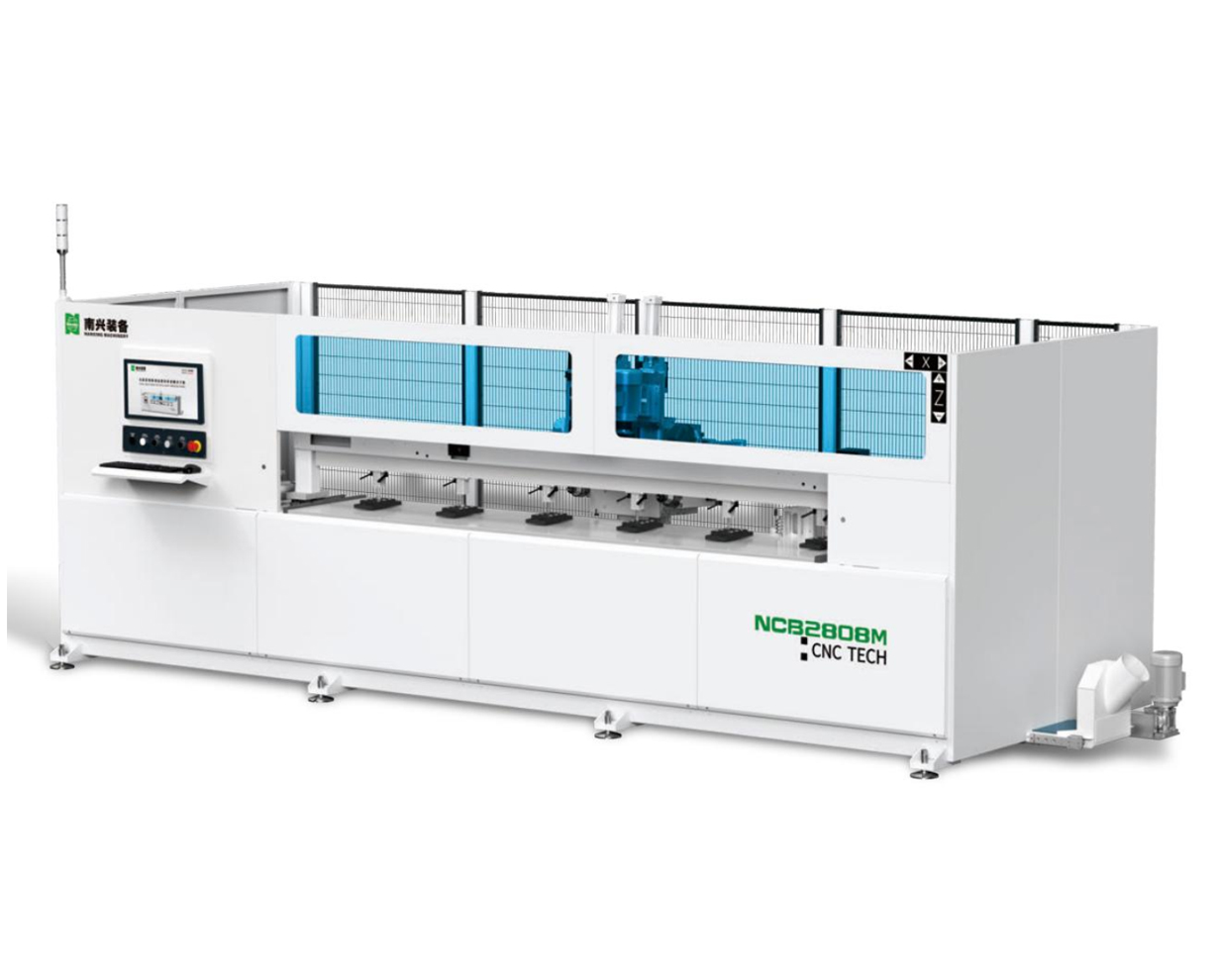

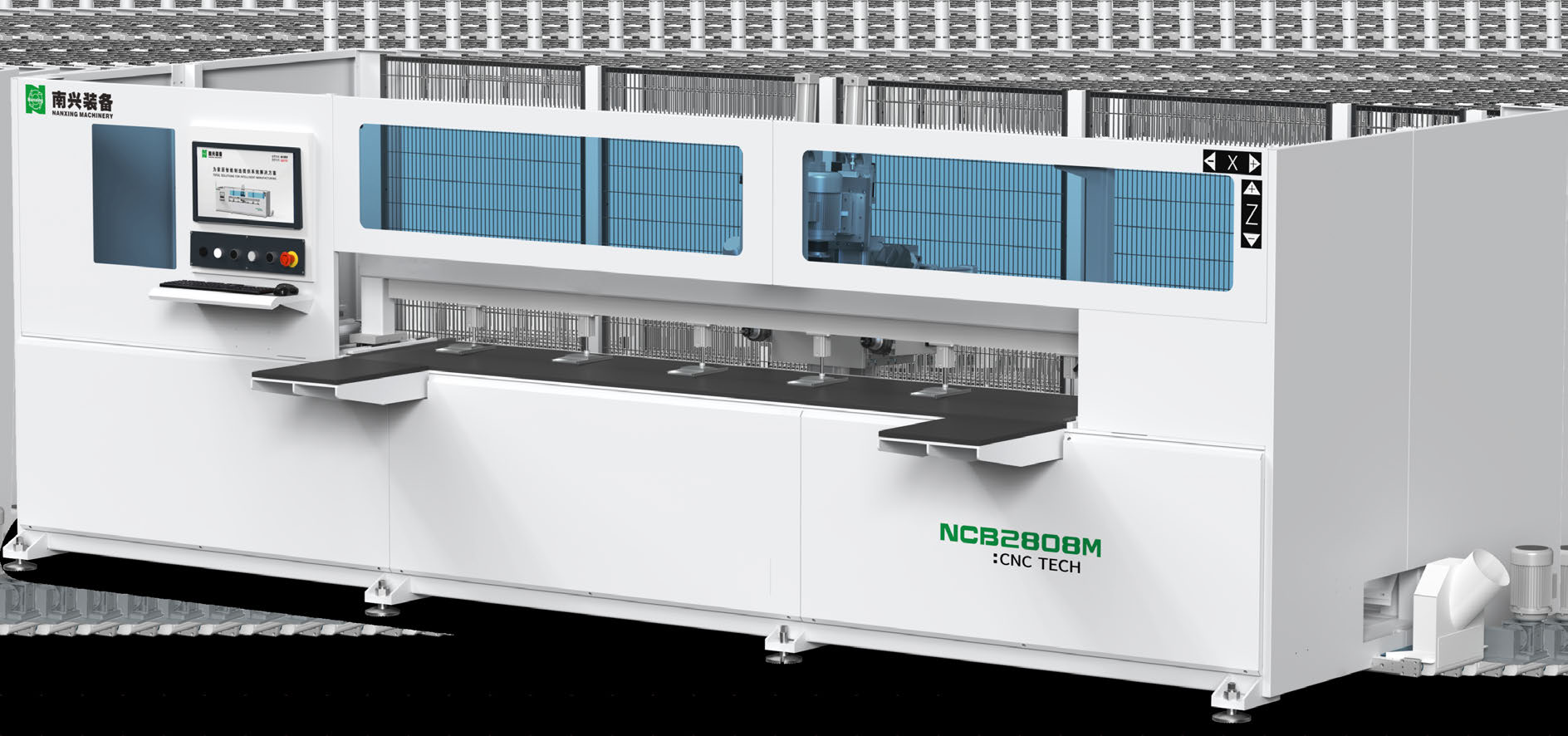

Features
• Movement of each axis
• X direction : Rack and Pinion
• Y.Z direction : Ball screw
• Servo motors : Movement of each axis driven by high precise servo motor, 90/20*20m/min
• Auto greasing
• Auto grease transmission mechanism
• Oil pump category: electric grease pump
• Auto movable beam by cylinder
• Beam moves automatically by cylinder according to different process
• Sectional zone pressing
• Top presser and back positioning bar
• Overwide 6 pcs of top pressers
• Back positioning bar rises automatically
• 2 Working areas
• 2 working stations to process alternately
• max processing size 2800*800mm
• Distance to floor: 980mm,
• Auto board thickness detection
• For accurate processing
• Processing unit
• Vertical spindle 7.5Kw auto tool change
• Horizontal milling spindle 6Kw
• Horizontal drilling spindle 3.5Kw
• 7.5kw vertical main spindle
• 2 pcs 2.2kw bevel direction main spindles
• Max processing size: 2900*600mm
• Mini processing size: 250*200mm
• 6-slot Line tool changer
• 6-position line tool magazine , ISO30 tool collet
• Cable chain
• High-quality cable chain
• Two tool setting gauges
• One gauge in vertical direction,
• The other one in horizontal direction
• Automatic tool setting
• IPC control
• Powerful, IPC control, window system
• Intelligent operating system
• User friendly, with online 3D graphics editing and simulation
• Support CSV, BAN, and XML formats, EXCEL file import, DXF file import
• Bar code scanner
• Scan bar-code to call relevant processing
• programs

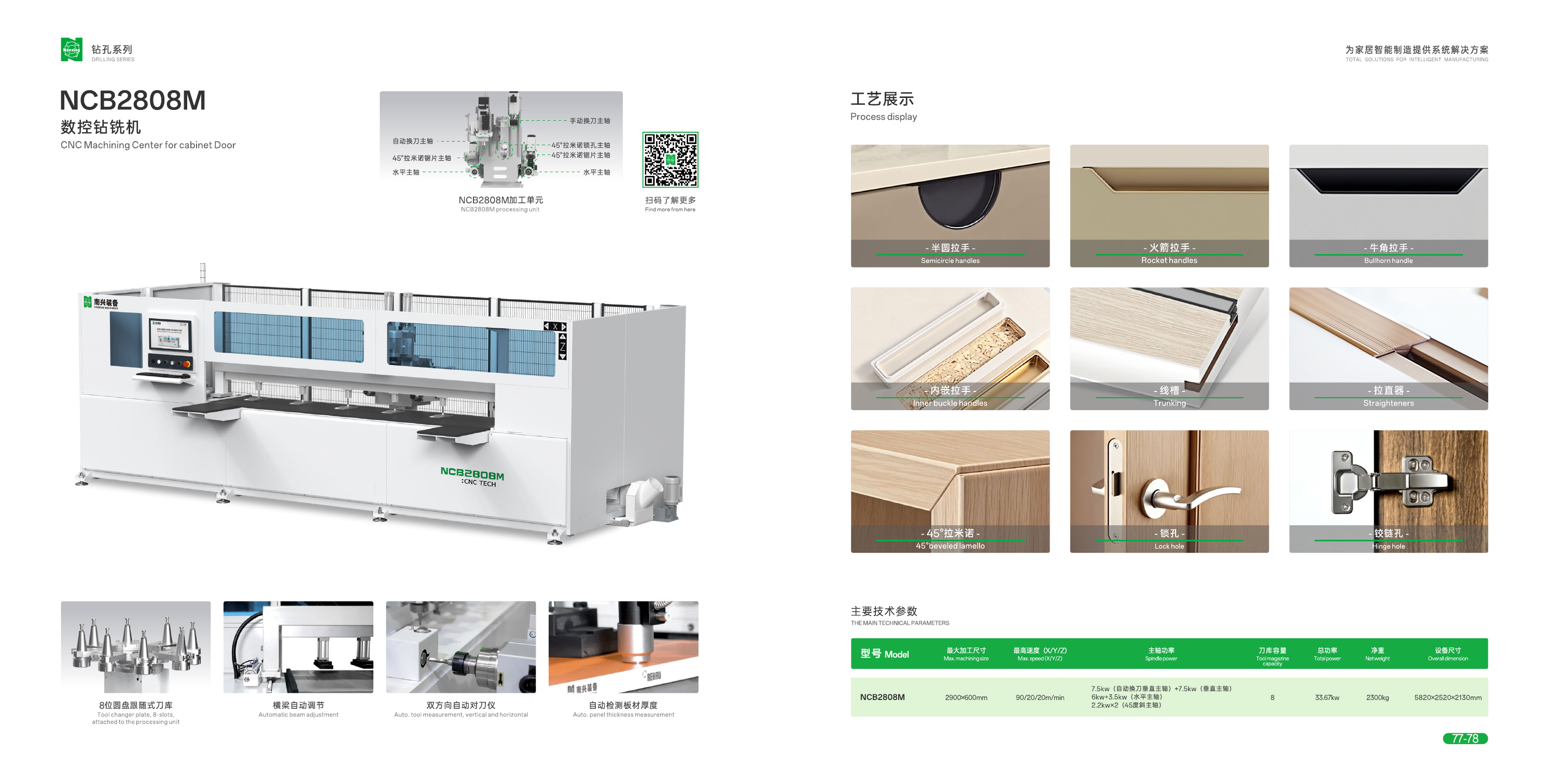

• Processing various door types

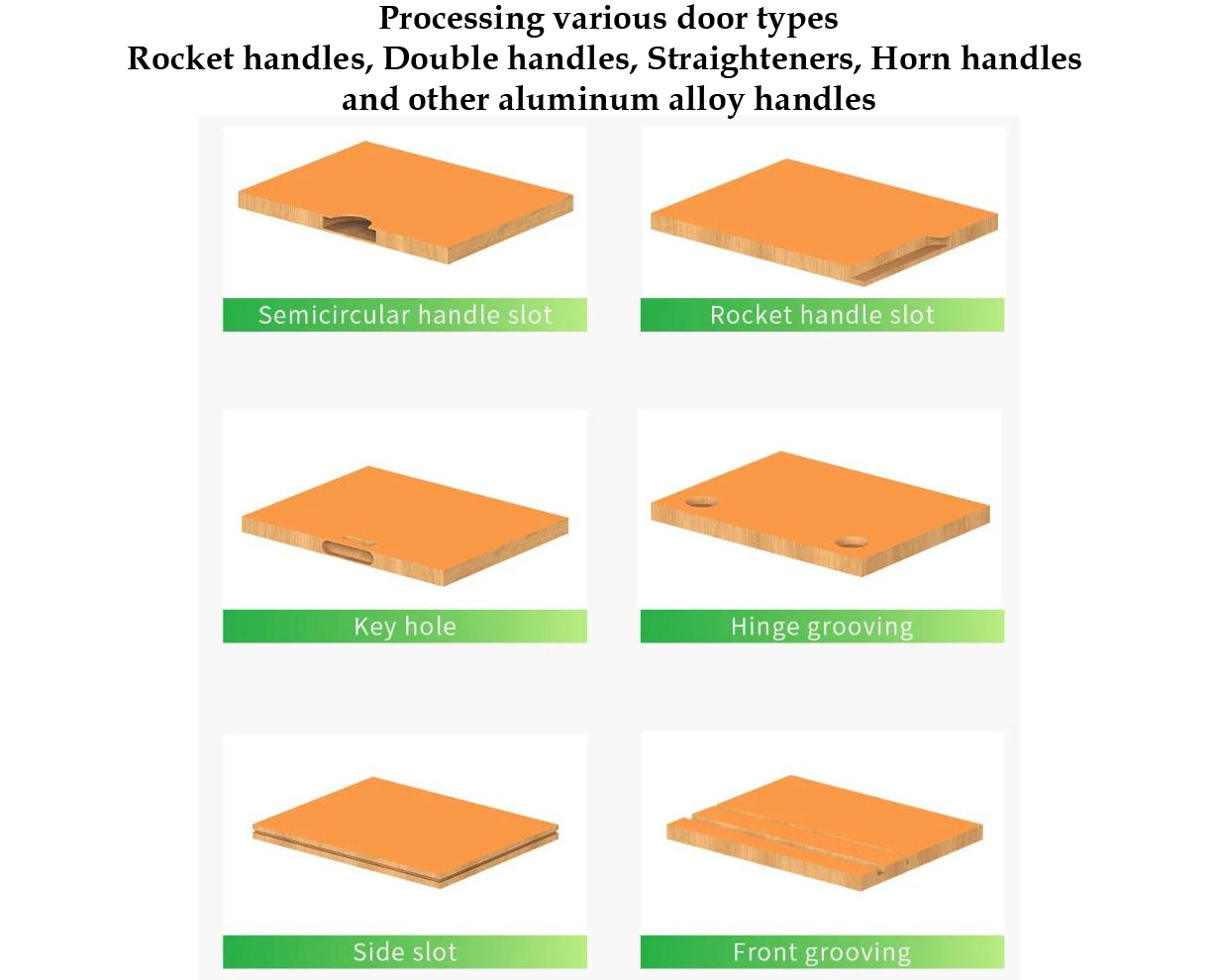

• Rocket handles, double handles, straighteners, horn handles and other aluminum alloy handles
• Control cabinet

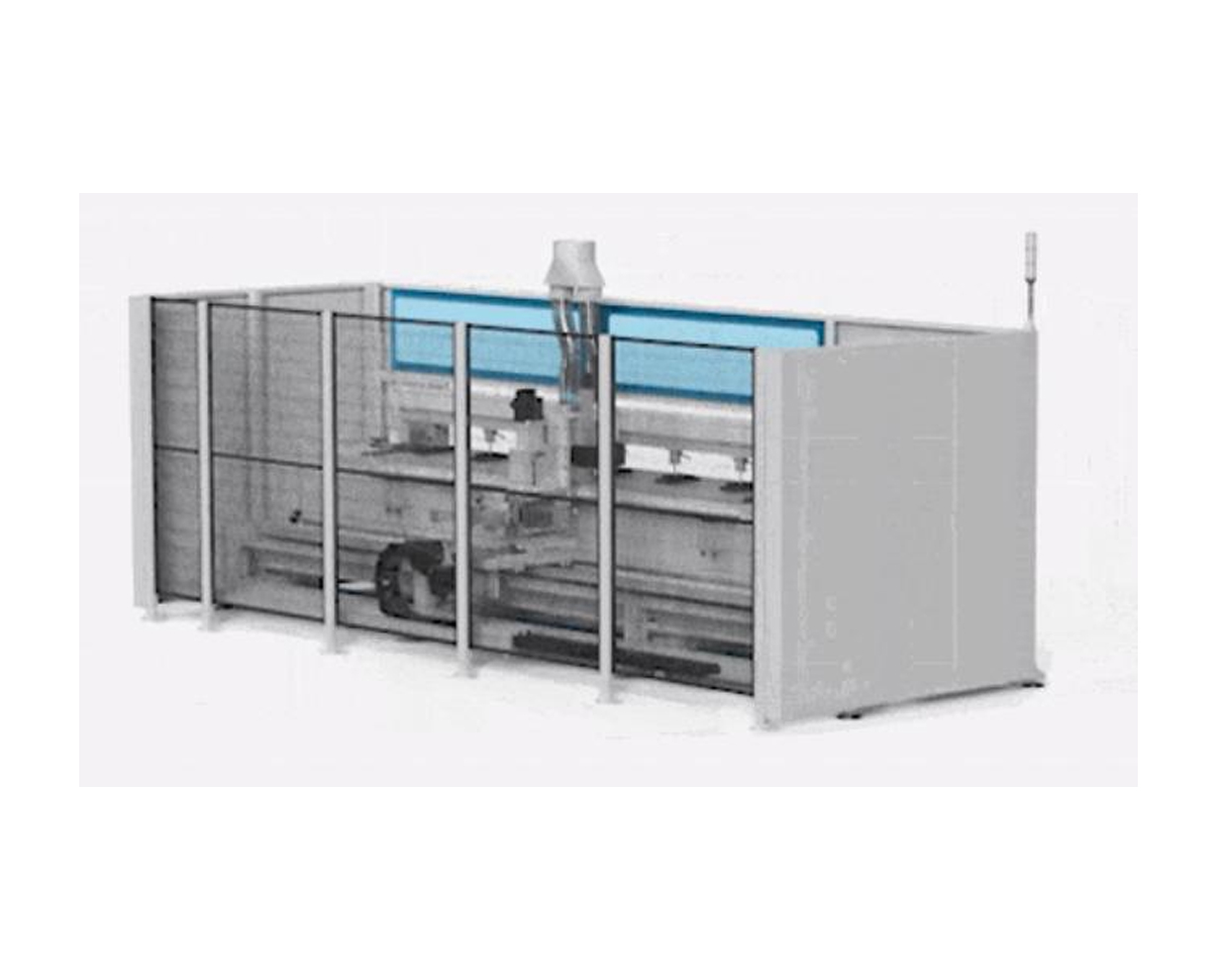

• Safety fence
• Machine is standard with safety fence ensures the safety of operators
Technical Specifications
• Panel width : 200-800mm
• Panel length : 250-2800mm
• Working range : X axis :250-2800mm
• Working range : Y axis: 160mm
• Working range : Z axis: 60mm
• Travelling speed : X axis: 90m/min
• Travelling speed : Y axis: 90m/min
• Travelling speed : Z axis: 20m/min
• Moving beam range : 0-160mm
• Working table : Area: 2,660mmx420mm
• Working table : Height: 980mm
• Main spindle Qty : 5
- Main spindle Power
• 7.5kw vertical spindle
• 6kw horizontal spindle
• 3.5kw horizontal spindle
• 2*2.2kw bevel spindles
• Rotating speed : 18000rpm
• Tool change Qty : .6 Type [ISO 30]
• Drilling depth : 60mm
• Power supply : 3PH 415V / 50 Hz
• Total power : 33.67kw
• Dust collector Dia. : 150mm*2
• Floor space LxWxH : 5,820x2,520x2,000 mm
• Net weight : 2,200kg
