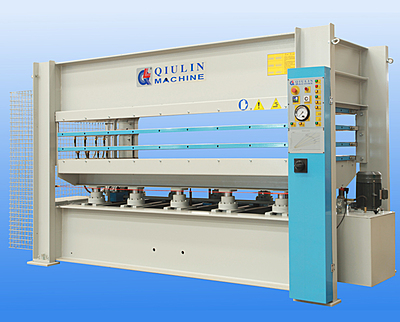

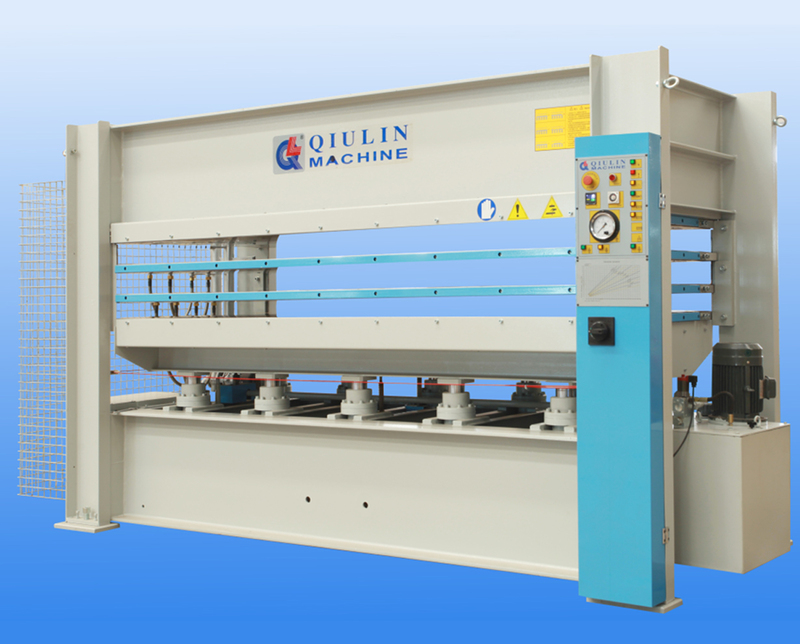

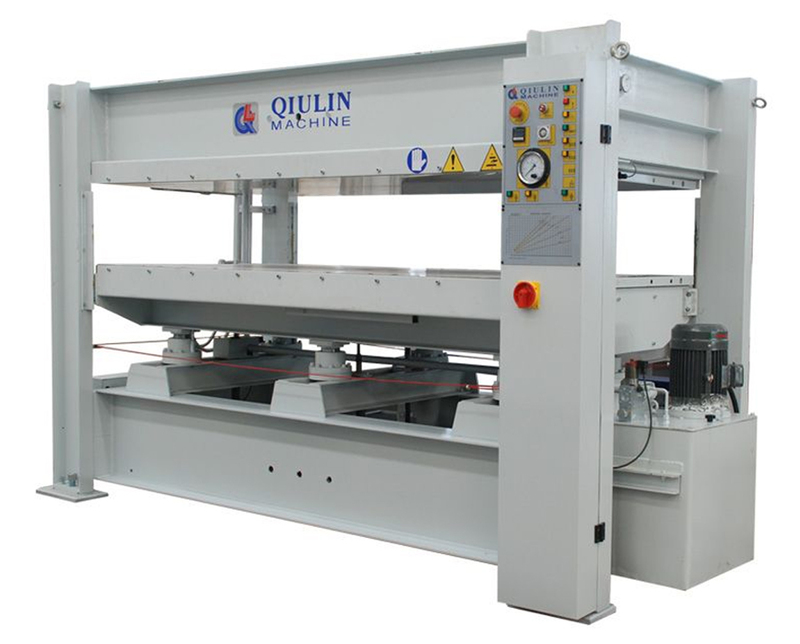

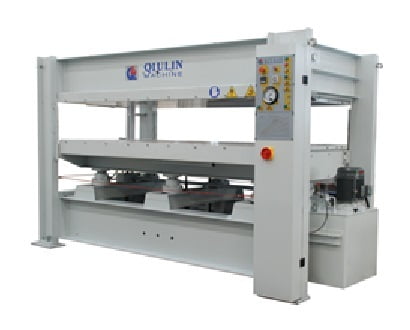

Hot Press Machine BY214X8/10(1)H1RC [ 2500x1300 | 100T | Solid Steel | Daylight 1]

TECHNICAL DATA

• Total pressure : 1000KN

• Specific pressure : 3.1gf/cm2

• Working layer : 1 layers

• Platen No.& Size : 2-2500x1300x42mm(solid steel drilled hot platen covered with mylar)

• Platen opening : 360mm

• Cylinder No.& Dia : 6-φ85mm

• Max temperature : 120℃

• Heating way : Electric heating with thermal oil

• Heating medium : thermal oil

• Installation power : (4 0.75 24)KW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 415V 50Hz
