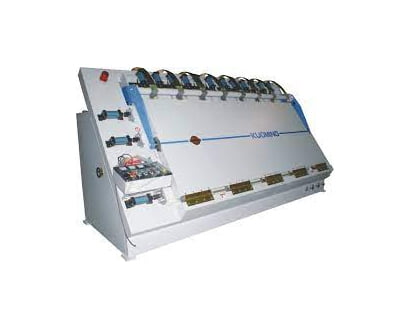

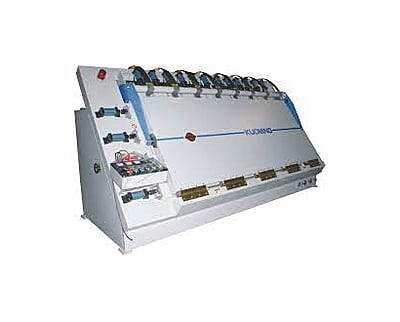

High Frequency Press Slanted 2 Bed

• Input Power 3 � 380V

• High Frequency Power 25 KW, Max. 31KW

• Transmitting Tube 3CX15000H3

• H.F. Adjustor Hand wheel adjustor

• High Tension Transformer AC8000V, DC10000V. 40KVA

• Rectifier Patented, High Tension resistance, Full wave

• Variable Capacitor Patented, 4 piece one Set,

• Working Area Max range : 2440 X 1220 X 15~80mm, for frame assemble

• Pressure - 5HP Hydraulic pump

• Pressing way UP and SIDE pressure as well as Upper Massive plate

• Cylinder UP� 2 PCS / Rear x 20 PCS / Side x 8 PCS

• Loading and Unloading Manually loading and unloading

• UP and Lower Plate Upper and bottom plate surface attached with Stainless steel plates.

• Press type Dual Inclined Bed with One massive upper plate slides left and right side for up side pressing

• Tube Protector Patented tube protector is to protect the expensive tube from over-heat burnt

• Spark Suppressor Patented spark suppressor is to protect machine plate and work piece from short voltage burnt

• Grounding Whole plate grounding

• Plate positioning l Protection Upper plate positioning pressing protection,

• Control system Standard control system

• Dimension L:6500mm W:2200mm H:1900mm

• Weight NW:6200KGS. GW:7200KGS.

• Package Wooden Pallet 6700 X 2200mm, 40� container. Plastic coverage
