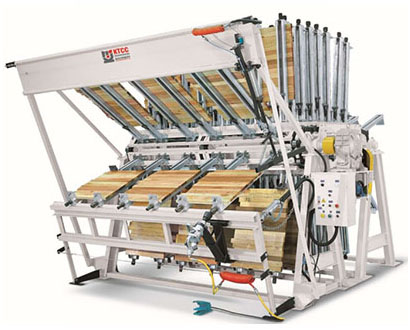

Semi-Auto Hydraulic Clamp Carrier

• TECHNICAL SPECIFICATIONS:

• Machine complete with 6 sections

• Every section with 8 clamps, total 48 clamps

• Clamp depth: 50" / working depth: 400~1250mm

• Machine working high will be different by the clamp depth.

• Clamp jaw high: 90mm

• Machine working width: 125" / 3100mm

• Rotary drive motor:1.5kw x 1pc

• Hydraulic pump drive motor: 2.25kw x 1pc

• Pump could be set up the according laminate pressure for the hydraulic tightener system.

• Hydraulic tightener: 1 Set

• Hand push to fit on the clamp.

• Top pneumatic panel flattener: 1 Set
