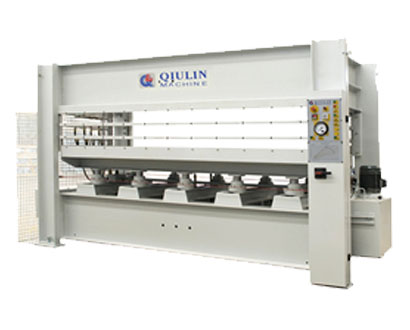

Hot Press Machine BY214X8/16(5)H1RC [2500x1300mm | 160T| Daylight 5 | 140 Deg.]
₹3,775,000.00 ₹4,718,750.00
Available on Request
TECHNICAl DATA:
- Total pressure : 1600KN
- Specific pressure : 5gf/cm2
- Working layer : 5 layers
- Platen No.& Size : 6-2500x1300x42mm(solid steel drilled hot platen covered with mylar)
- Platen opening : 90mm
- Cylinder No.& Dia : 10- Dia 85mm
- Max temperature : 120?
- Heating way : Electric heating with thermal oil
- Heating medium: : thermal oil
- Installation power : 4+1.5+72KW
- Platen opening way : Automatically
- Loading way : Length side,Manually
- Voltage : 3PE 380V 50Hz
- Gross Weight : About 9800.00 kg
Specifications
Presses Specifications
- Tons160Tons
- Platen Size2500x1300mm
- Daylight5
- Working Thickness90mm
