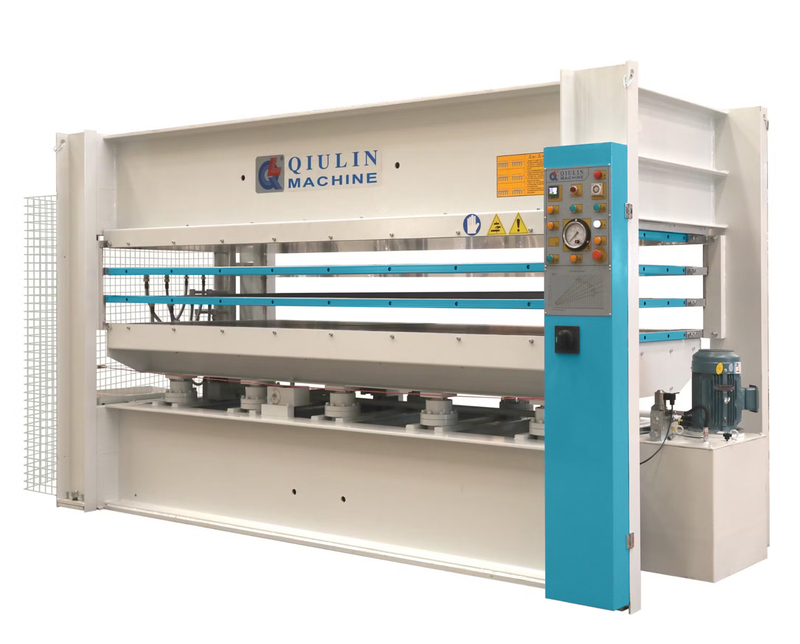

Hot Press Machine BY214X8/12(1)H1RC [2500x1300mm | 100T | Solid Steel | Daylight 1]

TECHNICAL DATA

• Total pressure: 1000KN (100Ton)

• Specific pressure: 3.7Kgf/cm2

• Working layer: 1

• Platen No.& Size: 2-2500x1300x42mm(solid steel drilled hot platen covered with mylar)

• Platen Opening : 360mm

• Cylinder No.: 8

• No. Dia: 85mm

• Max temperature: 120 Deg.

• Heating Type: Electric heating with thermic oil

• Installation power: (4 0.75 24)kw

• Platen opening way: Automatically

• Loading way: Length side, Manually

• Voltage:3PE 415V 50Hz

• Packing: Bare but properly secured
