Name: Hot Press Machine BY214X10/16(3)H1RC [3200x1300mm | 160T | Solid Steel | Daylight 3]
Brand: Qiulin
SKU: BY214X10/16(3)H1RC
Price: 3350000.0 INR
Availability: OutOfStock

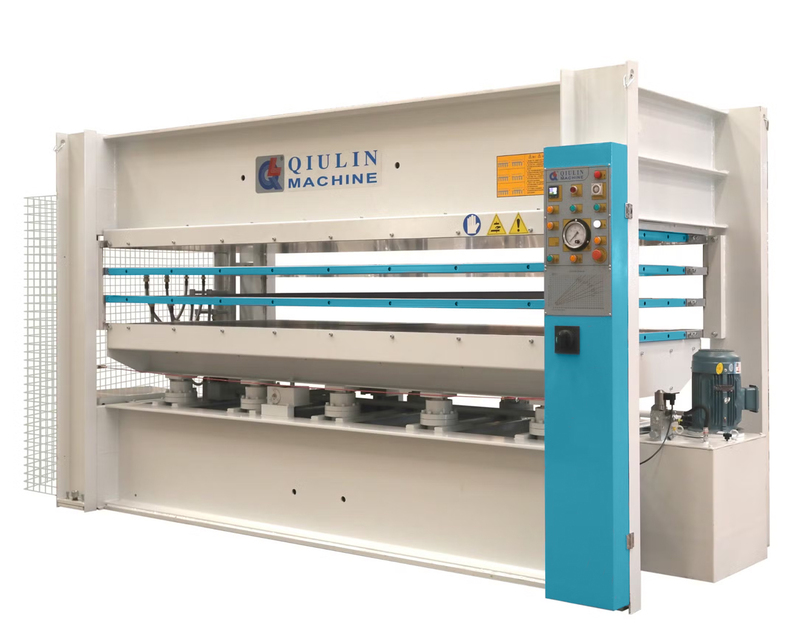

Hot Press Machine BY214X10/16(3)H1RC [3200x1300mm | 160T | Solid Steel | Daylight 3]

Hot Press Machine BY214X10/16(3)H1RC [3200x1300mm | 160T | Solid Steel | Daylight 3] – image 2

TECHNICAl DATA

• Model : BY214×10/16(3)H1RC

• Total pressure : 1600KN

• Specific pressure : 4.3Kgf/cm2

• Working layer : 3 layers

• Platen No.& Size : 4-3200x1300x42mm, solid steel drilled hot platen covered with Mylar

• Platen opening : 120mm

• Cylinder No.& Dia : 10-φ85mm

• Max temperature : 120℃

• Heating way : Electric heating with thermal oil

• Heating medium: : thermal oil

• Installation power: 4 + 1.5 + 72 kW = 77.5 kW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 415V 50Hz

• Packing : Bare but properly secured

• Gross Weight : About 10000.00 kg

Preorder

₹3,350,000.00

₹4,187,500.00

Customize

Product Details

Hot Press Machine · Qiulin

Hot Press Machine BY214X10/16(3)H1RC: features, advantages and benefits

The Hot Press Machine BY214X10/16(3)H1RC from Qiulin is used for hot pressing laminate and veneer onto boards in furniture production.

Key data: specific pressure 4.3Kgf/cm2; platen opening 120mm; cylinder no.& dia 10-φ85mm; max temperature 120℃.

Features, advantages and benefits

Safety

Feature	Advantage	Benefit to you
Controlled pressing cycle	Pressure is applied only when the press is set and closed	You get safer operation

Quality

Feature	Advantage	Benefit to you
Max temperature: 120℃	Platen temperature range suited to hot-curing glues	You can use PU and formaldehyde glue at this temperature
Cylinder No.& Dia: 10-φ85mm	Several cylinders spread the load across the whole platen	You ensure even pressure and no bubbles
Total pressure: 1600KN	Pressure is spread evenly across the platen	You get uniform bonding with fewer blisters and gaps
Gross Weight: About 10000.00 kg	Heavy, rigid industrial-grade frame	You get a heavy-duty machine that runs without vibration

User-friendly operation

Feature	Advantage	Benefit to you
Simple controls for pressure and time	Settings are easy to repeat	You get consistent results from every operator

Productivity

Feature	Advantage	Benefit to you
Platen No.& Size: 4-3200x1300x42mm, solid steel drilled hot platen covered with Mylar	Mylar-covered platen releases glue and resin easily	You save on cleaning time with the Mylar sheet
Specific pressure: 4.3Kgf/cm2	High pressure on every square centimetre of the panel	You get faster bonding with this specific pressure
Working layer: 3 layers	Capacity matched to common furniture and panel sizes	You achieve more work in one set-up
Installation power: 4 + 1.5 + 72 kW = 77.5 kW	Enough power for continuous production work	You achieve steady output without overloading the machine

Return on investment

Feature	Advantage	Benefit to you
Model: BY214×10/16(3)H1RC	Exact model reference for orders and spares	You save time when re-ordering or servicing
Higher output per shift	More finished parts from the same team, floor space and power	You earn more gross profit, more net profit and a better ROI

Trust and support

Feature	Advantage	Benefit to you
Supplied and supported by Caple	Woodworking machinery specialists in India since 1974	You get advice from people who know furniture production
Sales and service from Mumbai, Pelhar (Nalasopara East), Delhi, Bengaluru and Kolkata	Local teams for selection, installation and after-sales support	You get support close to your factory

You get safe, controlled pressing.
You achieve uniform, durable bonding.
You save on rejects, glue and material.
You achieve more pressed panels per shift.

Frequently asked questions

What is the Hot Press Machine BY214X10/16(3)H1RC used for?

It is used for hot pressing laminate and veneer onto boards in furniture production.

What do I need on site before installation?

Check these points with your site team: voltage 3PE 415V 50Hz. Caple will confirm earthing, power, air and dust extraction during the site review.

What support does Caple provide?

Application advice, installation and after-sales support from Caple's sales and service offices in Mumbai, Pelhar (Nalasopara East), Delhi, Bengaluru and Kolkata.

How do I get a price or arrange a site review?

Message Caple on WhatsApp, call +91 70454 59931 or use the Caple contact page. Share your materials and daily output so we can confirm the right configuration.

Plan your pressing line with Caple

Tell us your panel sizes, materials and daily output. We will confirm whether the Hot Press Machine BY214X10/16(3)H1RC suits your work and share a quotation.

Get a quotation on WhatsApp Talk to a Caple application engineer Call +91 70454 59931
