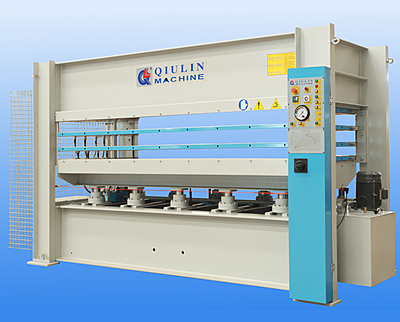

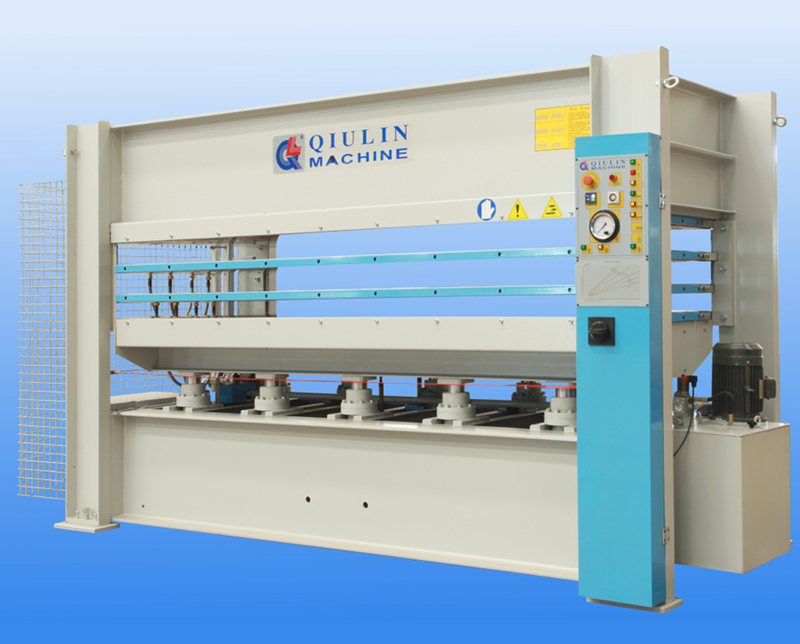

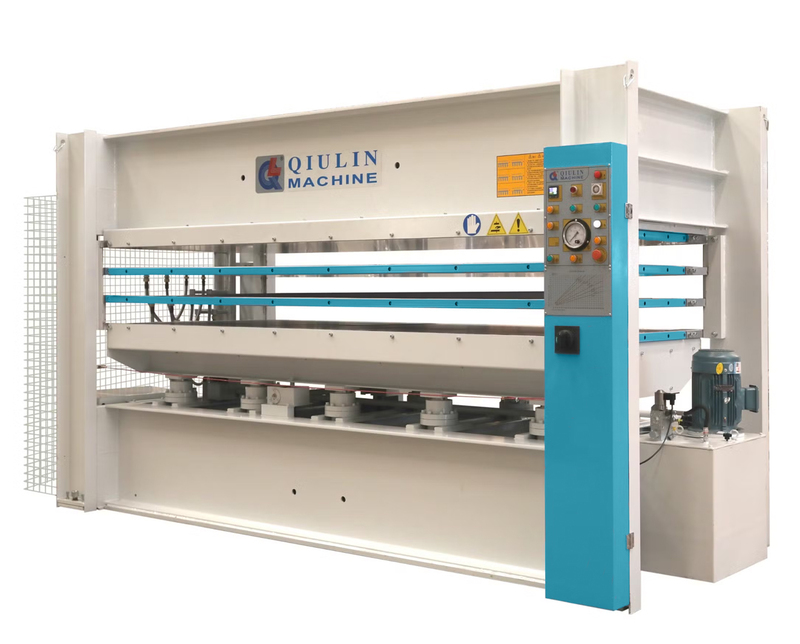

Hot Press Machine BY214X8/16(2)H1RC [2500x1300mm | 160T | Solid Steel | Daylight 3]

TECHNICAL DATA

• Total pressure : 1600KN

• Specific pressure : 5gf/cm2

• Working layer : 3 layers

• Platen No.& Size : 4-2500x1300x42mm(solid steel drilled hot platen covered with mylar)

• Platen opening : 120mm

• Cylinder No.& Dia : 10-φ85mm

• Max temperature : 120℃

• Heating way : Electric heating with thermal oil

• Heating medium : thermal oil

• Installation power : 4 0.75 48KW

• Platen opening way : Automatically

• Loading way : Length side,Manually

• Voltage : 3PE 415V 50Hz
