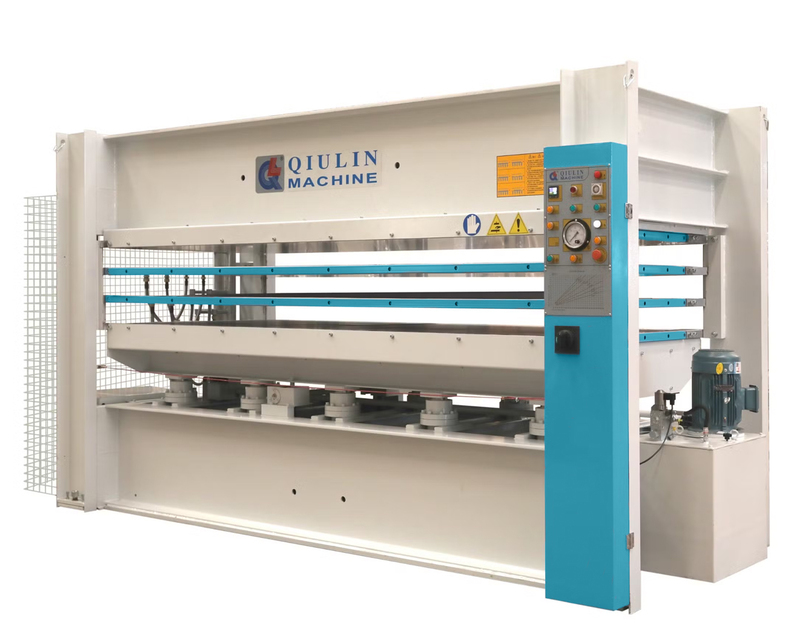

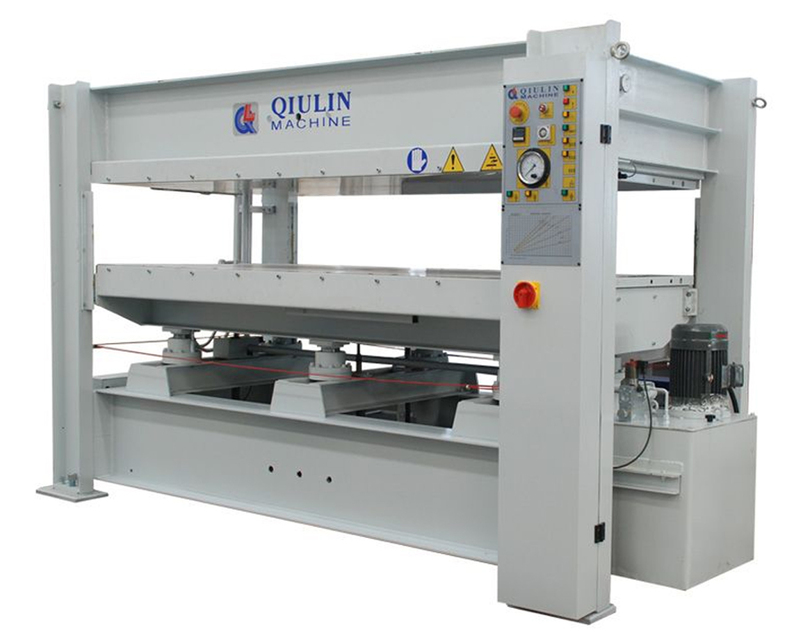

![Hot Press Machine BY214X9/16(1)H1RC [3000x1300mm | 160T | Solid Steel | Daylight 1]](https://cdn1.zohoecommerce.com/product-images/BY214X9-16%281%29H1RC.jpg/2574649000078916040/800x800?storefront_domain=www.caple.in&format=webp)
![Hot Press Machine BY214X9/16(1)H1RC [3000x1300mm | 160T | Solid Steel | Daylight 1]](https://cdn1.zohoecommerce.com/product-images/BY214X9-16%281%29H1RC.jpg/2574649000078916040/400x400?storefront_domain=www.caple.in&format=webp)
![Hot Press Machine BY214X9/16(1)H1RC [3000x1300mm | 160T | Solid Steel | Daylight 1] – image 2](https://cdn1.zohoecommerce.com/product-images/BY214X9-16%281%29H1RC.jpg/2574649000078916015/400x400?storefront_domain=www.caple.in&format=webp)
TECHNICAL DATA
• Total pressure : 1600KN
• Specific pressure: : 4.1Kgf/cm2
• Working layer : 1
• Platen No.& Size : 2-3000x1300x42mm(solid steel drilled hot platen covered with mylar)
• Platen opening : 360mm
• Cylinder No.& Dia : 10-φ85mm
• Max temperature : 120℃
• Heating way : Electric heating with thermic oil
• Heating medium: : Thermic oil
• Installation power : 4 0.75 36KW
• Platen opening way : Automatically
• Loading way : Length side,Manually
• Voltage : 3PE 415V 50Hz
₹2,400,000.00
₹3,000,000.00
Choose Quantity :
