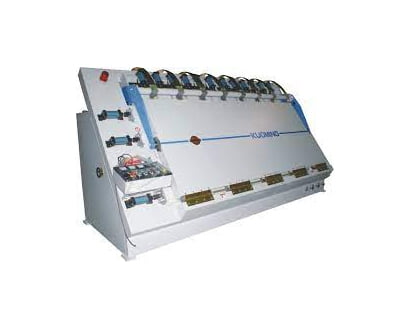

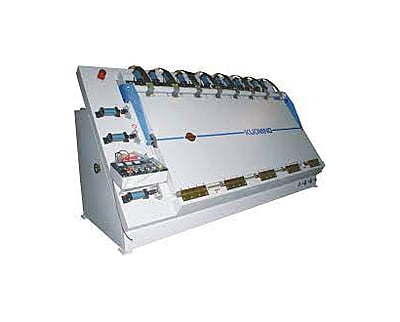

High Frequency Press Slanted 1 Bed

• Input Power 3 � 415V

• High Frequency Power 25 KW,

• Transmitting Tube 3CX15000H3

• H.F. Adjustor Hand wheel adjustor

• High Tension Transformer AC8000V, DC10000V. 40KVA

• Rectifier Patented, High Tension resistance, Full wave

• Variable Capacitor Patented, 4 piece one Set,

• Working Area Max range : 2440 X 1220 X 15~80mm, for Frame assemble

• Pressure 5HP Hydraulic pump

• Pressing way V UP and SIDE pressure as well as Upper Massive plate

• Cylinder UP� 2 PCS / Rear x 10 PCS / Side x 2 PCS

• Loading and Unloading Manually loading and unloading

• UP and Lower Plate Upper and bottom plate surface attached with steel plates.

• Press type Dual Inclined Bed with One massive upper plate slides left and right side for up side pressing

• Tube Protector Patented tube protector is to protect the expensive tube from over-heat burnt

• Spark Suppressor Patented spark suppressor is to protect machine plate and work piece from short voltage burnt

• Grounding Whole plate grounding

• Plate positioning Protection Upper plate positioning pressing protection,
