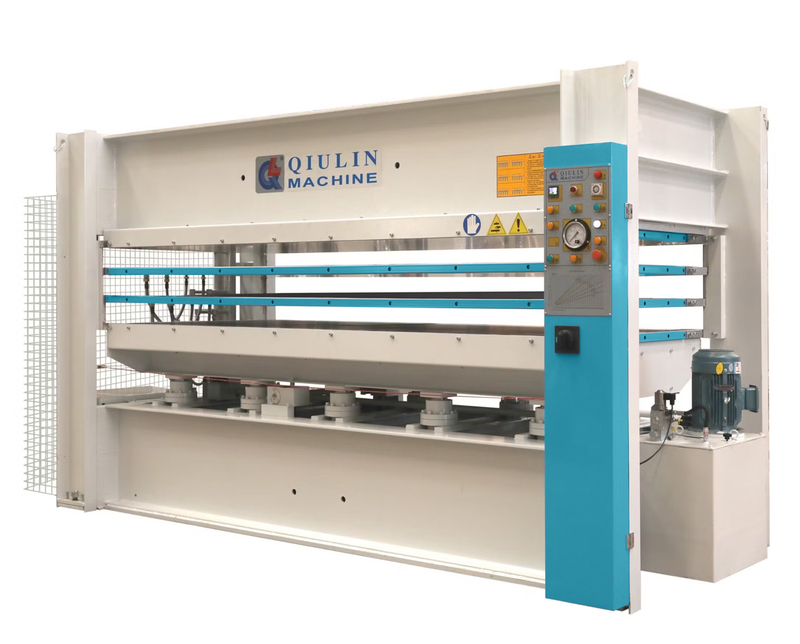

![Hot Press Machine BY214X9/16(3)H1RC [3000x1300mm | 160T | Solid Steel | Daylight 3]](https://cdn1.zohoecommerce.com/product-images/QIUILIN_HP.jpg/2574649000070707403/800x800?storefront_domain=www.caple.in&format=webp)
![Hot Press Machine BY214X9/16(3)H1RC [3000x1300mm | 160T | Solid Steel | Daylight 3]](https://cdn1.zohoecommerce.com/product-images/QIUILIN_HP.jpg/2574649000070707403/400x400?storefront_domain=www.caple.in&format=webp)
![Hot Press Machine BY214X9/16(3)H1RC [3000x1300mm | 160T | Solid Steel | Daylight 3] – image 2](https://cdn1.zohoecommerce.com/product-images/QIUILIN_HP_01.jpg/2574649000070707405/400x400?storefront_domain=www.caple.in&format=webp)
TECHNICAL DATA
• Model : BY214X9/16(3)H1RC
• Total pressure : 1600KN
• Specific pressure : 4.1Kgf/cm2
• Working layer : 3
• Platen No.& Size : 4-3000x1300x42mm(solid steel drilled hot platen covered with mylar)
• Platen opening : 120mm
• Cylinder No.& Dia : 10-φ85mm
• Max temperature : 120℃
• Heating way : Electric heating with thermic oil
• Heating medium : Thermic oil
• Installation power : 77.5KW
• Platen opening way : Automatically
• Loading way : Length side,Manually
• Voltage : 3PE 415V 50Hz
Preorder
₹3,050,000.00
₹3,812,500.00
