CNC Drilling Machine

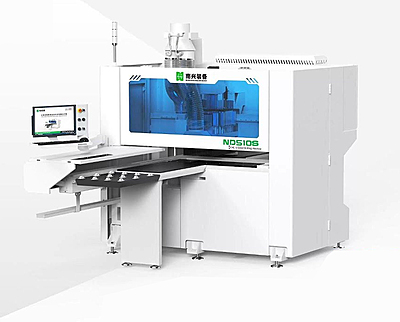

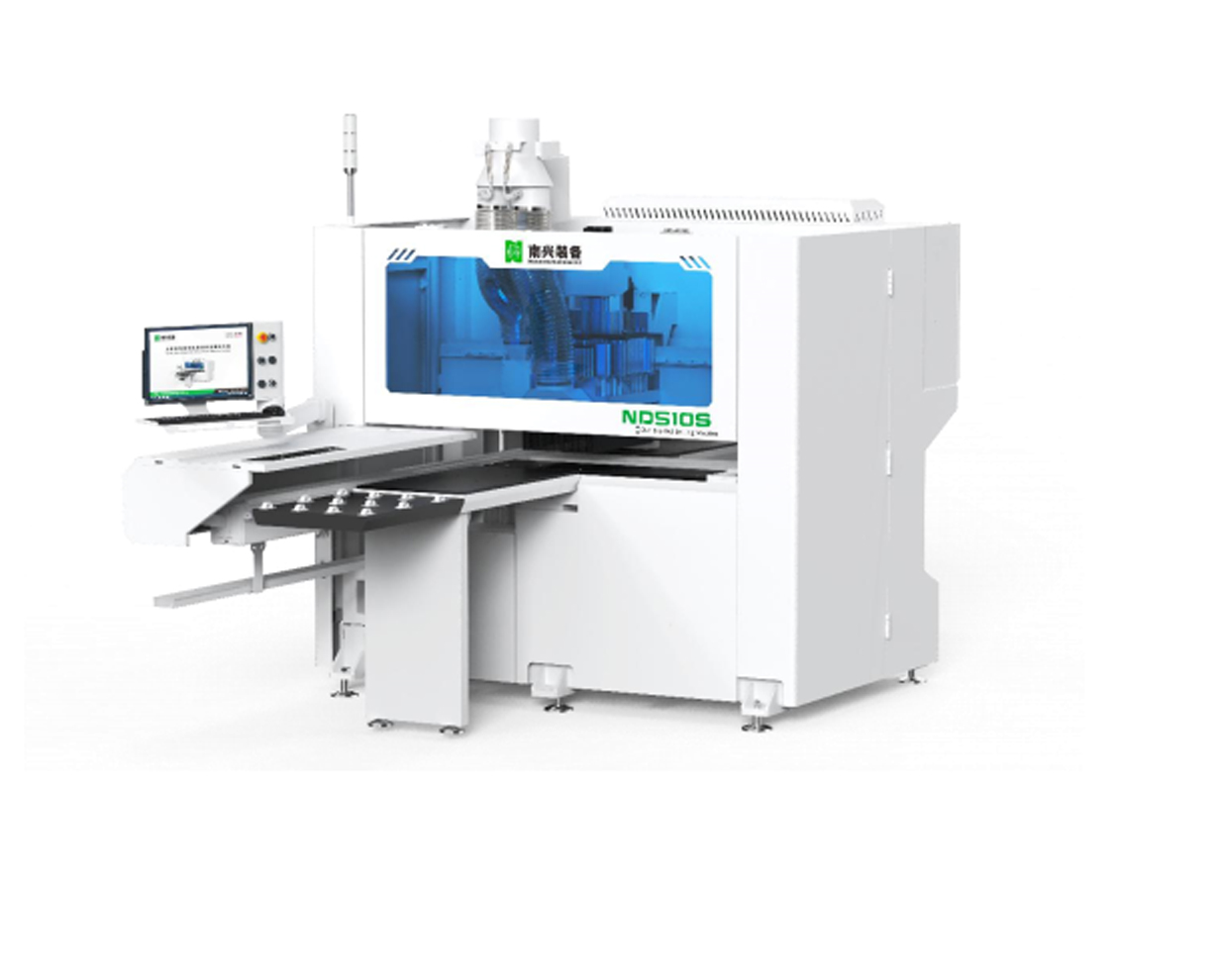

Nanxing CNC 6-Sided drilling machine ND510S 415V | AC | Grooving Saw Blade | Air Jet for Gripper | Thickness Sensor

FEATURES

• Long clamp beam & fast clamps – 3.3 m

• Infeed air float table – 500 × 1613 mm

• Feed-out table – 500 × 1613 mm

• Positioning system

• Accurate movement of each axis (X, Y, U) transported by inclined rack and pinion

• Auto greasing

• Board length detector

• Processing unit

• Quick-change tool

• Cable chain

• Minimum processing size

• Stack processing

• Hand controller

• Start button & pedal switch

• E-stop & pause bar

• Industrial computer

• Control system

• Excellent electrical components

• Bar-code reader

• User-friendly operation

• File format support

• Air conditioner on control cabinet

• Air jet for gripper

• Board thickness sensor

Technical Data

• Total Power: 13.87 kW

• Machine Size: 3962 × 2222 × 2271 mm

• Power Supply: 415 V / 50 Hz

• Air Supply: 0.6–0.7 MPa

• Control System: SYNTEC

• Panel Length: 200–3,000 mm

• Panel Width: 30–1,000 mm

• Panel Thickness: 10–60 mm

• Max. Travelling Speed – X/U axis: 135 m/min

• Max. Travelling Speed – Y axis: 75 m/min

• Max. Travelling Speed – Z axis: 30 m/min

• Max. Travelling Speed – V axis: 30 m/min

• Working Table Material: HPL

• Working Table Size: 1232 × 275 mm

• Working Table Height: 955 mm

• Drilling Block Qty: Top 1 + Bottom 1

• Vertical Drills Qty (Top): 10

• Horizontal Drills Qty (Top): X: 6 + Y: 4

• Vertical Drills Qty (Bottom): 9

• Max. Drill Diameter: Φ35 mm

• Drill Spacing: 32 mm

• Drill Rotation Speed: 5000 rpm

• Shank Diameter: Φ10 mm

• Drill Length: 70 mm

• Main Spindle: 1 × 3.5 kW (Top)

• Dust Collector Qty: 2

• Dust Collector Diameter: Top 200 mm × 1 + Bottom 125 mm × 1

• Dust Collector Speed: ≥28 m/min

₹2,300,000.00 ₹2,875,000.00

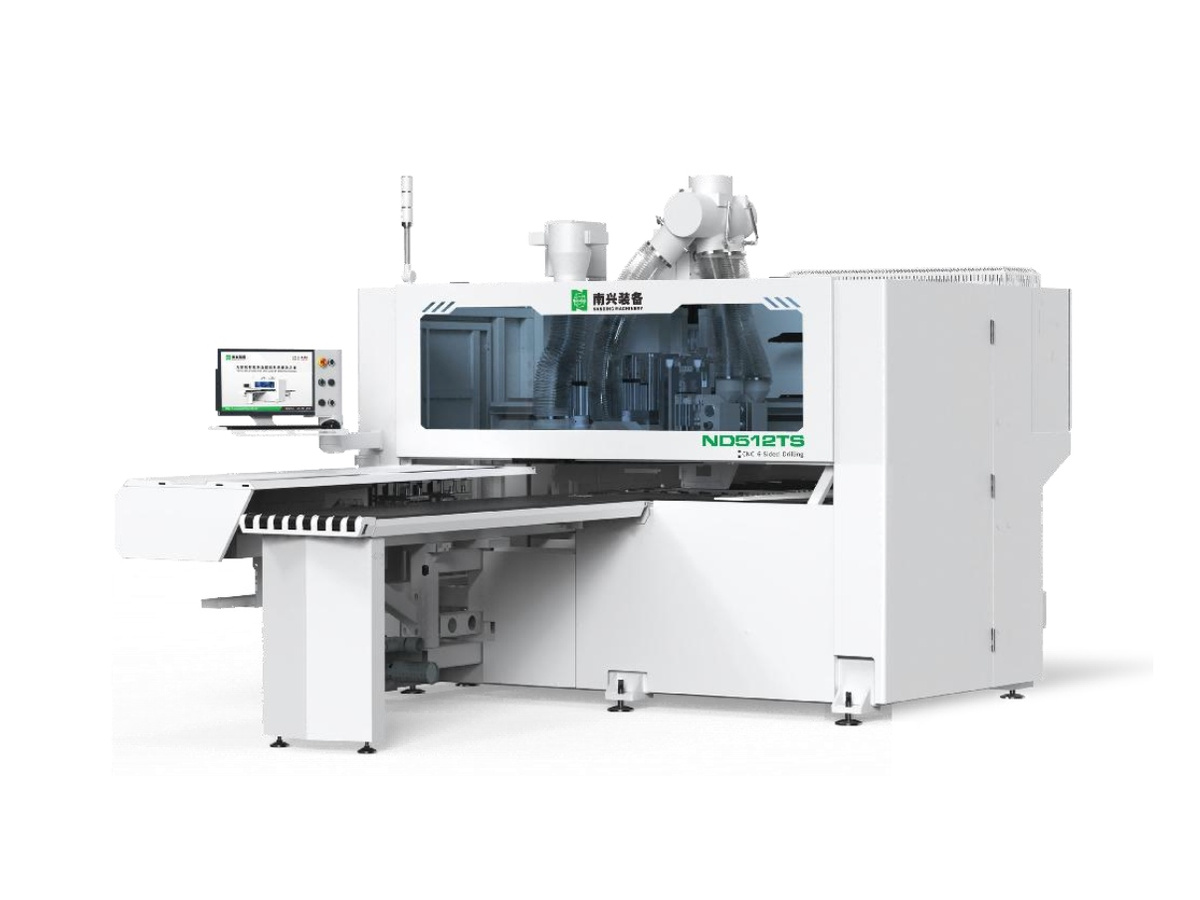

CNC 6-Sided drilling machine ND512TS 415V | AC | Lamello Saw Blade | Double-head aggregate | Air Jet for Gripper

FEATURES:

TECHNICAL DATA:

Total Power : 21.07kw
Machine Size : 3962×3010×2320mm
Power Supply : 415V/50Hz
Air Supply : 0.6-0.7MPa
Control System : SYNTEC
Panel Length : 200-2,800mm
Panel Width : 30-1,220mm
Panel Thickness : 10-60mm
Max. Travelling Speed X/U axis : 135m/min
Max. Travelling Speed Y axis : 75m/min
Max. Travelling Speed Z axis : 30m/min
Max. Travelling Speed V axis : 30m/min
Drilling Block Qty : Top 1 + Bottom 1
Vertical Drills Qty (Top) : 10
Horizontal Drills Qty (Top) : X: 2×2 + Y: 2×2
Vertical Drills Qty (Bottom) : 9
Max Drill Diameter : Φ35mm
Drill Spacing : 32mm
Drill Rotation Speed : 5000rpm
Shank Diameter : Φ10mm
Drill Length : 70mm
Top Main Spindle : 1×5.5kw ER32 ATC4 18000rpm
Bottom Main Spindle : 1×3.5kw ER25 18000rpm
Saw Blade Power : 1.7kw
Saw Blade Size : Φ100×Φ22×δ4
Saw Processing Range : 50-1200mm
Dust Collector Qty : 3
Dust Collector Diameter : Top 200mm×2 + Bottom 125mm×1
Dust Collector Speed : ≥28m/min

₹2,900,000.00 ₹3,625,000.00

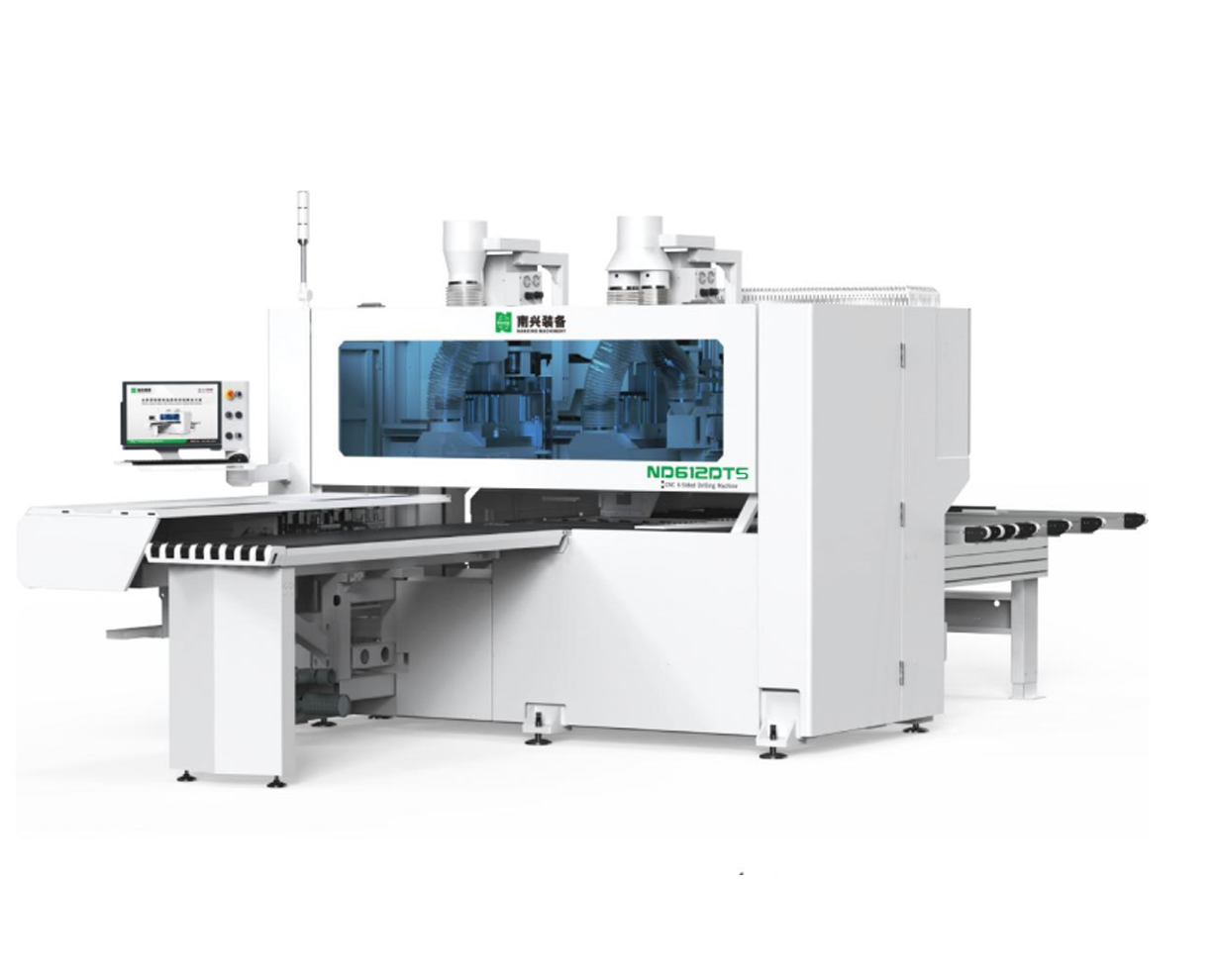

Nanxing CNC 6-Sided Drilling Machine ND61DTSL 415V

FEATURES

Long clamp beam & fast clamps 5.5m longer high-rigidity clamp
Feed-in & out table
Positioning Side aligner & Support / press plates
Board length, width detector
6 slots tool changer
Tool setting gauge
5.5kw+3.5kw main spindle
Top drilling block 1 boring blocks 2.2kw,
Optimized drilling blocks layout +saw blade
2 boring blocks 2.2kw with Vertical drills: 19+19
Independent grooving saw 1.7kw; Saw blade size:Ф100*Ф22*δ4 fixed in X direction.
Bottom drilling block 1.6kw 9 vertical drills
Min. processing Panel length: 200-3000mm / Panel width 30-1200mm
Stack processing
Side Grooving
Machine is configured with Lamello aggregate & tool
Anti-handling device for infeed table
3No. Dust collection port
Hand controller
Control system
Windows 10 operating system
Control interface is modern and friendly
Manual programming interface
Simulation function
Easy tools setting
Statistics function
Bar-code reader
File format support (MPR, DXF, BAN, BPP, PDX; XML; XX)
Side routing-One head aggregate
Board thickness sensor
Air jet for Grippe
DC3015L Roller Conveyor
DCC3015L Roller Conveyor
DC3515L Roller conveyor
Electrical control system
Barcode scanner and its components

TECHNICAL SPECIFICATIONS:

Total power : 26.63Kw+3KW
Power Supply 415V/50Hz/3PH
Total weight : 3,850Kg
Panel size : Length 200-3,000mm
Panel size : Width 30-1,200mm
Panel size : Thickness 10-60mm
Max. traveling speed : X /U axis 135m/min
Max. traveling speed : Y axis 75m/min
Max. traveling speed : Z axis 30m/min
Transmission mode : X axis Rack and pinion
Transmission mode : Y axis Rack and pinion
Transmission mode : Z axis Ball screw rod
Boring blocks qty : Top 2; Bottom 1
Boring blocks Vert. drills qty (top) : 19*2
Boring blocks Horiz. drills qty (top) : X: 3× 4 + Y: 2× 4
Boring blocks Vert. drills qty (Bottom) : 9
Boring blocks Max drill diameter : Φ35mm
Boring blocks Drill spacing : 32mm
Boring blocks Rotation speed : 5000rpm
Boring blocks Shank diameter : Φ10mm
Main spindle qty : Top tool ER32 holder ISO30 ; Bottom tool collet ER25
Main Spindle power : 5.5kw*1 ; 3.5kw×1 max.18000rpm
Saw blade : Power 1.7kw
Saw blade : Size Ф 100*Ф 22*x 4
Saw blade : Processing range 50-700mm
Dust collector : qty 2
Dust collector : diameter
Dust collector : Top 200mm×2
Dust collector : Lower 125mm×1
Dust collector : speed ≥28m/min

₹7,050,000.00 ₹8,812,500.00

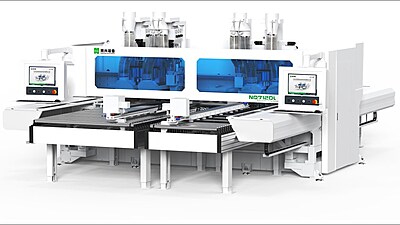

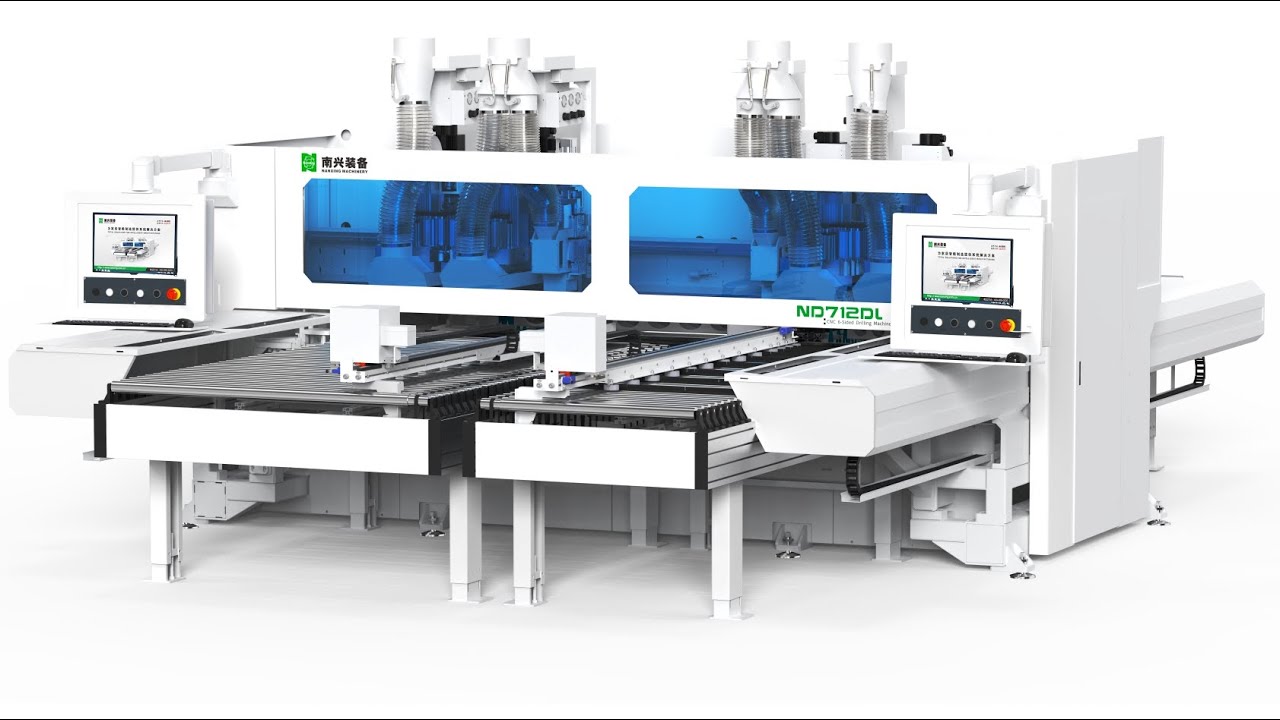

CNC 6-Sided Drilling Machine with Double Work Station ND712DL(1200+650) Gripper+AC for Cabinet

FESTURES

TECHNICAL SPECIFICATIONS

Total power : 48.36KW
Machine size : 7,400*4,470*2,380mm
Power supply : 415V/50Hz3PH
Air supply : 0.6-0.7MPa
Total weight : 6,300Kg
Control system : SYNTEC
Panel Length : 200-3,000mm
Panel Width : 30-1200+650mm
Panel thickness : 10-60mm
Max. traveling speed (X/U) axis : : 135m/min
Max. traveling speed Y axis : : 75m/min
Max. traveling speed Z axis : : 30m/min
Max. traveling speed (X/U) axis : : 135m/min
Transmission mode X & Y : Rack and pinion
Transmission mode Z : Ball screw rod
Drilling blocks
Boring block qty : Top 2+2 , Bottom1+1
Vertical drills qty(top) : 19*4
Horizontal drills qty(top) : X:3×8+Y:2x4
Vertical. drills qty(Bottom) : 9x2
Max. drill diameter : 35mm Dia.
Drill spacing : 32mm
Rotation speed : 5000rpm
Shank diameter : 10mm
Main spindle qty : 4*ER32
Main spindle power : 4*3.5kwmax.18000rpm
Dust collector Top : 200x4
Dust collector Bottom : 125mm×2
Dust Collector Speed : 28m/min

₹9,000,000.00

Nanxing CNC 6-Sided Drilling Machine ND61DTS 415V

FEATURES

Long clamp beam & fast clamps 5.5m longer high-rigidity clamp
Feed-in & out table
Positioning Side aligner & Support / press plates
Board length, width detector
6 slots tool changer
Tool setting gauge
5.5kw+3.5kw main spindle
Top drilling block 1 boring blocks 2.2kw,
Optimized drilling blocks layout +saw blade
2 boring blocks 2.2kw with Vertical drills: 19+19
Independent grooving saw 1.7kw; Saw blade size:Ф100*Ф22*δ4 fixed in X direction.
Bottom drilling block 1.6kw 9 vertical drills
Min. processing Panel length: 200-3000mm / Panel width 30-1200mm
Stack processing
Side Grooving
Machine is configured with Lamello aggregate & tool
Anti-handling device for infeed table
3No. Dust collection port
Hand controller
Control system
Windows 10 operating system
Control interface is modern and friendly
Manual programming interface
Simulation function
Easy tools setting
Statistics function
Bar-code reader
File format support (MPR, DXF, BAN, BPP, PDX; XML; XX)
Side routing-One head aggregate
Board thickness sensor
Air jet for Grippe

TECHNICAL SPECIFICATIONS:

Total power : 26.63Kw
Power Supply 415V/50Hz/3PH
Total weight : 3,850Kg
Panel size : Length 200-3,000mm
Panel size : Width 30-1,200mm
Panel size : Thickness 10-60mm
Max. traveling speed : X /U axis 135m/min
Max. traveling speed : Y axis 75m/min
Max. traveling speed : Z axis 30m/min
Transmission mode : X axis Rack and pinion
Transmission mode : Y axis Rack and pinion
Transmission mode : Z axis Ball screw rod
Boring blocks qty : Top 2; Bottom 1
Boring blocks Vert. drills qty (top) : 19*2
Boring blocks Horiz. drills qty (top) : X: 3× 4 + Y: 2× 4
Boring blocks Vert. drills qty (Bottom) : 9
Boring blocks Max drill diameter : Φ35mm
Boring blocks Drill spacing : 32mm
Boring blocks Rotation speed : 5000rpm
Boring blocks Shank diameter : Φ10mm
Main spindle qty : Top tool ER32 holder ISO30 ; Bottom tool collet ER25
Main Spindle power : 5.5kw*1 ; 3.5kw×1 max.18000rpm
Saw blade : Power 1.7kw
Saw blade : Size Ф 100*Ф 22*x 4
Saw blade : Processing range 50-700mm
Dust collector : qty 2
Dust collector : diameter
Dust collector : Top 200mm×2
Dust collector : Lower 125mm×1
Dust collector : speed ≥28m/min

₹5,650,000.00 ₹7,062,500.00

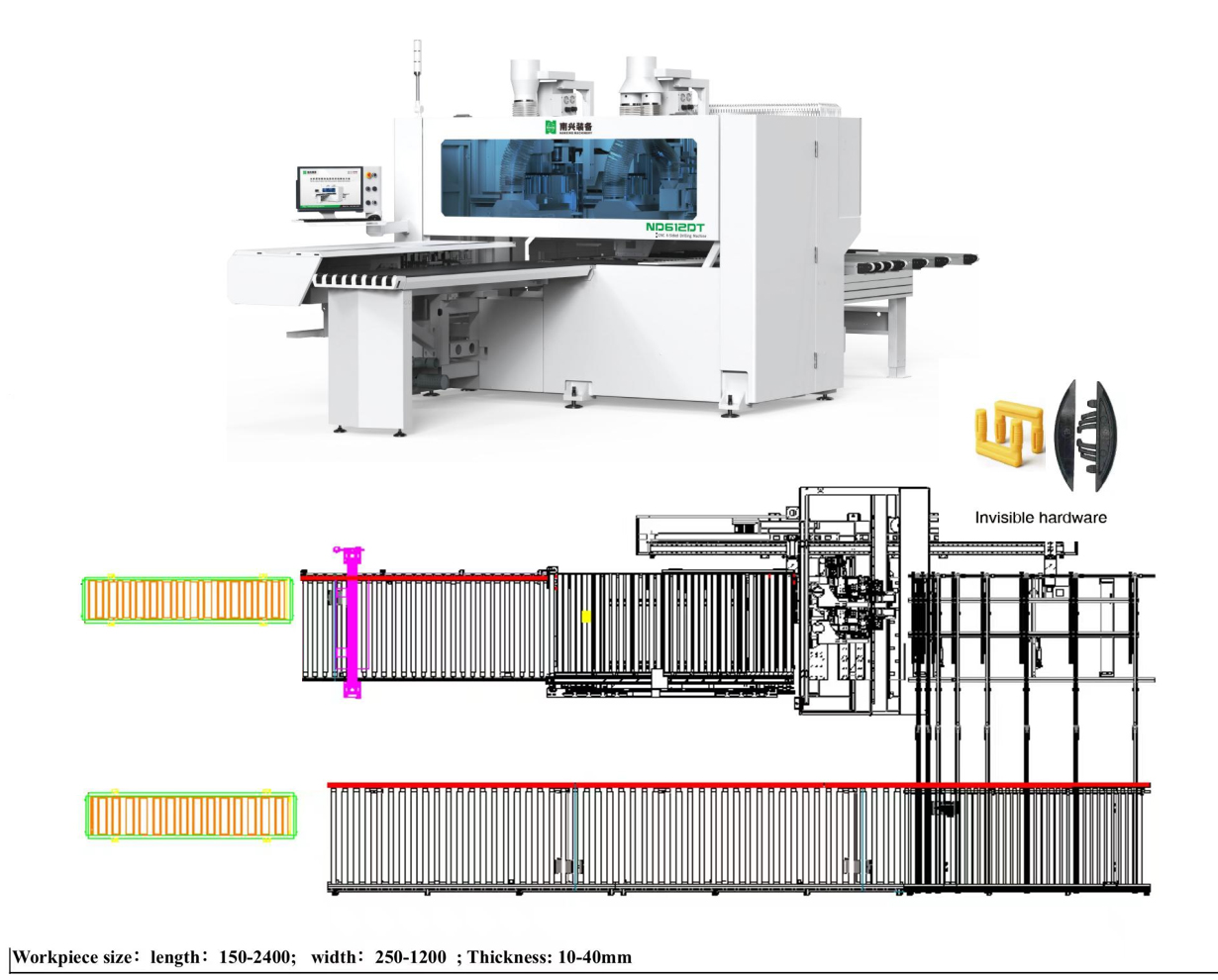

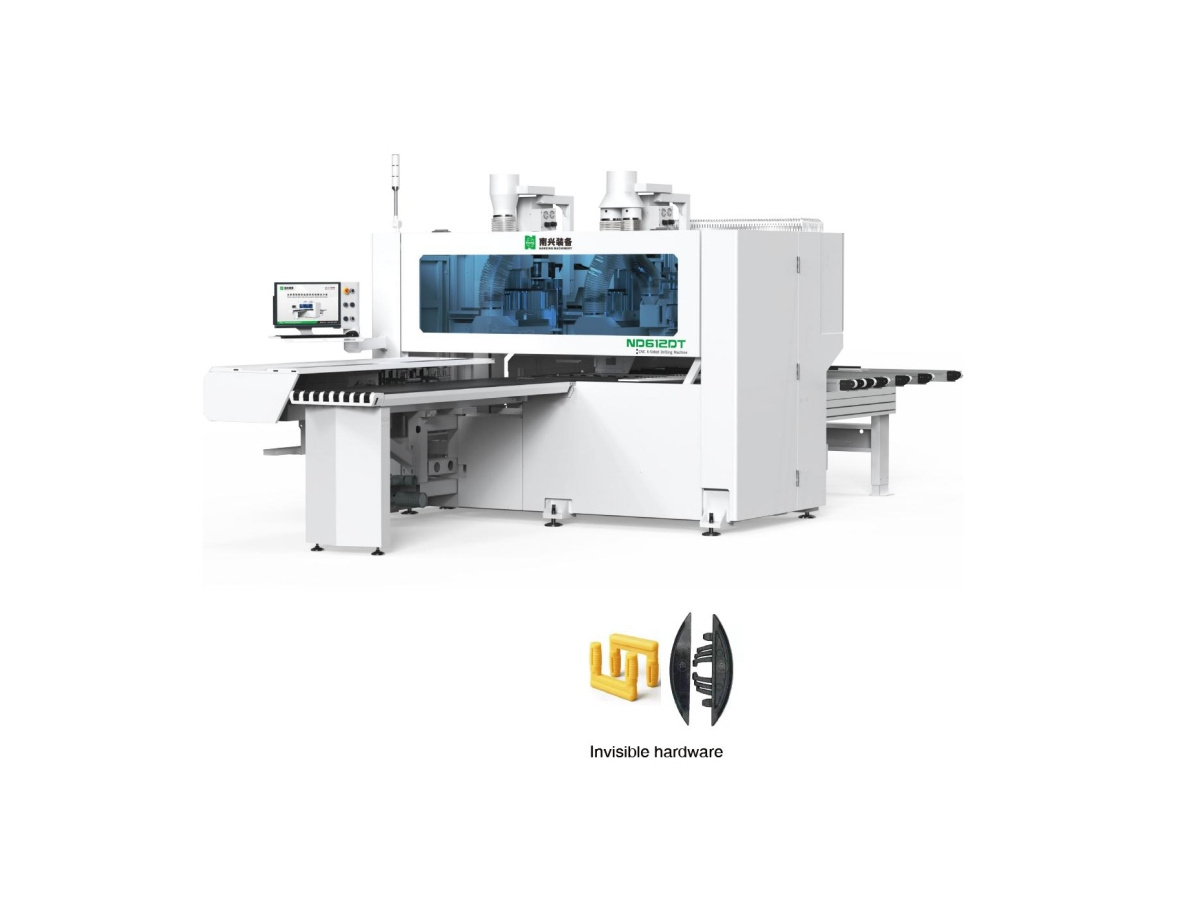

CNC 6-Sided drilling machine ND612TS 415V | AC | Lamello Saw Blade | Double-head aggregate | Air Jet for Gripper

FEATURE

Long clamp beam & fast clamps
Feed-in & out table
Positioning
Board length, width detector
6 slots tool changer
Tool setting gauge
5.5kw+3.5kw main spindle
Optimized drilling block layout + saw blade
Min. processing part
Stack processing
Invisible hardware
Side Grooving
Anti-handling device for infeed table
Dust collection port
Cable chain
Hand controller
Control system
Industrial computer
Excellent electrical components
User-friendly operation
Bar-code reader
File format support
Side routing-Double head aggregate
Board thickness sensor
Air jet for Gripper
Hand wheel
Saw blade for lamello
Standard Toolbox for testing
Air conditioner on control cabinet

TECHNICAL DATA:

Total Power : 25.63kw
Machine Size : 6,150×3,010×2,320mm
Power Supply : 415V/50Hz
Air Supply : 0.6-0.7MPa
Total Weight : 3,850kg
Control System : SYNTEC
Panel Length : 200-3,000mm
Panel Width : 30-1,200mm
Panel Thickness : 10-60mm
Max. Travelling Speed X/U axis : 135m/min
Max. Travelling Speed Y axis : 75m/min
Max. Travelling Speed Z axis : 30m/min
Boring Block Qty : Top 1 + Bottom 1
Vertical Drills Qty (Top) : 19
Horizontal Drills Qty (Top) : X: 3×4 + Y: 2×4
Vertical Drills Qty (Bottom) : 9
Max Drill Diameter : Φ35mm
Drill Spacing : 32mm
Drill Rotation Speed : 5000rpm
Shank Diameter : Φ10mm
Top Main Spindle : 1×5.5kw ER32 ISO30 ATC6 18000rpm
Bottom Main Spindle : 1×3.5kw ER25 18000rpm
Saw Blade Power : 1.7kw
Saw Blade Size : Φ100×Φ22×δ4
Saw Processing Range : 50-700mm
Dust Collector Qty : 2
Dust Collector Diameter : Top 200mm×2 + Lower 125mm×1
Dust Collector Speed : ≥28m/min

₹3,350,000.00 ₹4,187,500.00

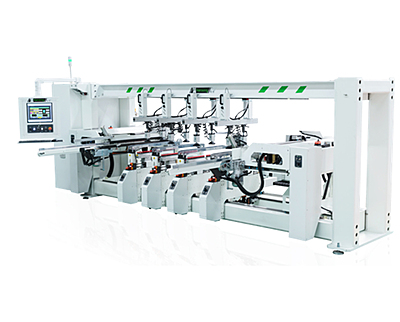

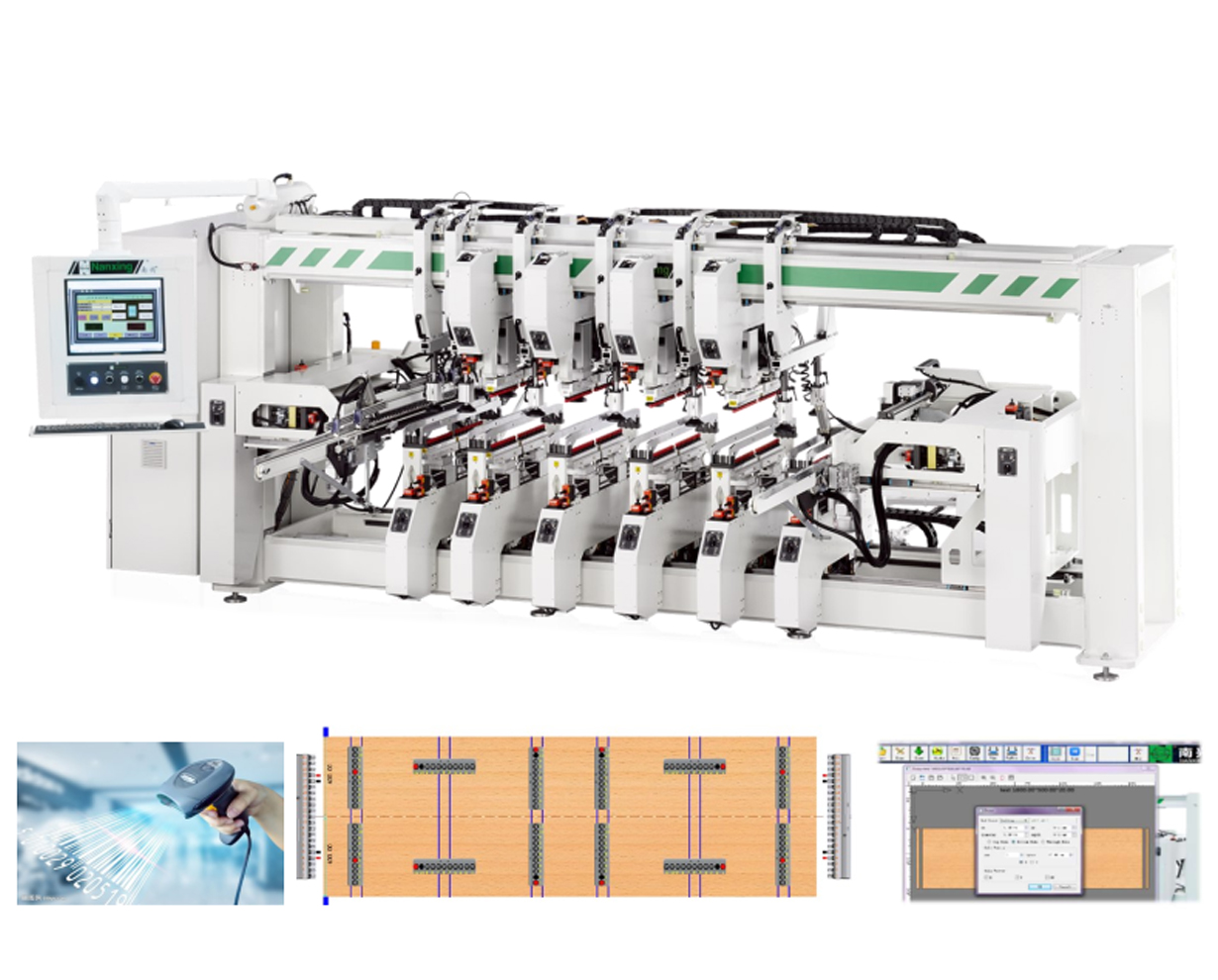

Nanxing Through-feed Drilling Machine with 42 Set of Drill and Line Function NDC702(415V)

FESTURES

• Auto feed-in and feed-out

• Top presser

• Precise positioning on working area

• Drilling rows

• Optional special drilling block. Movement of drilling rows

• Quick release and fix

• Processing data

• Feeding assistant

• Drag chains

• Safety device

• E-stop and foot switch

• Control cabinet

• PC Control

• Customize Drill Head 42set

• Line Function 1 Set

Technical Data

• Max panel width : 2550 mm

• Min. panel width : 250 mm

• Max. panel thickness : 50mm

• Lower drilling rows quantity : 7

• Horizontal drilling rows quantity : 2

• Boring block power : 1.5kw 2750rpm

• Spacing of drills : 32mm

• Max. vertical drilling depth : 50mm

• Max. horizontal drilling depth : 40mm

• Servo motor quantity : 13

• Servo motor power : 0.75kw

• Total power : 33kw

• Power Supply : 415V/50hz/3p

• Approx. weight : 7,500 kg

• Overall dimension : 5,540 x 6601 x 1950 mm

• Max. speed of feeding belt : 80m/min

• Max space of two horizontal drills : 640mm

• Max space of two vertical drills : 885mm

• Min space of two vertical drills : 128mm

• The height of working area : 965-1010mm

₹14,800,000.00

Nanxing Through-feed Drilling Machine with Servo Drived NDC642-(415V)

SPECIFICATIONS

• Enough drilling rows 6 vertical rows on bottom,4 on top and 2 horizontal rows on side enable to finish 4 side drilling in one cycle;

• Feeding fast: 3 section feeding belt with waiting area for least waiting time max. speed of belt is 80m/mim, Max 22pcs/min

• Adjusting fast: Vertical drilling row movement and rear positioning control by servo motors, auto positioning, reducing the time of adjusting, save time and labor. 13pcs servo motors in total.

• Fast drilling block changing time: quick change and release design, 5s to change block

• Intelligent PC control: support MPR,DXF,MPR format to link with common furniture design software or MES, can scan the label to read drilling info.

• Machine is standard with drawing function, generate rows and drills position based on the drawing automatically, and move without too much setting up work.

Technical DATA

• Max panel width : 2550 mm

• Min. panel width : 250 mm

• Max. panel thickness :50mm

• Upper drilling rows qty. : 4

• Lower drilling rows qty. 6

• Horizontal drilling rows qty : 2

• Boring block power : 1.5kw 2750rpm

• Spacing of drills : 32mm

• Max. vertical drilling depth : 50mm

• Max. horizontal drilling depth : 40mm

• Servo motor qty : 13

• Servo motor power : 0.75kw

• Total power : 47kw

• Power Supply : 415V / 50HZ / 3PH

• Approx. weight : 7,100 kg

• Overall dimension : 5,540*3,650*2,800 mm

₹8,475,000.00

Nanxing Through-feed Drilling Machine with Servo Derived NDC402-(415V)

SPECIFICATIONS

• Enough drilling rows 4 vertical rows on bottom, 2 horizontal rows on side enable to finish 3 side drilling in one cycle;

• Feeding fast: 3 section feeding belt with waiting area for least waiting time max. speed of belt is 80m/mim, Max 22pcs/min

• Adjusting fast: Vertical drilling row movement and rear positioning control by servo motors auto positioning, reducing the time of adjusting save time and labor. 9pcs servo motors in total.

• Fast drilling block changing time: quick change and release design, 5s to change block

• Intelligent PC control: support MPR,DXF,MPR format to link with common furniture design software or MES, can scan the label to read drilling info.

• Machine is standard with drawing function, generate rows and drills position based on the drawing automatically, and move without too much setting up work.

Technical DATA

• Min. panel width: 250 mm

• Max. panel thickness 50mm

• Lower drilling rows qty. : 4

• Horizontal drilling rows qty : 2

• Boring block power : 1.5kw 2750rpm

• Spacing of drills : 32mm

• Max. vertical drilling depth : 50mm

• Max. horizontal drilling depth : 40mm

• Servo motor qty : 7

• Servo motor power : 0.75kw

• Total power : 28kw

• Approx. weight : 5,200 kg

• Overall dimension : 5,540*3,660*1,950 mm

₹5,125,000.00 ₹6,406,250.00

CNC 6-Sided Drilling Machine with Double Work Station ND712DL(650+650)

TECHNICAL SPECIFICATIONS

Total power : 48.36KW
Machine size : 7,400*4,470*2,380mm
Power supply : 415V/50Hz3PH/415V/60Hz3PH
Air supply : 0.6-0.7MPa
Total weight : 6,300Kg
Control system : SYNTEC
Panel Length : 200-3,000mm
Panel Width : 50-650mm
Panel thickness : 10-60mm
Max.traveling speed (X/U) axis : : 135m/min
Max.traveling speed Y axis : : 75m/min
Max.traveling speed Z axis : : 30m/min
Max.traveling speed (X/U) axis : : 135m/min
Transmission mode X & Y : Rackandpinion
Transmission mode Z : Ball screw rod
Drilling blocks
Boring block qty : Top 2+2 , Bottom1+1
Vert.drillsqty(top) : 19*4
Horiz.drills qty(top) : X:3×8+Y:2x4
Vert.drillsqty(Bottom) : 9x2
Max. drill diameter : 35mm Dia.
Drill spacing : 32mm
Rotation speed : 5000rpm
Shank diameter : 10mm
Main spindle qty : 4*ER32
Main spindle power : 4*3.5kwmax.18000rpm

₹7,900,000.00 ₹9,875,000.00

CNC 6-Sided Drilling Machine with Double Work Station ND712DL(1200+650)

TECHNICAL SPECIFICATIONS

Total power : 48.36KW
Machine size : 7,400*4,470*2,380mm
Power supply : 415V/50Hz3PH/415V/60Hz3PH
Air supply : 0.6-0.7MPa
Total weight : 6,300Kg
Control system : SYNTEC
Panel Length : 200-3,000mm
Panel Width : 50-1200mm
Panel thickness : 10-60mm
Max.traveling speed (X/U) axis : : 135m/min
Max. traveling speed Y axis : : 75m/min
Max. traveling speed Z axis : : 30m/min
Max. traveling speed (X/U) axis : : 135m/min
Transmission mode X & Y : Rack and pinion
Transmission mode Z : Ball screw rod
Drilling blocks
Boring block qty : Top 2+2 , Bottom1+1
Vert. drills qty(top) : 19*4
Horiz. drills qty(top) : X:3×8+Y:2x4
Vert. drills qty(Bottom) : 9x2
Max. drill diameter : 35mm Dia.
Drill spacing : 32mm
Rotation speed : 5000rpm
Shank diameter : 10mm
Main spindle qty : 4*ER32
Main spindle power : 4*3.5kwmax.18000rpm

₹8,550,000.00

CNC 6-Sided drilling machine ND512TS(415V)

FEATURES

Long clamp beam & fast clamps 3.3 mtr
Infeed air float table : 500*1613 mm
Feed out table : 500*1613 mm
Accurate movement of each axis X,Y,U Transported by inclined rack and pinion
Accurate movement of Z Transported by Ball screw rod
Servo motor for each axis
Max travelling speed: X/U/Y/Z/V:135/135/75/30/30m/min
Linear guiding rail and bearings can be greased automatically

Board length detector

Handwheel (Wired/Wireless(depend on the model) remote control for easy test run)
Air jet for gripper
WP length & thickness detection
Standard Toolbox for testing
#90901.00690 saw blade for lamello
one-head aggregate for horizontal routing

Top Spindle 5.5kw

Vertical drills: 10;
Horizontal drills: 8 (2+2 in X direction; 2+2 in Y direction.)

Independent grooving saw

Motor:1.7KW*1
Saw blade size Dia.:100*22*4

ATC main spindle

4 slot tool changer

Bottom Spindle 3.5KW

Drilling block : 9 vertical drills

Min. processing size

Drilling block design and software can do drilling for narrow parts
Panel length: 200-3000mm
Panel width 30-1200mm

Stack processing

Support stacking processing if hole position is mirror

Hand controller

Start button & pedal switch
E-stop & Pause bar

Industrial computer

Windows 10 operating system.
All-in-one industrial computer

SYNTEC CNC control system

Excellent electrical components
User-friendly operation Control interface
Manual programming interface
Tool management
Simulation function
File format support MPR, BXF, BAN, BPP, PDX, XML, XXL
Air conditioner on control cabinet
Safety light barrier & safety fence

TECHNICAL DATA:

Total power : 21.07 KW
Machine size : 3962*2810*2320 mm
Power supply : 415V/50Hz
Air supply : 0.6-0.7MPa
Control system Brand : SYNTEC
Panel size Length : 200-2800mm
Panel size Width : 30-1220mm
Panel size Thickness : 10-60mm
Max. traveling speed （X /U axis : 135m/min
Max. traveling speed Y axis : 75m/min
Max. traveling speed Z axis : 30m/min
Working table Material : HPL
Working table size : 1478 x 275 mm
Working table height : 955mm
Drilling block qty : Top 1; Bottom 1
Vertical drills qty Top : 10
Horizontal drills qty Top : X: 2*2 + Y: 2*2
Vert. drills qty Bottom : 9
Max drill diameter : 35mm
Drill spacing : 32mm
Rotation speed : 5000rpm
Shank diameter : 10mm
Drill length : 70mm
Main spindle Top : 1
Main spindle power : 5.5kw ER32 ATC4 18000rpm
Bottom spindle power : 1.3kw ER25 1800rpm
Saw Blade Power : 1.7kw
Saw Blade Size : Dia.100 x 22
Processing Range : 50-1200mm
Dust collector qty : 3
Dust collector diameter : Top 200mm×2
Dust collector diameter : Bottom 125mm×1
Dust collector speed : 28m/min
Dust collection speed : 28m/min = or greater

₹3,050,000.00 ₹3,812,500.00

CNC 6-Sided drilling machine ND512TS

FEATURES

Long clamp beam & fast clamps 3.3 mtr
Infeed air float table : 500*1613 mm
Feed out table : 500*1613 mm
Accurate movement of each axis X,Y,U Transported by inclined rack and pinion
Accurate movement of Z Transported by Ball screw rod
Servo motor for each axis
Max travelling speed: X/U/Y/Z/V:135/135/75/30/30m/min
Linear guiding rail and bearings can be greased automatically
Board length detector
Top processing unit
One 3.5kw main spindle TYPE:ER35
Independent grooving saw
Bottom processing unit Drilling block 9 vertical drills
Quick change tool
Min. processing size
Stack processing
Hand controller
Start button & pedal switch
E-stop & Pause bar
Industrial computer
Windows 10 operating system.
All-in-one industrial computer
SYNTEC CNC control system
Excellent electrical components
User-friendly operation Controll interface
Manual programming interface
Tool management
Simulation function
File format support MPR, BXF, BAN, BPP, PDX, XML, XXL
Air conditioner on control cabinet
Safety light barrier & safety fence

TECHNICAL DATA

Total power : 13.87 KW
Machine size : 3962*2222*2271 mm
Power supply : 380V/50Hz
Air supply : 0.6-0.7MPa
Control system Brand : SYNTEC
Panel size Length : 200-3,000mm
Panel size Width : 30-1,200mm
Panel size Thickness : 10-60mm
Max. traveling speed （X /U）axis : 135m/min
Max. traveling speed Y axis : 75m/min
Max. traveling speed Z axis : 30m/min
Max. traveling speed V axis (push) : 30m/min
Working table Material : HPL
Working table Table size : 1478 x 275 mm
Working table height : 955mm
Drilling block qty : Top 1; Bottom 1
Vert. drills qty Top : 10
Horiz. drills qty Top : X: 6 + Y: 4
Vert. drills qty Bottom : 9
Max drill diameter : 35mm
Drill spacing : 32mm
Rotation speed : 5000rpm
Shank diameter : 10mm
Drill length : 70mm
Main spindle Top : 1
Main spindle power : 3.5kw
Dust collector qty : 2
Dust collector diameter : Top 200mm×1
Dust collector diameter : Bottom 125mm×1
Dust collector speed : 28m/min
Auto Tool Changer

₹3,150,000.00 ₹3,937,500.00

Nanxing Multi Rows Boring Machine NDA402

TECHNICAL DATA

Max panel width : 2650mm
Min. panel width : 250mm
Max. panel thickness : 70mm
Lower drilling rows qty. : 4
Horizontal drilling rows qty : 2
Spacing of drills : 32mm
Max. vertical drilling depth : 70mm
Max. horizontal drilling depth : 40mm
Total power : 13.4kw
Approx. weight : 2,400kg
Overall dimension : 4,800*2,635*1,575 mm

₹1,800,000.00 ₹2,250,000.00

CNC Drilling Machine

Nanxing CNC 6-Sided drilling machine ND510S 415V | AC | Grooving Saw Blade | Air Jet for Gripper | Thickness Sensor

CNC 6-Sided drilling machine ND512TS 415V | AC | Lamello Saw Blade | Double-head aggregate | Air Jet for Gripper

Nanxing CNC 6-Sided Drilling Machine ND61DTSL 415V

CNC 6-Sided Drilling Machine with Double Work Station ND712DL(1200+650) Gripper+AC for Cabinet

Nanxing CNC 6-Sided Drilling Machine ND61DTS 415V

CNC 6-Sided drilling machine ND612TS 415V | AC | Lamello Saw Blade | Double-head aggregate | Air Jet for Gripper

Nanxing Through-feed Drilling Machine with 42 Set of Drill and Line Function NDC702(415V)

Nanxing Through-feed Drilling Machine with Servo Drived NDC642-(415V)

Nanxing Through-feed Drilling Machine with Servo Derived NDC402-(415V)

CNC 6-Sided Drilling Machine with Double Work Station ND712DL(650+650)

CNC 6-Sided Drilling Machine with Double Work Station ND712DL(1200+650)

CNC 6-Sided drilling machine ND512TS(415V)

CNC 6-Sided drilling machine ND512TS

Nanxing Multi Rows Boring Machine NDA402

Woodworking Machinery

Woodworking Machinery

Brands

Machine Importer

Consulting Services

Machine Exporter

Products

Contact Details

2026 | Caple Industrial Solutions | Rights Reserved for price offered, configuration, availability, terms and conditions on the featured products. Please feel free to connect with the team.
