Industrial Wide Profile Sanding Machines
Our wide profile sanding machines deliver high-precision raw material and primer surface sanding for both flat and complex profiled workpieces[cite: 1]. Engineered specifically for continuous industrial production, these automatic brush and roller sanders process solid wood, MDF board, and veneer panels with high consistency[cite: 1]. They are the ideal automated solution for manufacturing kitchen cabinet doors, interior doors, window frames, and modular furniture components[cite: 1].
Key Performance Features
- Heavy-Duty Rigid Frame: Built with a reinforced structural body and corner lifting points to maintain calibration and prevent frame distortion during long-term operation[cite: 1].
- Delta Touchscreen & PLC Automation: Features full PLC control for independent height, speed, and oscillation adjustments per sanding unit, complete with job memory functionality[cite: 1].
- Quick-Change Sanding Units: Pull-out sliding round pad modules allow operators to replace abrasive brushes and sandpaper rapidly, reducing downtime[cite: 1].
- Maintenance-Free Oscillating Guides: Sealed, dust-proof reciprocating guide rails eliminate regular lubrication requirements[cite: 1].
- Integrated Panel Cleaning Unit: Outfitted with an end-stage dust sweeping brush to clean workpieces thoroughly prior to painting, lacquering, or veneer lamination[cite: 1].
- Industrial Electrical Components: Standardized with Delta PLCs/inverters, Schneider electrical elements, Landweil switches, and Yingyi drive motors[cite: 1].
Model Specifications & Configurations

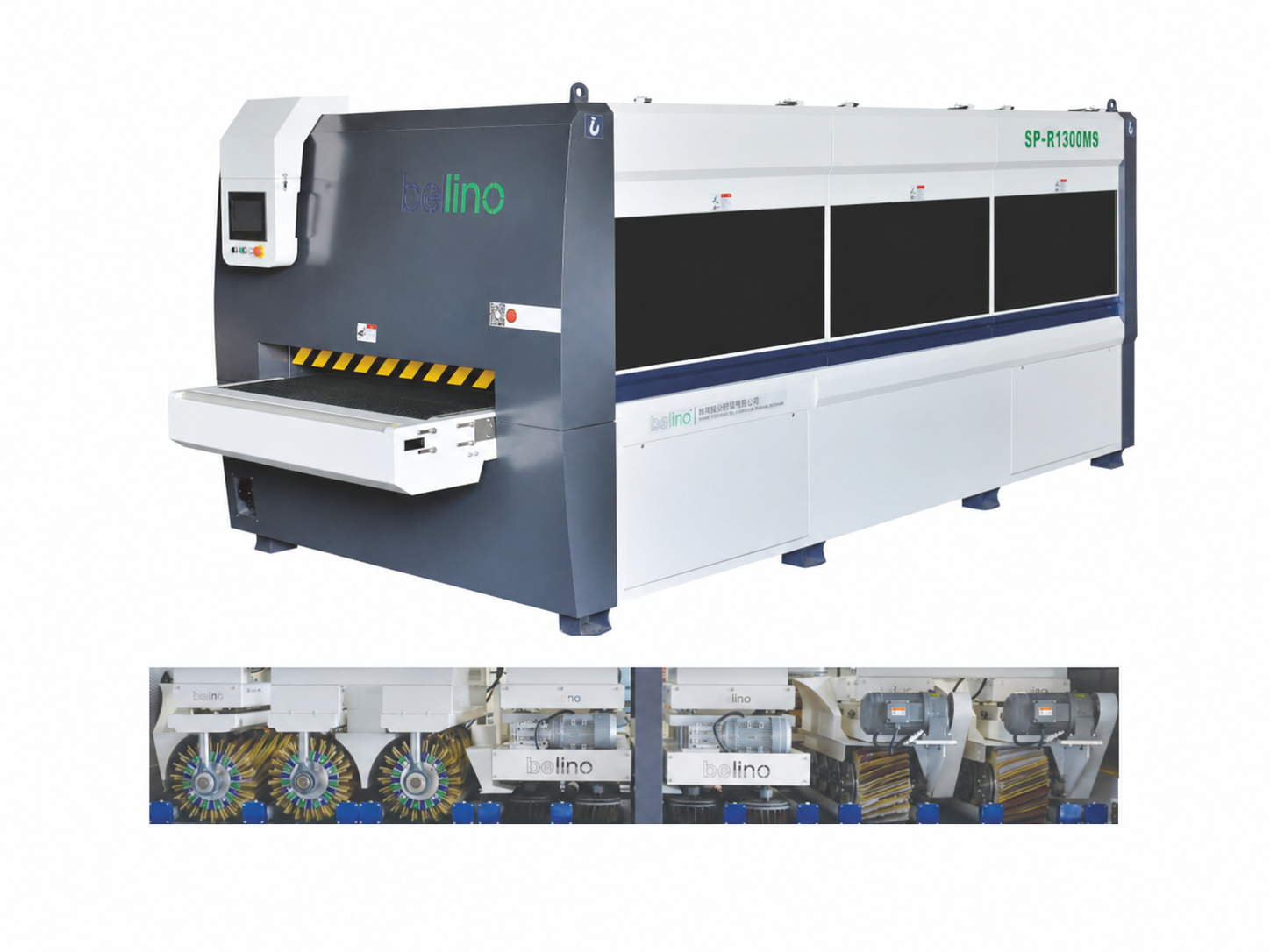

| Model | SP-R1300M4[cite: 1] | SP-R1300M6[cite: 1] | SP-R1300M7[cite: 1] | SP-R1300M9[cite: 1] |
|---|
| Max Processing Width | 1300 mm[cite: 1] | 1300 mm[cite: 1] | 1300 mm[cite: 1] | 1300 mm[cite: 1] |
| Processing Thickness | 10–130 mm[cite: 1] | 10–130 mm[cite: 1] | 10–130 mm[cite: 1] | 10–130 mm[cite: 1] |
| Min Processing Length | 400 mm[cite: 1] | 400 mm[cite: 1] | 400 mm[cite: 1] | 400 mm[cite: 1] |
| Feeding Speed | 1–12 m/min[cite: 1] | 1–12 m/min[cite: 1] | 1–12 m/min[cite: 1] | 1–12 m/min[cite: 1] |
| Main Power | Standard[cite: 1] | 13.5 kW[cite: 1] | 13.95 kW[cite: 1] | 17.25 kW[cite: 1] |
| Machine Dimensions | Compact Line[cite: 1] | 4330 × 2200 × 2100 mm[cite: 1] | 4630 × 2200 × 2100 mm[cite: 1] | 5330 × 2200 × 2100 mm[cite: 1] |
| Machine Weight | Heavy Duty[cite: 1] | 3800 kg[cite: 1] | 4200 kg[cite: 1] | 5200 kg[cite: 1] |
Primary Industrial Applications
- Cabinet Door & Shaker Door Profile Sanding[cite: 1]
- Solid Wood, MDF & Veneer Surface Preparation[cite: 1]
- Sealer, UV, & Primer Intermediate Sanding[cite: 1]
- Window Frames & Architectural Trim Finishing[cite: 1]
